UV Printer For Form Board, Corrugated Box, Acrylic Sheet, Sticker Roll, Bunting

Spot UV Printer For Roll & Sheet Scanext Hybrid 19086

Printing on Roll & Rigid Media:
  • Form Board,
  • Corrugated Carton Box,
  • Acrylic sheet,
  • Synthetic Paper,
  • Tarpaulin,
  • Super transparent stickers,
  • Transparent adhesive,
  • Car stickers,
  • Soft films,
  • Light sheets,
  • Canvas,
  • PET,
  • PVC and other materials

Corrugated Box


PP Form Board


Form Board


Acrylic Sheet


Double Sided Sticker


Light Box Backlit Film Same Color With Light Or Without Light


Light Box Backlit Fabric Same Color With Light Or Without Light


Banner, Roll Up, Backdrop, Car Sticker, A Stand Poster

UV Printer For Roll & Sheet Scanext Hybrid 19086

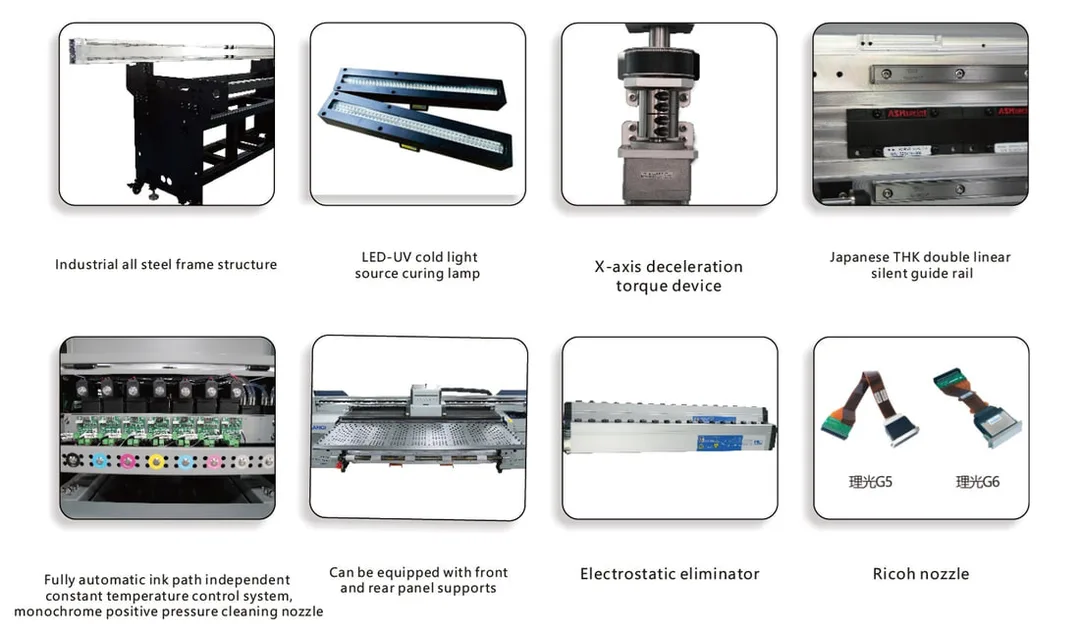

​Features:
  • Printing speed is 54 sqm/h
  • Max Print Thickness: 10mm
  • Fully Automatic Print, Roll Feeder, Auto Collect System and Sheet Form
  • 6 Colors UV Ink
  • Print Width is 1800mm
  • Printing Media: Form Board, Corrugated Carton Box, Acrylic sheet, Synthetic Paper, Tarpaulin, Super transparent stickers, transparent adhesive, car stickers, soft films, light sheets, canvas, PET, PVC and other materials​

Form Board Printer Ricoh Industrial Printhead

  • Specification:​​
  • Brochure
  • Max Printing Width: 1800mm
  • Max Print Thickness: 10mm
  • No of Colour: 6 Colour: C, M, Y, K, V, W
  • Ink Type: UV Ink
  • Print Heads Model: Ricoh Gen5 / Gen6
  • Printing Speed Printhead Ricoh GEN5:
  • Color White Color Pass: 18 sqm/h
  • Color Pass: 54 sqm/h
  • Printing Resolution: 720x1800dpi
  • No of Printhead: 8 units
  • Ink Capacity: 1000ml Per Color
  • Ink Curing System: LED UV
  • Auto feeding & Collecting System: Standard Configuration
  • Printer Media Feed Method: Roll Paper: One Roll, Back Load, Front Output
  • Printer Maximum Media Roll Outer Diameter: 230 mm or less
  • Printing software: Print Factory
  • Support File: BMP, TIF, JPG, PDF, EPS
  • Operating System: Window 10
  • Connectivity: USB 3.0
  • Working Environment: Temperature 20 to 30 degC, Humidity 30% to 60%
  • Printer Dimension: 3550mm(L) x 1300mm (W) x 1450mm (H)
  • Printer Weight: 850kg
  • Power Supply: AC 220V ± 10%, 50/60 HZ,
  • Power Consumption: 2600W
  • What's In the Box: Printer, Printer Stand, Roll Feeder & Auto Collect System, Initial Ink Cartridge, AC Power Cable, Software USB Pen Drive.
  • Warranty: 1 Year
