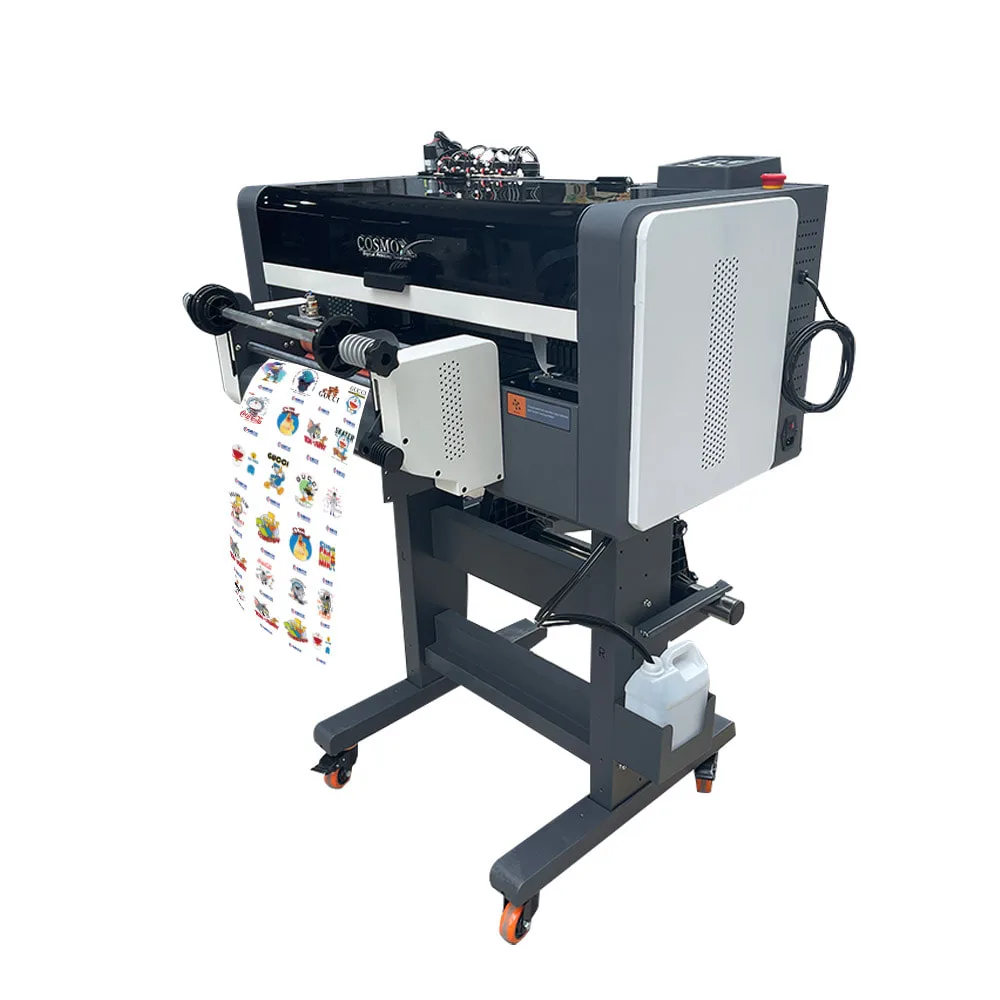

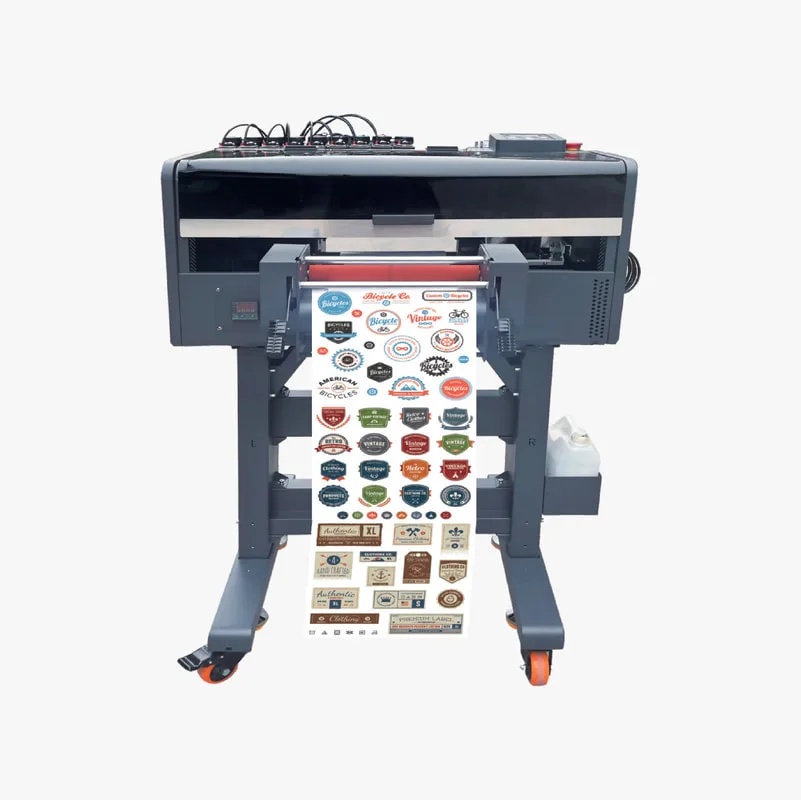

Roll Sticker UV Digital Inkjet Label Printing Machine For PE PP PVC Film

Color Sticker Label Printer Scanext Label 33092

Printing Application:
  • On Demand, Short Run, Express, Event
  • Sample Product
  • Colour Proofing
  • Pressure-sensitive Adhesive Materials
  • Print on Almost All Roll Sticker Material
  • Sticker PET / PP / PVC film, Holographic film

Features:
  • Print on Almost All Roll Sticker Material
  • 9 Colors UV Ink
  • Print Width is 330mm
  • Fully Automatic Print, Roll Feeder, Auto Collect System and Laminate Molding

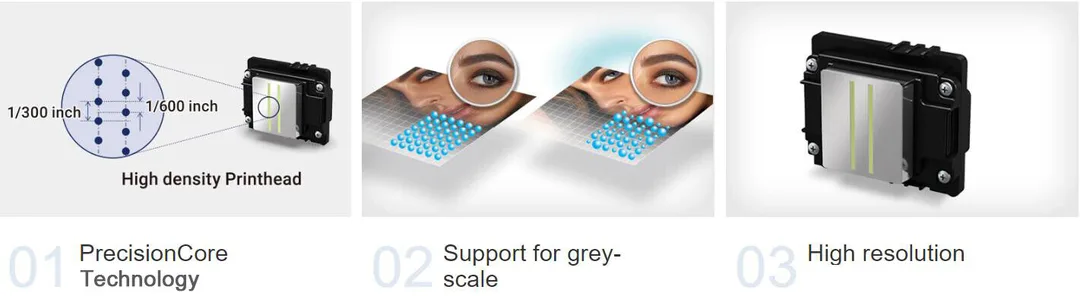

  • Precision Epson Prinhead Technology

Print Speed


Art Card Printer Epson Printhead

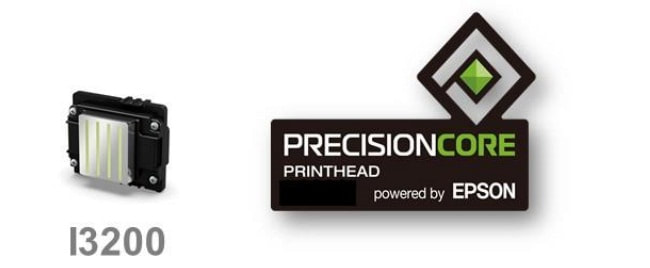

i3200 Epson Printhead Precision Core

  • ​Specification
  • Brochure
  • Max Printing Width: 300mm
  • No of Colour: 9 Colour: C, M, Y, K, Lk, LLK, LC, LM, W
  • Ink Type: UV Ink
  • Printing Media: Pressure-sensitive adhesive materials, special PET/ PP/ PVC film, Holographic film
  • Printer Media Feed Method: Roll Paper: One Roll, Back Load, Front Output  Printer
  • Maximum Media Roll Width: 330 mm
  • Maximum Media Roll Outer Diameter: 230 mm or less
  • Laminate Maximum Media Roll Outer Diameter: 150 mm or less

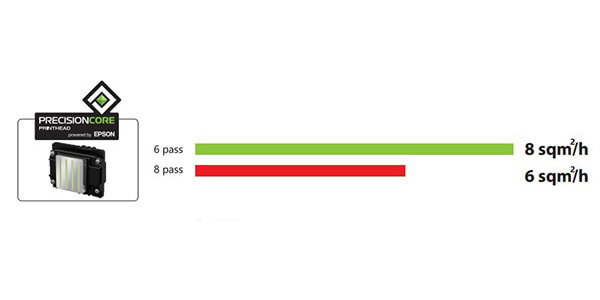

  • Printing Speed:
              6 Pass: 8 sqm/h
              8 Pass: 6 sqm/h
  • Printing Resolution:
              6 Pass: 360x2400dpi
              8 Pass: 360x3600dpi
             12 Pass: 720x2400dpi
  • No of Printhead: 2 units
  • Print Heads Model: Epson I3200(8)-U1HD, Epson I1600-U1
  • Ink Capacity: 500ml Per Color
  • Ink Supply System: White ink circulation, White ink stirring，CISS Ink Supply System
  • Auto feeding & Collecting System: Standard Configuration
  • Printing software: RIIN & Hosonsoft
  • Operating System: Window 7 and above
  • Network Interface: 1000Mbps Ethernet
  • Printhead maintain: Head clean during and after printing, Keep wet system
  • Working Environment: Temperature 15 to 35 DegC, Humidity 40% to 65%
  • Printer Dimension: 970mm(L) x 900mm (W) x 1380mm (H)
  • Printer Weight: 160kg
  • Power Supply: AC 220V ± 10%, 50/60 HZ,
  • Power Consumption: 350W
  • What's In the Box: Printer, Printer Stand, Roll Feeder & Auto Collect System, Initial Ink Cartridge, AC Power Cable, Software USB Pen Drive, Waste Ink Tank.
  • Warranty: 1 Year
