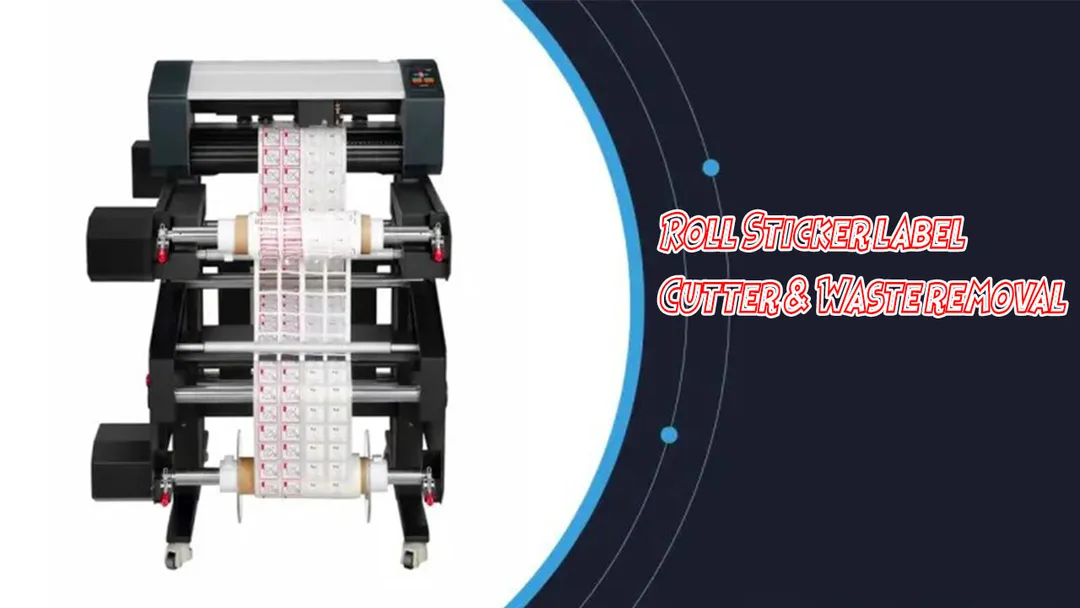

Roll Sticker Label Cutter and Waste Removal

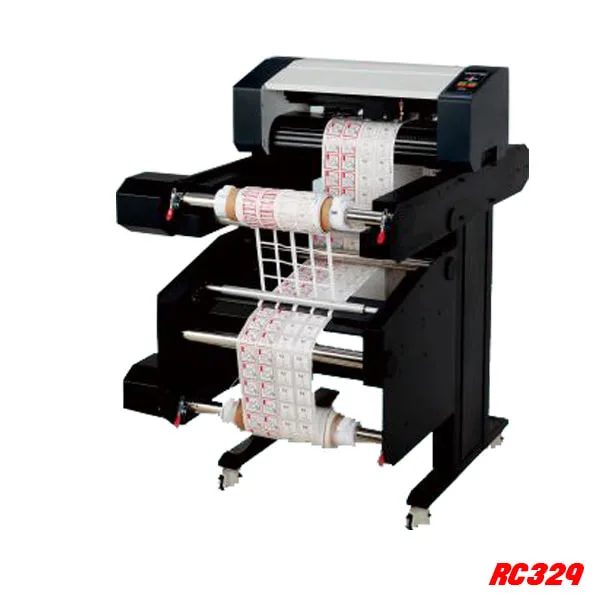

Roll To Roll Sticker Label Cutter Scanext RC329

Description
  • Working with pendrive, more convenient to operate
  • Full Auto feeding and waste removing system, save time and effort
  • Automatic contour cutting, more stable and accurate​
  • ​Big power motor, faster speed with lower noise.

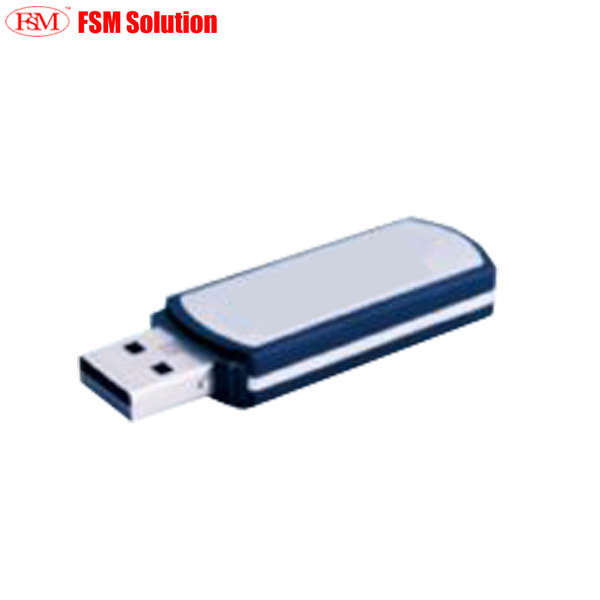

Work Offline with USB Flash

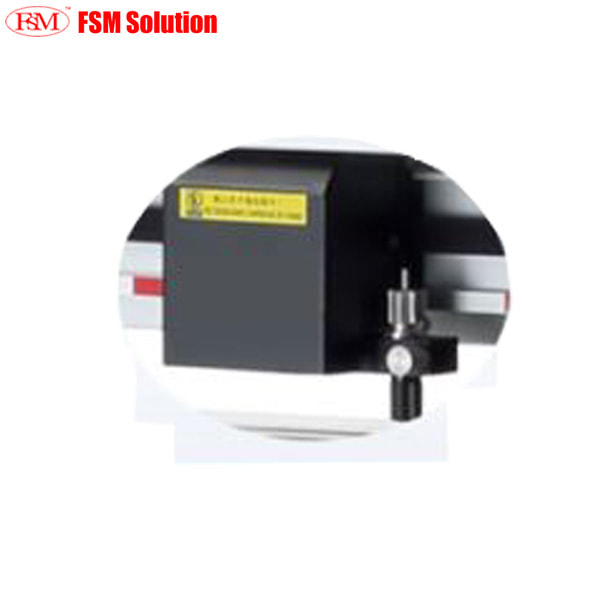

High Definition Carriage

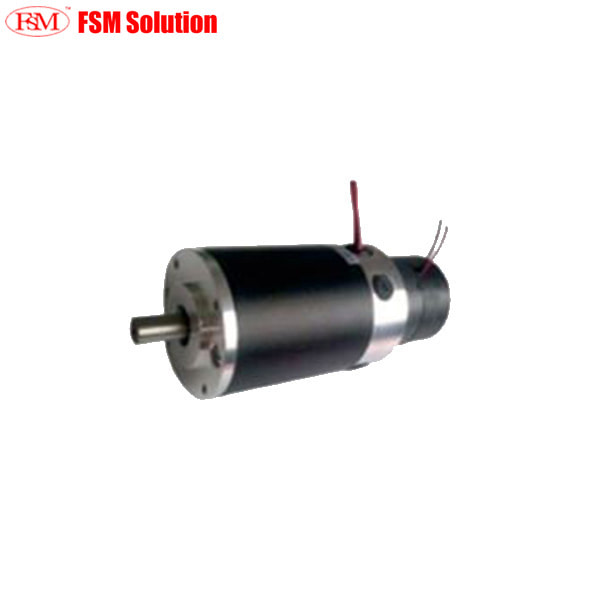

Stepper Motor

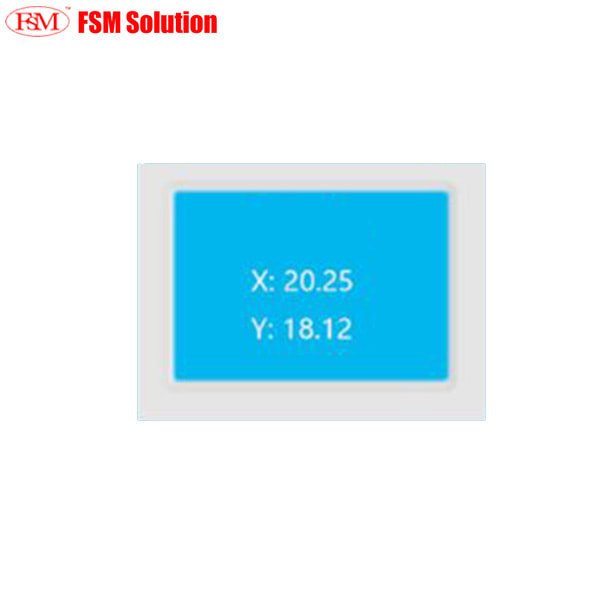

High Definition Screen

  • Specification
  • Brochure
Specification
Model RC329
Media Way Auto Paper Feeding
Mainboard 32 ARM7 CPU, 128Mb, CACHE 32-bit ARM7 CPU, 128Mb, High-speed CACHE memory
Control Panel 10 + 3.0 LED 10 membrane buttons+LCD Screen
Driver High Speed, Step Motor
Maximum Cutting Area Unlimited Length*329mm width
Maximum Cutting Speed 500mm/s
Cutting Force 10-1000g (Digital Adjustment)
Mechanical Precision 0.025mm
Repeatable Precision <+-0.025mm< />d>
Type of Plotter Pen All types diameter 11.4mm Plotter Pen
Plotter Instructing Compatible DM / PL, HP / GL
Interface USB / U disk / Serial Port
Power Supply AC220V / 110V, 50~60Hz
Power Consumption <80w< />d>
Knife (Blade) Imported Hardness Alloy Steel Blade
Operating Environment Temperature : 5-35C, Relative Humidity : 30% - 70%
Package Size 126*92*136mm
Gross Weight 160KG
Roll Sticker Label Cutter Vol. 1
Roll Sticker Label Cutter Vol. 2
