44 Inch Large Poster Printer 7 Colour Orange

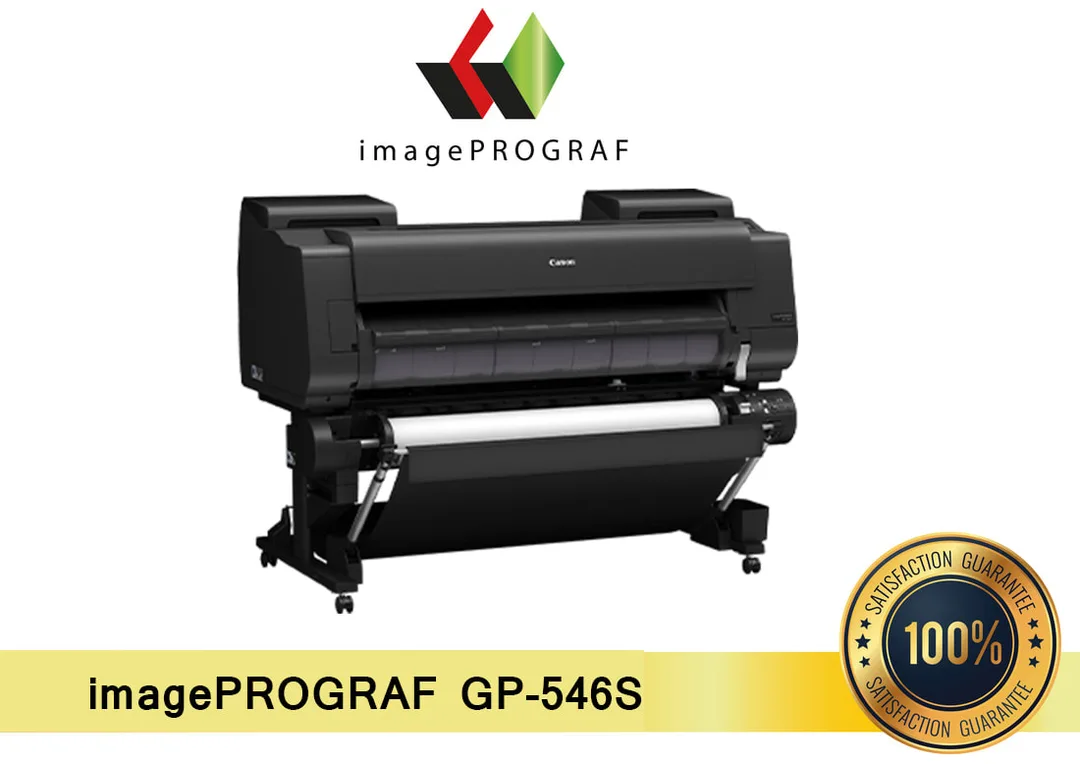

Canon imagePROGRAF GP-546S

Canon imagePROGRAF GP-546S

A1 AO printer Canon TX5300 is a 36 inch AO printer engineered to deliver amazing print speed with sharp reproduction of lines and text even on uncoated paper
A1 AO printer Canon TX5300 is a 36 inch AO printer engineered to deliver amazing print speed with sharp reproduction of lines and text even on uncoated paper
Take Your Prints to New Heights

Elevate every printout using Canon’s latest GP series printers. Equipped with impressive new technology and ink capabilities, discover reliable, vibrant results with superior image quality for photos, posters, and other types of media.
  • Perfect for photo and poster printing
  • LUCIA PRO II 7-colour pigment ink
  • 44” / 1,118 mm
  • 500 GB Encrypted Hard Disk Drive
  • Robust security, extensive suite of software and solutions
  • Impressive media handling system
  • Multifunction roll system
  • Full network connectivity and Direct USB Printing
  • Specification
  • Manual Book
Printer
Printer Type 7 Colour, 44", 1,118 mm
Number of Nozzles 18,432 nozzles
Maximum Print Resolution 2,400 x 1,200 dpi
Nozzle Pitch 600 dpi × 2 lines
Line Accuracy ± 0.1 % or less
Minimum Ink Droplet Size Minimum 4 picolitre per colour
Ink Capacity Sales Ink: 160 ml / 330 ml / 700 ml
Bundled Starter Ink: 330 ml
Ink Type Pigment Ink: Matte Black, Photo Black, Cyan, Magenta, Yellow, Grey, Orange
Printer Languages SG Raster (Swift Graphic Raster), PDF (Ver. 1.7), JPEG (Ver. JFIF1.02)
Standard Interfaces (Built-in) USB A Port:
USB Memory (Direct Print)

USB B Port:
Built in Hi-Speed USB
Full Speed (12 Mbit/sec), Hi-Speed (480 Mbit/sec), Bulk Transfer Series B (4 pins)

Gigabit Ethernet:
IEEE802.3ab (1000 Base-T)
IEEE802.3u (100 Base-TX)
IEEE802.3(10 Base-T)
SNMP (Canon-MIB)
HTTP
TCP/IP (IPv4/IPv6)
FTP

Wireless LAN:
IEEE802.11n/g/b
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
WPA3-SAE (AES)
WPA-EAP (AES)
WPA2-EAP (AES)
WPA3-EAP (AES)
Standard Memory 3 GB
Hard Disk 500 GB (Encrypted)
Printing Speed
Heavyweight Coated Paper HG (A0) 2 min 24 sec
Glossy Photo Paper HG (A0) 4 min 44 sec
Dimensions & Weight
Packaged Dimensions
(W x D x H)
Weight
 Main Unit + Pallet:
1,820 x 915 x 1,042 mm
Approx. 181 kg

Roll Unit:
1,727 x 562 x 461 mm
33 kg
Dimensions (W x D x H)
Weight (including Roll Holder Set, excluding ink and print head)/td> 		Main Unit:
1,110 × 734 × 628 mm
Approx. 83 kg

Main Unit + Stand + Basket:
1,110 × 984 × 1,168 mm (Basket Opened)
1,110 × 766 × 1,168 mm (Basket Closed)
Approx. 100 kg
Media Handling
Media Feed and Output (Single Roll) Roll Paper: Upper Load, Front Output Added Roll Paper: Front Load, Front Output

Cut Sheet: Front Load, Front Output
(Manual Feed using Media Locking Lever)
Media Width (Roll / Cut Sheet) 152.4 ~ 1,118 mm
Media Thickness (Roll / Cut Sheet) 0.07 ~ 0.8 mm
Minimum Printable Length Roll Paper:
101.6 mm (exclude Cloth and Canvas media)

Cut Sheet:
203.2 mm
Maximum Printable Length Roll Paper:
18 m (varies according to OS and application)

Cut Sheet:
1.6 m
Maximum Outer Roll Diameter 170 mm or less
Borderless Printing Width (Roll Only) Recommended:
515 mm (B2), 728 mm (B1), 1,030 mm (B0), 594 mm (A1), 841 mm (A0), 10", 14", 17", 24", 36", 42", 44“

Printable:
257 mm (B4), 297 mm (A3), 329 mm (A3+), 364 (B3), 420 mm (A2), 6", 8", 12", 16", 20", 22", 30", 34”, 300 mm, 500 mm, 600 mm, 800 mm, 1,000 mm.
Other than above, free size borderless printing is supported on only roll paper by user definition.
Power & Operating Requirements
Power Supply AC 100 - 240 V, 50 - 60 Hz
Power Consumption Printing: Approx. 94 W
Sleep Mode: Approx. 1.7 W
Power Off: Approx. 0.1 W
Operating Environment Temperature: 15 ~ 30°C
Humidity: 10 ~ 80% RH (no dew condensation)
Acoustic Sound [Acoustic Pressure]
Operation: Approx. 49 dB (A)
(Glossy Paper - Image; Print Priority - Standard)

Standby: Approx. 35 dB (A) or less

[Acoustic Power]
Operation: Approx. 66 dB
(Glossy Paper - Image; Print Priority - Standard)
(Measured using ISO 7779 standard)
Accessories
Roll Unit (Optional) RU-43
2"/3" Roll Holder (Optional) RH2-46
  • ​ Please refer to individual country / region websites and respective sales offices for product availability.
  •  Specifications, availability and terms of offers may change without notice.
  •  Products / Services may be manufactured by and/or supplied to us by third party manufacturers / suppliers for distribution / resale (non-Canon brand products).

Features

Vibrant Quality that Shines
​
Enhance your photo and poster colour expressions with the printer’s new vibrant orange and grey inks which enhances colour accuracy and smoother colour transitions within the image.

User Friendly Design and Operation
​
 On top of translucent covers for flush wall installation, it also allows direct printing from USB, and the built-in hard drive facilitates reprinting without a computer. Additionally, the smart roll feature automates feeding, detects media types, and tracks remaining amounts seamlessly.
Enhanced Durability for Prints

LUCIA PRO II ink improves the light resistance and preserves vibrant colours for extended storage, preventing fading. Rest assured about the safety of photos and posters on glossy media types, as the printer’s scratch-resistant capability shields them from potential damage during printing and handling.

Technologies

LUCIA PRO II Ink

​With the new LUCIA PRO II pigment ink system, prints are more vibrant than ever and true-to-life – providing enhanced image quality for both photo and poster printing.
FINE Print Head

Get rich and grain-free photo quality image with minimum ink droplets and high printing resolution for lab-quality printouts.
L-COA PRO Processor

​The L-COA PRO imaging processor swiftly processes large image data, ensuring both high printing speed and supreme print quality. This drives higher printing speed and supreme print quality.
Ink Ejection Status Monitoring

​Featuring an advanced ink sensing system prevents colour shifts by regular monitoring of ink ejections, preserving high-quality images without deterioration
Non-Firing Detection and Compensation System

​Featuring a built-in sensor, the system detects and compensates for non-firing ink nozzles. When a blockage is identified, an alternate nozzle automatically serves as backup, preventing printing failures like banding and reducing the need for frequent head cleaning.

Workflow Solutions

​PosterArtist
​​
Create professional-looking posters effortlessly with a wide variety of creative offered by PosterArtist Web.

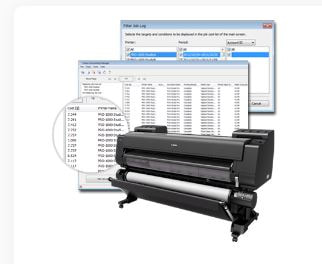

Accounting Manager

​Track ink and media usage for cost calculation and reporting.

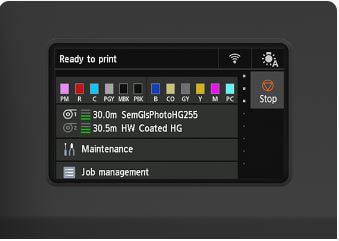

Media Configuration Tool

​Easily manage, update and arrange media information in printer’s wider operation panel and printer driver.
  • Device Management Console - Effectively manages multiple printers, monitor activities such as error messages and printer information up to 50 printers.
  • Quick Utility Toolbox - Quick access to supporting utilities and settings. From printer information, speed dial and destination folder settings to scanning and cloud sharing.
  • Professional Print and Layout - This software offers features such as auto nesting of images, printing of Exif data and print settings, pattern printing, enhanced layout functions and soft proofing.
  • Free Layout Plus - Enjoy nesting, tiling and duplex printing features. ​​​​​​
  • Apple AirPrint - Print PDF files wirelessly via mobile app for Apple iPad® and iPhone®. ​​​​​​
  • Direct Print Plus - Job submission tool which supports batch printing of multiple file types, shortcut printing function and job presets, enabling efficient large format printing workflow.
  • Canon Print Service - Direct document and photo printing via mobile app from Android devices without the need to download any printer-specific applications. ​​​​
  • Canon Print - Print PDF files wirelessly via mobile app for Android tablet and smartphone.
Accessories

Roll Unit: RU-43 (Optional)
2"/3" Roll Holder: RH2-46 (Optional)
