imageFORCE C3122 / C3126 / C3130 / C3135
Core product specifications.
DetailsSpecificationsVideoBrochure
- Machine type: A3 colour multifunction printer: Print, Copy, Scan, Send; optional fax.
- Print speed: C3122 up to 22 ppm; C3126 up to 26 ppm; C3130 up to 30 ppm; C3135 up to 35 ppm (all A4).
- Display: 10.1-inch TFT LCD WSVGA colour touch panel.
- Memory / storage: 5.0 GB RAM; 256 GB SSD standard; optional 1 TB.
- Print resolution: Up to 4,800 × 2,400 dpi with Canon’s OLED D² Exposure technology.
- Paper input: 1,200 sheets standard, expandable with Cassette Feeding Unit-BB1.
- Document feeder: 2-Sided Single Pass Feeder, up to 200 sheets.
- Dimensions / weight: 565 × 745 × 897 mm (W × D × H) with feeder; approx. 87 kg excluding toner cartridge.
Core HardwarePaper HandlingPhysical & PowerSoftware, Security & FaxOptional Finishing
| Specification | Canon imageFORCE C3122 / C3126 / C3130 / C3135 |
|---|
| Machine type | A3 colour multifunction printer: Print, Copy, Scan, Send; optional fax. |
| Print speed (A4) | C3122: up to 22 ppm. C3126: up to 26 ppm. C3130: up to 30 ppm. C3135: up to 35 ppm. |
| Print speed (A3) | C3135: up to 17 ppm. C3130 / C3126 / C3122: up to 15 ppm. |
| First copy time (A4) | C3135: approx. 5.5 seconds (BW) / 7.4 seconds (colour). C3130 / C3126 / C3122: approx. 6.1 seconds (BW) / 8.4 seconds (colour). |
| Display | 10.1-inch TFT LCD WSVGA colour touch panel. |
| Memory / storage | 5.0 GB RAM; 256 GB SSD standard; optional 1 TB. |
| Print resolution | Up to 4,800 × 2,400 dpi, using Canon’s OLED D² Exposure technology. |
| Print languages | UFR II, PCL 6 / PCL 5 standard; Adobe PostScript 3 optional. |
| Specification | Canon imageFORCE C3122 / C3126 / C3130 / C3135 |
|---|
| Paper input | Standard: dual 550-sheet paper cassettes + 100-sheet multi-purpose tray (1,200 sheets total). Optional Cassette Feeding Unit-BB1 adds two further 550-sheet drawers. |
| Document feeder | 2-Sided Single Pass Feeder, duplex scanning, up to 200 sheets capacity. |
| Scan resolution | 600 × 600 dpi, 600 × 300 dpi, or 300 × 300 dpi. |
| Copy resolution | 600 × 600 dpi; multiple copies up to 999; magnification 25% to 400% in 1% increments. |
| Original size | Maximum 297.0 × 431.8 mm (11″ x 17″) on the platen. |
| Specification | Canon imageFORCE C3122 / C3126 / C3130 / C3135 |
|---|
| Dimensions / weight | 565 × 745 × 897 mm (W × D × H) with 2-Sided Single Pass Feeder; approx. 87 kg excluding toner cartridge. With Platen Cover-Y instead: 565 × 745 × 788 mm; approx. 73 kg. |
| Power consumption | Maximum approx. 1,500 W. Sleep mode approx. 0.5 W (Low setting). |
| Warm-up / sleep recovery | Approx. 30 seconds after powering on; approx. 10 seconds recovering from sleep mode. |
| Environmental conditions | Temperature 10°C to 30°C; humidity 20% to 80% RH (no condensation). |
| Maximum occupancy space | 894 × 745 mm (W × D) with multi-purpose tray extended. |
| Specification | Canon imageFORCE C3122 / C3126 / C3130 / C3135 |
|---|
| Mobile & cloud | AirPrint, Mopria, IPP Everywhere, Canon PRINT, uniFLOW Online, Cloud Connector and Universal Print. |
| Network | Standard 1000Base-T / 100Base-TX / 10Base-T; optional Wireless LAN (IEEE 802.11 a/b/g/n/ac/ax). |
| Interfaces | USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1; optional Serial Interface and Copy Control Interface. |
| Fax (optional) | Available as an optional add-on; ask FSM Solution to confirm the required fax board for this configuration. |
| Security | Smart, AI-enabled security features with layered authentication, encryption and network protection, consistent with the wider imageFORCE range. |
| Specification | Canon imageFORCE C3122 / C3126 / C3130 / C3135 |
|---|
| Staple Finisher-AH1 (optional) | Total output capacity of 3,250 sheets. Corner and double margin stapling, eco-staple up to 10 sheets, staple on demand up to 50 sheets. Includes saddle-stitching and folding. |
| Cassette Feeding Unit-BB1 (optional) | Adds two further 550-sheet drawers for expanded paper capacity. |
Applications
Designed for medium-sized colour workgroups.
The imageFORCE C3100 series is built for offices that need dependable A3 colour output at a speed tier matched to their team size.
Growing offices
- Regular A3/A4 colour document needs
- Room to step up speed tiers as volume grows
- Flexible paper and finishing requirements
Marketing & client-facing teams
- High-resolution colour output for proposals and materials
- Batch scanning with the 200-sheet duplex feeder
- Scan-to-cloud and network folder workflows
Managed office environments

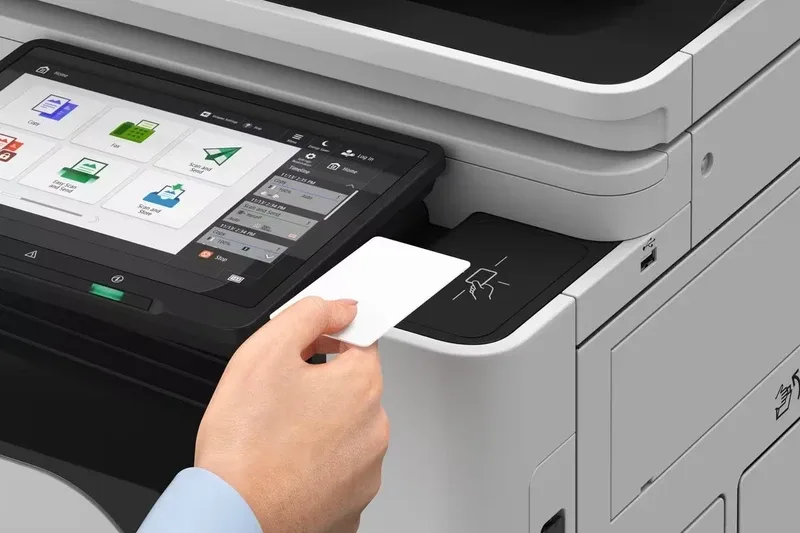

- AI-enabled security features and layered authentication
- Network, Wi-Fi and mobile print support
- Optional trays and finishing configuration
Why businesses choose imageFORCE
A speed tier for every stage of growth.
Connectivity
Network, Wi-Fi & USB
Standard Gigabit Ethernet, optional wireless LAN IEEE 802.11 a/b/g/n/ac/ax, USB 2.0 and USB 3.0 host ports.
Mobile & cloud
Print from more places
Supports AirPrint, Mopria, IPP Everywhere, Canon PRINT, uniFLOW Online, Cloud Connector and Universal Print.
Image quality
OLED D² Exposure technology
Delivers print resolution up to 4,800 × 2,400 dpi — among the highest in the enterprise A3 colour segment.
Input expansion
More paper on hand
Add Cassette Feeding Unit-BB1 for two further 550-sheet drawers beyond the 1,200-sheet standard capacity.
Finishing
Present documents professionally

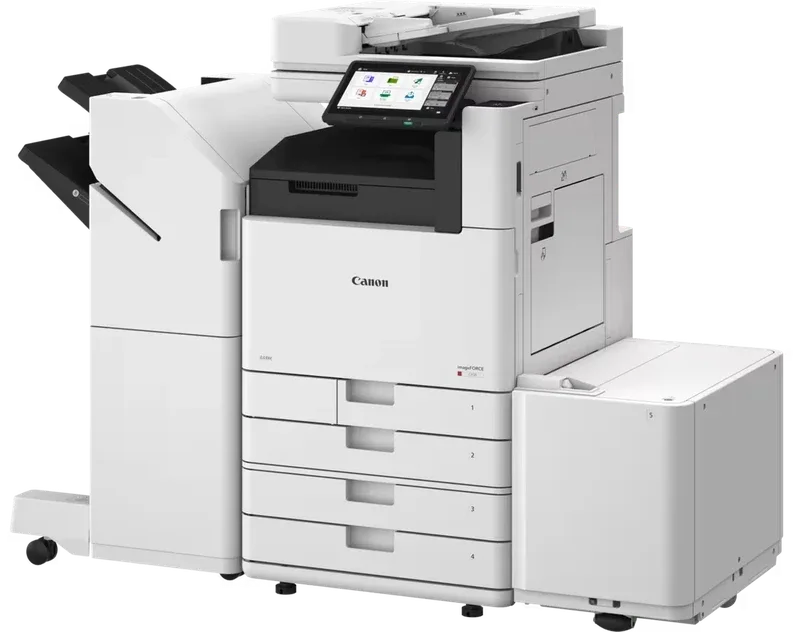

Optional Staple Finisher-AH1 supports up to 3,250-sheet total output capacity, corner/double stapling, and saddle-stitching with folding.
Growth path
Four speed tiers, one platform
Start with C3122 at 22 ppm and know exactly what C3126, C3130 or C3135 offer if your volume grows — same core platform throughout.
Optional hardware, software, finishing functions and cloud features are subject to configuration and local availability. Confirm the final configuration with FSM Solution before ordering.
Detailed product features
More than a printer — a colour document hub.
The Canon imageFORCE C3100 series combines high-resolution colour printing, copying, scanning and document sending, built on a smart, AI-enabled platform.
01
A3 colour productivity
Handle A3, A4 and a wide range of media from a machine measuring 565 × 745 × 897 mm.
02
Scan batches efficiently

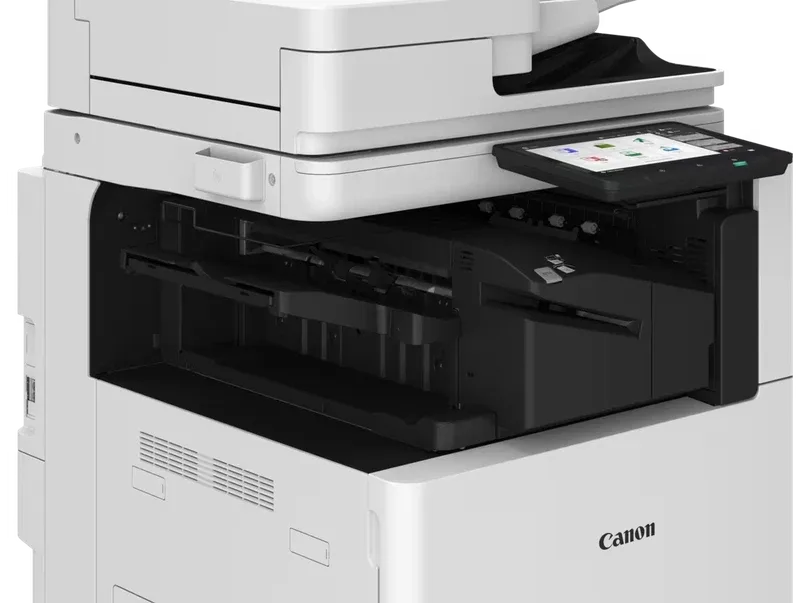

The 2-Sided Single Pass Feeder holds up to 200 sheets and scans both sides in a single pass.
03
Flexible paper routes
Use the standard 1,200-sheet capacity, or expand further with the optional cassette feeding unit.
04
Ready for connected work
Gigabit Ethernet, wireless LAN, USB, mobile printing and cloud workflow options support modern teams.
05
AI-enabled security
Smart, AI-enabled security features help protect sensitive business information from unauthorised access.
06
Professional finishing options
Add the Staple Finisher-AH1 for stapling, saddle-stitching, folding and higher output capacity where required.
Quotation options
Help us recommend the right configuration.
For a faster and more accurate quotation, share the following details with our team.
1. Workload
Estimated monthly colour and mono print volume, number of users, and peak-period requirements.
2. Speed tier
Which of C3122 (22 ppm), C3126 (26 ppm), C3130 (30 ppm) or C3135 (35 ppm) best fits your current and expected volume.
3. Paper & finishing
A3 usage, required paper types, additional trays, stapling, saddle-stitching or folding needs.
Comparison overview
Choose the speed that matches your workload.
All four models share the same core platform and paper-handling capability. The key difference is their A4 print and copy speed.
| Model comparison | C3122 | C3126 | C3130 | C3135 |
|---|
| A4 print / copy speed | Up to 22 ppm | Up to 26 ppm | Up to 30 ppm | Up to 35 ppm |
| A3 print / copy speed | Up to 15 ppm | Up to 15 ppm | Up to 15 ppm | Up to 17 ppm |
| First-copy-out time (colour) | 8.4 seconds | 8.4 seconds | 8.4 seconds | 7.4 seconds |
| Weight (with feeder) | Approx. 87 kg, excluding toner cartridge |
| Document feeder | 2-Sided Single Pass Feeder, up to 200 sheets |
