Best Large Format Printer For Print Art Card Box

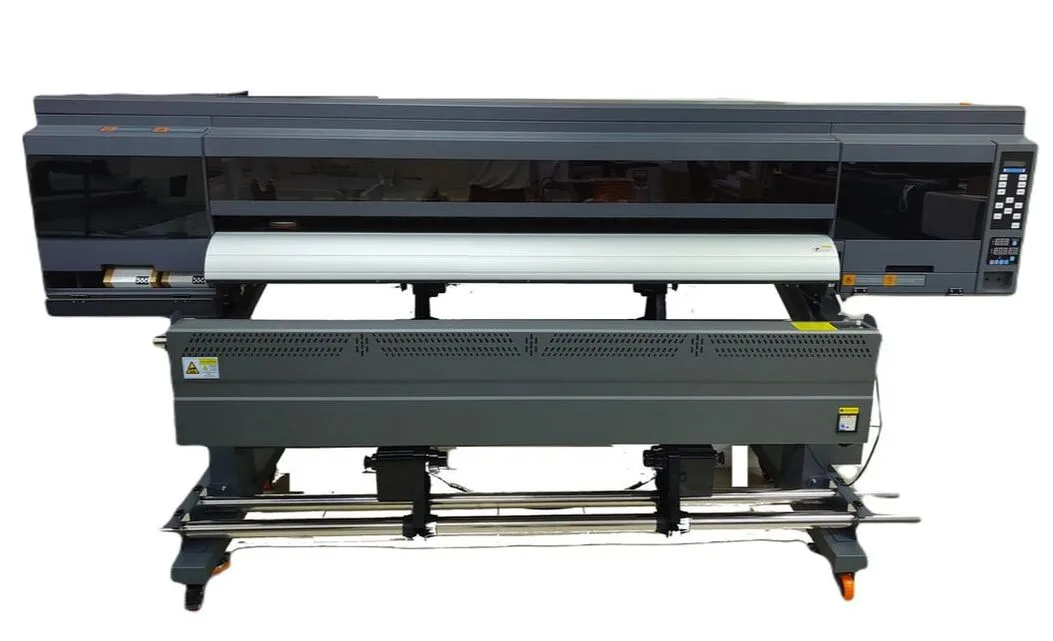

Roll Coated Art Card Printer Scanext AC 16082

Printing Application:
  • On Demand, Short Run, Express, Event
  • Sample Product
  • Colour Proofing
  • Art Card Packaging Box
  • Corporate Folder
  • Paper Bag
  • Sticker Label
  • Large Photo, Canvas
  • Point of Sales Poster, Large Wobbler, Notice
  • Banner, Bunting
  • Long Fold Brochure
  • Engineering Technical Drawing, Map, Blueprint
  • Hang Tag, Bookmark
  • Book Cover, Book Jacket

Packaging Box


Corporate Folder


Paper Bag

Features:
  • Print On Coated & Uncoated Roll Art Card
  • Wider Colour Gamut by 8 colour Inks
  • High Resolution 1440 dpi
  • Accurate & Sharp Line
  • Printable Width is 1600mm
  • Water Resistant Ink
  • Precision Epson Prinhead Technology

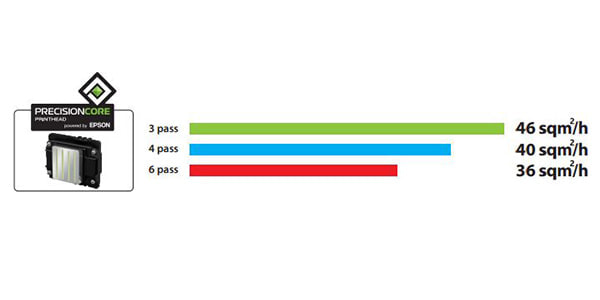

Print Speed

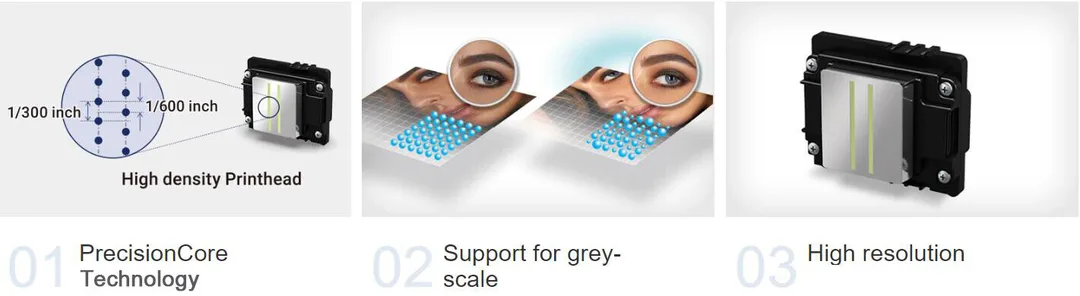

Art Card Printer Epson Printhead

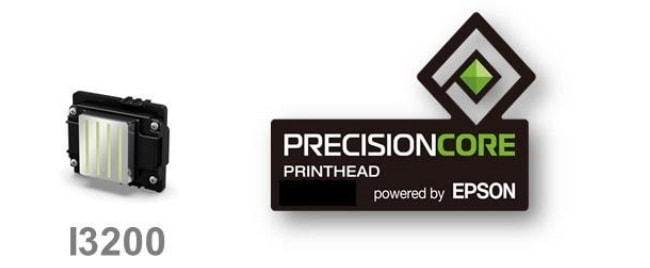

i3200 Epson Printhead Precision Core

  • Specification
  • Brochure
  • Printable Width: 330 to 1600mm / 13 to 63 Inch
  • Material Type: Coated & Uncoated, Art Card, Art Paper, Silver & Gold Card, Texture Card,  Canvas, Synthetic Paper, Simili Paper, Tracing Paper, Linen Paper, Craft Paper, Grey Box Board, Wall Paper, Photo Paper, Sticker, Transfer Paper, Light Box Film, PVC,
  • Paper Weight: 60 to 450gsm
  • No of Colour: 8 Colors: C, M, Y, K, LC, LK, LLK, LM.
  • ​Printing Technology: Piezoelectric Inkjet
  • Resolution: 540dpi, 720dpi, 1440dpi
  • Print Speed:
            3 Pass 720x540dpi: 46 sqm/h
            4 Pass 720x720dpi: 40 sqm/h
            6 Pass 720x1800dpi: 36 sqm/h
  • Prinhead: PreciousCore EPSON i3200(4)-A1
  • No of Printhead: 2 units
  • Ink Capacity: 1000ml
  • Ink Type: Inkjet Water-Based
  • Ink Supply System: CISS Ink Supply System
  • ​Three Heating Sections: Pre Heater, Printing Bed Heater, Rear Heater (30 to 65 DegC)
  • Auto feeding & Collecting System: Standard Configuration
  • Media Feed Method:
             Roll Paper: One Roll, Back Load, Front Output
             Cut Sheet: Upper Load, Front Output
             (Manual feed using media locking lever)
  • Maximum Media Roll Outer Diameter: 230 mm or less
  • Media Heating System: Infrared Dryer & Fan System
  • Software: RIIN & Hosonsoft
  • Operating System: Window 7 and above.
  • Network Interface: 1000Mbps Ethernet
  • Working Environment: Temperature 15 to 35 DegC, Humidity 40% to 65%
  • Printer Dimension: 2690mm (L) x 830mm (W) x 1680mm (H)
  • Printer Weight: 280kg
  • Power Supply: AC 220V ± 10%, 50/60 HZ,
  • Power Consumption: Printer 350W, Dryer 3600W
  • What's In the Box: Printer, Printer Stand, Roll Auto feeding & Collecting System, Initial Ink Cartridge, AC Power Cable, Software USB Pen Drive, Waste Ink Tank.
  • Warranty: 1 Year
