Basic Specifications / Copy Function







​

Type: Console
Memory capacity: 4 GB (Max: 4 GB)
Storage Device Capacity (The Storage Device Capacity is not totally available for customers): 128 GB
Colour Capability: Full colour
Scan Resolution: 600 x 600 dpi
Printing Resolution: 1200 x 2400 dpi (Text-Photo / Photo), 600 x 600 dpi (Text / Map)
Warm-up Time:

• [Embedded Plug-ins / Custom Services] (Embedded Plug-ins / Custom Services are enabled as factory default. You can change the settings if needed)
• When enabled: 30 seconds or less (23 degrees Celsius room temperature)
• When disabled: 24 seconds or less (23 degrees Celsius room temperature)

Recovery Time (Recovery Time from Sleep mode):

• C7070 & C6570: 13 seconds or less (23 degrees Celsius room temperature)
• C5570 & C4570: 11 seconds or less (23 degrees Celsius room temperature)
• C3570 & C3070: 5 seconds or less (23 degrees Celsius room temperature)

Original Size: Maximum of A3, 11 x 17", 297 x 432 mm for both Sheet and Book
Paper Size:

• Max: SRA3 (320 x 450 mm), 12 x 18" (305 x 457 mm), A3 [12 x 19" (305 x 483 mm), 320 x 483 mm when using Bypass Tray]
• Min: A5, Postcard (100 x 148 mm) [89 x 98 mm when using Bypass Tray]
• Image loss width (Up to A3 size): Lead edge 4.0 mm, Trail edge 2.0 mm, Right/Left edge 2.0 mm

Paper Weight (It is recommended to use our recommended paper. Correct print output may not be possible depending on the requirement):

• Paper Tray: 52 to 300 gsm
• Bypass Tray: 52 to 300 gsm

First Copy Output Time:

• B/W (A4 LEF / Monochrome priority mode): C7070: 3.3 sec.,  C6570: 3.3 sec.,  C5570: 3.7 sec., C4570: 4.4 sec., C3570: 4.9 sec.,  C3070: 4.9 sec.
• Colour (A4 LEF / Colour priority mode): C7070: 4.1 sec.,  C6570: 4.1 sec.,  C5570: 5.2 sec., C4570: 5.7 sec., C3570: 6.7 sec.,  C3070: 6.7 sec.

Continuous Copy Speed (The speed may be reduced due to the image quality adjustment):

• A4 LEF/ JIS B5 LEF: C7070: B/W: 70 ppm Colour:70 ppm, C6570: B/W: 65 ppm Colour:65 ppm, C5570: B/W: 55 ppm Colour:55 ppm, C4570: B/W: 45 ppm Colour:45 ppm, C3570: B/W: 35 ppm Colour:35 ppm, C3070: B/W: 30 ppm Colour:30 ppm
• A4 / JIS B5: C7070: B/W: 50 ppm Colour:50 ppm, C6570: B/W: 47 ppm Colour:47 ppm, C5570: B/W: 40 ppm Colour: 40 ppm, C4570: B/W: 32 ppm Colour:32 ppm, C3570:,B/W: 27 ppm Colour:27 ppm, C3070: B/W: 23 ppm Colour:23 ppm
• JIS B4: C7070: B/W: 41 ppm Colour:41 ppm, C6570: B/W: 38 ppm Colour:38 ppm, C5570: B/W: 32 ppm Colour:32 ppm, C4570: B/W: 26 ppm Colour:26 ppm B/W: 23 ppm, C3570: Colour:23 ppm, C3070: B/W: 20 ppm Colour:20 ppm
• A3: C7070: B/W: 35 ppm Colour:35 ppm, C6570: B/W: 32 ppm Colour:32 ppm, C5570: B/W: 27 ppm Colour:27 ppm, C4570: B/W: 22 ppm Colour:22 ppm, C3570: B/W: 19 ppm Colour:19 ppm, C3070: B/W: 17 ppm Colour:17 ppm

Paper Tray Capacity (80 gsm paper):

• Standard: 4 Tray Model: 520 sheets x 4-tray + Bypass Tray 90 sheets, Tandem Tray Model: 520 sheets x 2-tray + 840 sheets + 1230 sheets + Bypass Tray 90 sheets
• Optional: High Capacity Feeder B1: 2000 sheets, High Capacity Feeder B2: 2940 sheets
• Max: 4 Tray Model: 5110 sheets (4 Tray Model + High Capacity Feeder B2), Tandem Tray Model: 6140 sheets (Tandem Tray Model + High Capacity Feeder B2)

Output Tray Capacity (70 gsm paper): Upper Center: 250 sheets (A4 LEF), Lower Center: 250 sheets (A4 LEF)
Power Supply: AC220-240 V +/- 10 %, 10 A, 50/60 Hz common
Maximum Power Consumption:

• C7070 & C6570: 2.2 kW (AC220 V +/- 10 %) 2.4 kW (AC240 V +/- 10 %) Sleep mode: 0.5 W (AC230 V) Ready mode: 106 W (AC230 V)
• C5570 & C4570: 2.2 kW (AC220 V +/- 10 %) 2.4 kW (AC240 V +/- 10 %) Sleep mode: 0.5 W (AC230 V) Ready mode: 90 W (AC230 V)
•  C3570 & C3070: 2.2 kW (AC220 V +/- 10 %) 2.4 kW (AC240 V +/- 10 %) Sleep mode: 0.5 W (AC230 V) Ready mode: 57 W (AC230 V)

Dimensions:

• C7070 & C6570: W 658 x D 790 x H 1169 mm
• C5570 & C4570: 4 Tray Model (DADF B2-PC): W 658 x D 720 x H 1119 mm 4 Tray Model (DADF C2-PC): W 658 x D 790 x H 1169 mm Tandem Tray Model (DADF B2-PC): W 658 x D 720 x H 1119 mm Tandem Tray Model (DADF C2-PC): W 658 x D 790 x H 1169 mm
•  C3570 & C3070: W 633 x D 677 x H 1119 mm

Weight (Excluding Toner Cartridge):

• C7070 & C6570: 156 kg
• C5570 & C4570: 4 Tray Model (DADF B2-PC): 129 kg 4 Tray Model (DADF C2-PC): 146 kg Tandem Tray Model (DADF B2-PC): 136 kg Tandem Tray Model (DADF C2-PC): 156 kg
•  C3570 & C3070: 124 kg

​Duplex Automatic Document Feeder B2-PC




​

Original Size / Paper Weight:

• Max: A3, 11 x 17"; Min: A6 (The minimum custom size is 49 x 85 mm)
• 38 to 128 gsm (In Duplex: 50 to 128 gsm) (Custom sizes from 49 x 85 mm to 55 x 91 mm are available from 38 to 209 gsm)

Capacity (70 gsm paper): 130 sheets
Scan Speed (The scanning speed varies depending on the documents):

• Copy (A4 LEF, Simplex): C3570: B/W: 35 ppm Colour: 35 ppm, C3070: B/W: 30 ppm Colour: 30 ppm

Scan B/W: 80 ppm, Colour: 80 ppm (1 pass, 2 sided scanning: B/W 160 ppm, Colour 160 ppm) [Standard Document (A4 LEF), 200 dpi, to Folder.]

Duplex Automatic Document Feeder C2-PC






​

Original Size / Paper Weight:

• Max: A3, 11 x 17"; Min: A6 (The minimum custom size is 84 x 139.7 mm)

• 38 to 200 gsm (In Duplex: 50 to 200 gsm)


Capacity (70 gsm paper): 250 sheets
Scan Speed (The scanning speed varies depending on the documents):

• Copy (A4 LEF, Simplex): C7070: B/W: 70 ppm Colour: 70 ppm, C6570: B/W: 65 ppm Colour: 65 ppm, C5570: B/W: 55 ppm Colour: 55 ppm, C4570: B/W: 45 ppm Colour: 45 ppm

• Scan: B/W: 135 ppm Colour: 135 ppm (1 pass, 2 sided scanning: B/W 270 ppm, Colour 270 ppm) [Standard Document (A4 LEF), 200 dpi, to Folder.]

​Print Function
​

Type: Built-in type
​Continuous Print Speed (The speed may be reduced due to the image quality adjustment. The printing speed may be reduced depending on the document.): Same as the Basic Specifications / Copy Function
Printing Resolution:

• Standard: [PCL Driver] Standard: 1200 x 2400 dpi, High Quality: 1200 x 2400 dpi, High Resolution: 1200 x 1200 dpi
• Optional: [Adobe® PostScript® 3TM Driver] High Speed (Standard): 600 x 600 dpi, High Quality: 1200 x 2400 dpi, High Resolution: 1200 x 1200 dpi

Page Description Language:

• Standard: PCL5 / PCL6
• Optional: Adobe® PostScript® 3TM

Supported Operating System (Please refer to our official website for the latest supported OS):

• Standard: [PCL Driver] Windows 10 (32 bit / 64 bit), Windows 8.1 (32 bit / 64 bit), Windows Server 2019 (64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit)
• Standard: [Mac OS X Driver] macOS 11 / 10.15 / 10.14 / 10.13 / 10.12
• Optional: [Adobe® PostScript® 3TM Driver] Windows 10 (32 bit / 64 bit), Windows 8.1 (32 bit / 64 bit), Windows Server 2019 (64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit) macOS 11 / 10.15 / 10.14 / 10.13 / 10.12

Interface:

• Standard: Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T, USB3.0
• Optional: Wireless LAN (IEEE 802.11 a / b / g / n / ac)

Scan Function (Optional)



​
​
​

Type: Colour Scanner
Scan Resolution: 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi
Scan Speed: Same as the Scan Speed for the Duplex Automatic Document Feeder
Interface:

• Standard: Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T
• Optional: Wireless LAN (IEEE 802.11 a / b / g / n / ac)

​Note: Installed for Model-CPS as standard.

​Fax Function (Optional)







​

Original Size: Max: A3, 11 x 17", Long document (Longest 600 mm)
Recording Paper Size: Max: A3, 11 x 17"; Min: A5
Transmission Time: 2 seconds and more but fewer than 3 seconds (When A4 size document with approximately 700 characters is transmitted in standard image-quality (8 x 3.85 lines/mm) and in high-speed mode (28.8 kbps or faster, JBIG). Only indicates the time for transmitting the image information and does not include the communication control time. The total communication time will vary depending on the contents of the document, the type of machine receiving the fax, and line condition.)
Transmission Mode: ITU-T G3
Applicable Lines: Telephone subscriber line, PBX, Fax communication (PSTN), Maximum 3 ports (No. of FAX lines is up to 3 ports. Port refers to number of channels for FAX.) (G3-3 ports)

​High Capacity Feeder B1 (Optional)

​

Paper Size: A4 LEF, Letter LEF, JIS B5 LEF
Paper Weight: 55 to 216 gsm
Feeding Capacity / Number of Tray (80 gsm paper): 2000 sheets x 1-tray
Dimensions: W 389 x D 614 x H 380 mm
​Weight: 29 kg

​High Capacity Feeder B2 (Optional)

Paper Size: A4 LEF, Letter LEF, JIS B5 LEF
Paper Weight: 55 to 216 gsm
Feeding Capacity / Number of Tray (80 gsm paper): 2940 sheets x 1-tray
Dimensions: W 476 x D 618 x H 433 mm
Weight: 31 kg

Side Tray
​

Paper Capacity (70 gsm paper): 100 sheets
​Dimensions: W 327 x D 414 x H 179 mm

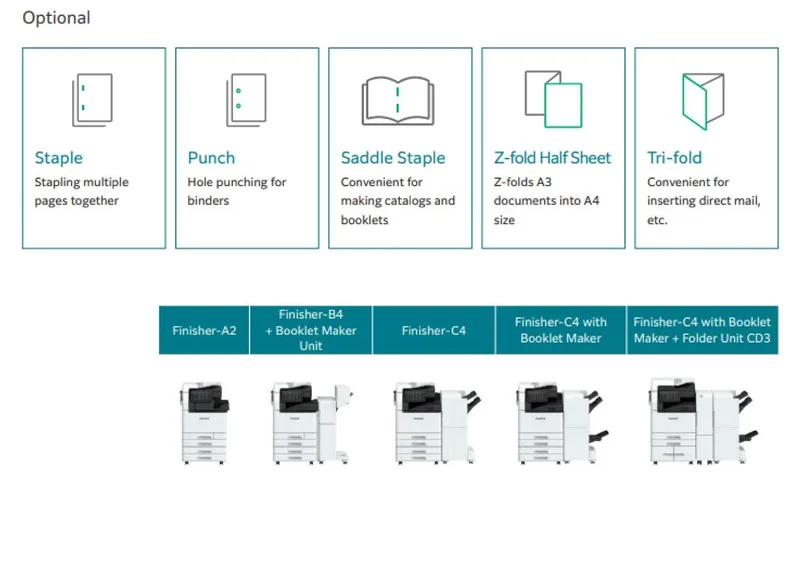

​Finisher-A2 (Optional)








​

​

Type: Sort (Offset available ([No Offset] is selected by factory default. The settings can be changed according to the customer's use situation.)) / Stack (Offset available ([No Offset] is selected by factory default. The settings can be changed according to the customer's use situation.))
Paper Size: Max: A3, 11 x 17"; Min: A5, Postcard (100 x 148 mm)
Paper Weight (Documents may not be printed correctly depending on usage conditions. (52 to 55 gsm)): 52 to 256 gsm
Paper Capacity (70 gsm paper):

• Finishing Tray: [Without Stapling] A4 LEF: 500 sheets, JIS B4: 250 sheets, A3 or larger: 200 sheets, Mixed Size Stacking (When larger size sheets are stacked on top of smaller size sheets: 250 sheets (when large size sheets are smaller than A3) / 200 sheets (when large size sheets are A3 or larger) The same applies to when staple-free and stapled bindings are mixed or different stapling positions are mixed.): 250 sheets [With Stapling] 30 sets, or A4 LEF: 500 sheets, JIS B4: 250 sheets, A3 or larger: 200 sheets, Mixed Size Stacking*4: 250 sheets

Staple:

• Capacity: A4: 50 sheets (90 gsm or less), JIS B4 or larger: 30 sheets (90 gsm or less)
• Paper Size (Available staple positions vary depending on the paper size): Max: A3, 11 x 17"; Min: JIS B5 LEF
• Paper Weight: 52 to 256 gsm
• Position: Single stapling, Dual stapling

Dimensions / Weight: W 478 x D 461 x H 238 mm, 11 kg
Note: The unit cannot be installed on C7070 / C6570.

Finisher-B4 (Optional)














​

Type: Sort (Offset available (The offset feature is set to disabled by factory default. The setting can be changed as necessary.)(Outputs whose weight is 257 gsm and more or width is less than 210 mm are delivered without offset stacking.)) / Stack (Offset available (The offset feature is set to disabled by factory default. The setting can be changed as necessary.)(Outputs whose weight is 257 gsm and more or width is less than 210 mm are delivered without offset stacking.))
Paper Size (Paper in the sizes larger than A3 or 11 x 17" or smaller than A5 are delivered to the Centre Tray): Max: A3, 11 x 17"; Min: A5
Paper Weight (Documents may not be printed correctly depending on usage conditions. (52 to 55 gsm, 257 gsm and more)): 52 to 300 gsm
Paper Capacity (70 gsm paper):

• [Without Stapling] A4: 2000 sheets, JIS B4 or larger: 1000 sheets, Mixed Size Stacking (When larger size sheets are stacked on top of smaller size sheets.): 300 sheets
• [With Stapling] A4: 100 sets or 1000 sheets (75 sets or 750 sheets with dual stapling), JIS B4 or larger: 75 sets or 750 sheets
• [With Booklet Finishing (The Booklet Finishing function requires the optional Booklet Maker Unit for Finisher-B. Make a crease allows you to fold easily. After a job with the Booklet Finishing function specified has been output, the next job may not be delivered until the sheets are removed from the output tray. Also, if larger size sheets are stacked on top of smaller size sheets after a job with the Booklet Finishing function specified has been run, the next job may not be delivered until the sheets are removed from the output tray.)] 50 sets or 600 sheets
• [With Fold (The Booklet Finishing function requires the optional Booklet Maker Unit for Finisher-B. Make a crease allows you to fold easily. After a job with the Booklet Finishing function specified has been output, the next job may not be delivered until the sheets are removed from the output tray. Also, if larger size sheets are stacked on top of smaller size sheets after a job with the Booklet Finishing function specified has been run, the next job may not be delivered until the sheets are removed from the output tray.)] 500 sheets

Staple

• Capacity 50 sheets (90 gsm or less)
• Paper Size (Available staple positions vary depending on the paper size): Max: A3, 11 x 17”; Min: A5 LEF
• Paper Weight: 52 to 256 gsm
• Position Single stapling, Dual stapling

Punch (The Punch function requires the optional 2/4 Hole Punch Kit for Finisher-B or US 2/3 Hole Punch Kit for Finisher-B.):

• Number of Holes: 2-hole / 4-hole punch or 2-hole / 3-hole punch (US Specifications)
• Paper Size (Available number of punch holes varies depending on the paper size.): Max: A3, 11 x 17”; Min: A5 LEF
• Paper Weight: 52 to 220 gsm

Booklet Finishing (The Booklet Finishing function requires the optional Booklet Maker Unit for Finisher-B. Make a crease allows you to fold easily. After a job with the Booklet Finishing function specified has been output, the next job may not be delivered until the sheets are removed from the output tray. Also, if larger size sheets are stacked on top of smaller size sheets after a job with the Booklet Finishing function specified has been run, the next job may not be delivered until the sheets are removed from the output tray.):

• Capacity: Saddle Staple: 15 sheets; Single Fold: 5 sheets
• Paper Size: Max: A3, 11 x 17”; Min: A4, Letter
• Paper Weight: Saddle Staple: 64 to 80 gsm (Covers can be up to 220 gsm (Extra Heavyweight).), Single Fold: 64 to 105 gsm

Dimensions (Inner connector within the body is excluded.): W 592 x D 653 x H 1041 mm, With Booklet Maker Unit: W 592 x D 673 x H 1076 mm
Weight: 27 kg, With Booklet Maker Unit: 37 kg

Finisher-C4 / Finisher-C4 with Booklet Maker (Optional)

Type:

• Output Tray: Sort (Offset available) / Stack (Offset available)
• Finishing Tray: Sort (Offset available) / Stack (Offset available)
• Booklet Tray: Finisher-C4: −, Finisher-C4 with Booklet Maker: Sort / Stack

Paper Size:

• Output Tray: Max: 12 x 19" (305 x 483 mm), A3; Min: A6, Postcard (100 x 148 mm)
• Finishing Tray: Max: 12 x 19" (305 x 483 mm), A3; Min: A5 LEF

Paper Weight:

• Output Tray: 52 to 300 gsm (52 to 55 gsm output paper may not be aligned properly depending on the paper type)
• Finishing Tray: 52 to 300 gsm (52 to 55 gsm output paper may not be aligned properly depending on the paper type)

Paper Capacity (70 gsm paper):

• Output Tray 500 sheets (A4)
• Finishing Tray: Finisher-C4: [Without Stapling] A4: 3000 sheets, JIS B4 or larger: 1500 sheets, A5 LEF: 1000 sheets, Mixed Size Stacking (When larger size sheets are stacked on top of smaller size sheets): 300 sheets [With Stapling] A4: 200 sets or 3000 sheets JIS B4 or larger: 100 sets or 1500 sheets A5 LEF: 100 sets or 1000 sheets Mixed Size Stacking (When larger size sheets are stacked on top of smaller size sheets): 70 sets or 200 sheets, Finisher-C4 with Booklet Maker: [Without Stapling] A4: 1500 sheets, JIS B4 or larger: 1500 sheets, A5 LEF: 1000 sheets, Mixed Size Stacking (When larger size sheets are stacked on top of smaller size sheets): 300 sheets [With Stapling] A4: 200 sets or 1500 sheets JIS B4 or larger: 100 sets or 1500 sheets A5 LEF: 100 sets or 1000 sheets Mixed Size Stacking (When larger size sheets are stacked on top of smaller size sheets): 70 sets or 200 sheets
• Booklet Tray: Finisher-C4: −, Finisher-C4 with Booklet Maker: 20 sets (When the output paper size is the same)

Staple:

• Capacity: 50 sheets (90 gsm or less) (Up to 65 sheets can be stapled when the Finisher-C Staple Unit 65 Sheets is installed. However, depending on the paper type, incorrect stapling such as uneven edge alignment of sets may occur.)
• Paper Size (Available staple positions vary depending on the paper size): Max: A3, 11 x 17"; Min: A5 LEF
• Paper Weight: 52 to 300 gsm
• Position: Single stapling, Dual stapling

Punch (Optional):

• Number of Holes: 2-hole / 4-hole punch or 2-hole / 3-hole punch (US Specifications)
• Paper Size (Available number of punch holes varies depending on the paper size): Max: A3, 11 x 17”; Min: A5 LEF
• Paper Weight: 52 to 220 gsm

Booklet Finishing:

• Capacity (The maximum number of sheets varies depending on the paper weight. Booklet may not be tightly closed depending on the size or type of the paper): Finisher-C4: −, Finisher-C4 with Booklet Maker: Saddle Staple: 20 sheets (90 gsm or less) Single Fold: 5 sheets (90 gsm or less)
• Paper Size: Finisher-C4: −, Finisher-C4 with Booklet Maker: Max: SRA3 (320 x 450 mm), 12 x 18" (305 x 457 mm), A3; Min: JIS B5
• Paper Weight: Finisher-C4: −, Finisher-C4 with Booklet Maker: Saddle Staple: 60 to 300 gsm Single Fold: 60 to 300 gsm

Dimensions (Inner connector within the body is excluded):

• Finisher-C4: W 644 x D 692 x H 1054 mm When Folder Unit CD3 is installed: W 883 x D 692 x H 1054 mm
• Finisher-C4 with Booklet Maker: W 649 x D 692 x H 1054 mm When Folder Unit CD3 is installed: W 888 x D 692 x H 1054 mm

Weight:

• Finisher-C4: 36 kg When Folder Unit CD3 is installed: 88 kg
• Finisher-C4 with Booklet Maker: 49 kg When Folder Unit CD3 is installed: 101 kg

Note: Transport Unit H4 is required.

Folder Unit CD3 (Optional)











​

Z Fold Half Sheet:

• Paper Size: A3, 11 x 17", JIS B4
• Paper Weight: 60 to 90 gsm


Tri-fold:

• Paper Size: A4, Letter
• Paper Weight: 60 to 90 gsm
• Paper Capacity (70 gsm paper): 40 sheets

Power Supply (Power supply separate from the main unit is required) / Maximum Power Consumption: AC220-240 V +/- 10 %, 0.6 A, 50/60 Hz common, 144 W
Dimensions: W 232 x D 588 x H 991 mm
Weight: 52 kg
Note: Optional of Finisher-C4 / Finisher-C4 with Booklet Maker

Envelope Tray (Optional)






​

Paper Size: DL LEF, ISO-C4, ISO-C5 LEF, ISO-C6 LEF, Commercial #10 LEF, Monarch7.3/4 LEF Custom size: 241 x 372 mm to 90 x 98 mm
Paper Weight: Envelope: 75 to 90 gsm, Postcard: 106 to 220 gsm
Feeding Capacity / Number of Tray (Commercial #10 paper): 50 sheets x 1-tray
Dimensions:

• [C7070 / C6570 / C5570 / C4570]: W 620 x D 566 x H 87 mm
• [C3570 / C3070]: W 595 x D 566 x H 87 mm

Weight: 3 kg
