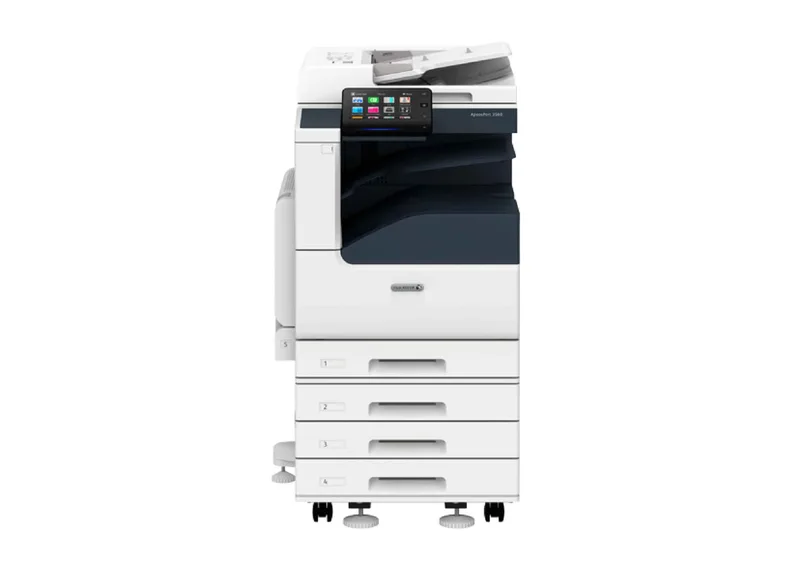

Photostat Machine Fuji Xerox FujiFilm | Fuji Xerox ApeosPort 2560 / 3060 / 3560

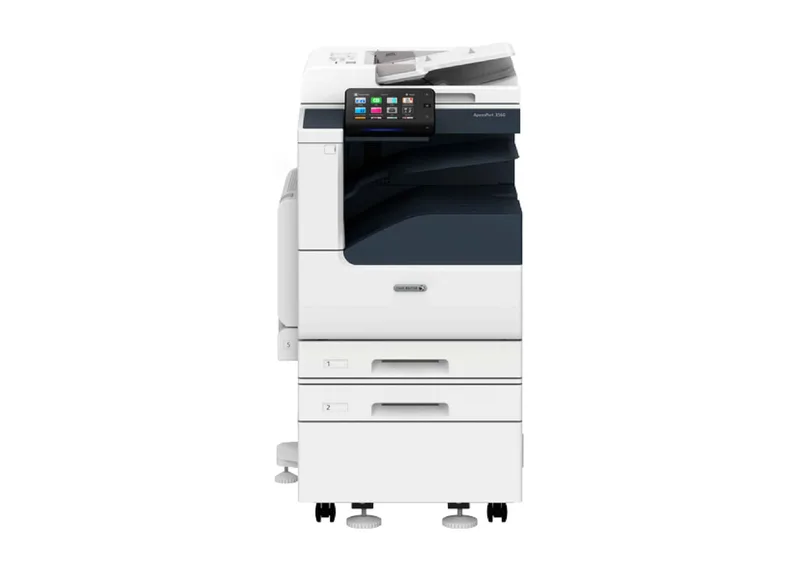

Photostat Machine Fuji Xerox FujiFilm | Fuji Xerox ApeosPort 2560 / 3060 / 3560

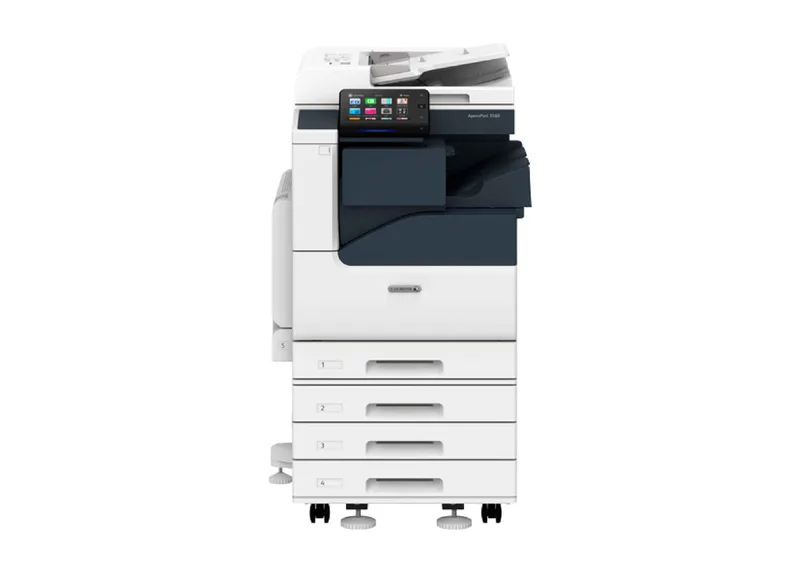

Photostat Machine Fuji Xerox FujiFilm | Fuji Xerox ApeosPort 2560 / 3060 / 3560
Fujifilm Apeos 7580 / 6580
Features:
  • Copy/Print: 7580 75 ppm*1, 6580 65 ppm*1
  • Scan: Colour / Monochrome 270 ppm*2
  • Fax*3: Super G3 FAX
  • Printing Resolution: 1,200 x 1,200 dpi*4
  • Cloud enabled
  • Mobile enabled
  • Security
  • Multi-feed detection
  • *1: A4 LEF.
  • *2: When using the Duplex Automatic Document Feeder. (1 pass, 2 sided scanning. Our Standard Paper (A4 LEF), 200 dpi, to Folder.)
  • *3: Optional.
  • *4: Print Function.
  • Features
  • Specifications
  • Brochure

Fujifilm Apeos 7580 / 6580​
​

High performance for greater work efficiency​

Greater efficiency with an ever-ready device
  • Quick start up and output allows the machine to deliver in time-sensitive situations with the following features
    • First Copy Output Time of 3.0 seconds*
    • Smart WelcomEyes detects a user and automatically "wakes" the machine up from sleep mode.
    • Recovers from sleep mode within 30 seconds.
  • Predicts print completion time to help efficient workplan management
  • * A4 LEF.
Durability meets higher productivity
  • Unparallel productivity with high print speed up to 75 ppm*1
  • Standard paper capacity of 4,645 sheets*2 (further scalable to 8,800 sheets*2 *3) provides you with uninterrupted continuous printing
  • Excellent durability and ability to handle core output and high volume high speed printing
  • High-capacity toner cartridge along with long life photoreceptor drum helps maintain optimum productivity levels with less frequency of replacing consumables


Quick and simple operability

Simple layout with easy navigationBlack and gray tone UI gives better contrast for easy recognition.
  • Icons are evenly spread for easy recognition
  • Consistent operation steps of each function for easy recall
  • Home screen personalisation for ease of access to commonly used functions
  • Pin regular settings for registering frequent or repeated jobs
  • Clear visible light notifications for completed or error jobs
  • Subtle sound notification for alert and attention

Streamline operations for remote work style

​Do not miss any faxes when you are working remotelyPaperless fax function automatically stores received faxes into folders which can be transferred to a PC or sent as emails.
  • Received faxes can be forwarded to your mobile device by email
  • Received faxes can be transferred to Working Folder*1
  • It can be sorted by fax number, date received, and person in charge*2
  • Incoming fax processing can be switched by time, day of the week and period*2
  • For example, you can switch from paper-based output to an electronic transfer in a single operation*2
  • *1: Cloud services provided by FUJIFILM Business Innovation. A separate contract is required.
  • *2: Optional.
Towards a sustainable society

FUJIFILM Group strive for developing a sustainable society by means of environment friendly products with less power consumption and CO2 emissions.
Reducing energy consumption
  • Low temperature fusing & high quality print with Super EA-Eco toner
  • Smart Energy Save distributes power only to the features requested by users
Smaller carbon footprint
  • Reduce CO2 emissions by adoption of environmentally friendly inedible woody biomass plastic for selected parts
  • Deploy recycling system that collects and recycles used devices and consumables
Reducing wastage
  • Zero waste & contamination free setup with Staple-free Staple
  • Reduce unnecessary paper consumption by using functions like paperless fax, multi-up printing, scan workflow and authentication process to restrict wasteful printing

Safeguard important information

Information is an important asset which should be protected at all cost
Protect from unauthorised userMultiple options of setting user authorisation allow administrator to select a right combination as per given environment.
  • Local Authentication
  • Authentication by Remote Server*
  • IC Card Authentication*
  • User-specific feature access
  • Private Charge Print
  • * Optional.
Additional layer of unwanted access can be created for specific users. (e.g. guests).
  • Secondary Ethernet Kit*
  • * Optional.


Reliable support system

Easy solutions to resolve problemsFrom supplies replacement to unexpected device failures, most problems can be resolved without waiting for the service representatives or sales representatives.
1. Resolve problem using the "Help" function on the device
  • Self Help information is available on the control panel
  • Self Help information can be accessed via the mobile device by scanning the QR code displayed on the control panel
​Basic Specifications/Copy Function
Fujifilm Apeos 7580 / 6580

​Type Console
​Memory Capacity 4 GB (Max: 4 GB)
Storage Device Capacity (The Storage Device Capacity is not totally available for customers) 128 GB SSD
Scan Resolution 600 x 600 dpi
Printing Resolution 1200 x 1200 dpi
Warm-up Time
[Embedded Plug-ins / Custom Services] *3 When enabled: 36 seconds or less (23 degrees Celsius room temperature) When disabled: 30 seconds or less (23 degrees Celsius room temperature)

Recovery Time (Recovery Time from Sleep Mode) 30 seconds or less (23 degrees Celsius room temperature)
Original Size Maximum of A3, 11 x 17”, 297 x 432 mm for both Sheet and Book
Paper Size
  • Max A3, 11 x 17”, [12 x 18” (305 x 457 mm) when using Bypass Tray]
  • Min A5, [Postcard (100 x 148 mm) when using Bypass Tray]
  • Image loss width*4 Lead edge 4.0 mm, Trail edge 4.0 mm, Right / Left edge 4.0 mm
Paper Weight (It is recommended to use Fuji Xerox recommended paper. Correct print output may not be possible depending on the requirement)
  • Paper Tray: 52 to 200 gsm
  • Bypass Tray: 52 to 250 gsm
First Copy Output Time 3.0 sec. (A4 LEF)
Continuous Copy Speed (The speed may be reduced due to the image quality adjustment)
  • JIS B5 LEF 79 ppm 68 ppm
  • A4 LEF 75 ppm 65 ppm
  • A4 / JIS B5 55 ppm 47 ppm
  • JIS B4 44 ppm 39 ppm
  • A3 37 ppm 33 ppm
Paper Tray Capacity
  • Standard 520 sheets x 2-tray + 1,560 sheets + 1,950 sheets + Bypass Tray 95 sheets
  • Optional High Capacity Feeder B1: 2,000 sheets High Capacity Feeder C1-D2: 2,000 sheets x 2-tray + Bypass Tray 250 sheets
  • Max 8,800 sheets [520 sheets x 2-tray + 1,560 sheets + 1,950 sheets + High Capacity Feeder C1-D2]
Output Tray Capacity  500 sheets (A4 LEF)
Power Supply AC220-240 V +/- 10 %, 10 A, 50/60 Hz common
Maximum Power Consumption
  • 2.4 kW
  • Sleep Mode: 0.6 W, Low Power Mode: 103 W, Ready Mode: 167 W
Dimensions
  • ​W 620 x D 804 x H 1,155 mm
Weight (Including Toner Cartridge)
  • 188 kg
Print Function
Type Built-in type
Continuous Print Speed (The speed may be reduced due to the image quality adjustment. The printing speed may be reduced depending on the document) Same as the Basic Specifications / Copy Function
Printing Resolution
  • Standard
           [PCL Driver]
           Standard: 600 x 600 dpi, High Resolution: 1200 x 1200 dpi
  • Optional
           [Adobe® PostScript® 3TM Driver]
           Standard: 600 x 600 dpi, High Resolution: 1200 x 1200 dpi
​Page Description Language
  • Standard: PCL5 / PCL6
  • Optional: Adobe® PostScript® 3TM
Supported Operating System (Please refer to our official website for the latest supported OS)
  • Standard
           [PCL Driver]
           Windows 10 (32 bit / 64 bit), Windows 8.1 (32 bit / 64 bit), Windows Server 2019 (64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit) [Mac OS X Driver] macOS 10.15 / 10.14 / 10.13 / 10.12, OS X 10.11
  • Optional
           [Adobe® PostScript® 3TM Driver]
           Windows 10 (32 bit / 64 bit), Windows 8.1 (32 bit / 64 bit), Windows Server 2019 (64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit) macOS 10.15 / 10.14 / 10.13 / 10.12, OS X 10.11
Interface
  • Standard: Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T, USB3.0
  • Optional: Wireless LAN (IEEE 802.11 a / b / g / n / ac)
Scan Function
Type Colour Scanner
Scan Resolution 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi
Scan Speed Same as the Scan Speed for the Duplex Automatic Document Feeder
Interface
  • Standard: Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T
  • Optional: Wireless LAN (IEEE 802.11 a / b / g / n / ac)
Fax Function (Optional)
Original Size Max: A3, 11 x 17", Long document (Longest 600 mm)
Recording Paper Size Max: A3, 11 x 17"; Min: A5
Transmission Time 2 seconds and more but fewer than 3 seconds (When A4 size document with approximately 700 characters is high-speed mode (28.8 kbps or faster, JBIG). Only indicates the time for transmitting the image information and does not include the communication control time. The total communication time will vary depending on the contents of the document, the type of machine receiving the fax, and line condition.)
Transmission Mode ITU-T G3
Applicable Lines Telephone subscriber line, PBX, Fax communication (PSTN), Maximum 3 ports (No. of FAX lines is up to 3 ports. Port refers to number of channels for FAX) (G3-3 ports)
Duplex Automatic Document Feeder
Original Size / Paper Weight
  • Max: A3, 11 x 17”
  • Min: A6*1 38 to 200 gsm (In Duplex: 50 to 200 gsm)
Capacity (64 gsm paper) 250 sheets
Scan Speed
  • Copy (A4 LEF, Simplex): ApeosPort 7580: 75 ppm, ApeosPort 6580: 65 ppm
  • Scan
​           B/W: 135 ppm, Colour: 135 ppm
           ​[Standard Document (A4 LEF), 200 dpi, to Folder]
​High Capacity Feeder B1 (Optional)
Paper Size
A4 LEF, Letter LEF, JIS B5 LEF*1, 7.25 x 10.5” LEF (184 x 267 mm)

Paper Weight
52 to 200 gsm

Feeding Capacity / Number of Tray
2,000 sheets x 1-tray

Dimensions / Weight
W 389 x D 610 x H 377 mm, 29 kg
High Capacity Feeder C1-D2 (Optional)​
Paper Size
[Tray 6 / 7] A4 LEF, Letter LEF, JIS B5 LEF*1, 7.25 x 10.5” LEF (184 x 267 mm) [Bypass Tray] Max: 12 x 18” (305 x 457 mm), A3; Min: Postcard (100 x 148 mm)

Paper Weight
[Tray 6 / 7] 52 to 200 gsm [Bypass Tray] 52 to 250 gsm

Feeding Capacity / Number of Tray
2,000 sheets x 2-tray + 250 sheets

Dimensions / Weight
W 597 x D 661 x H 930 mm, 73 kg
​​Catch Tray (Optional)
Paper Size
Max: 12 x 18” (305 x 457 mm), A3 Min: A6, Postcard (100 x 148 mm)

Paper Weight
52 to 250 gsm

Paper Capacity*
500 sheets

Dimensions
W 423 x D 399 x H 331 mm

Weight
6 kg 4 kg
