Fuji Xerox Photocopy Machine Color Printer A3

Fuji Xerox DocuCentre SC2022

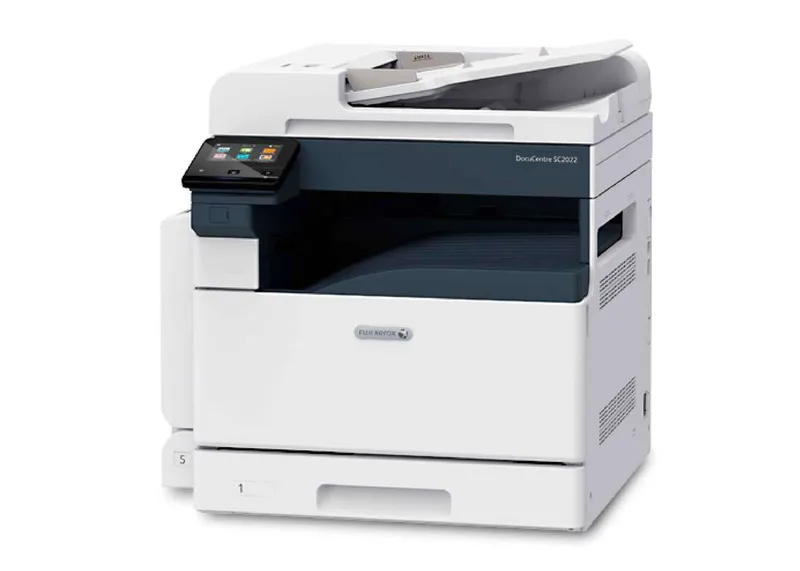

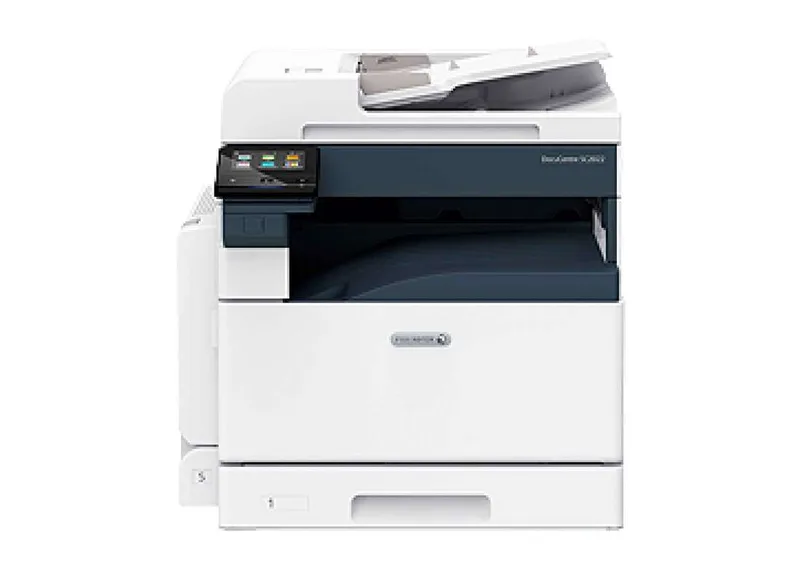

Fuji Xerox Photocopy Machine | Fuji Xerox DocuCentre SC2022
Fuji Xerox Photocopy Machine | Fuji Xerox DocuCentre SC2022
A3 Colour Photostat, Printer, Scanner
​
Fuji Xerox DocuCentre SC2022
​
​Features:
  • Fuji Xerox photocopy machine / printer / scanner
    Print speed colour / mono 20 pages per minute (A4 LEF)
  • Scan speed colour / Mono 27 pages per minute (Fuji Xerox Standard Paper (A4 LEF), 200 dpi, to USB flash drive)
  • FAX (Optional), G3 FAX, Paperless FAX
  • Mobile Support
  • Cloud Interactive
  • Wireless Connect
  • Features
  • Specifications
  • Brochure
  • Video
​Fuji Xerox DocuCentre SC2022

​Operability & High Image Quality

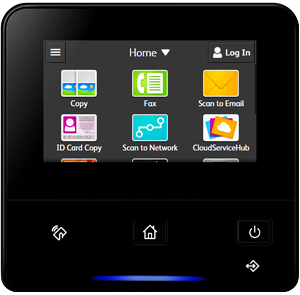

Intuitive Operational User Interface
​
​4.3 inch touch panel with minimized conventional buttons
Customizable Control Panel
​
You can create your own widget button icon  |  Get started by tapping the icon  |  No need to configure detailed settings

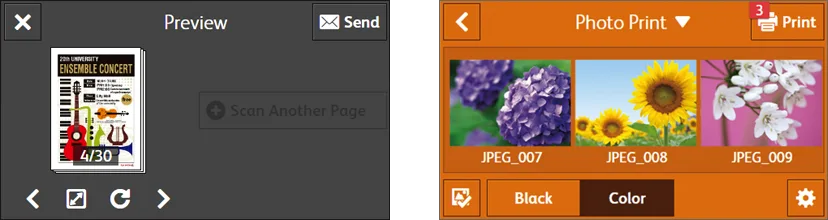

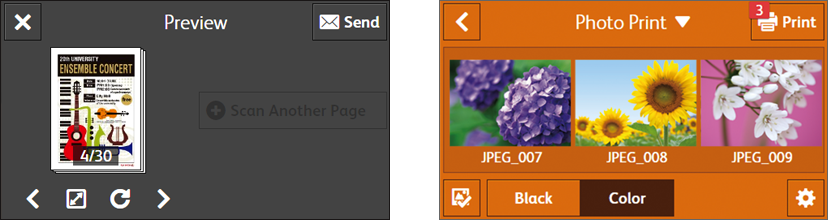

Ease-To-Use Preview Function
​
Preview faxes or scanned images before sending  |  Photo Print stored in a USB flash drive* shows up as thumbnails so users can easily select and send
Clear-Cut Outlined Text

​Edge enhancement technology smooths jagged edges of halftone text by adding an outline. Pixelated small text becomes easy to read.
Excellent Print Quality

DocuCentre SC2022 digitally corrects colour misregistration at high resolution of 1200 x 2400 dpi with digital image registration control technology "IReCT (Image Registration Control Technology)". The improved accuracy ensures the image reproduction with ultra-high precision and less colour misregistration.
Enhanced Mobility & Productivity
Convinient Mobile Print And Scan

Print Utility (Print Utility is available on Google PlayTM or App Store for free download) allows you to print from mobile devices or scan paper documents to DocuCentre SC2022 via Wi-Fi / Wi-Fi Direct® (Optional. Wired and wireless connections cannot be used simultaneously). It also allows you to print through Google Cloud PrintTM / Mopria® Print and AirPrint.
Hassle-Free Fax Transmission

Incoming faxes can be automatically transferred to designated e-mail addresses and can also be forwarded to SMB/FTP. Allows you to view them in PDF/DocuWorks file.

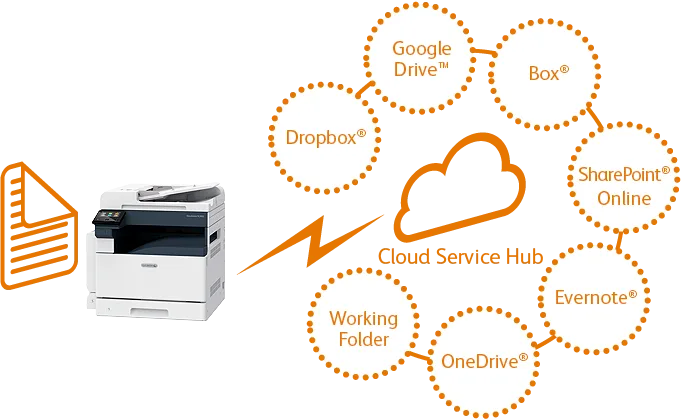

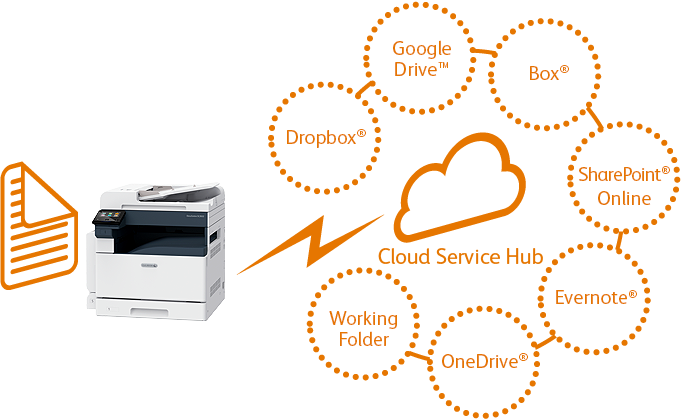

Cloud Interactive Support
​
Cloud Service Hub (A cloud service provided by Fuji Xerox. A separate contract is required.) allows you to scan documents on DocuCentre SC2022 and store in various cloud service storages. It also allows you to print the documents (Printable formats include PDF, Microsoft® Word / Excel® / PowerPoint®) stored in the cloud through DocuCentre SC2022 panel directly without computers.
Compact Size & Impressive Capability
Variety Of Scanning Features

Scan to Network (SMB/FTP)  |  Scan to Email  |  Scan to WSD  |  USB Memory Scan (optional)  |  Scan from PC
USB Memory Print And Scan

Scan directly from DocuCentre SC2022 to USB flash drive (DocuWorks documents, PDF, JPEG, TIFF)  |  Print directly from USB flash drive (PDF, JPEG, TIFF). Easily print or scan documents without using a computer.

​Enhanced Security

Password protection for store print jobs or incoming faxes in DocuCentre SC2022. They can only be printed when the password is entered.

​ID Card Copying

Print both double side of a card on a single sheet.

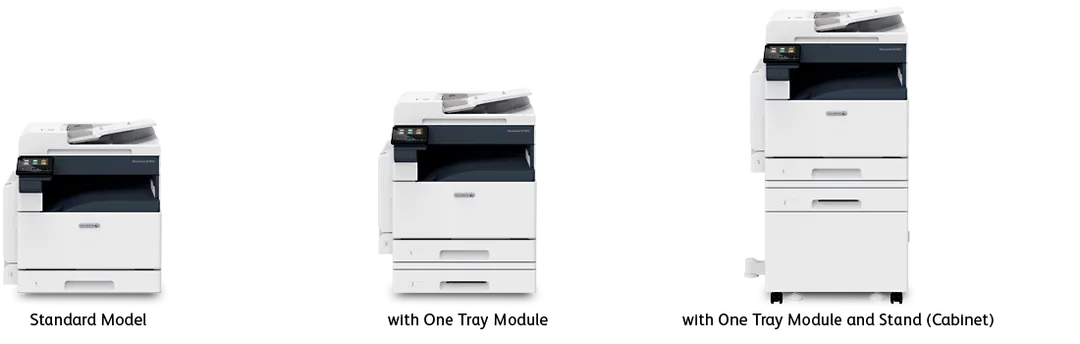

​Configuration

​Copy /Print /Scan functions, Duplex function and Duplex Automatic Document Feeder are provided as Standard. Fax function is Optional.
Basic Specifications / Copy Function
​Fuji Xerox DocuCentre SC2022
​
FX SC2022 Specification:

Type Desktop
Memory capacity 1 GB (Onboard)
Colour Capability Full Colour
Scan Resolution 600 x 600 dpi
Printing Resolution 1200 x 2400 dpi (Text / Text-Photo / Photo)
Warm-up Time 44  seconds or less (23 degrees Celsius room temperature)
Original Size Maximum of A3, 11 x 17", 297 x 432 mm for both Sheet and Book
Paper Size
  • Max A3, 11 x 17" [297 x 432 mm when using Bypass Tray]
  • Min A5 [89 x 98 mm when using Bypass Tray]
  • Image loss width Lead edge 5.5 mm, Trail edge 5.5 mm, Right/Left edge 5.5 mm
Paper Weight (It is recommended to use Fuji Xerox recommended paper. Correct print output may not be possible depending on the requirement.)
  • Paper Tray 60 to 90 gsm
  • Bypass Tray 60 to 216 gsm
First Copy Output Time
  • B/W: 8.6 sec. (A4 LEF / Monochrome priority mode)
  • Colour: 10.8 sec. (A4 LEF / Colour priority mode)
Continuous Copy Speed (The speed may be reduced due to the image quality adjustment)
  • A4 LEF B/W: 20 sheets/minute, Colour: 20 sheets/minute
  • B5 LEF B/W: 12 sheets/minute, Colour: 12 sheets/minute
  • A4 / B5 B/W: 12 sheets/minute, Colour: 12 sheets/minute
  • B4 B/W: 12 sheets/minute, Colour: 12 sheets/minute
  • A3 B/W: 12 sheets/minute, Colour: 12 sheets/minute
Paper Tray Capacity (80 gsm paper)
  • Standard 250 sheets x 1-tray + Bypass Tray 100 sheets (Bypass Tray: 64 gsm paper)
  • Optional One Tray Module: 500 sheets
  • Max 850 sheets (Standard + One Tray Module) (Bypass Tray: 64 gsm paper)
Output Tray Capacity (80 gsm paper)  250 sheets (A4 LEF), 200 sheets (A3)
Power Supply  AC220-240 V +/- 10 %, 5 A, 50/60 Hz common
Maximum Power Consumption
  • 1.1 kW (AC220 V +/- 10 %), 1.2 kW (AC240 V +/- 10 %)
  • Sleep Mode: 1.4 W (AC230 V), Ready Mode: 81 W (AC230 V)
Dimensions  W 595 x D 627 x H 634 mm
Weight (Excluding Toner Cartridge)  49 kg
Print Function
Type Built-in type
Continuous Print Speed (The speed may be reduced due to the image quality adjustment) Same as the Basic Specifications / Copy Function
Printing Resolution Standard: 1200 x 2400 dpi, High Quality (Only Colour Mode) : 1200 x 2400 dpi
Page Description Language PCL6
Supported Operating System (Please refer to our official website for the latest supported OS)
  • Windows® 10 (32bit)
  • Windows® 10 (64bit)
  • Windows® 8.1 (32bit)
  • Windows® 8.1 (64bit)
  • Windows® 7 (32bit)
  • Windows® 7 (64bit)
  • Windows Server® 2016 (64bit)
  • Windows Server® 2012 R2 (64bit)
  • Windows Server® 2012 (64bit)
  • Windows Server® 2008 R2 (64bit)
  • Windows Server® 2008 (32bit)
  • Windows Server® 2008 (64bit)
  • macOS 10.14 Mojave
  • macOS 10.13 High Sierra
  • macOS 10.12 Sierra
  • OS X 10.11 El Capitan
  • OS X 10.10 Yosemite
  • OS X 10.9 Mavericks
  • OS X 10.8 Mountain Lion
Interface (Wired and wireless connections cannot be used simultaneously)
  • Standard Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T, USB2.0
  • Optional IEEE802.11 n / g / b (2.4 GHz)
Scan Function
Type Colour Scanner
Scan Resolution
  • Scan to PC [TWAIN Driver]
           Monochrome binary/Grayscale: 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi, 150 x 150 dpi
           Colour: 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi, 150 x 150 dpi
           [WIA (Windows® Image Acquisition) Driver, ICA (Image Capture Architecture) Driver]
           Monochrome binary/Grayscale/Colour: 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi, 150 x 150 dpi
  • Scan to Network / e-mail
           Monochrome binary/Grayscale: 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi
           Colour: 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi
Scan Speed Same as the "Scan Speed" for the Duplex Automatic Document Feeder
Interface Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T, USB2.0
Fax Function (Optional)
Original Size Max: A3, 11 x 17"
Recording Paper Size Max: A3, 11 x 17", Min: A4, Letter
Transmission Time 3 seconds and more but fewer than 4 seconds (When A4 size document with approximately 700 characters is transmitted in standard image-quality (8 x 3.85 lines/mm) and in high-speed mode (33.6 kbps, JBIG). Only indicates the time for transmitting the image information and does not include the communication control time. The total communication time will vary depending on the contents of the document, the type of machine receiving the fax, and line condition.)
Transmission Mode ITU-T G3
Applicable Lines Telephone subscriber line, PBX, Fax communication (PSTN), Maximum 1 port (G3-1 port)
Duplex Automatic Document Feeder
Original Size / Paper Weight
  • Max: A3, 11 x 17"", Min: A5 (The minimum custom size is 125 x 125 mm)
  • 38 to 128 gsm (In Duplex: 50 to 128 gsm)
Capacity (80 gsm paper) 110 sheets
Scan Speed (The scanning speed varies depending on the documents)
  • ​Copy B/W: 20 sheets/minute, Colour: 20 sheets/minute (A4 LEF Simplex)
  • Scan
           B/W: 27 sheets/minute, Colour: 27 sheets/minute
           [Fuji Xerox Standard Paper (A4), 200 dpi, to USB flash drive]
One Tray Module (Optional)
Paper Size Max: A3, 11 x 17", Min: A5
Paper Weight 60 to 256 gsm
Feeding Capacity / Number of Tray (80 gsm paper) 500 sheets x 1-tray
Dimensions W 545 x D 586 x H 113 mm
Weight 11 kg
Find Out More About ​Fuji Xerox DocuCentre SC2022
