Mesin Fotostat Fuji Xerox FujiFilm

Fuji Xerox ​DocuCentre S2520

Mesin Fotostat Fuji Xerox DocuCentre S2520
Mesin Fotostat Fuji Xerox DocuCentre S2520
Mesin Fotostat Fuji Xerox DocuCentre S2520
Fuji Xerox ​DocuCentre S2520
Features:
  • High speed copying at 25ppm simplex & 18ppm duplex
  • First copy output time of 6.5 seconds
  • Convenient ID card copy function
  • Alternating horizontal- vertical stacking
  • Send faxes quickly (optional) with register up to 30 numbers for speed dialing
  • Features
  • Specifications
  • Brochure
  • Video
High-speed output

Speed Copy
  • 25 pages/minute​ (simplex)
  • 18 pages/minute (duplex)
First Copy Output Time: Copy Output Time
Warm-Up Time: 19 seconds


Two scanning methods

Pull scan from a PC
Push scan when at the device (Resolution between 200 and 600 dpi)


Redial button

Select the desired recipient to resend a document​


Adjustable toner output

Toner density is adjustable with six different settings.
Fast Colour Scanning

Fast scans at 28 pages/minute​

​
​ID card copy function

Both sides of a card can be copied onto one side of one single sheet of paper.
Can copy up to two cards at the same time.


Print and copy on heavy paper

Paper Thickness: 60-216 gsm


Simple broadcast function

Send a document to a group of recipients.
Eliminate repetitive tasks when sending the same document to a multiple destinations.
Print multiple pages on one sheet

Up to eight pages can be printed onto one sheet​


​Alternating horizontal-vertical stacking

Each copy can be stacked in alternating horizontal-vertical orientation​


Send faxes quickly

Register up to 99 numbers for speed dialling.
Legal-size documents can be received on one sheet.


Internationally recognized environmental compliance

The amount of ultrafine particles (UFPs*) emitted during continuous printing has been reduced by optimising operational settings.​
​Basic Function / Copy Function
Fuji Xerox ​DocuCentre S2520

​Type Desktop
Memory capacity 512 MB (Max : 512 MB)
Scan Resolution 600 x 600 dpi
Print Resolution 600 x 600 dpi
Warm-up Time 19 seconds or less (20 degrees Celsius room temperature)
Original Size Maximum of 297 x 432 mm (A3,11 x 17") for both Sheet and Book
Paper Size
  • Max: 297 x 432 mm, A3, 11 x 17", Bypass Tray : 297 x 432 mm, A3, 11 x 17"
  • Min: A5, Bypass Tray : 127 x 98 mm
  • Image loss width: Lead Edge : 5.5 mm, Trail Edge : 6.0 mm, Right & Left Edges : 5.5 mm
Paper Weight (It is recommended to use Fuji Xerox recommended paper. Correct print output may not be possible depending on the requirement.)
  • Tray 1: 60 to 90 gsm
  • Tray 2, 3, 4 (Option): 60 to 216 gsm
  • Bypass Tray: 60 to 216 gsm
First Copy Output Time 6.5 seconds or less (A4 LEF)
Continuous Copy Speed (The speed may be reduced due to the image quality adjustment. The performance may be reduced depending on the paper type.)
  • A4 LEF/B5 LEF 25 ppm, In Duplex : 18 ppm
  • A4 16 ppm, In Duplex : 10 ppm
  • B4 15 ppm, In Duplex : 9 ppm
  • A3 13 ppm, In Duplex : 8 ppm
Paper Tray Capacity (When Using 80 gsm paper)
  • Standard: Tray1 : 250 sheets , Bypass Tray : 100 sheets
  • Optional:

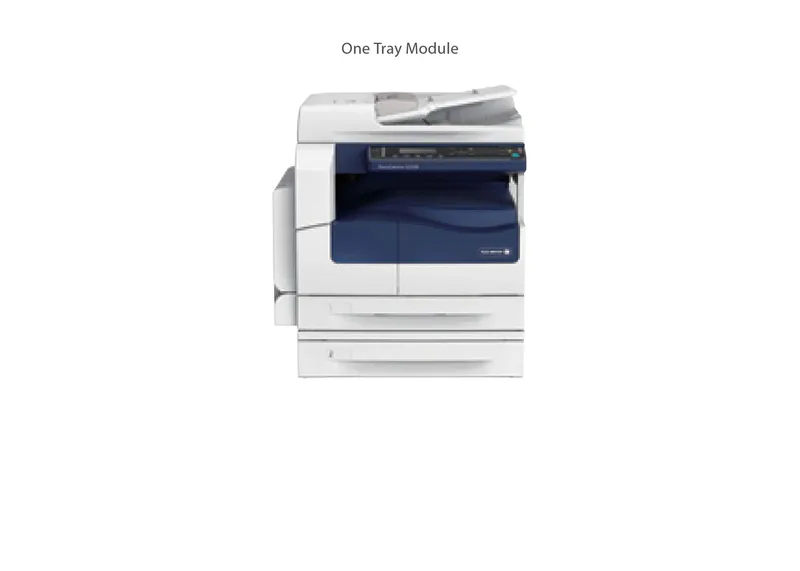

           One Tray Module (Tray2) : 500 sheets

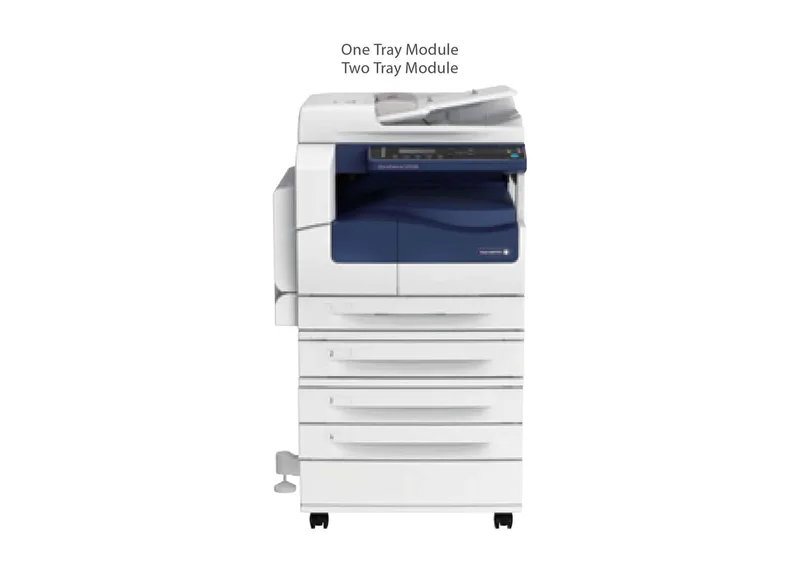

           Two Tray Module (Tray3 + Tray4) : 1000 sheets
  • Max 1850 sheets (Tray1 + Tray2 + Tray3 + Tray4 + Bypass Tray)
Output Tray Capacity (When Using 80 gsm paper) 250 sheets (A4 LEF)
Power Source AC220-240 V +/- 10 %, 6 A, 50 / 60 Hz common
Maximum Power Consumption
  • AC 220V: 1.3kW or less AC 240V: 1.4kW or less
  • Low Power mode: 14W or less Sleep mode: 2W or less
Dimensions W 595 x D 584 x H 569 mm
Weight (Excluding Toner Cartridge) 33 kg
​Fax Function (Optional)
Original Size Max : A3
Recording Paper Size Max : A3, Min : A4
Transmission Time (When A4 size document with approximately 700 characters is transmitted in standard image-quality (8x3.85 lines/ mm) and in high-speed mode (28.8kbps or faster, JBIG). Only indicates the time for transmitting the image information and does not include the communication control time. The total communication time will vary depending on the contents of the document, the type of machine receiving the fax, and line condition.) seconds and more but fewer than 3 seconds
Transmission Mode Super G3 / G3 ECM / G3 (ITU-T)
Applicable Lines PSTN / PBX, 1 port
Print Function
Type Built-in type
Continuous Print Speed (The speed may be reduced due to image quality adjustment. Print speed may also drop depending on the documents.) Same as the Basic Specifications / Copy Function
Print Resolution 600 x 600 dpi
Page Description Language FX HBPL (Host Based Print Language)
Operation System (Please refer to the Fuji Xerox web site for the latest supported operating systems.)
Windows 10 (32bit), Windows 10 (64bit) Windows 8.1 (32bit), Windows 8.1 (64bit) Windows 8 (32bit), Windows 8 (64bit) Windows 7 (32bit), Windows 7 (64bit) Windows Vista (32bit), Windows Vista (64bit) Windows XP (32bit), Windows XP Professional (64bit) Windows Server 2019 (64bit) Windows Server 2016 (64bit) Windows Server 2012 R2 (64bit), Windows Server 2012 (64bit) Windows Server 2008 R2 (64bit) Windows Server 2008 (32bit), Windows Server 2008 (64bit) Windows Server 2003 (32bit), Windows Server 2003 (64bit)
Interface USB2.0, Ethernet 100BASE-TX / 10BASE-T
Scan Function
Type Colour Scanner
Scan Resolution 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi
Scan Speed (The scanning speed varies depending to documents. Fuji Xerox Standard Document (A4), 200 dpi , using TWAIN driver (USB).) B / W : 28 ppm, Colour : 28 ppm [Fuji Xerox Standard Paper (A4 LEF), 200dpi]
Interface USB2.0, Ethernet 100BASE-TX / 10BASE-T
Duplex Automatic Document Feeder
Original Size Max : A3, 11 x 17", Min : A5
Paper Weight 38 to 128 gsm (2 Sided : 50 to 128 gsm)
Capacity (When Using 80 gsm paper) 110 sheets
Feeding Speed (A4 LEF Simplex)
  • 25 ppm (A4 LEF, 1 Sided)
  • 18 ppm (A4 LEF, 2 Sided)
Find Out More About Fuji Xerox ​DocuCentre S2520
