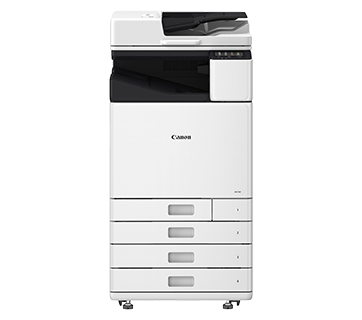

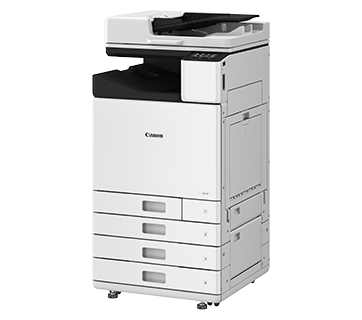

Cheap and Fast Colour Printer A3

Canon WG7740

Cheap and Fast Colour Printer A3 Canon WG7740 is a High Speed Line Head Business Inkjet Printer for Small and Medium Businesses.

Improve office printing productivity with reduction in print costs.

Print, Scan, Copy
Print speed (A4): Up to 70 ppm (B/W or colour)
Hi-speed USB 2.0, Mopria, AirPrint, Wired LAN
Recommended print volume: 1,000 to 5,000 pages

Features

Line Head Design for High Speed Printing

Power through multi-page jobs with a revolutionary printhead design that delivers up to 80ppm.

Ink Formulation for Better Performance

The new high density, quick-drying pigment ink ensures high quality document printouts that resist fading and accidental exposure to water or moisture.

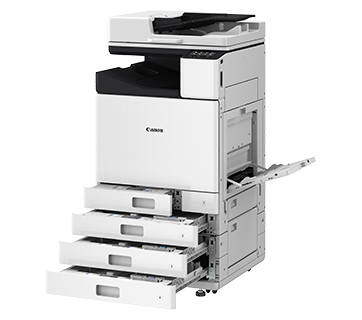

Designed for High Volume Printing

Supports up to 2250 sheets of paper for high productivity, uninterrupted printing.

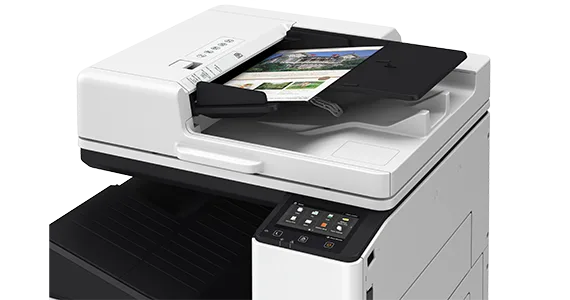

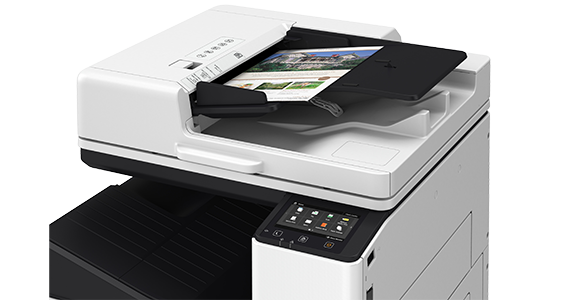

Single-Pass Duplex Auto Document Feeder

A fast 100-sheet capacity automatic document feeder scans two-sided originals in a single pass.

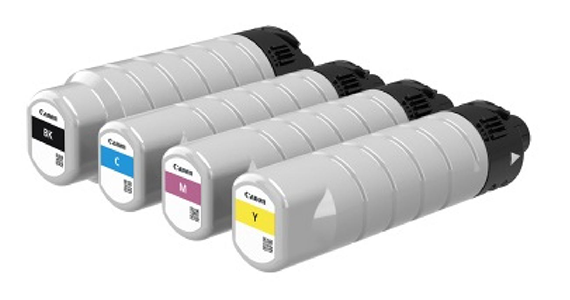

Ultra-High Yield Ink Bottles

Yield up to 20,000 pages in black and 16,500 pages in colour with XXL capacity ink bottles.

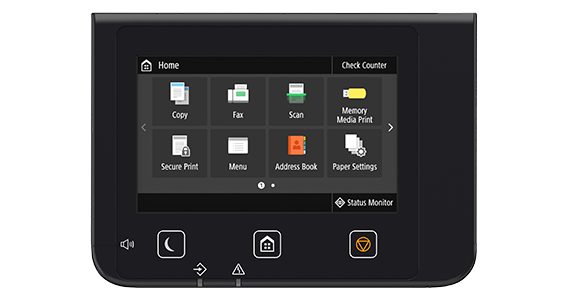

Simple, Intuitive Touchscreen

High resolution icons displayed in a clean layout for easy access to device functions.

Find Out More About Canon WG7740

Specification

Print

Print Head / Ink

Type

Ink Bottles

Maximum Printing Resolution

Line Head with FINE Technology

PGI-7700XL (Black, Cyan, Magenta, Yellow)
PGI-7700XXL (Black, Cyan, Magenta, Yellow)
MC50 (Maintenance Cartridge)

1200 x 1200 dpi

Print Speed

Document (Colour / B/W)*1
Simplex, General Mode (600 dpi)

Document (Colour / B/W)*2
Simplex, Office Document Mode (300 dpi)

Document (Colour / B/W)*1
Duplex, General Mode (300 dpi)

Document (Colour / B/W)*3
(FPOT Ready / Simplex)

Up to 40 ppm

Up to 70 ppm

Up to 20 ppm

Approx. 6.5 sec

Maximum Media Size (WxL)

Default setting of Long Paper is ON
(For Japan, Asia incl. Hong Kong, Latin America and may be supported by firmware v1.2 or later)

Default setting of Long Paper is OFF
(For Taiwan and may be supported by firmware 1.0 or 1.1)

Cassette: 297 x 431.8 mm (11.7 x 17")
Multi-Purpose Tray: 330.2 mm x 711.2 mm (13 x 28")*4

Supported Media Size
Depending on area, custom size specification is different. Please refer to Maximum Media Size

A5, A4, A3, B5, B4, Statement, Executive, Letter, Legal, 11 × 17, 12 × 18, SRA3, 13 × 19, K8, K16, Foolscap/Folio, Oficio, G-Letter, A-Letter, G-Legal, A-Foolscap, B-Oficio, M-Oficio, E-Oficio, A-Oficio, F4A, FS (Indian Legal), 4 x 6", 5 x 7", 8 x 10", 10 x 12", 13 × 19", COM10, Monarch, ISO-C5, DL, Custom size (Up to 330.2 x 711.2 or 330.2 x 482.6 mm）

Printing Margin

Bordered Printing
Bordered Auto Duplex Printing

Top, Bottom, Left, Right: 4 mm each*5

Supported Media Type and Size - Cassette 1:

Thin Paper (52-63 g/m²)
Plain Paper (64-105 g/m²)
Thick Paper (106-220 g/m²)
Coloured Paper (64-82 g/m²)
Recycled Paper (64-105 g/m²)
Bond Paper (83-99 g/m²)

Envelope (75-105 g/m²)

A5, A4, B5, Statement, Executive, Letter, K16, G-Letter

COM10, Monarch, ISO-C5, DL

Supported Media Type and Size - Cassette 2, 3:

Thin Paper (52-63 g/m²)
Plain Paper (64-105 g/m²)
Thick Paper (106-220 g/m²)
Coloured Paper (64-82 g/m²)
Recycled Paper (64-105 g/m²)
Bond Paper (83-99 g/m²)

A5, A4, A3, B5, B4, Statement, Executive, Letter, Legal, 11 x 17", K16, K8, Foolscap/Folio, Oficio, G-Letter, A-Letter,G-Legal, A-Foolscap, B-Oficio, M-Oficio, E-Oficio, A-Oficio, F4A, FS (Indian Legal)

Supported Media Type and Size - Cassette 4:

Thin Paper (52-63 g/m²)
Plain Paper (64-105 g/m²)
Thick Paper (106-163 g/m²)
Coloured Paper (64-82 g/m²)
Recycled Paper (64-105 g/m²)
Bond Paper (83-99 g/m²)

A5, A4, A3, B5, B4, Statement, Executive, Letter, Legal, 11 x 17", K16, K8, Foolscap/Folio, Oficio, G-Letter, A-Letter,G-Legal, A-Foolscap, B-Oficio, M-Oficio, E-Oficio, A-Oficio, F4A, FS (Indian Legal)

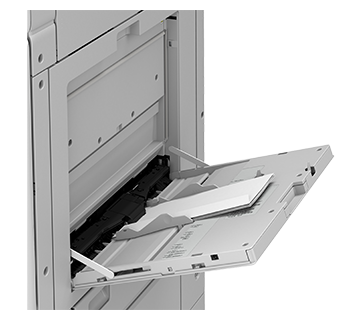

Supported Media Type and Size - Multi-Purpose Tray:

Thin Paper (60-63 g/m²)
Plain Paper (64-105 g/m²)
Thick Paper (106-256 g/m²)
Coloured Paper (64-82 g/m²)
Recycled Paper (64-105 g/m²)
Bond Paper (83-99 g/m²)

Envelope (75-105 g/m²)

Canon Matte Photo Paper

Label (118-185 g/m²)

A5, A4, A3, B5, B4, Statement, Executive, Letter, Legal, 11 x 17", 12 x 18", SRA3, 13 x 19", K16, K8, Foolscap/Folio, Oficio, G-Letter, A-Letter, G-Legal, A-Foolscap, B-Oficio, M-Oficio, E-Oficio, A-Oficio, F4A, FS (Indian Legal), 4 × 6"

COM10, Monarch, ISO-C5, DL

4 x 6", 5 x 7", 8 x 10", 10 x 12", A4/LTR, A3, 13 x 19"

A4, B4, Letter

Paper Cassette Capacity (80 g/m²)

Cassette 1, 2, 3, 4

Multi Purpose Tray

Maximum Output Tray Capacity (80 g/m²)

550 sheets each

50 sheets

A3: 100 sheets, A4/LTR: 250 sheets

Supported Media Type for Double Side Printing

Type

Size / Weight

Print Head Alignment

Thin Paper, Thick Paper, Plain Paper, Coloured Paper, Recycled Paper, Bond Paper

A5 - 12 x 18" / 52 - 220 g/m²

Automatic Adjustment

Page Yield

Plain Paper (A4 pages)
(ISO/IEC 24712 test file)*13

PGI-7700XL BK: 12,000
PGI-7700XL (C/M/Y): 10,500

PGI-7700XXL BK: 20,000
PGI-7700XXL (C/M/Y): 16,500

Print Speed is based on ISO/IEC 24734. Measured in default mode (General Mode: 600 dpi) and calculated by Canon original methodology.
Print speed varies depending on system configuration, interface, software, content of document, print mode, media type, weight and used cassette etc.
Print Speed is based on ISO/IEC 24734. Measured in fast mode (Office Document Mode: 300 dpi) and calculated by Canon original methodology.
Print speed varies depending on system configuration, interface, software, content of document, print mode, media type, weight and used cassette etc.
Print Speed (FPOT) is based on ISO/IEC 17629. Print speed varies depending on system configuration, interface, software, content of document, print mode, media type, weight and used cassette etc.
With custom setting, cassette 1 supports 90.0 x 190.0 mm to 216.0 x 297.0 mm. cassette 2, 3 and 4 supports 139.7 x 210.0 mm to 297.0 x 431.8 mm.
Depending on the driver software, this margin varies.
TWAIN driver (ScanGear) is based on the TWAIN specification V1.6.
Optical Resolution is based on ISO/IEC 14473. This is the maximum sampling rate when scanning the original.
When scanning in high resolution, scanning area size may be limited.
Average copy time from ADF. Set the original on ADF and measure time from pushing the scanning button to output the copied paper.
Copy Speed is based on Canon original Method. With Canon original chart, execute the continuous copy and calculate copy pages per minute.
First-Copy-Out Time is based on ISO/IEC 29183.
Print quality might be lower depending on the operating environment.
Page yield is the estimated value based on Canon individual test method using the ISO/IEC 24711 (test method) and ISO/IEC 24712 (chart). Depending on print mode, print original, environment, user maintenance mode and its frequency etc, this value varies.
Page yield is based on the consumption data from the succeeding ink bottles but the first ink bottle.
Page yield of setup ink bottle is based on remaining ink after consuming for initial printer setup.
Printer must be connected to a wireless router.

Scan*6

Scanner Type

Scanner Sensor

Duplex Scanning

Optical Resolution*7

Maximum Resolution*8

Flatbed & ADF

CIS (Contact Image Sensor) x 2 Sensors

Single Pass

600 x 600 dpi

9600 x 9600 dpi

Scanning Bit Depth (Input/Output)

Grayscale

Colour

10 bit / 8 bit

30 bit / 24 bit (RGB each 16 bit / 8 bit)

Scanning Speed*9

Document (ADF): Simplex Colour, Simplex B/W

Document (ADF): Duplex Colour, Duplex B/W

Maximum Paper Capacity (80 g/m²)

Approx. 40 ipm

Approx. 65 ipm

100 sheets

Maximum Document Size

Flatbed

ADF

A3/11 x 17"

A3/11 x 17"

Copy

Maximum Document Size

Supported Media Size

Copy Exposure

A3 / 11 x 17"

A5, A4, A3, B5, B4, Statement, Executive, Letter, Legal, 11 x 17", 12 x 18", SRA3, 13 x 19"', K8, K16, Foolscap/Folio, Oficio, G-Letter, A-Letter, G-Legal, A-Foolscap, B-Oficio, M-Oficio, E-Oficio, A-Oficio, F4A, FS (Indian Legal), 4 x 6", 5 x 7", 8 x 10", 10 x 12",13 x 19", COM10, Monarch, ISO-C5, DL, Custom size (Up to 330 x 482 mm)

9 Levels

Copy Speed*10

Document (A4 / LTR)
Canon Original Method / Simplex

40 ppm (Colour, B/W)

First-Copy-Out Time*11

Document: Colour
sFCOT / Simplex

Magnification

Multiple Copy

Approx. 5.8 sec

25 - 400% (1% Increments)

Up to 999 copies

Send

Communication Protocol

Maximum Document Size

Address Book

Send Resolution

FTP (TCP/IP), SMB (TCP/IP), SMTP

Same as COPY function

300 addresses

204 x 196 dpi, 300 x 300 dpi

File Format

Single Page

Multiple Pages

TIFF (MMR), PDF, JPEG

TIFF (MMR), PDF

Network

Wired LAN

Network Type

Data Rate

1000Base-T / 100Base-TX / 10Base-T

1Gbps (1000Mbps) / 100Mbps / 10Mbps

Printing Solutions

Canon Print Business*14

Canon Print Service*14

AirPrint*14

Mopria*14

Google Cloud Print*14

Available

Available

Available

Available

Available

Media Direct Print (USB Memory)

Compatible Format

File Format

USB 2.0 compatible

JPEG / TIFF / PDF

System Requirements

Please visit http://asia.canon to check OS compatibility and download the latest driver

Windows 10 / 8.1 / 7
Windows Server 2016 / 2012 R2 / 2012 / 2008 R2 / 2008
Mac OS v10.12 ~ 10.13, Mac OS X 10.10.8.5 ~ 10.11

General Specifications

Operation Panel

Display

Language

LCD (5.0 inch Colour TFT Touch Screen)

35 Selectable Languages:
Japanese / English / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Slovak / Estonian / Latvian / Lithuanian / Romanian / Bulgarian / Croatian / Catalan / Arabic / Malay / Basque / Thai / Vietnamese

Interface

USB Port for USB Memory / PC

Hi-Speed USB 2.0

Operating Environment*12

Temperature

Humidity

15 - 35°C

20 - 90% RH (without condensation)

Recommended Operating Environment*12

Temperature

Humidity

Power

15 - 30°C

20 - 80% RH (without condensation)

AC 100-240 V, 50/60 Hz

Power Consumption

Copy / Print

Ready

Sleep

OFF

Maximum Power Consumption

Duty Cycle

Recommended Monthly Printing Volume

Approx. 110 W

Approx. 55 W

Approx. 1.9 W

Approx. 0.1 W

Approx. 300 W

100,000 pages

1,000 to 5,000 pages

Dimension (WxDxH)

Standard Configuration

With Optional Pedestal

Maximum Space

Weight

Approx. 560 x 590 x 880 mm

Approx. 588 x 590 x 1133 mm

Approx. 925 x 1208 x 1487 mm

Approx. 81.5 kg

Optional: Cassette Feeding Units

CF10: Dimension (WxDxH) / Weight

CB10: Dimension (WxDxH) / Weight

Approx. 560 x 590 x 253 mm / Approx. 19 kg

Approx. 560 x 590 x 260 mm / Approx. 11.8 kg

Related Accessories

CF10 (Cassette Feeding Unit)

Related Model

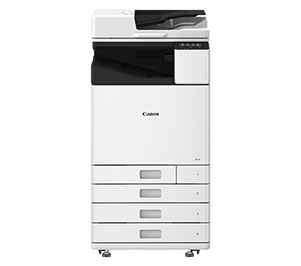

Canon WG7750F
