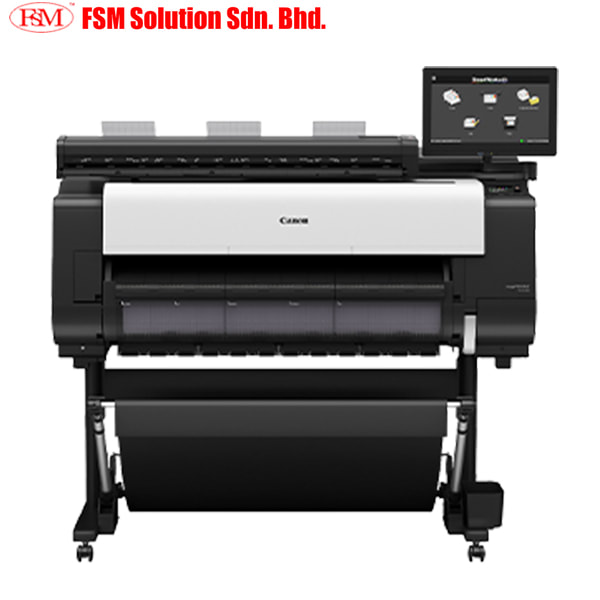

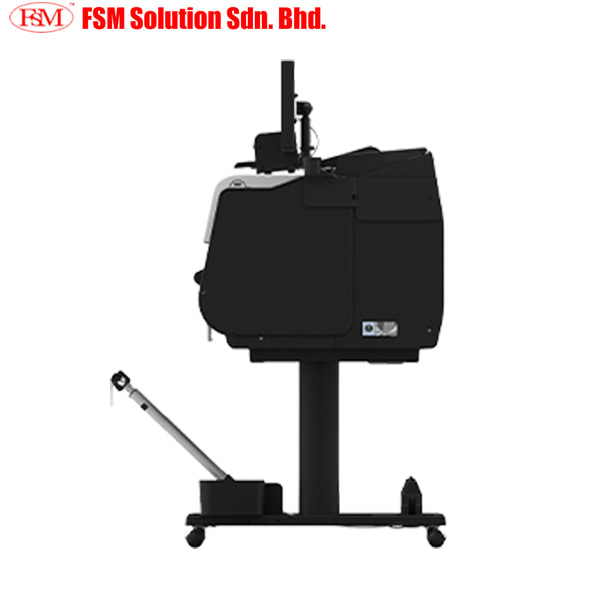

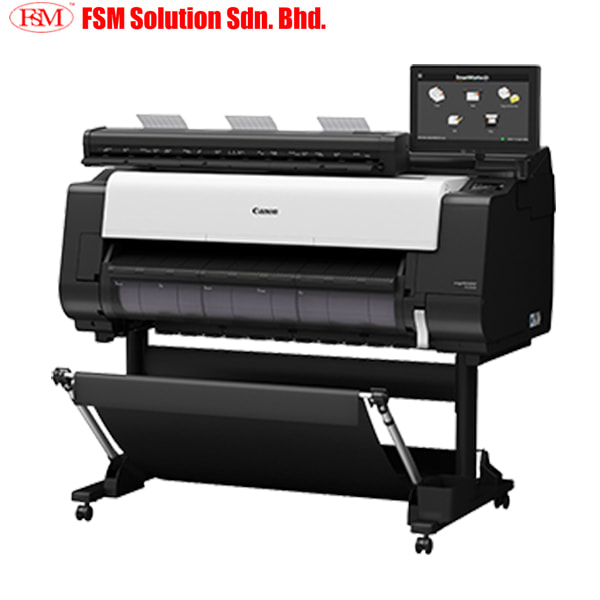

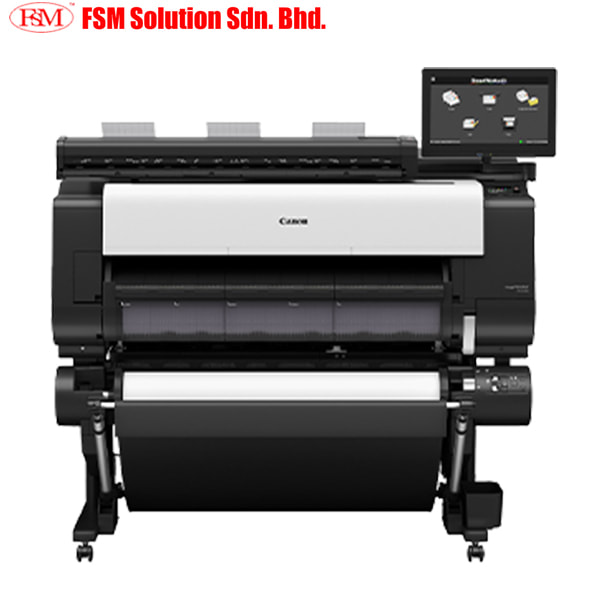

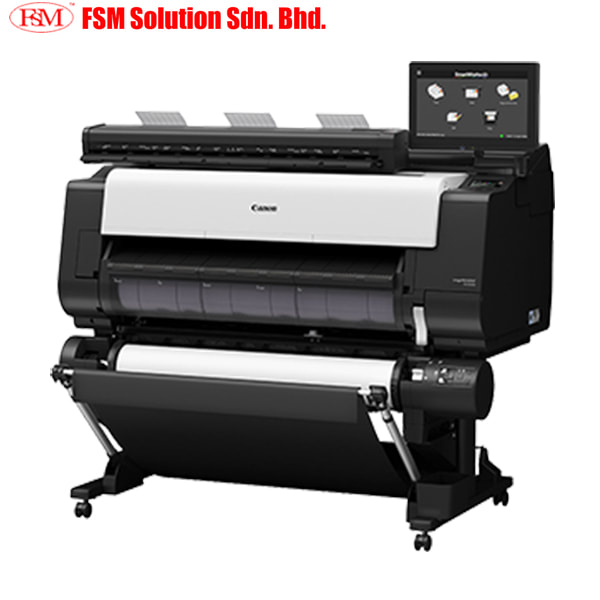

44 inch Colour Plan Printer with Scanner
Canon imagePROGRAF TX-5420 MFP Z36
TX-5420 MFP Z36
Elevating the benchmark for quality
The 44″ printer is designed for businesses that demand advanced productivity, reliable quality and streamlined workflow. With dual roll feeding and impressive media handling capabilities, the TX-5420 is ideal for printing CAD drawings and posters.
The 44″ printer is designed for businesses that demand advanced productivity, reliable quality and streamlined workflow. With dual roll feeding and impressive media handling capabilities, the TX-5420 is ideal for printing CAD drawings and posters.
- 44″ / 1,118 m
- Perfect for CAD & poster printing
- Standard dual roll system
- Impressive media handling system
- 500 GB Encrypted hard disk drive
- Robust security, extensive suite of software and solutions
- Specification
Printer Type - 5-Colour 44″ (1,118 mm)
Number of Nozzles - 15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each）
Maximum Print Resolution - 2,400 × 1,200 dpi
Nozzle Pitch - 1,200 dpi (2 lines)
Line Accuracy - ± 0.1% or less
Minimum Ink Droplet Size - 5 pl
Ink Capacity - Sales Ink: 160 ml / 330 ml / 700 ml (MBK, BK, C, M, Y)
Bundled Starter Ink: 330 ml (MBK) / 160 ml (BK, C, M, Y)
Ink Type - Pigment Ink
Printer Language - SG Raster (Swift Graphic Raster)
HP-GL/2
HP RTL
PDF (Ver. 1.7)
JPEG (Ver. JFIF1.02)
Printing Solutions - Apple AirPrint, Direct Print Plus, CPP PRISMAproduce Tech, Easy-PhotoPrint Editor, Canon PRINT (Mobile), Canon Print Service (Mobile), Free Layout Plus, PosterArtist Wndows/Lite/Web
Management Solutions - Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box
Standard Interfaces (Built-in) - USB A Port:
USB Memory (Direct Print)
USB B Port (Series B, 4 pins):
Hi-Speed USB
Full Speed (12 Mbit/sec)
High Speed (480 Mbit/sec)
Bulk Transfer
Gigabit Ethernet:
IEEE 802.3 10base-T
IEEE 802.3u 100base-TX
IEEE 802.3ab 1000base-T
IEEE 802.3x Full Duplex
SNMP, HTTP, FTP, TCP/IP (IPv4/IPv6)
Wireless LAN:
IEEE802.11b/g/n
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
WPA3-SAE (AES)
WPA-EAP (AES)*2
WPA2-EAP (AES)*2
WPA3-EAP (AES)*2
Memory - Standard: 128 GB
Physical: 2 GB
Hard Disk - 500 GB (Encrypted)
Number of Nozzles - 15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each）
Maximum Print Resolution - 2,400 × 1,200 dpi
Nozzle Pitch - 1,200 dpi (2 lines)
Line Accuracy - ± 0.1% or less
Minimum Ink Droplet Size - 5 pl
Ink Capacity - Sales Ink: 160 ml / 330 ml / 700 ml (MBK, BK, C, M, Y)
Bundled Starter Ink: 330 ml (MBK) / 160 ml (BK, C, M, Y)
Ink Type - Pigment Ink
Printer Language - SG Raster (Swift Graphic Raster)
HP-GL/2
HP RTL
PDF (Ver. 1.7)
JPEG (Ver. JFIF1.02)
Printing Solutions - Apple AirPrint, Direct Print Plus, CPP PRISMAproduce Tech, Easy-PhotoPrint Editor, Canon PRINT (Mobile), Canon Print Service (Mobile), Free Layout Plus, PosterArtist Wndows/Lite/Web
Management Solutions - Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box
Standard Interfaces (Built-in) - USB A Port:
USB Memory (Direct Print)
USB B Port (Series B, 4 pins):
Hi-Speed USB
Full Speed (12 Mbit/sec)
High Speed (480 Mbit/sec)
Bulk Transfer
Gigabit Ethernet:
IEEE 802.3 10base-T
IEEE 802.3u 100base-TX
IEEE 802.3ab 1000base-T
IEEE 802.3x Full Duplex
SNMP, HTTP, FTP, TCP/IP (IPv4/IPv6)
Wireless LAN:
IEEE802.11b/g/n
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
WPA3-SAE (AES)
WPA-EAP (AES)*2
WPA2-EAP (AES)*2
WPA3-EAP (AES)*2
Memory - Standard: 128 GB
Physical: 2 GB
Hard Disk - 500 GB (Encrypted)
Plain Paper
CAD Drawings, A0 - 33 sec [Fast (Custom Q5)]
Poster, A0 - 35 sec [Fast (Custom Q5)]
1 min 16 sec [Standard]
Heavyweight Coated Paper HG
Poster, A0 - 1 min 30 sec [Fast]
2 min 33 sec [Standard]
Glossy Photo Paper HG 170
Poster, A0 - 2 min 56 sec [Fast]
5 min 36 sec [Standard]
CAD Drawings, A0 - 33 sec [Fast (Custom Q5)]
Poster, A0 - 35 sec [Fast (Custom Q5)]
1 min 16 sec [Standard]
Heavyweight Coated Paper HG
Poster, A0 - 1 min 30 sec [Fast]
2 min 33 sec [Standard]
Glossy Photo Paper HG 170
Poster, A0 - 2 min 56 sec [Fast]
5 min 36 sec [Standard]
Media Feed and Output
Roll Paper (Single) - Front Load, Front Output
Cut Sheet - Front Load, Front Output
Media Width (Roll / Cut Sheet) - 152.4 ～ 1,118 mm
Media Thickness (Roll / Cut Sheet) - 0.07 ～ 0.8 mm
Min. Printable Length
Roll Paper - 101.6 mm
Cut Sheet - 203.2 mm
Max. Printable Length
Roll Paper - 18 m
Cut Sheet - 1.6 m
Maximum Outer Roll Diameter - 170 mm or less
Borderless Printing Width - 152.4 ～ 1,118 mm
(Roll paper only)
Margins (Recommended Area)
Roll Paper - Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut Sheet (Apple AirPrint) - Top: 20 mm, Bottom: 31 mm, Side: 3 mm
Cut Sheet (Others) - Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins (Printable Area)
Roll Paper - Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll Paper (Borderless Print) - Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut Sheet (Apple AirPrint) - Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm
Cut Sheet (Others) - Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Roll Paper (Single) - Front Load, Front Output
Cut Sheet - Front Load, Front Output
Media Width (Roll / Cut Sheet) - 152.4 ～ 1,118 mm
Media Thickness (Roll / Cut Sheet) - 0.07 ～ 0.8 mm
Min. Printable Length
Roll Paper - 101.6 mm
Cut Sheet - 203.2 mm
Max. Printable Length
Roll Paper - 18 m
Cut Sheet - 1.6 m
Maximum Outer Roll Diameter - 170 mm or less
Borderless Printing Width - 152.4 ～ 1,118 mm
(Roll paper only)
Margins (Recommended Area)
Roll Paper - Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut Sheet (Apple AirPrint) - Top: 20 mm, Bottom: 31 mm, Side: 3 mm
Cut Sheet (Others) - Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins (Printable Area)
Roll Paper - Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll Paper (Borderless Print) - Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut Sheet (Apple AirPrint) - Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm
Cut Sheet (Others) - Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Dimensions (W x D x H)
Main Unit + Stand + Basket - 1,593 x 984 x 1,168 mm (Basket Opened)
1,593 x 766 x 1,168 mm (Basket Closed)
Main Unit + Roll Unit + Stand + Stacker - 1,593 x 1,188 x 1,168 mm (Stacker Opened)
1,593 x 1,122 x 1,168 mm (Stacker Closed)
Roll Unit - 1,577 x 336 x 318 mm
Weight
Main Unit + Stand + Basket - 112 kg
Main Unit + Roll Unit + Stand + Basket - 132 kg
Main Unit + Roll Unit + Stand + Stacker - 144 kg
Roll Unit - 20 kg
Packaged Dimensions (W x D x H)
Main Unit + Stand + Basket + Pallet - 1,820 x 915 x 1,042 mm
Main Unit + Stand + Pallet - 1,820 x 915 x 1,042 mm
Basket - 1,426 x 555 x 213 mm
Stacker - 1,464 x 906 x 291 mm
Roll Unit - 1,727 x 562 x 461 mm
Packaged Weight
Main Unit + Stand + Basket + Pallet - 168 kg
Main Unit + Stand + Pallet - 164 kg
Basket - 9 kg
Stacker - 29 kg
Roll Unit - 34 kg
Main Unit + Stand + Basket - 1,593 x 984 x 1,168 mm (Basket Opened)
1,593 x 766 x 1,168 mm (Basket Closed)
Main Unit + Roll Unit + Stand + Stacker - 1,593 x 1,188 x 1,168 mm (Stacker Opened)
1,593 x 1,122 x 1,168 mm (Stacker Closed)
Roll Unit - 1,577 x 336 x 318 mm
Weight
Main Unit + Stand + Basket - 112 kg
Main Unit + Roll Unit + Stand + Basket - 132 kg
Main Unit + Roll Unit + Stand + Stacker - 144 kg
Roll Unit - 20 kg
Packaged Dimensions (W x D x H)
Main Unit + Stand + Basket + Pallet - 1,820 x 915 x 1,042 mm
Main Unit + Stand + Pallet - 1,820 x 915 x 1,042 mm
Basket - 1,426 x 555 x 213 mm
Stacker - 1,464 x 906 x 291 mm
Roll Unit - 1,727 x 562 x 461 mm
Packaged Weight
Main Unit + Stand + Basket + Pallet - 168 kg
Main Unit + Stand + Pallet - 164 kg
Basket - 9 kg
Stacker - 29 kg
Roll Unit - 34 kg
Power Supply - AC 100 - 240 V, 50 - 60 Hz
Power Consumption
Printing - Approx. 87 W
Sleep Mode - Approx. 1.7 W
Power Off - Approx. 0.1 W
Operating Environment
Temperature - 15 ～ 30°C
Humidity - 10 ～ 80% RH (no dew condensation)
Acoustic Sound
Acoustic Power - Operation: Approx. 69 dB
Acoustic Pressure - Operation: Approx. 51 dB (A)
Standby: 35 dB (A) or less
Roll Unit (Required) - RU-42
Stacker (Optional) - SS-41
2″/3″ Roll Holder (Optional) - RH2-46
Stacker (Optional) - SS-41
2″/3″ Roll Holder (Optional) - RH2-46
Print Head - PF-06
Cutter Blade - CT-07
Maintenance Cartridge - MC-30
Ink Tank - Matte Black / Black / Cyan / Yellow: PFI-8110 (160 ml) / PFI-8310 (330 ml) / PFI-8710 (700 ml)
Magenta: PFI-8111 (160 ml) / PFI-8311 (330 ml) / PFI-8711 (700 ml)
Cutter Blade - CT-07
Maintenance Cartridge - MC-30
Ink Tank - Matte Black / Black / Cyan / Yellow: PFI-8110 (160 ml) / PFI-8310 (330 ml) / PFI-8710 (700 ml)
Magenta: PFI-8111 (160 ml) / PFI-8311 (330 ml) / PFI-8711 (700 ml)
Technology - Single Sensor, full width straight-line CIS with dual LED illumination
Scan Width - 36″ (914 mm)
Min. Scan Width - 6″ (150 mm)
Max. Scan Length
JPEG/PDF - 8 m
TIFF - 15.2 m
Max. Copy Speed
200 dpi - 6 ips (Colour) / 13 ips (Greyscale)
300 dpi - 4 ips (Colour) / 8.6 ips (Greyscale)
600 dpi - 2 ips (Colour) / 4.3 ips (Greyscale)
Max. Scan Speed
200 dpi - 3 ips (Colour) / 13 ips (Greyscale)
300 dpi - 2 ips (Colour) / 8.6 ips (Greyscale)
600 dpi - 2 ips (Colour) / 4.3 ips (Greyscale)
Optical Resolution - 1,200 dpi
Max. Document Thickness - 1 mm
Document Handling - Front Load, Rear Output
System Controller
Hard Disk - 256 GB (Solid State Drive)
Memory - 8 GB (DDR 4)
Display - 15.6″ multi-touch colour display
Software Included - SmartWorks MFP V6
Scan Format - PDF, Multipage PDF, JPEG, TIFF, DWF
Dimensions (W x D x H) - 1,056 x 251 x 156 mm
Weight
Scanner - 7.8 kg
System Controller - 2.5 kg
Power Consumption (Scanner)
Operation - 22.7 W (Colour) / 23.3 W (Greyscale)
Sleep Mode - 0.2 W
Standby - 12.4 W
Scan Width - 36″ (914 mm)
Min. Scan Width - 6″ (150 mm)
Max. Scan Length
JPEG/PDF - 8 m
TIFF - 15.2 m
Max. Copy Speed
200 dpi - 6 ips (Colour) / 13 ips (Greyscale)
300 dpi - 4 ips (Colour) / 8.6 ips (Greyscale)
600 dpi - 2 ips (Colour) / 4.3 ips (Greyscale)
Max. Scan Speed
200 dpi - 3 ips (Colour) / 13 ips (Greyscale)
300 dpi - 2 ips (Colour) / 8.6 ips (Greyscale)
600 dpi - 2 ips (Colour) / 4.3 ips (Greyscale)
Optical Resolution - 1,200 dpi
Max. Document Thickness - 1 mm
Document Handling - Front Load, Rear Output
System Controller
Hard Disk - 256 GB (Solid State Drive)
Memory - 8 GB (DDR 4)
Display - 15.6″ multi-touch colour display
Software Included - SmartWorks MFP V6
Scan Format - PDF, Multipage PDF, JPEG, TIFF, DWF
Dimensions (W x D x H) - 1,056 x 251 x 156 mm
Weight
Scanner - 7.8 kg
System Controller - 2.5 kg
Power Consumption (Scanner)
Operation - 22.7 W (Colour) / 23.3 W (Greyscale)
Sleep Mode - 0.2 W
Standby - 12.4 W
- User adjustments is required.
Printing environment and media must match those used for the adjustments.
Paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only. - Support IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP).
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Manual feed using media locking lever.
- For cloth, canvas, tracing paper and translucent matte film media, minimum printable length is 200 mm.
- Varies according to the OS and application.
- Include roll holder set, exclude ink and print head.
- Measured using ISO 7779 standard by using 36 inch plain paper, standard mode and line drawing / text mode.
- Scanner is manufactured by U.K. – based Global Scanning UK Ltd.
- The scan rate is proportional across the full range of resolutions supported by the scanner. Actual scan times and quoted top speeds will depend on the host performance and are not guaranteed for all media types. Scan times quoted are the maximum for true 200 x 200dpi image capture.
- Thicker documents must be flexible and the paper return guides removed and may require additional support. Some media should be scanned at reduced speeds. It is not possible to guarantee to be able to scan all media types and sizes.
- To return document to the front, use document return guides.
- Document return guides and paper tray folded.
- Power consumption is measured with scan resolution setting of 200 dpi.
- Please refer to individual country / region websites and respective sales offices for product availability.
- Specifications, availability and terms of offers may change without notice.
- Products / Services may be manufactured by and/or supplied to us by third party manufacturers / suppliers for distribution / resale (non-Canon brand products).
Features
Fast Print Speed
The TX series realised faster throughput during continuous printing by optimising the pre-processing of print data, process of media cutting and media transport. Pre-print operation and print spooling have been optimised to achieve faster first print from standby or sleep mode.
The TX series realised faster throughput during continuous printing by optimising the pre-processing of print data, process of media cutting and media transport. Pre-print operation and print spooling have been optimised to achieve faster first print from standby or sleep mode.
Productivity at Its Peak
Dual-roll feeding unit enables users to load up to two rolls of media, reducing the frequency of switching between different media types or sizes in high volume printing. Optional stacker supports stacking of up to 100 A0 size sheets, while the sub ink tank system allows empty ink tanks to be replaced while the printer continues to print, maximising productivity.
Dual-roll feeding unit enables users to load up to two rolls of media, reducing the frequency of switching between different media types or sizes in high volume printing. Optional stacker supports stacking of up to 100 A0 size sheets, while the sub ink tank system allows empty ink tanks to be replaced while the printer continues to print, maximising productivity.
Smart Roll Paper Set
All models are equipped with an advanced Smart Roll Paper Set function that automatically detects paper feed and type and estimates the remaining paper quantity. The speed-up of the paper feeding process reduces the time it takes to load the roll paper.
All models are equipped with an advanced Smart Roll Paper Set function that automatically detects paper feed and type and estimates the remaining paper quantity. The speed-up of the paper feeding process reduces the time it takes to load the roll paper.
Technologies
LUCIA TD Ink
5-colour LUCIA TD pigment ink is formulated to produce sharp text, and accurate lines with excellent water resistance, even on plain paper. With new magenta pigment ink to enhance technical drawings and graphics, poster quality can be improved as a deeper and more vivid output will be produced.
5-colour LUCIA TD pigment ink is formulated to produce sharp text, and accurate lines with excellent water resistance, even on plain paper. With new magenta pigment ink to enhance technical drawings and graphics, poster quality can be improved as a deeper and more vivid output will be produced.
FINE Print head
Equipped with micron-sized nozzles, the fully integrated print head provides superb uniformity of ink density and colours, while multi-pass printing ensures highest print quality is maintained on every print.
Equipped with micron-sized nozzles, the fully integrated print head provides superb uniformity of ink density and colours, while multi-pass printing ensures highest print quality is maintained on every print.
L-COA PRO Image Processing Engine
L-COA PRO imaging processor is capable of processing massive image data, drives high printing speed while maintaining supreme print quality, enabling fast first print out time and continuous printing speed.
L-COA PRO imaging processor is capable of processing massive image data, drives high printing speed while maintaining supreme print quality, enabling fast first print out time and continuous printing speed.
Workflow Solutions
The following workflow solutions are designed to help you get the most out of your printer.
Direct Print Plus
Job submission tool which supports batch printing of multiple file types, shortcut printing function and job presets, enabling efficient large format printing workflow.
Job submission tool which supports batch printing of multiple file types, shortcut printing function and job presets, enabling efficient large format printing workflow.
PosterArtist
Design vibrant posters for your needs with minimal effort using the PosterArtist application.
Design vibrant posters for your needs with minimal effort using the PosterArtist application.

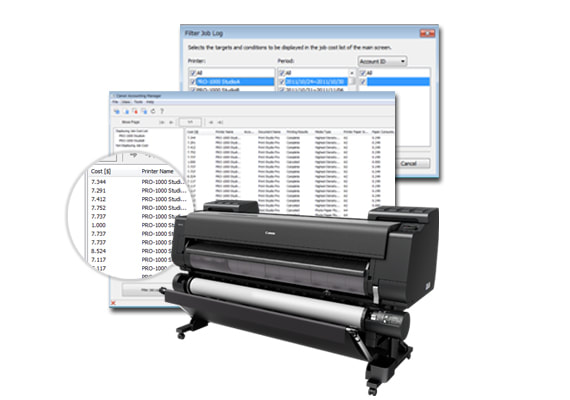

Accounting Manager
Track ink and media usage for cost calculation and reporting.
Track ink and media usage for cost calculation and reporting.
- Direct Print Plus - Job submission tool which supports batch printing of multiple file types, shortcut printing function and job presets, enabling efficient large format printing workflow.
- Accounting Manager - Track ink and media usage for cost calculation and reporting.
- Media Configuration Tool - Easily manage, update and arrange media information in printer's operation panel and printer driver.
- Device Management Console - Effectively manages multiple printers, monitor activities such as error messages and printer information up to 50 printers.
- Quick Utility Toolbox - Quick access to supporting utilities and settings. From printer information, speed dial and destination folder settings to scanning and cloud sharing.
- Free Layout Plus - Enjoy nesting, tiling and duplex printing features.
- Easy-PhotoPrint Editor - Edit, trim and rotate your images into unique layouts and designs, including posters, calendars, collages and more. Available on iOS, Android OS.
- Apple AirPrint - Print PDF files wirelessly via mobile app for Apple iPad® and iPhone®.
- Canon Print Service - Direct document and photo printing via mobile app from Android devices without the need to download any printer-specific applications.
- Canon PRINT - Print PDF files wirelessly via mobile app for Android tablet and smartphone.
- PRISMAproduce Tech - A powerful workflow application and a user-friendly way to create document sets of dozens of files and submit them easily to imagePROGRAF printers.
Accessories
Roll Unit: RU-42 (Optional)
High Capacity Stacker: SS-41 (Optional)
2″/3″ Roll Holder: RH2-46
Cutter Blade: CT-07
High Capacity Stacker: SS-41 (Optional)
2″/3″ Roll Holder: RH2-46
Cutter Blade: CT-07
Related Products and Services:
Related Articles:
- A1 A0 Plotter Larger Format Printer
- A1 A0 Laser Printer Black and White
- A1 A0 Large Format Scanner
- Rent A1 A0 Plotter Printer
- Rent Photocopy Machine Xerox Fujifilm
Related Articles:
