Portable NEC Projector 3500 Lumens

LCD Projector NEC NP-VE304G

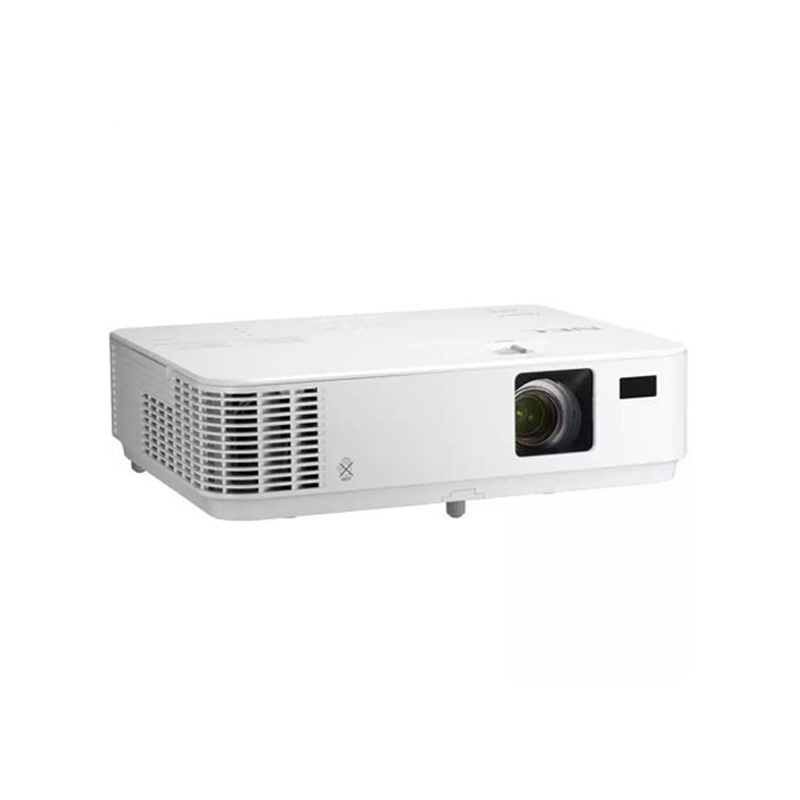

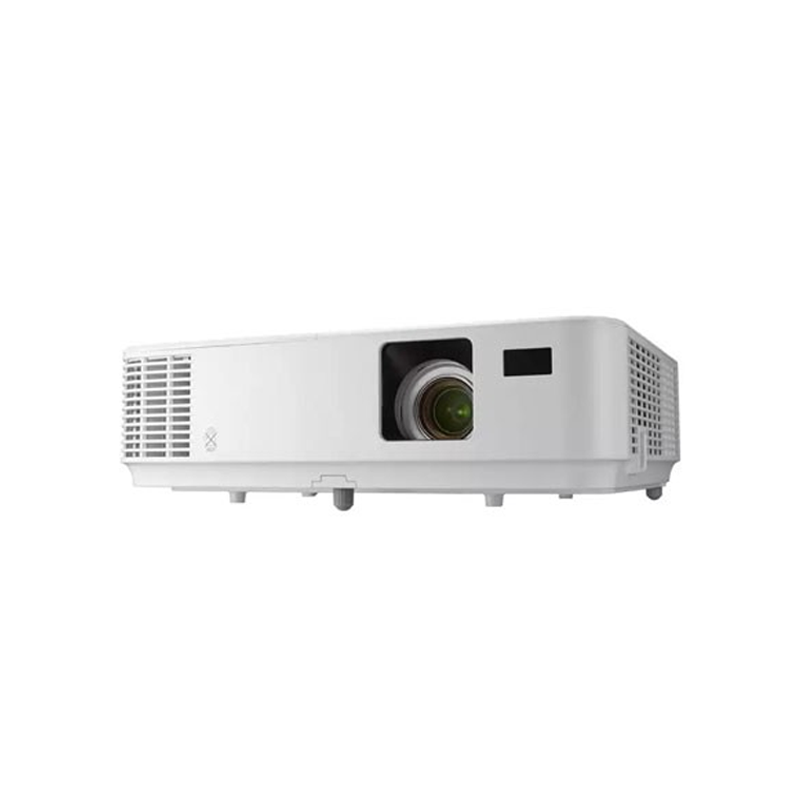

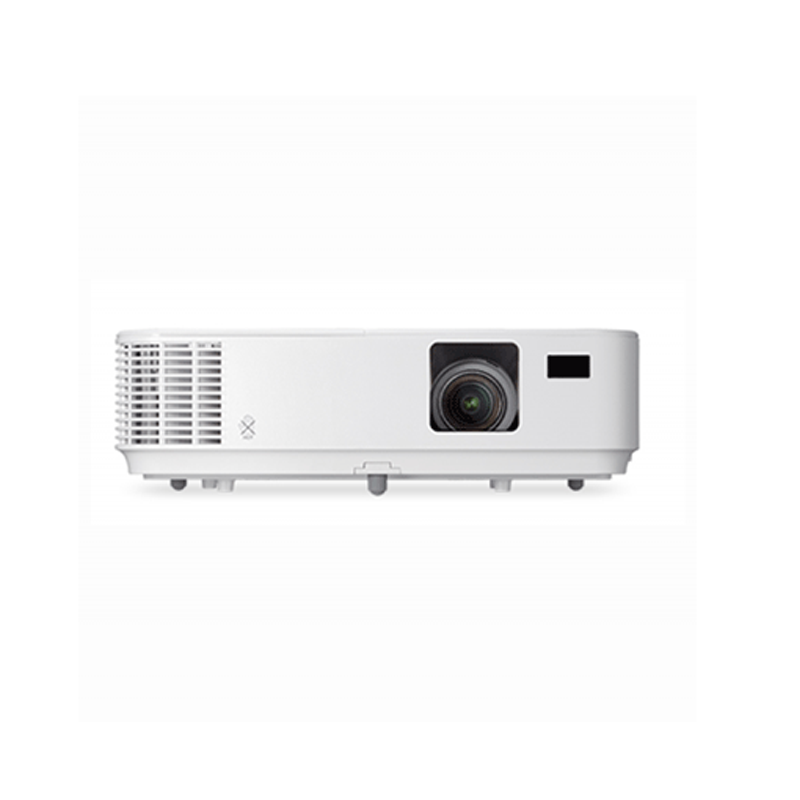

NEC NP-VE304G

The NEC NP-VE304G is a portable DLP projector with SVGA resolution and 3500 ANSI lumens of brightness. It has a contrast ratio of 10000:1 and a lamp life of up to 6000 hours. It is equipped with HDMI, VGA, and composite video inputs, as well as a built-in speaker.

​Here are some of the key features of the NEC NP-VE304G:
  • SVGA resolution (800 x 600)
  • 3500 ANSI lumens of brightness
  • 10000:1 contrast ratio
  • Up to 6000 hours lamp life
  • HDMI, VGA, and composite video inputs

Benefits

Great Picture Quality and Integrated Audio

​​Thanks to the 10,000:1 contrast and the built-in 2 W speaker

​Innovative ECO Functions


​Reduce power consumption while ensuring optimal image performance and lamp life that is extended to 6,000 hours.
Direct Power Off

​This feature allows the projector to be turned off (even when projecting an image) by using the Main Power Switch or by disconnecting the AC.
SmartSource™ 3D Ready

​The projector can support the following 3D formats. - HDMI 3D - 120 Hz 3D (only available if your PC can output 120 Hz) - HQFS 3D

Specification

Model NP - VE304G
Method Reflection by single DMD chip
Resolution*1 800 × 600 (SVGA)
Lens Manual zoom (×1.1) / Manual focus, F = 2.41 - 2.55, f = 21.8 - 24.0 mm, Throw ratio = 1.95 - 2.15
Light source(Lamp) ECO mode 160 W
ECO mode off 195 W
Lamp life*2 ECO mode 6,000 H
ECO mode off 4,500 H
Image size 30 to 300 inches
Light output *3 *4 ECO mode off 3500 Lumens
ECO mode Approx. 85% of ECO of
Lumens (Eco off) 3500 Lumens
Quietness (ECO / ECO mode off ) 30 dB / 34 dB
Contrast ratio (white / black)*4 10,000:1 with dynamic contrast on
Maximum resolution Up to 1080p (1,920 × 1,080)
Synchronization range Horizontal 15 kHz to 100 kHz (RGB: 24 kHz or over )
Vertical 50 Hz to 120 Hz (24 Hz: Blu-ray 24P)
Vertical keystone correction Manual: ± Max 40 degrees

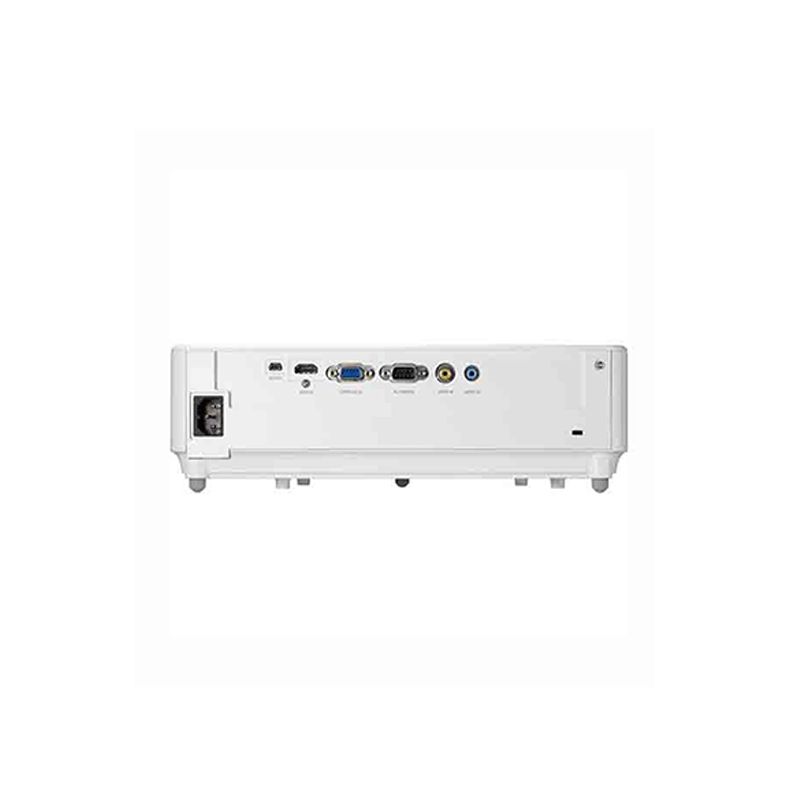

Input terminals Computer Mini D-sub 15 pin × 1
Video RCA × 1
HDMI HDMI × 1
Audio Stereo mini jack × 1
Control terminals D-sub 9 pin × 1
USB port Service × 1
Built-in speaker 2 W monaural
Usage environment Operational temperature 5°C to 40°C, up to 80% humidity (no condensation)
Storage temperature -10°C to 50°C, up to 80% humidity (no condensation)
Power requirements 100 to 240 V AC, 50 Hz / 60 Hz
Input current 2.5 A to 1.1 A
Power consumption (100 to 130 V AC / 200 to 240 V AC) ECO mode off 237 W / 232 W
ECO mode 198 W / 192 W
Standby (Normal ) 0.23 W / 0.33 W
Dimensions (W × H × D) 324 × 101 × 250 mm 324 × 88 × 250 mm (not including protrusions)
Weight 2.6 kg
Accessories Power cord, remote control, batteries, signal cable, CD-ROM (User’s manual ), quick guide.
