Technical Specifications

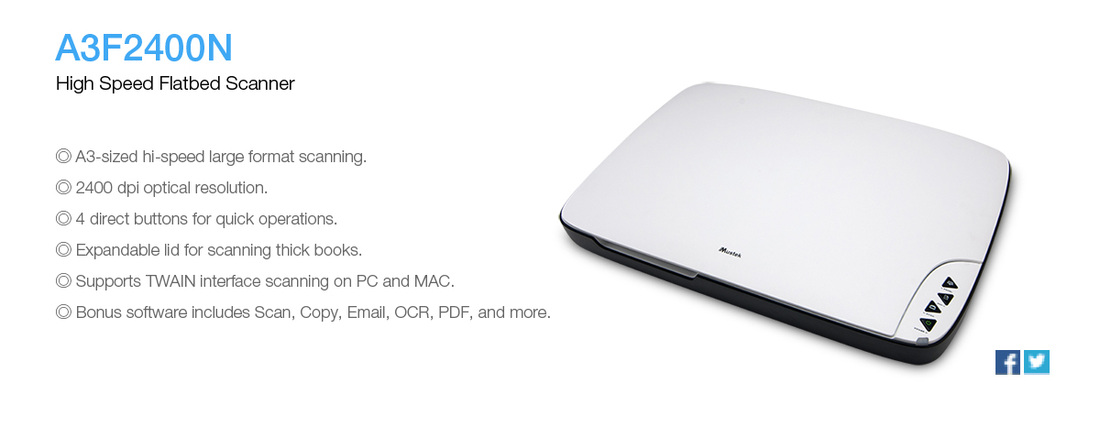

Scanner Type Color CIS Flatbed

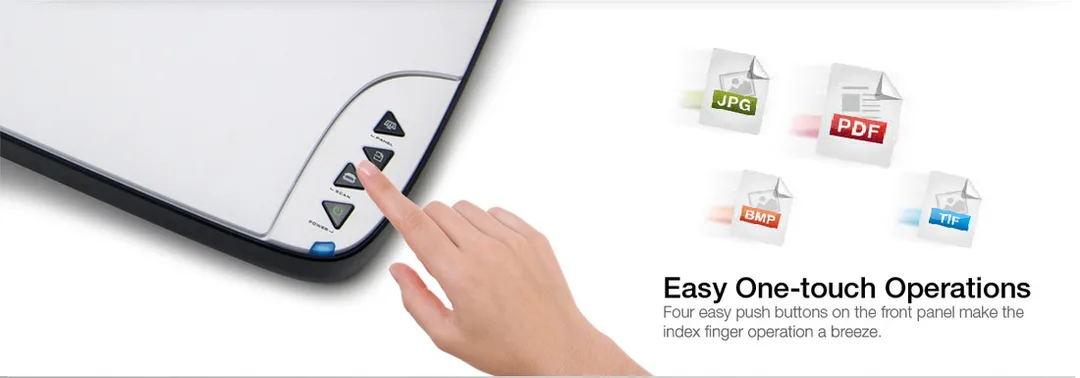

Scanner Buttons POWER, SCAN, PDF, PANEL
Scan Modes Color: 48-bit & 24-bit
Gray: 16-bit & 8-bit
Line art: 1-bit

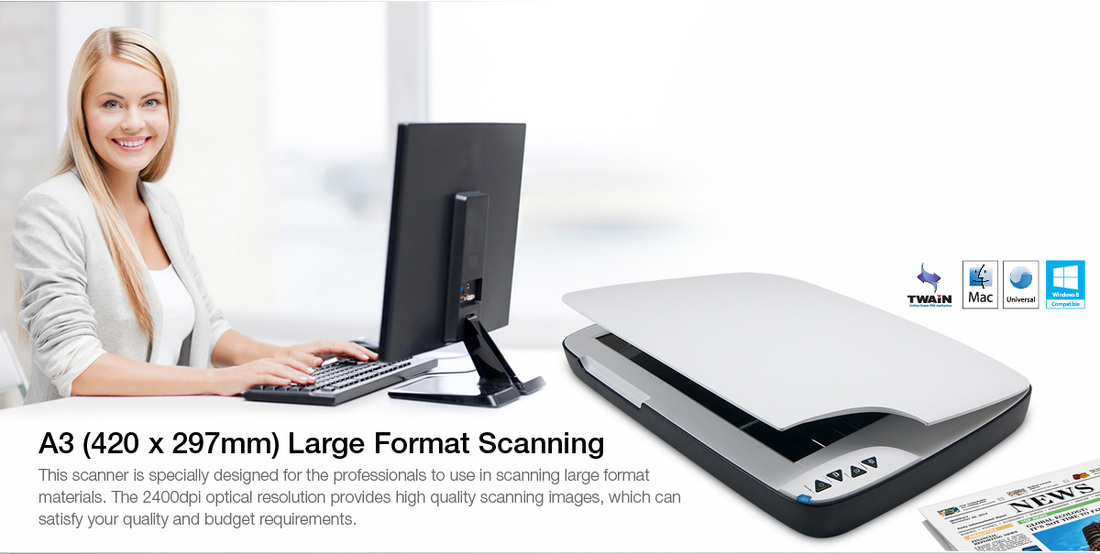

Scan Area (Max.) 299 mm x 427 mm (11.8" x 16.8")
Resolution Optical: 2400dpi x 2400dpi
Software Interpolation: 9600 dpi x 9600 dpi
Interface USB 2.0
Light Source LED
Dimension (L x W x H) 576 mm x 406 mm x 72 mm (22.6" x 15.9" x 2.8")
Weight Approx. 4.6 kgs (10.1 lbs)
Power Consumption 12 VDC, 2.0A, 24W ( Input: 100~120VAC or 200~240VAC, 50~60Hz)
Power Saving Auto power o after 15min
System Requirements Windows 8 / 7 / Vista / XP (Service Pack 3)
Mac OS X 10.7~10.9
Linux Ubuntu12.04 kernel 3.11 32bit / Fedora 20 kernel 3.15 32bit
