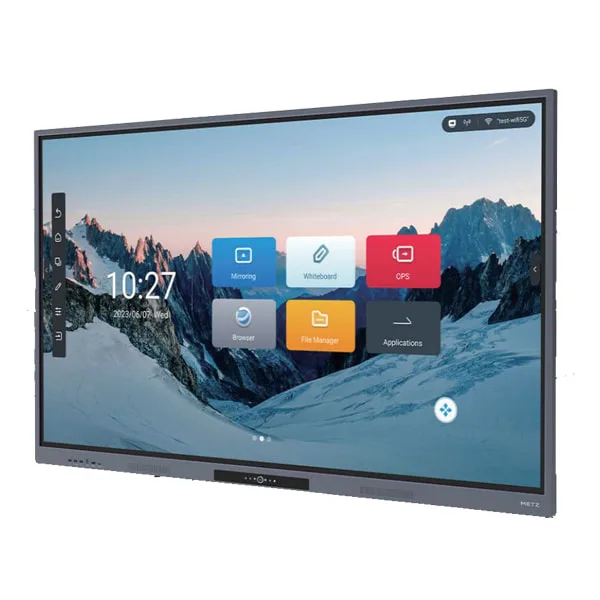

Metz MET-75KD 75 inch Interactive White Board

Metz MET-75KD 75 inch Interactive White Board




​The Metz MET-75KD IWB is a high-quality interactive whiteboard that is perfect for classrooms, conference rooms, and other collaborative spaces. It features a large 75-inch 4K Ultra HD LED display with a 20-point multi-touch capability. This allows multiple users to write, draw, and annotate on the whiteboard at the same time. The MET-75KD also includes a variety of software features, such as whiteboard annotation, screen mirroring, and cloud collaboration.

Features Metz MET-75KD

  • 75-inch 4K Ultra HD LED display with a 20-point multi-touch capability
  • Whiteboard annotation software with a variety of tools and features
  • Screen mirroring from smartphones, tablets, and laptops
  • Cloud collaboration for real-time sharing and editing of whiteboard content
  • Integrated webcam and microphone for video conferencing
  • Durable design with a scratch-resistant surface
  • Easy installation and setup
  • Specification
  • Brochure
  • Price List
  • ​Detailed requirements H series For tender
Product Specification/Datasheet
Metz MET-75KD
Key Selling Points
  • 4K UHD
  • Android 11.0 embed, optional win PC module, support dual system;
  • High precision, low touch height (1mm) infrared touch, excellent touch and        writting experience​
  • Support anti-mist touch;
  • Large and small pen recognition
  • anti-glare tempered glass, Zero bonded technology
  • Support user-defined home page icon, smart floating ball, gesture operation, easy to operate;
  • Touch return to your screen sharing device.
  • Metz Talent teaching software with many teaching tools for classrooms
  • Zero-bonding Technology brings a reduction of air layer greatly reduces the touch and visual deviation
  • 1mm Writting Height, writting like on a piece of paper
  • 3mm Infrared Frame Height, the appereance looks more advanced.

LED PANEL
Screen Size
75"
Backlight Type
DLED
Aspect Ratio
16:09
Resolution (pixels)
4K UHD (3840x2160)
Brightness
75":350cd/m2(typ.)
Viewing Angle
178°(H) / 178°(V)
Display Area(mm)
75”:1649.664(H)*927.936(V)

TOUCH
Sensing Type
Infrared Touch Frame
Surface Protection
4mm Toughened Glass
Infrared Touch
20 Points
Response Time
<=10ms
System
Android 11 / Windows

​FRONT INTERFACE
Type C
1
USB 3.0
3
Touch USB
1
HDMI
1

REAR INTERFACE
OPS SLOT
1
Touch USB
1
USB 3.0
3
HDMI IN
2
HDMI OUT
1
​MIC IN
1
LINE OUT
1
RS232
1
LAN IN
1
LAN OUT
1
AV IN
n/a
AV OUT
​n/a
COAX OUT
​n/a
TF
​n/a
Type C
1
SPDIF
1
Android USB 2.0
​1
DP IN
​1
USB 2.0 OTG
​1

​BUILT IN PC
CPU
Quad core ARM Cortex-A73*4 +
Quad core Cortex- A53*4 CPU
​GPU
ARM Mali-G52*8
​RAM
8G Byte
ROM
128G Byte
​Storage
N/A

​STRUCTURE
Product Size(W x D x H)
75”:1715.66 x 1030.12 x 103.15mm
Package Size(W x D x H)
75":1826 x 215 x 1190mm
Net Weight
75":55kg
Gross Weight
75”:70kg

​POWER
Power Requirements
AC 100V-240V~50/60 Hz
Power Consumption Without OPS
75":≤300W
Standby Condition
<=0.5W

​ENVIRONMENT
Operating Temperature
0°C to 50°C
Storage Temperature
-20°C to 60°C
Operating Humidity
10%RH～90%RH
Storage Humidity
10%RH～90%RH

ACCESSORY
​User Manual
1
Wall Mount
​1
​Remote Control
​1
​Touch Pen
​2
​Power Cable (2m)
​1
​OPS
​Optional
Wireless Projector
Optional
Smart Pen
Optional
Part Number (Interactive Flat Panel Display) Metz MET-75KD
MET-75HD1
75"
Metz MET-75KD
End User Price
RM13,999
Warranty
3 Years On Site Warranty
Accessories (Optional)
Part Number (OPS & Wireless Type C Transmitter)
apple
apple
MET-S084-i5
MET-S084-i7
MET-PTB1304B
i5-1135G7 8G RAM-256G ROM
i7-1135G7 8G RAM-256GB ROM
End User Price
RM2,999
RM3,699
RM799
Warranty
1 Year Warranty
Part Number (Mobile Stand)
apple
MET-KZH01 (75")
End User Price
RM1,199
Detailed requirements K series For tender
K Series
Hardware Requirement Panel 75”, 16:9
Touch Tecnology Infrared
Touch Frame Height（Over the cover glass <6mm< />d>
Resolution 4K (3840 x 2160)
Brightness ≥350 cd/m2
Panel Protection 9H tempered Glass
Panel Type IPS
View Angle 178∘
Touch points 20 points
Touch pens 2 passive pens;3mm&10mm tips
CPU ARM Cortex A73*4 + A53*4
GPU ARM Mali-G52 MP8
RAM&ROM RAM: 8 GB.
ROM: 128 GB.
Operative System In built Android 11. No seperate device is need.
Speakers 2 speakers ≥15W.
Interface Front of the panel: USB 3.0*3（For both Android & Windows Touch USB*1 HDMI In*1 Full Function Type-C*1（Support at least 5W charge）
Back of the panel: OPS Slot*1 HDMI out*1 USB3.0*2 RJ-45 IN*1 RJ-45 OUT*1 DP in*1 RS-232*1 SPDIF*1 Mic in*1 Line out*1 Type C*1"
Video Format Support H263、Sorenson Spark、VP6、VP8、VP9、mjpa、M-JPEG、MPEG-1、XVID、avs、avs+、avs2、4K VP9、8K VP9
Front Button At least 7 physical buttonts to control multifunction，volume，screen share，power，whiteboard，brightness，multi-task.
Internet Connection Both Android and windows could get Internet access with one cable. Panel support Wi-Fi 6，2.4GHz/5GHz，could have internet access and provide hotspot simutaneausly. Integrated Wi-Fi design, no seperate device needed. Bluetooth5.0.
h
Software Requirement Software functions: A side tool bar is needed 1. Need include home page, settings, annotation, multitask, signal source switch, return back function. 2. Signal source can be switch to OPS, HDMI 1, HDMI 2, DP, Front HDMI, Front Type-C. 3. Annotation pen need to support at least 40 colors. And can be shared with QR code(Password needed). 4. In side tool bar settings, you could turn on/off functions as below: enthernet, wifi, hotspot, bluetooth, screen cut, vision care, touch lock, screen lock, listen alone, screen off, ops off, pwer off, restart, screen freeze, mute, auto backlight, spot light, anti flase touch. 5. Sound volume and brightnees could be adjust in side tool bar. 6. Users have access to all the application via side tool bar, and could run multiple application(at least 6 application) at the same time on one screen. A floating ball is needed: 1. Floating ball need to include home page, whiteboard, annotation, multitask,, OPS channel, return back function. 2. All application process could be one key cleared via multitask fuction. 3. The floating ball could be call out by double click with two fingers at any place on the panel, and the floating ball follows with the finger. A whiteboard application is needed: 1. At least 20 canvases is needed. 2. Whiteboard file could be save as souce file, PDF and Image. 3. Whiteboard can be shared by scanning the QR code(password needed). 4. Whiteboard can be sent by email. 5. Background color can be set, at least 12 colors. 6. Background grid can be set, at leaset 8 types. 7. Whiteboard need to support dual pen, dual color fiction. 8. Pen tip color can be adjust via a palette. 9. At least 6 pen tip thickness choice. 10. Handwriting opacity can be adjust from 10% to 100%. 11. Text pen is needed to recognise handwriting and transfer it to text automatically.(Follow the system language) 12. Shape pen is needed to recogise hand draw shape and teansfer it automatically. (At least circle, triangle, rectangle need to be recognised) 13. Table is needed, the table column and row could adjust automatically when content exceed the original space. 14. Timer is needed. 15. Whiteboard inbuilt explorer is needed, pictures in the explorer can be paste to the whiteboard by long press. 16. Pictures and videos can be insertted to the whiteboard. 17. Vote tool is needed. 18. Fast upload tool is needed. (Scan the QR code and upload) A screen share tool is needed: 1. Support windows, android, IOS, Mac OS, Linux, Chrome system screen share. 2. IOS and Mac OS device could be screen shared without installing a software. 3. At least 4 screens could be shared at the same time. A screen record tool is needed: 1. Screen record could continuous running during channel switching. 2. Sound source can be adjust, microphone sound only, media sound only, or both medio and microphone sound. 3. Screen can be recorded up to 120minutes. Other requirement： 1. System multi-account function. 2. OTA update. 3. Hardware detection and optimization. 4. Welcome page. 5. Calendar. 6. Calculater.
