Best Price Smartboard For Classroom

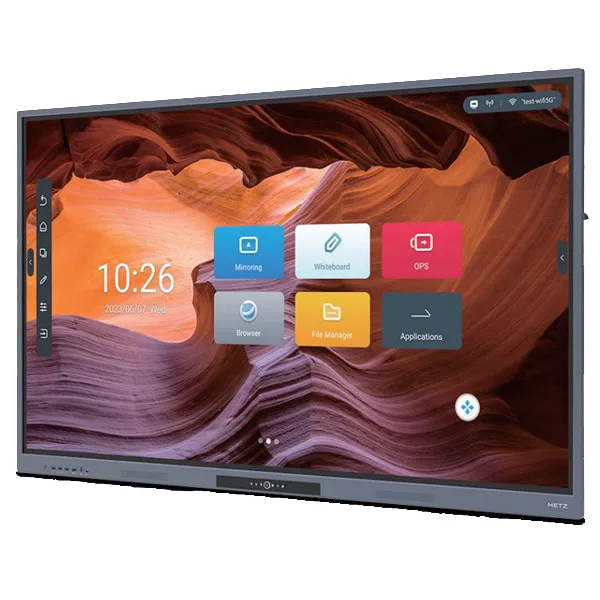

Metz MET-65HD1 65 inch Interactive White Board

Metz MET-65HD1 65 inch



​The Metz MET-65HD1 is an interactive whiteboard that uses 4K Ultra HD resolution to provide a clear and detailed image. It has a 65-inch screen and supports 10-point multi-touch, so multiple users can interact with the whiteboard at the same time. The whiteboard also comes with a variety of software features, including annotation tools, whiteboard collaboration tools, and screen sharing capabilities.

Features Metz MET-65HD1

  • Display: 65-inch LED display with 4K Ultra HD resolution (3840 x 2160 pixels)
  • HDR10 and HLG support: For enhanced contrast and color reproduction
  • Wide color gamut: Supports the DCI-P3 color space for more vibrant colors
  • Smart TV features: Built-in Wi-Fi and access to popular streaming apps like Netflix, Hulu, and YouTube
  • Multiple HDMI ports: Connect up to four HDMI devices, such as Blu-ray players, game consoles, and streaming devices
  • USB ports: Connect USB devices, such as flash drives and external hard drives, to play media or record content
  • Optical audio output: Connect to a soundbar or other external audio system for improved sound quality
  • Headphone jack: Connect headphones for private listening
  • VESA mount compatibility: Mount the TV on the wall to save space
  • Specification
  • Brochure
  • Price List
  • ​Detailed requirements H series For tender
Product Specification/Datasheet
Metz MET-65HD1
Key Selling Points
  • 4K UHD
  • Android 11.0 embed, optional win PC module, support dual system;
  • High precision, low touch height (1mm) infrared touch, excellent touch and        writting experience​
  • Support anti-mist touch;
  • Large and small pen recognition
  • anti-glare tempered glass, Zero bonded technology
  • Support user-defined home page icon, smart floating ball, gesture operation, easy to operate;
  • Touch return to your screen sharing device.
  • Metz Talent teaching software with many teaching tools for classrooms
  • Zero-bonding Technology brings a reduction of air layer greatly reduces the touch and visual deviation
  • 1mm Writting Height, writting like on a piece of paper
  • 3mm Infrared Frame Height, the appereance looks more advanced.

LED PANEL
Screen Size
65''​
Backlight Type
DLED
Aspect Ratio
16:09
Resolution (pixels)
4K UHD (3840x2160)
Brightness
65":350cd/m2(typ.)
Viewing Angle
178°(H) / 178°(V)
Display Area(mm)
65”:1428.48(H)x803.52(V)

TOUCH
Sensing Type
Infrared Touch Frame
Surface Protection
4mm Toughened Glass
Infrared Touch
20 Points
Response Time
<=10ms
System
Android 11 / Windows

​FRONT INTERFACE
Type C
1
USB 3.0
3
Touch USB
1
HDMI
1

REAR INTERFACE
OPS SLOT
1
Touch USB
1
USB 3.0
3
HDMI IN
2
HDMI OUT
1
​MIC IN
1
LINE OUT
1
RS232
1
LAN IN
1
LAN OUT
1
AV IN
1
AV OUT
1
COAX OUT
1
TF
1
Type C
n/a
SPDIF
n/a
Android USB 2.0
​n/a
DP IN
​n/a
USB 2.0 OTG
​n/a

​BUILT IN PC
CPU
​Quad core ARM Cortex-A55*4
​GPU
​ARM Mali-G52 MP2*2
​RAM
​4G Byte
ROM
32G Byte
​Storage
128G Optional

​STRUCTURE
Product Size(W x D x H)
65”:1493.43x904.78x102.87mm
Package Size(W x D x H)
65”:1623x215x1065mm
Net Weight
65“:40kg
Gross Weight
65“:41kg

​POWER
Power Requirements
AC 100V-240V~50/60 Hz
Power Consumption Without OPS
65”:250W
Standby Condition
<=0.5W

​ENVIRONMENT
Operating Temperature
0°C to 50°C
Storage Temperature
-20°C to 60°C
Operating Humidity
10%RH～90%RH
Storage Humidity
10%RH～90%RH

ACCESSORY
​User Manual
1
Wall Mount
​1
​Remote Control
​1
​Touch Pen
​2
​Power Cable (2m)
​1
​OPS
​Optional
Wireless Projector
Optional
Smart Pen
Optional
Part Number (Interactive Flat Panel Display) Metz MET-65HD1
MET-75HD1
65"
MET-65HD1
End User Price
RM7,999
Warranty
3 Years On Site Warranty
Accessories (Optional)
Part Number (OPS & Wireless Type C Transmitter)
apple
apple
MET-S084-i5
MET-S084-i7
MET-PTB1304B
i5-1135G7 8G RAM-256G ROM
i7-1135G7 8G RAM-256GB ROM
End User Price
RM2,999
RM3,699
RM799
Warranty
1 Year Warranty
Part Number (Mobile Stand)
apple
MET-KZH03 (65")
End User Price
RM999
Detailed requirements H series For tender
H Series
PANEL CHARACTERISTICS Panel 65”, 16:9
Touch Tecnology Infrared
Touch Frame Height（Over the cover glass <6mm< />d>
Resolution 4K (3840 x 2160)
Brightness ≥350 cd/m2
Panel Protection 9H tempered Glass
View Angle 178∘
Touch points 20 points
Touch pens 2 passive pens
CPU ARM Cortex A55*4
GPU ARM Mali-G52 MP2
RAM&ROM RAM: 4 GB.
ROM: 32 GB.
Operative System In built Android 11. No seperate device is need.
Speakers 2 speakers ≥15W.
Connections IN Front of the panel: USB 3.0*3（For both Android & Windows Touch USB*1 HDMI In*1 Full Function Type-C*1（Support at least 5W charge）
Back of the panel: OPS Slot*1 HDMI In*2 USB3.0*3 MIC In*1 Line Out*1 RS232*1 AV In*1 AV Out*1 AV Out*1 COAX Out*1 Lan In*1 Lan Out*1 HDMI Out*1 TF*1（Can support at least 128G storage card）"
Video Format Support AV1 MP-10、WMV/VC-1、AVS2、H.265 、VP9、H.264 、MPEG-4、AVS-P16、MPEG-2、MPEG-1
Front Button At least 7 physical buttonts to control multifunction，volume，screen share，power，whiteboard，brightness，multi-task.
Internet Connection Both Android and windows could get Internet access with one cable. Panel support Wi-Fi 6，2.4GHz/5GHz，could have internet access and provide hotspot simutaneausly. Integrated Wi-Fi design, no seperate device needed. Bluetooth5.0.
h
ANDROID SOFTWARE Software functions: An underside tool bar is needed： 1. Need include net work, voter, settings, timer, screen shot screen share. 2. Function bar can be customised, user can add 5 more fuction buttons in fuction bar. 2. In underside tool bar settings, you could turn on/off functions as below: eye protection, signal source, floating ball, signal wake up, touch lock, screen frozen, network wake-up, anti-false touch. 3. Annotation pen need to support at least 8 colors. And can be shared with QR code(Password needed). 4. Sound volume and brightnees could be adjust in underside tool bar. 5. At least 2 other mode of brightness can be choosed, including auto mode, and energy saving mode. 5. Automatic shutdown function can be switched on/off in underside tool bar. 6. Aultomatic sleep function can be switched on/off in underside tool bar. A floating ball is needed: 1. Floating ball need to include home page, whiteboard, annotation, multitask, OPS channel, screen down, signal source, return back function. 2. All application process could be one key cleared via multitask fuction. 3. The floating ball could be call out by double click with two fingers at any place on the panel, and the floating ball follows with the finger. A whiteboard application is needed: 1. At least 100 canvases is needed. 2. Whiteboard file could be save as souce file, PDF and Image. 3. Whiteboard can be shared by scanning the QR code(password needed). 4. Whiteboard can be sent by email. 5. Background color can be set according to a palette. 6. Background grid can be set, at leaset 6 types. 7. Whiteboard need to support dual pen, dual color fiction. 8. Pen tip color can be adjust via a palette. 9. At least 7 pen tip thickness choice. 10. At least 8 shapes could be drawn with shape tools. 11. At least table, compasses, protractor, ruler, triangular rule tools are needed. 12. Pictures can be insertted to the whiteboard. 13. Split screen whiteboard fuction, at least 2 split whiteboards, each whiteboard could set background, grid, pen tip, write, erase, save and share seperatly. A screen share tool is needed: 1. Support windows, android, IOS, Mac OS, Linux, Chrome system screen share. 2. IOS and Mac OS device could be screen shared without installing a software. 3. At least 4 screens could be shared at the same time. Other requirement： 1. App Lock. 2. OTA update. 3. Hardware detection and optimization. 4. Welcome page. 5. Calendar. 6. Calculater.
