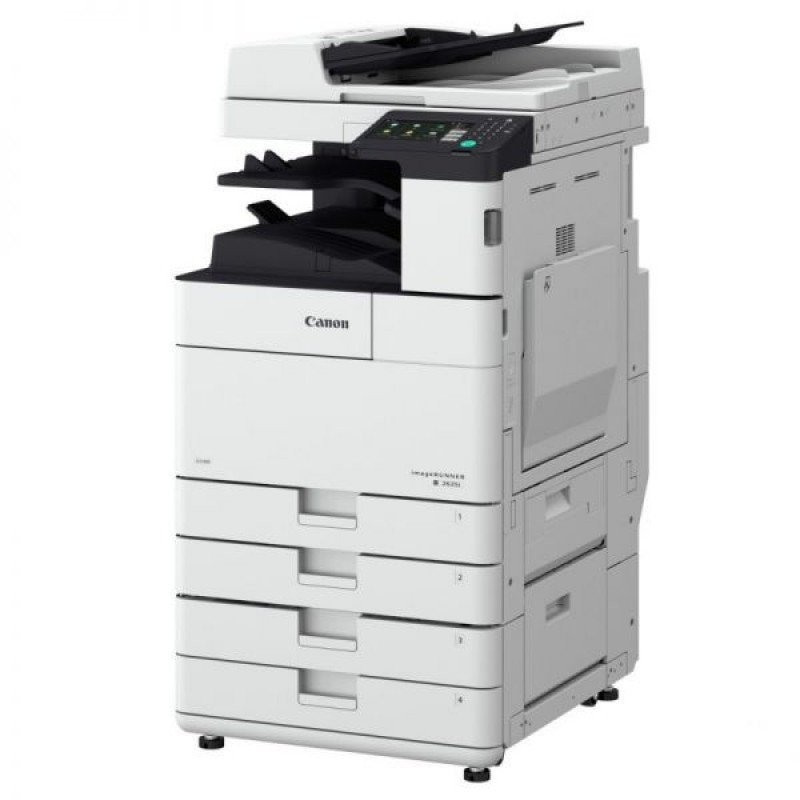

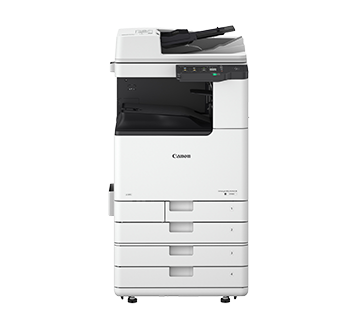

Black & White Photocopy Machine Printer A3

Canon imageRUNNER 2745i




Black & White Photocopy Machine Printer A3 Canon imageRUNNER 2745i is high quality A3 mono multifunctions with advanced functionality and customisable solutions.
  • Print, Copy, Scan, Send and Optional Fax.
  • Up to 45ppm print speed.
  • 7-inch/17.8cm TFT LCD colour touchscreen.
  • Up to 70 ipm scan speed.
  • 1,200 x 1,200 print resolution.
  • Specification
  • Video
Main Unit
  • Machine Type: A3 Monochrome Laser Multifunctional
  • Core Functions: Print, Copy, Scan, Send and Optional Fax
  • Control Panel: Standard: 7 inch TFT LCD WVGA Colour Touch panel
  • Memory: Standard: 2.0GB RAM
  • Storage: eMMC Standard: 30GB
  • Paper Supply Capacity (A4, 80gsm): Standard: 1,200 sheets
                                                                       Maximum: 2,300 sheets (with Cassette Feeding Unit-AW1)
  • Paper Output Capacity (A4, 80 gsm): Standard: 250 sheets
                                                                         Maximum: 645 sheets (with Inner Finisher-L1 and Copy Tray-T2)
  • Finishing Capabilities : Collate, Group, Offset, Staple, Hole Punch, Eco Staple, Staple on Demand
  • Supported Media Sizes: Upper Cassette:
                                           Standard size: A4, A5, A5R, A6R, B5
                                           Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm

                                           Lower Cassette:
                                           Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, COM 10 No. 10*, Monarch*, DL*
                                           Custom Size: 105 x 148 mm to 304.8 x 457.2 mm

                                           *Requires Envelope Attachment A (std)

  • Supported Media Types: Main Body Cassette (Upper/Lower):
                                            Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-Punched, Letterhead, Postcard

                                            Multi-purpose Tray:
                                            Thin, Plain, Recycled, Colour, Heavy2, Bond, Pre-Punched, Letterhead, Postcard, Labels, Coated, Tracing

  • Supported Media Weights: Main Body Cassette (Upper/Lower): 52 to 256 gsm
                                                 Multi-purpose tray: 523to 300 gsm
                                                 Duplex: 52 to 220 gsm
  • Warm-up Time: 4 seconds or less
                                          From Sleep Mode: 10 seconds or Less
                                          From Power On: 10 seconds or Less
  • Dimensions (W x D x H): 565 x 687 x 891 mm
  • Installation Space (W x D): 1,286 x 1,116mm ( with Inner Finisher Tray max extended + Copy Tray-T2 max extended + paper cassette opened)
​Print
  • Print Speed (ppm):  Up to 45 ppm (A4, A5, A5R, A6R), Up too 22 ppm (A3), Up to 32 ppm (A4R)
  • Print Resolution (dpi): 1,200 x 1,200
  • Page Description Languages: Standard: UFR II, PCL 6
                                                           Optional: Adobe® PostScript®3TM
  • Fonts: PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*5 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*6
                      PS fonts: 136 Roman
  • Operating System: UFRII: Windows® 8.1/10/Server 20012 /Server 2012 R2/Server 2016/Server 2019 R2/Server 2016/Server 2019, MAC OS X (10.11 or later)
                                          PCL: Windows® 8.1/10/Server 2012/Server 2012 R2/Server 2016/Server 2019 R2/Server 2022
                                          PS: Windows® 8.1/10/11/Server 2012/Server 2012 R2/ Server 2016/Server 2019/Server 2022, MAC OS X (10.11 or later)
                                          PPD: Windows® 8.1/10/11, MAC OS X (10.11 or later)
Copy
  • Copy Speed (ppm): Simplex: Up tp 45 ppm (A4, A5, A5R, A6R), Up to 22 ppm (A3), Up tp 32 ppm (A4R)                                                                                                                Duplex:TBD
  • First-Copy-Out Time (A4): 3.5 seconds

  • Copy resolution (dpi): 600 x 600
  • Basic Copy Features: Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample
  • Multiple Copies: Up to 999 copies
  • Copy Density: Automatic or Manual (9 Levels)
  • Magnification: 25% - 400% (1% Increments)
  • Preset Reductions: 25%, 50%, 70%, 100% (1:1), 141%, 200%, 400%
  • Preset Enlargements: 25%, 50%, 70%, 100% (1:1), 141%, 200%, 400%

Scan
  • Type: Color Scanner
  • Document Feeder Paper Capacity (80 gsm): up to 100 Sheets

  • Acceptable Originals and Weights: Document Feeder sheet media weights :                                                                                                                                                                              1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)                                                                                                                                                      2-sided scanning: 52 to 128 gsm (BW), 64 to 128 gsm (CL)
  • Supported Media Sizes: Platen: Max. scanning size: 297.0 x 431.8 mm
                                                 DADF: A3, A4, A4R, A5, A5R, B4, B5, B5R, B6
                                                 Custom size: 139.7 x 128.0 mm to 297.0 x 431.8 mm
  • Scan Speed: 1-sided Scanning:  70/70 (300 x 300 dpi, send), 51 /51 (600 x 600 dpi, copy)
                               2-sided Scanning:  35/35 (300 x 300 dpi, send), 25.5 /25.5 (600 x 600 dpi, copy)


  • Scan Resolution (dpi): Copy: 600 x 600
                                               Send: (Push) up to 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) up to 600 x 600
                                               Fax: up to 600 x 600
  • Pull Scan Specifications: Colour Network ScanGear2. For both TWAIN and WIA
                                                   Supported OS: Windows® 8.1/10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server 2022

  • Scan Method: Push Scan, Pull Scan, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud-based services (uniFLOW Online/Online Express)


Send
  • Destination: E-mail/Internet FAX (SMTP), SMB, FTP, WebDAV, Super G3 FAX (Optional)
  • Address Book: LDAP (2,000)/Local (1,600)/Speed dial (200)
  • Send Resolution (dpi): Push: 600 x 600
                                                Pull: 600 x 600
  • Communication Protocol: File: FTP (TCP/IP), SMB (TCP/IP), WebDAV
                                                     E-mail/I-Fax: SMTP (send), POP3 (receive)
  • File Format: Standard: TIFF (MMR), JPEG 8, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature, Office Open XML (PowerPoint, Word) Optional: PDF (Trace & Smooth), PDF/XPS (User Signature


Fax
  • Optional / Standard: Optional on all models
  • Maximum Number of Connection Lines: 1
  • Modem Speed: Super G3: 33.6 kbps
                                    G3: 14.4 kbps
  • Compression Method: MH, MR, MMR, JBIG
  • Resolution (dpi): 200x100dpi (Standard), 200x200dpi (Fine), 200x400 dpi (Super Fine), 400x400 dpi (Ultra Fine)
  • Sending / Recording Size:Sending A3, A4, A4R, A5, A5R*1, B4, B5*2, B5R*1                                                                                                                                                                Receiving A3, A4, A4R, A5R, B4, B5, B5R
  • FAX / Memory: Up to 30,000 pages (2,000 jobs)
  • Speed Dials: Max. 200
  • Group Dials / Destinations: Max. 199 dials
  • Sequential Broadcast: Max. 256 addresses
  • Memory Backup: Yes

Store
  • Memory Media: Standard: USB Memory

Security
  • ​Authentication: User Authentication (Picture Login, Picture and PIN Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express(PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)

  • Network: TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall, Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception
  • Document: Print Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print*1), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*2), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support)
          *1 Requires optional uniFLOW Online / uniFLOW

          *2 Requires optional Universal Send Digital User Signature Kit-C1
  • Device: Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Start-up, Runtime Intrusion Detection
  • Device Manageent & auditing: Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting


Environmental
  • Operating Environment: Temperature: 10 to 30 ºC (50 to 86 ºF)
                                                   Humidity: 20 to 80 % RH (Relative Humidity)
  • Power Source: EUR: 220-240 V , 50/60 Hz , 10A
  • Power Consumption: Maximum: Approx. 1500W                                                                                                                                                                                              Copying (with DADF continuous scan): Approx. 666W (220-240V)*1
                                             Standby: Approx. 28.1W (220-240)
                                             Sleep mode: Approx. 1.0 W

Consumables
  • Toner Cartridge/s: Toner C-EXV Black
  • Toner (Estimated Yield @ 6% Coverage): Black: 30,000 (A4) (Estimated @ 6% coverage)

Paper Supply Options
  • CASSETTE FEEDING UNIT-AN1: Paper Capacity: 550 sheets x 2 (80 gsm)
                                                              Paper Type: Thin, Plain, Thick, Colour, Recycled, Pre-punched
                                                              Paper Size: A3, A4, A4R, A5R, B4, B5, B5R, Custom size: 139.7 x 182.0 to 297.0 x 431.8 mm
                                                              Paper Weight: 60 to 128 gsm
                                                              Power Source: From the Main Unit
                                                              Dimensions (W x D x H): 565 x 650 x 248 mm (attached to the main unit)
                                                              Weight: Approx. 23.5 kg
  • ENVELOPE FEEDER ATTACHMENT-D1: Attaches to the 2nd paper drawer for easy envelope feeding. Holds up to 50 envelopes.
  • Noise Levels: Sound Power Level (LWA,m)
                                 Active (BW)(1-sided): 6.4B, Kv 0.3B10

                                 Sound Pressure (LpAm)
                                 Bystander's position:
                                 Active(BW/CL)(1-sided): 51dB/49dBTBD

Output options
  • ​Copy Tray: Copy Tray-T2:                                                                                                                                                                                                                                              Capacity (80gsm paper):
                      A4, A5R, B5, B5R: 100 sheets
                      A3, A4R, B4: 65 sheets
                      Dimensions (W x D x H): 444 × 373 × 176 mm (attached to the main unit, when the extension tray is extended)
                      Weight: 0.5 kg
  • INNER 2-Way Tray: Inner 2way Tray-M1
                                                            Tray Capacity (with 80 gsm paper):
                                                             Upper tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 100 sheets
                                                             Lower tray (standard tray): A4, A5, A5R, A6R, B5, B5R: up to 250 sheets
　　　　　　                                        SRA3, A3, A4R, B4: up to 100 sheets
                                                             Paper Weight: 52 to 300 gsm
                                                             Dimensions (W x D x H): 428 x 405 x 88 mm
                                                             Weight: Approx. 0.7 kg
  • INNER Finisher: Inner Finisher-L1:

                               Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: approx. 45 sheets
                               Lower Tray: A4, A5, A5R, B5: approx. 500 sheets
                               SRA3, A3, A4R, B4, B5R: 250 sheets
                               A6R: 30 sheets
                               Envelope: 10 sheets
                               Paper Weight: 52 to 300 gsm
                               Staple Position: Corner, Double
                               Staple Capacity: A4, B5: 50 sheets (52 to 90 gsm)
                               A4R: 40 sheets (52 to 90 gsm)
                               A3, B4: 30 sheets (52 to 90 gsm)
                               Eco Staple: A3, A4, B4, B5: 10 sheets (52 to 64 gsm)/8 sheets (65 to 81.4 gsm)/6 sheets (82 to 105 gsm)
                               Staple On Demand: approx. 40 sheets (80 gsm)
                               Dimensions (W x D x H): 727 × 525 × 225 mm (attached to the main unit, when the extension tray is extended)
                               Weight: Approx. 9.1 kg
  • ​Inner 2/4 Hole Puncher : Inner 2/4 Hole Puncher-D1:

                                                    (Requires Inner Finisher-L1)
                                                    Two or Four Holes
                                                    Acceptable Punch Paper Weight: 52 to 300 gsm
                                                    Acceptable Punch Paper Size:
                                                    Two holes: A3, A4, A4R, A5, B4, B5, B5R,
                                                    Four holes: A3, A4
  •  ​Inner 4 Hole Puncher : Inner 4 Hole Puncher-D1:                                                                                                                                                                                                                         (Requires Inner Finisher-L1)
                                           Acceptable Punch Paper Weight: 52 to 300 gsm
                                           Acceptable Punch Paper Size: A3, A4, A4R, A5, B4, B5, B5R
Hardware Accessories
  • Card Readers​: Copy Card Reader-F1
                                     Copy Card Reader Attachment-H3
                                     IC Card Reader Attachment-B4
                                     Attachment kit for Reader-A2​
Software & Printer Management
  • Tracking & Reporting​: uniFLOW Online Express
  • Remote Management Tools​:  iW Enterprise Management Console
                                                         eMaintenance
                                                         Content Delivery System
                                                         Remote Operator’s Software Kit
  • Scanning Software: Network ScanGear
  • Optimisation Tools: Canon Driver Configuration Tool


System and Controller options
  • Print Accessories: PCL INTERNATIONAL FONT SET-A
                                         PS PRINTER KIT-BT1
  • Send Options: Universal Send Trace & Smooth PDF Kit-A1
                                   Universal Send Digital User Signature Kit-C1
  • Barcode Printing: BARCODE PRINTING KIT-D1
  • System Accessories: COPY CONTROL INTERFACE KIT-D1
  • FAX Accessories: SUPER G3 FAX BOARD-BJ1
                                       REMOTE FAX KIT-A1

Other Options
  • Accessibility Accessories: ADF ACCESS HANDLE-A1
  • Staple Cartridge: STAPLE-P1
  1. Finishing capabilities vary depending on the options connected.
  2. SRA3 is unsupported for Coated (257-300gsm) and Heavy (257-300gsm) paper
  3. Supported paper weight with Media Adjustment Kit-A1: 60-300 gsm
  4. Time from device power on to when copy icon appears and is enabled to operate on the touch panel display
  5. Time from device power on, until copy ready (not print reservation)
  6. Optional PCL International Font Set-A1 is required.
  7. Optional Barcode Printing Kit-D1 is required.
  8. Single page only
  9. As per ENERGY STAR Version 3.0
  10. Reference value: measured only one unit with ISO7779, described with ISO9296 (2017)
  11. Reference value: measured only one unit with ISO7779, described with ISO9296 (2017)
