Black & White Photocopy Machine Printer A3

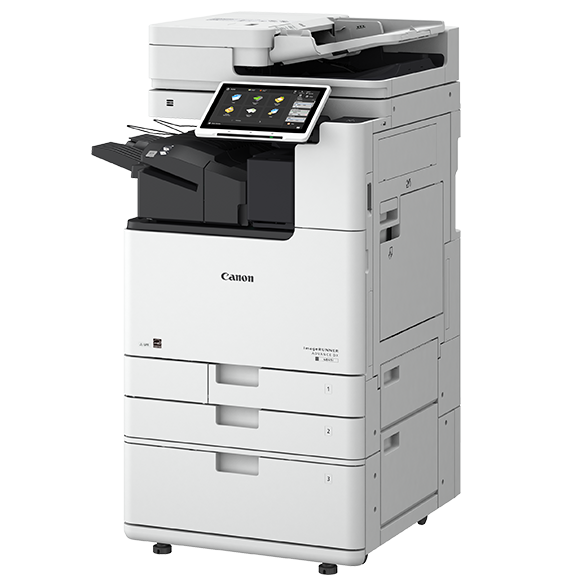

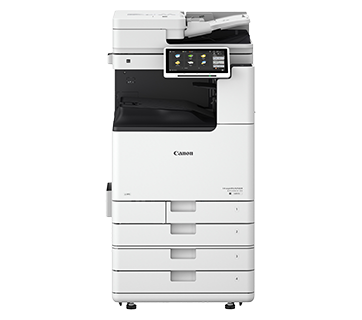

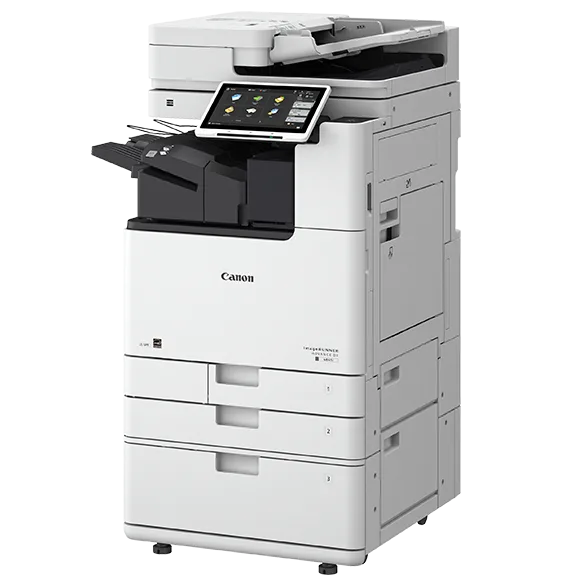

Canon imageRUNNER ADVANCE DX 4835i



The extensive line of imageRUNNER ADVANCE DX multifunction printers and integrated solutions from Canon can help to streamline technology management and end-user experiences, better manage confidential data and printing expenses, and guarantee that technology investments proactively adapt to changing needs.
​​
  • Print up to 35 ppm (BW)
  • Scan up to 270 ipm (300 dpi) (BW/color, duplex)
  • 6,350-sheet maximum paper capacity
  • Print up to 11" × 17"​
  • Specification
  • Brochure
Main Unit
  • Core Functions: Print, Copy, Scan, Send and Optional Fax
  • Control Panel: 10.1" TFT LCD WSVGA Color Flat-panel
  • Processor Speed:1.8GHz Dual Core Processor
  • Memory: 3.5GB RAM
  • Hard Disk Drive: Standard: 256 GB
                                 Maximum: 1 TB
  • Interface Connection: Network: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
                                         Optional: Bluetooth Low Energy
                                         Others
                                         Standard: USB 2.0 x1 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device)
                                    Optional: Copy Control Interface, Serial Interface
  • Paper Capacity (Letter 20 LB. Bond): Standard:  1,200 Sheets
                                                                  Maximum: 3,650 Sheets

  • Paper Sources (Letter 20 LB. Bond): Standard: Two 550-sheet Paper Cassettes, 100-sheet Stack Bypass
                                                                 Optional:  High-Capacity Cassette Feeding Unit-E1 (2,450 sheets)

  • Paper Output Capacity (Letter 20 LB. Bond): Standard: 250 Sheets
                                                                 Optional:  3,450 Sheets (with Staple Finisher-AE1 or Booklet Finisher-AE1 and Copy Tray-T2)

  • Finishing Capabilities: Standard: Collate, Group
                                         With FInisher: Collate, Group, Offset, Staple, Saddle-Stitch, Hole Punch, Staple-Free Stapling, Staple On Demand

  • Supported Media Types: Multi-purpose Tray:  Thin, Plain, Heavy, Recycled, Coated, Color, Tracing, Bond, Label, Pre-punched, Letterhead, Envelope
                                         Upper Cassette:  Thin, Plain, Heavy, Recycled, Color, Bond, Pre-punched, Letterhead, Envelope

  • Supported Media Types: Multi-purpose Tray:  Thin, Plain, Heavy, Recycled, Coated, Color, Tracing, Bond, Label, Pre-punched, Letterhead, Envelope
                                         Upper Cassette:  Thin, Plain, Heavy, Recycled, Color, Bond, Pre-punched, Letterhead, Envelope

  • Supported Media Sizes: Multi-purpose Tray:  Standard size: 12"x18", 11"x17", Legal, Letter, Letter-R, Executive, Statement, Statement-R Custom size: 3-7/8" x 5-                                               1/2"  to 12-5/8" x 18" (98.4 mm x 139.7 mm to 320.0 mm x 457.2 mm) Free size: 4" x 5-7/8" to 12" x 18" (100.0 mm x 148.0 mm to 304.8                                             mm x 457.2 mm) Envelopes: COM10 No.10, Monarch, ISO-C5, DL Envelope custom size: 3-7/8" x 3-7/8" to 12-5/8" x 18" (98.0 mm x 98.0                                             mm to 320.0 mm x 457.2 mm)

                                         Upper Cassette:   Standard size: Letter, Executive, Statement-R Custom Size: 4-1/8" x 5-7/8" to 11-3/4" x 8-1/2" (105.0 mm x                                                                 148.0 mm to 297.0 mm x 215.9 mm) Envelopes: ISO-C5

                                        Lower Cassette:  Standard size: 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R Custom Size: 4-1/8" x 5-7/8" to 12" x 18"                                          (105.0 mm x 148.0 mm to 304.8 mm x 457.2 mm) Envelopes6: COM10 No.10, Monarch,

  •  Supported Media Weights: Multi-purpose Tray:  14 lb. Bond to 110 lb. Cover (52 to 300 g/m2)
                                                  Upper Cassette:   14 lb. Bond to 140 lb. Cover (52 to 256 g/m2)
                                                 Duplexing : 14 lb. Bond to 80 lb. Cover (60 to 220 g/m2    )

  •  Warm-Up Time: From Power On: Approx. 10 Seconds
                                  From Sleep Mode: Approx. 10 Seconds6
                                  Quick Startup Mode: Approx. 4 Seconds6
  • Dimensions (WxDxH): With Platen Cover-Y3: 22-1/4" x 27-1/4" x 31" (565 mm x 692 mm x 788 mm)
                                          With Single Pass DADF-C1: 22-1/4" x 28-1/2" x 35-3/8" (565 mm x 722 mm x 897 mm)
                                          With DADF-BA1: 22-1/4" x 28-3/8" x 35-1/8" (565 mm x 719 mm x 891 mm)

  • Installation Dimensions (WxDxH): Basic: 38-1/2" x 44-1/8" (978 mm x 1119 mm) (with Single Pass DADF-C1 + right door and multipurpose tray                                                                                        opened cassette opened) 38-1/2" x 45" (978 mm x 1116 mm) (with DADFBA1 + right door and multipurpose tray                                                                                     opened + paper cassette open)

                                            Fully Configured: 65" x 44-1/8" (1651 mm x 1119 mm) (with Single Pass DADF-C1 + Staple Finisher-AE1/Booklet                                                                                             Finisher-AE1 + Copy Tray-T2 extended + paper cassette open) 1651 mm x 1116 mm (with DADF-BA1 + Staple Finisher-                                                                                AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette open)
  •  Weights: Approx. 134.5 lb. (61 kg)
                   With Single Pass DADF-C1: Approx. 163.1 lb. (74 kg)
                   With DADF-BA1: Approx. 149.9 lb. (68 kg)
​Print
  • Print Speed (ppm):  Up to 35 ppm (Letter) , Up to 17 ppm (Legal/11"x17"), Up to 23 ppm (Letter-R)
  • Page Description Languages: Standard: UFR II, PCL 6, Adobe PS 3

  • Fonts: PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*5 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*6
                      PS fonts: 136 Roman
  • Operating System: UFRII: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X (10.11 or later)
                                   PCL: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022 PS: Windows®                                                                                        8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X (10.11 or later)
                                     PPD: Windows® 8.1/10/11, Mac OS X (10.11 or later) As of Jan. 2022

Copy
  • First-Copy-Out Time (A4): 5.5 seconds
  • Copy resolution (dpi): 600 x 600
  • Multiple Copies: Up to 999 copies
  • Copy Density: Automatic or Manual (9 Levels)
  • Magnification: 25% - 400% (1% Increments)
  • Preset Reductions: 25%, 50%, 64%, 73%. 78%, 100% (1:1), 121%, 129%, 200%, 400%

Scan
  • Type: Color Platen
             Optional: Platen Cover-Y3, Single Pass DADF-C114 or DADF-BA1 [2-sided to 2-sided (Automatic with DADF)]

  • Document Feeder Paper Capacity : Single Pass DADF: Up to 200 Sheets
                                                                             DADF: Up to 100 Sheets

  • Document Feeder Supported Media Sizes: 11" x 17", Legal, Letter, Letter-R, Statement, Statement-R

  • Scan Speed: Single Pass DADF-C1
                       Single-sided Scanning
                       BW/Color: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy)
                       Double-sided Scanning
                        BW/Color: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)
                        DADF-BA1
                       Single-sided Scanning
                        BW/Color: 70/70 (300 x 300 dpi, send) 51/51 (600 x 600 dpi, copy)
                         Double-sided Scanning
                         BW/Color: 35/35 (300 x 300 dpi, send) 25.5/25.5 (600 x 600 dpi, copy)



  • Scan Resolution (dpi): Push: Up to 600 x 600
                                    Pull: Up to 600 x 600
  • Pull Scan Specifications: Color Network ScanGear2 for both Twain and WIA
    Supported OS: Windows® 8.1/10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server 2022


Send
  • Destination: Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV,                                                                                                                                                                     Optional: Super G3 FAX
  • Address Book: LDAP (2,000)/Local (1,600)/Speed dial (200)
  • Send Resolution (dpi): Push: 600 x 600
                                                Pull: 600 x 600
  • Communication Protocol: File: FTP (TCP/IP), SMB (TCP/IP), WebDAV
                                                     E-mail/I-Fax: SMTP (send), POP3 (receive)
  • File Format: Standard: TIFF (MMR), JPEG, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature, Office Open XML (PowerPoint, Word) Optional: PDF (Trace & Smooth), PDF/XPS (User Signature

Fax
  • Maximum Number of Connection Lines: 4

  • Modem Speed: Super G3: 33.6 kbps
                                    G3: 14.4 kbps
  • Compression Method: MH, MR, MMR, JBIG

  • Resolution (dpi): 400x400 x 200 x 400, 200 x 200, 200 x 100

  • Sending / Recording Size: Statement-R to 11" x 17"

  • FAX / Memory: Up to 30,000 pages (2,000 jobs)

  • Speed Dials: Max. 200
  • Group Dials / Destinations: Max. 199 dials
  • Sequential Broadcast: Max. 256 addresses
  • Memory Backup: Yes
Store
  • Memory Media: Standard: USB Memory

  • Mail box(NUmber Supported):100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, 30,000 Maximum Pages Stored (2,000 Jobs) Stored

  • Advanced Box: Communication Protocol: SMB or WebDAV
    Supported Client PC: Windows (Windows 8.1/10)
    Concurrent Connections (Max.)
      SMB: 64
      WebDAV: 3 (Active Sessions)
  • Advanced Box Available Disc Space: Approx. 16 GB (Standard HDD)
    Approx. 480 GB (With Optional 1 TB HDD)

Security
  • ​Authentication:Standard : Universal Login Manager, uniFLOW Online Express,15 User Authentication, Department ID Authentication, Access Management                                                    System,Device and Function Level Log-in

  • Network: TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering),WPA3 support (Wi-Fi), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), Communication Line Separation (G3 FAX, USB Port, Advanced Space, Scan and Send -Virus Concerns for Email Reception)

  • Document: Secure Watermark, Secure Print, Forced Hold Printing, Adobe LiveCycle Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Device Signature, User Signature

  • Data:: Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFP Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP) (pending confirmation)3



Environmental
  • Operating Environment: Temperature: 50 to 86 ºF
                                                   Humidity: 20 to 80 % RH (Relative Humidity)​
  • Power Requirement: 110-127V, 60Hz, 8.5A
  • Standards: ENERGY STAR® Certified, Rated EPEAT Gold

  • Power Consumption: Maximum: Approx. 1500W                                                                                                                                                                                              Copying (with DADF continuous scan): Approx. 666W (110-127V)*1                                                                                                                                             Standby: Approx. 28.1W (220-240)                                                                                                                                                                                       Sleep mode: Approx. 1.0 W


Consumables
  • Toner Cartridge/s: GPR-63 Toner BK
  • Toner (Estimated Yield @ 6% Coverage): Black: 30,000 pages
