Cad Plotter A1 Size

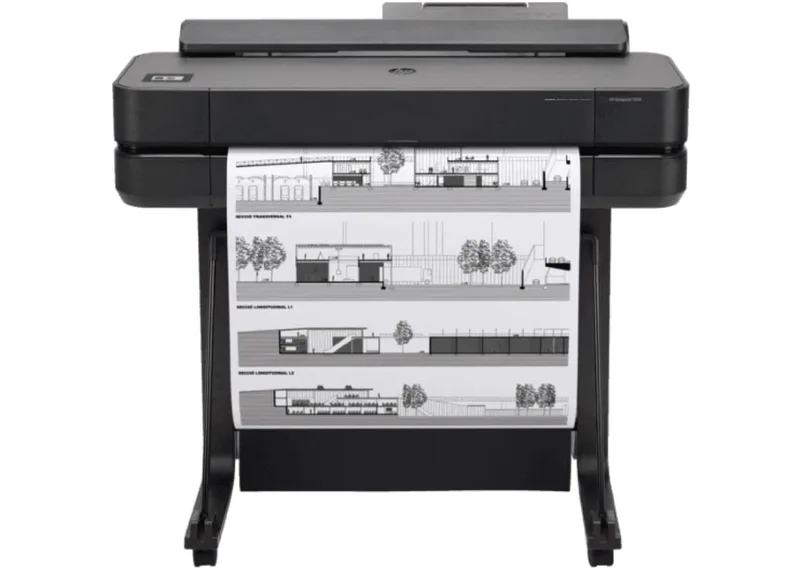

HP DesignJet T650 24-in Printer


​

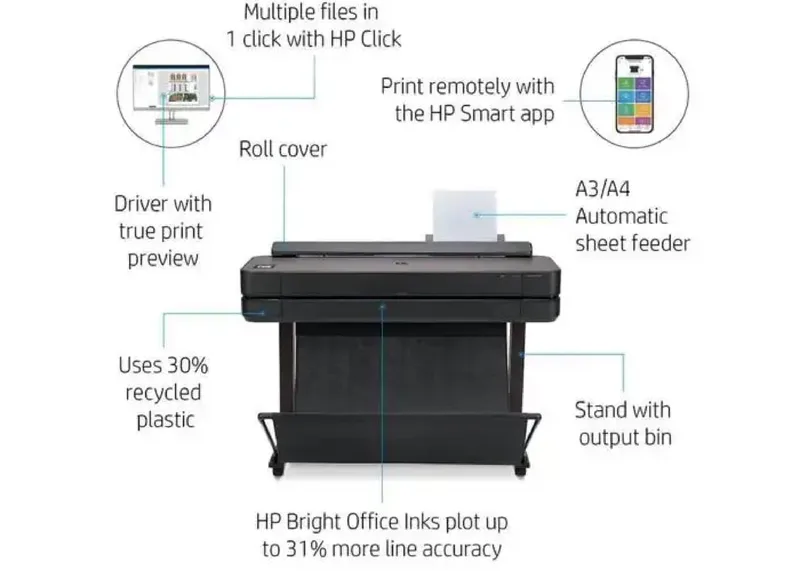

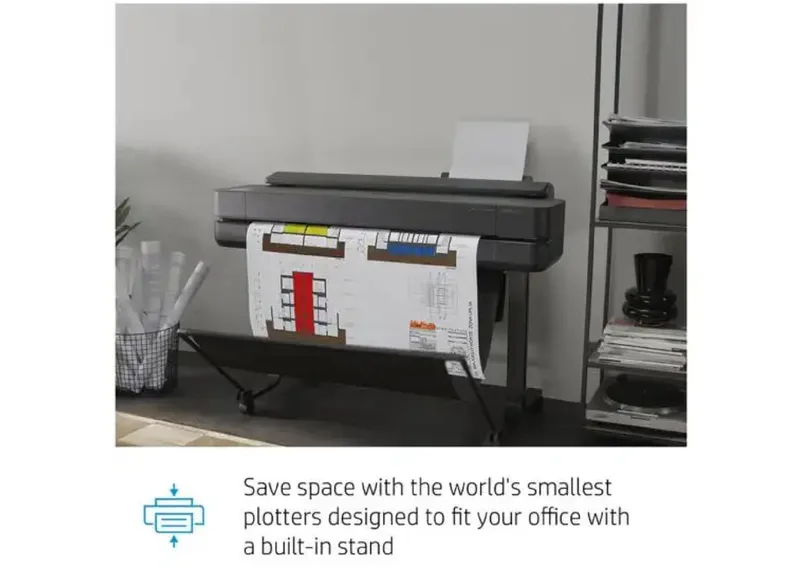

HP DesignJet T650 24-inch is a large format printer (up to A1 size) with mobile printing
  • 24 inch Large Format up to A1 CAD Plotter Printer with Mobile Printing
  • Print only
  • Print speed up to 26 sec/page on A1, 81 A1 prints per hour
  • USB, Ethernet, Wi-Fi

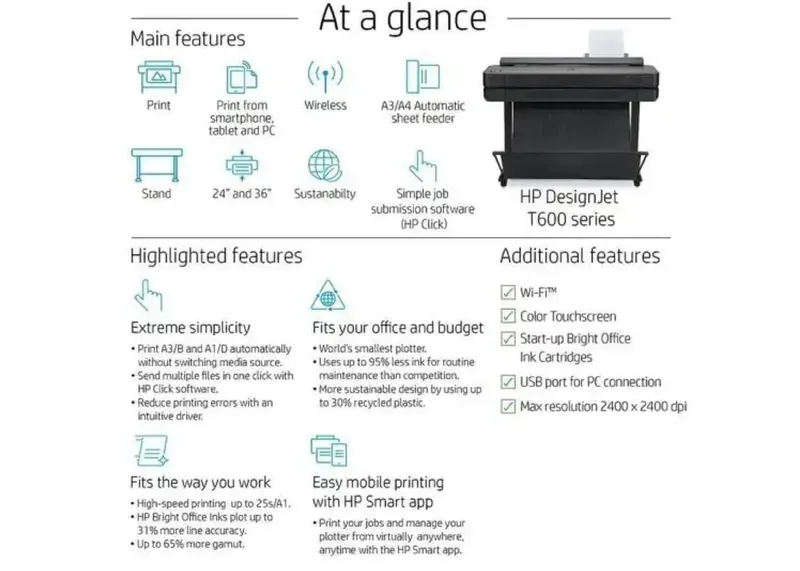

Extreme simplicity
Easy to use with an intuitive driver and true print preview
​Print multi-size A3/B and A1/D​
Without manually switching the media source
HP Click sofware​
Send multiple files for prints in one click
HP Smart app​
Print your jobs and manage your plotter from virtually anywhere
Sustainable design
​Made with up to 30% recycled plastic, redusing CO2 emission up to 7.3 tons/year
HP Bright Office Inks​
Up to 31% more line accuracy and up to 65% more gamut
High-speed printing
As fast as 26 seconds per A1/D plot.
  • Specifications
  • Brochure
  • Video
Product number: 5HB08A
Functions: Print
PRINT SPECIFICATIONS






​
​

​




​
Print technology: HP Thermal Inkjet
Print languages: HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Model size: 610 mm
Theoretical minimum line width: 0.02 mm
Line accuracy: ±0.1% [±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.]
Print speed: 26 sec/page on A1, 81 A1 prints per hour [Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks. Actual performance may vary based on a variety of conditions, including but not limited to network configuration.]
Maximum optical density (black): 8 L* min/2.10 D [With HP Premium Instant Dry Photo Gloss media with Original HP inks.]
Print quality color (best): Up to 2400 x 1200 optimized dpi
Non-printable area (cut-sheet): 5 x 5 x 5 x 5 mm
Non-printable area (roll media): 5 x 5 x 5 x 5 mm
Printer drivers included: Raster driver for Windows and macOS
Internal Storage: None
Memory: 1 GB
CONNECTIVITY AND COMMUNICATIONS
Connectivity, standard: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11, Supports gigabit ethernet and wifi connectivity​
POWER
​
Power Consumption Description: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
Power: Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max​
CARTRIDGES AND PRINTHEADS



​
Number of print cartridges: 4 (C, M, Y, K)
Print cartridge volume delivered: 80 ml (K); 38 ml (K); 29 ml (C, M, Y)
Print heads: 1 (cyan, magenta, yellow, black)
Print head nozzles: 1376
Ink drop: 5.5 pl (C, M, Y); 12 pl (K)
Ink types: Dye-based (C, M, Y); pigment-based (K)
SUPPORTED PRINTING MEDIA

​
​












​
Finished output handling: Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
Media types: Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes supported: Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1
Media sizes, custom: Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 610 x 1897 mm
Media sizes standard (metric rolls): 279 to 610 mm
Media width, maximum: 610 mm
Media weight, recommended: 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)
Media thickness: Up to 11.8 mil
Roll external diameter: 100 mm
Roll maximum input: 1
Roll maximum weight: 4.1 kg
Recommended media: [BMG trademark license code FSC®-C115319, see http://www.fsc.org. HP trademark license code FSC®-C017543, see http://www.fsc.org.] BMG trademark license code FSC®-C115319, see http://www.fsc.org. HP trademark license code FSC®-C017543, see http://www.fsc.org.
Supported Primary Applications: CAD rendering, Accurate line drawings for architects, Wide format printing, Construction blueprint printing
ENVIRONMENTAL




​
Operating temperature range: 5 to 40ºC
Storage temperature range: -25 to 55ºC
Operating humidity range: 20 to 80% RH
Non-Operating Humidity Range: 0 to 95% RH
Acoustic power emissions: 5.8 B(A) (operating), <3.4 B(A) (idle)
Acoustic pressure emissions: 42 dB(A) (operating), <16 dB(A) (idle)
DIMENSIONS AND WEIGHT

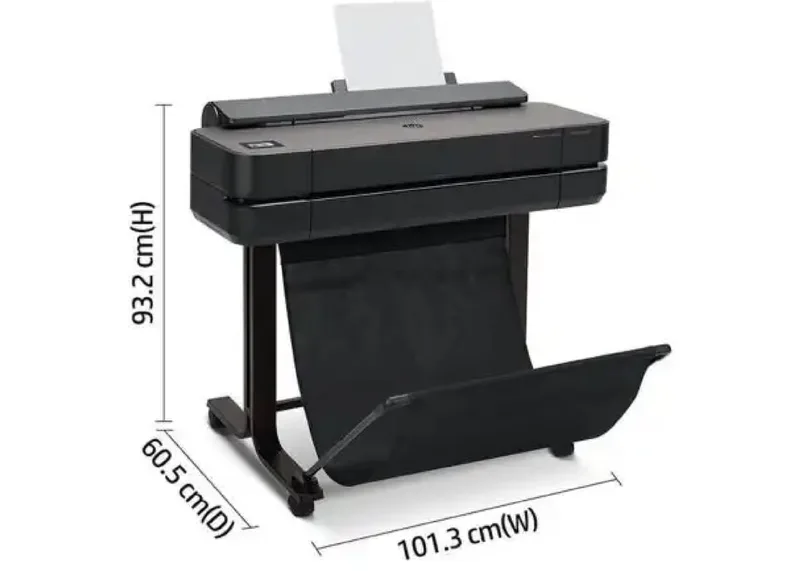

Dimensions without stand (W x D x H): 1013 x 605 x 932 mm
Package dimensions (W x D x H): 1155 x 575 x 475 mm
Weight: 29.5 kg
Package weight: 38 kg
BOX CONTENTS


​
What's in the box: HP DesignJet T650 24-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Software included: HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant​
WARRANTY
Warranty: Three years limited hardware warranty
​CERTIFICATION AND COMPLIANCE




​
ENERGY STAR® certified: Yes
Electromagnetic Emission Standard: Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
Environmental Certifications: ENERGY STAR; WEEE; EU RoHS; EAEU RoHS; REACH; ErP; EPEAT Gold
Safety Approvals and Requirements: USA and Canada (CSA certified); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS); Mexico (NYCE)
OTHER
​


​
Web address for additional information: http://www.hp.com/go/designjett650
Accessories: B3Q36A HP DesignJet 24-in Spindle
Services (Care Pack): UD5H2E HP 2 year NBD Onsite Support;UD5H3E HP 3 year NBD Onsite Support;UD5H4E HP 4 year NBD Onsite Support;UD5H5E HP 5 year NBD Onsite Support;UD5H6PE HP 1 year Post Warranty NBD Onsite Support;UD5H7PE HP 2 year Post Warranty NBD Onsite Support
