UV Inkjet Press Digital Printer for Label Printing

FujiFilm Inkjet Label Press LP350 / LP230





UV Inkjet Press for Digital Label Printing
The LP Series Features Include:

• CMYK + Orange+Violet + Double Whites
• 600x600 dpi quality optimized for label printing
• 94% Pantone wide color gamut
• Up to 164 ft./min. productivity
• Supports wide range of substrates
• Two models available: 13 in. wide & 9 in. wide
• Enhanced built-in functions
• High effective productivity & up-time by reliable system • Class-leading cost of ownership

LP350 will be available in two web widths, and can print at 50m/min (164ft/min) with a resolution of 600 x 600dpi

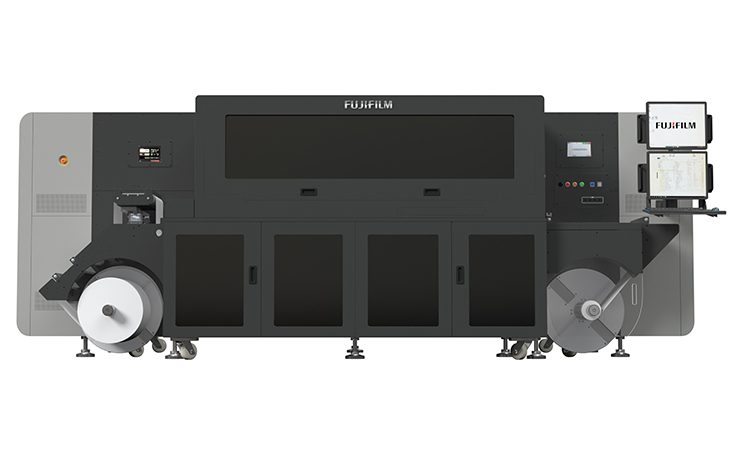

Fujifilm has developed a new UV inkjet digital label press, LP350, to meet the needs of the prime label market for short runs, high quality and variable content.
LP350 will be available in 228mm (9in) and 330mm (13in) web widths, and can print at 50m/min (164ft/min) with a resolution of 600 x 600dpi and four-level grayscale. Interstation UV pinning enhances the print quality. The press natively runs CMYK+OV to hit 94% of the Pantone colour gamut, noted by Fujifilm as necessary for work in the prime label printing market. In addition, two white inkjet channels enable high levels of opacity for a wide variety of label applications.
Newly developed UV inks have various resistance properties for enhanced surface durability, lightfastness, and water- and chemical-resistance. The inks also offer excellent print reproducibility, density and vibrancy, and can be used with a variety of commonly used label substrates, such as clear supported and unsupported films, foils, metallised materials, and coated and uncoated papers.



  • SPECIFICATION
  • BROCHURE
  • VIDEO
MAXIMUM PRINT SPEED
164 ft./min
INKJET PRINTHEAD
4-level greyscale (0, 3, 6, 13pl)
MAXIMUM PRINT RESOLUTION
600 x 1200dpidrop-on-demand inkjet method​
MEDIA WIDTH
LP350 model: 6 in. – 13.8 in. LP230 model: 6 in. – 9 in.
MAXIMUM PRINTING WIDTH​
LP350 model: 13 in. LP230 model: 8.7 in.
MEDIA THICKNESS
50 – 450um (30 – 450um when using the cooling roller option)
SUPPORTED MEDIA
Transparent or white film (PP, PVC, PET, BOPP), foil film, coated & uncoated paper
MAXIMUM ROLL DIAMETER
Standard: 23.6 in. (or 44lbs.)
DIMENSIONS (W X D X H)
202 in. x 87.5 in x 88 in.
WEIGHT
LP350 model: 12,125 lbs. LP230 model: 9,920 lbs.
POWER SUPPLY
3P-380VAC +/110% (50/60Hz) 50A
COMPRESSED AIR
100 psi (no oil)
SAFETY CERTIFICATION
NRTL, CE
CONSUMABLES
Fujifilm Uvijet TY (CMYK, Orange, Violet, White), flushing
RIP
Fujifilm RIP
STANDARD FEATURES
Corona treatment
Web cleaning (dust removal)
Antistatic bar
Mark Sensor
Fujifilm RIP software + PC
​Single color variable printing
OPTIONAL FEATURES
Cooling roller
Full color variable printing
​ Cooling jacket for print head
