Colour Digital Press Production Printer

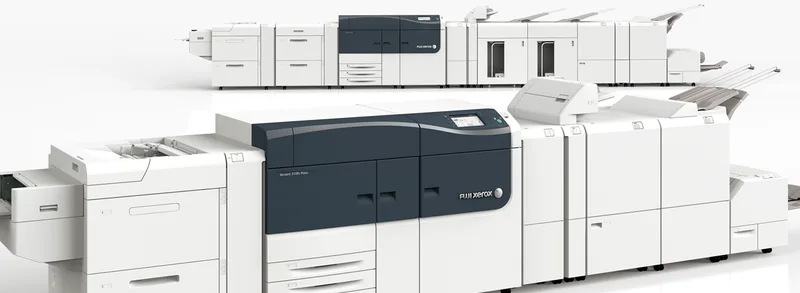

Fuji Xerox Versant 3100i Press
Fuji Xerox Versant 3100i Press
Fuji Xerox Versant 3100i Press
Fuji Xerox Versant 3100i Press
Versant 3100i Press delivers outstanding and excellent image resolution at faster printing speed to produce more vibrant pictures, smooth graduation and sharper text.
In addition to the attractive finishing features of the Versant series, it can also handle long paper, heavyweight paper, and a wide variety of applications.
The Versant 3100i Press production printer supports diverse needs and creative finishing versatility at a high performance level.
There are many features available for this products which includes:
1.Top-level productivity and versatility with endless possibilities.
Middle Data Format" Suppresses Capacity and Processes Jobs at High Speed
Text and images are automatically determined and managed in object units. High image quality jobs of large data capacity are processed at high speed while retaining image quality and suppressing the capacity.
High-Speed Processing Achieved through the "RIP Accelerator Board" Hardware
High-speed tuning is achieved at the hardware level, thus enabling the printer to perform at a faster speed than the physical specification of the server.
High-Speed Serial Transfer Technology" from Print Server to Printer
Data processed at the print server is transmitted to the printer at 4.25 Gbps/channel* broadband. Errors are automatically detected and corrected, and high reliability is assured.
2.High image quality, automatic processing technology, reliable system maximising uptime.
3.Various options available according to the needs.
i) High Capacity Feeder C3-DS
- Air Assist
- Multifeed Detection
- 52 to 350 gsm
- 2000 sheets x 2 trays
ii) Air Suction Feeder C1-DS
- Air Assist
- Multifeed Detection
- 52 to 400 gsm
- 2100 sheets x 2 trays
iii) Air Suction Feeder C1-DSXL*1
- 1200 mm Long Paper*2
- Air Suction
- Multifeed Detection
- 800 sheets + 2100 sheets
- SPECIFICATION
- BROCHURE
|
Item |
Description Versant 3100i Press |
|
Type |
Console |
|
Colour Capability |
Full Colour |
|
Printing Resolution |
2400 x 2400 dpi |
|
Continuous Print Speed |
A4 : 100 ppm A3 : 52 ppm |
|
Paper Size |
Tray 1, 2, 3 Standard size: Max A3, Min A5 Custom size: 140 x 182 mm to 330 x 488 mm Bypass Tray (Tray 5) Standard size: Max A3, 11 x 17” Min A6 Custom size: 98 x 148 mm to 330 x 660 mm |
|
Paper Weight |
Tray 1, 2, 3 64 to 256 gsm Bypass Tray (Tray 5) 52 to 300 gsm |
|
Paper Tray Capacity |
Standard 550 sheets x 3-tray Optional Multi Sheet Inserter for Banner Print: 250 sheets High Capacity Feeder C3-DS / 2nd High Capacity Feeder C1-DS: 2000 sheets x 2-tray Air Suction Feeder C1-DS*6: 2100 sheets x 2-tray + 250 sheets Air Suction Feeder C1-DSXL*6: 800 sheets*7 + 2100 sheets + 250 sheets Chained Air Suction Feeder C1-DS-R + C1-DS-L*6: 2100 sheets x 2-tray x 2-connection + 250 sheets Chained Air Suction Feeder C1-DS-R + C1-DSXL-L*6: 2100 sheets x 2-tray + 800 sheets*7 + 2100 sheets + 250 sheets Max 10300 sheets (Standard + Chained Air Suction Feeder C1-DS-R + C1-DS-L) |
|
Output Tray Capacity |
500 sheets (A3) |
|
Power Supply |
AC200-240 V +/- 10 %, 24 A, 50/60 Hz common |
|
Maximum Power Consumption |
5.76 kW |
Find out more about the Fuji Xerox Versant 3100i Press, its features and what it can do.
