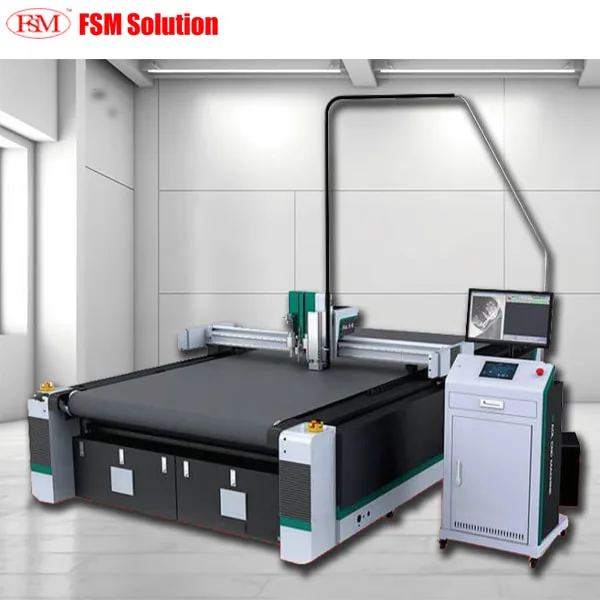

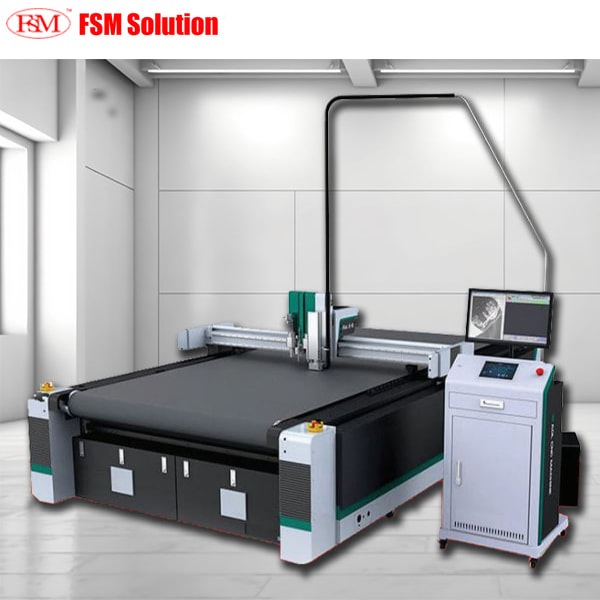

Digital Cutting Machine Flatbed Cutter A0 Size
Scanext 1625PAS
Product Advantage
- Scanext self-developed software one-click import, general worker takes 2 hours to be skilled.
- Independently R&D industrial vision system to realize cutting of irregular printing patterns.
- Taiwan linear guide rail transmission system, precision +0.1mm.
- Japanese Panasonic servo system. production efficiency increases more than 4 times.
- Automatic pulling and receiving, save time and energy.
- Scanext’s unique tools exchange system, one machine solves a variety of processes.
- This model has won 7 patents technology certifications at home and abroad.
- Specification
- Brochure
Find Out More About Scanext 1625PAS
Advertising Packaging Industry Cutting Machine Vol. 1
Advertising Packaging Industry Cutting Machine Vol. 2
Advertising Packaging Industry Cutting Machine Vol. 3
Our large format Scanext digital cutters can cut and rout virtually any advertising material,
it has a high-precision CCD positioning function, which makes material cutting faster
it has a high-precision CCD positioning function, which makes material cutting faster
Circular Knife Tool
Circular knife puts the materials by the high-speed rotating blades driven by the servo motor. The tool can be installed with circular blades and decagonal blades, etc. Which are especially suitable for cutting woven materials.
Application : Textiles, Canvas, Leather, Fabric, UV Fabric, Carbon Fabric, Glass Fabric, Carpet, Blanket,
Fur, Woven Fabric, Composite Double, Multi-layer Material, Flexible Plastic.
Application : Textiles, Canvas, Leather, Fabric, UV Fabric, Carbon Fabric, Glass Fabric, Carpet, Blanket,
Fur, Woven Fabric, Composite Double, Multi-layer Material, Flexible Plastic.
Drag Knife Tool
FSM Solution drag knife tool can perfectly cut materials with the thickness up to 5mm. Compared to other cutting
tools, it is the most cost-effective one that allows for the fastest cutting speed and lowest maintenance cost
Application : Backlit Film, Sticker, PP Paper, Folding Card, Flexible Materials less than 3mm thickness,
Advertising Materials KT Board, Flexible Plastics, Mobile Phone Film.
tools, it is the most cost-effective one that allows for the fastest cutting speed and lowest maintenance cost
Application : Backlit Film, Sticker, PP Paper, Folding Card, Flexible Materials less than 3mm thickness,
Advertising Materials KT Board, Flexible Plastics, Mobile Phone Film.
Milling Knife Tool
With imported spindle, it has a rotating speed of 24000 rpm. Applied for cutting hard materials with the
maximum thickness of 20 mm. The customized cleaning device cleans up the production dust and debris.
The air cooling system extends blade life
Application : Acrylic, MDF Board, PVC Board, Display Stand
maximum thickness of 20 mm. The customized cleaning device cleans up the production dust and debris.
The air cooling system extends blade life
Application : Acrylic, MDF Board, PVC Board, Display Stand

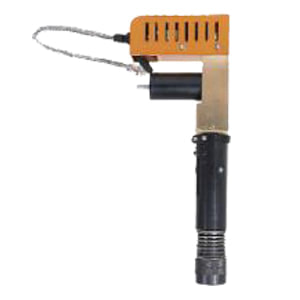

Pneumatic Knife Tool
Driven by compressed air, is especially for cutting hard and compact materials. Equipped with different
kinds of blades, it can make different process effect. The tool can cut the material up to 100mm by using s
pecialized blades
Application : Asbestos Board, Asbestos Free Board, PTFE, Rubber Board, Fluorine Rubber Board,
Silica Gel Board, Graphite Board, Graphite Composite Board
kinds of blades, it can make different process effect. The tool can cut the material up to 100mm by using s
pecialized blades
Application : Asbestos Board, Asbestos Free Board, PTFE, Rubber Board, Fluorine Rubber Board,
Silica Gel Board, Graphite Board, Graphite Composite Board
CCD Positioning Cutting
Identify the pattern contour through identifying the mark points or QR code, nally realize the position cutting along edge
Application : Printing Clothing, PVC Elevator Mat, KT Board, Foam Board, Poster Board
Application : Printing Clothing, PVC Elevator Mat, KT Board, Foam Board, Poster Board
Car Sticker
Sticker
Labels
Self-Adhesive Vinyl

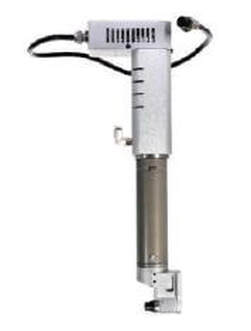

Oscillating Knife Tool
The electrical oscillating tool is super suitable for cutting the material of medium density. Coordinated
with various kinds of blades, applied for cutting different materials.
Application : Foam board, Honeycomb board, Carpet, Corrugated, Cardboard, KT board, Gray board,
with various kinds of blades, applied for cutting different materials.
Application : Foam board, Honeycomb board, Carpet, Corrugated, Cardboard, KT board, Gray board,

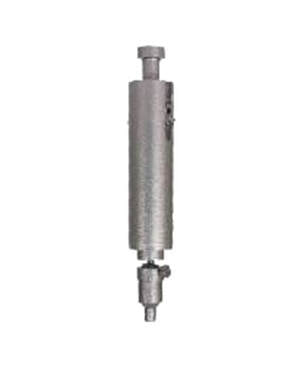

Kiss-Cut Knife Tool
The kiss cut tool is mainly used for cutting vinly materials (labels). Scanext cut makes it possible that the tool cuts through the top part of the material without any damage to the bottom part. it allows high cutting speed for material processing.
Application : Sticker, Reflective Materials, Self-adhesive Vinly, Label, Vinly, Engineering Reflective
Film, Double-layer Adhesives.
Application : Sticker, Reflective Materials, Self-adhesive Vinly, Label, Vinly, Engineering Reflective
Film, Double-layer Adhesives.
V-Cut Knife Tool
Specialized for V-cut processing on corrugated materials, AOL V-Cut Tool can cut 0 , 15 , 22.5 , 30 and 45
Application : Soft Board, KT Board, Corrugated Board, Packing Box, Medium-density Material V-cuts, Carton Packaging, Hard Cardboard
Application : Soft Board, KT Board, Corrugated Board, Packing Box, Medium-density Material V-cuts, Carton Packaging, Hard Cardboard
Creasing Wheel Tool
A selection of creasing tools allows for perfect creasing. Coordinated with the cutting software, the tool can cut the corrugated material along its structure or the reverse direction to have a nest creasing result, without any damage to the corrugated materials surface.
Application : Packing Box, Folding Card, Corrugated Board, Carton
Application : Packing Box, Folding Card, Corrugated Board, Carton

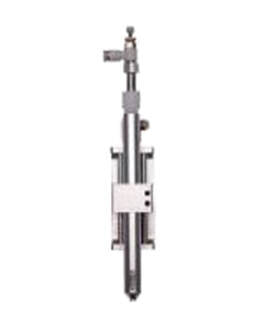

Marking Pen
The cylinder is controlled by the solenoid valve to realize the function of marking. Suitable for leather, fabric
and other materials to record, order, count, proofing.
Application : Leather, Fabric, Cardboard and other materials
and other materials to record, order, count, proofing.
Application : Leather, Fabric, Cardboard and other materials

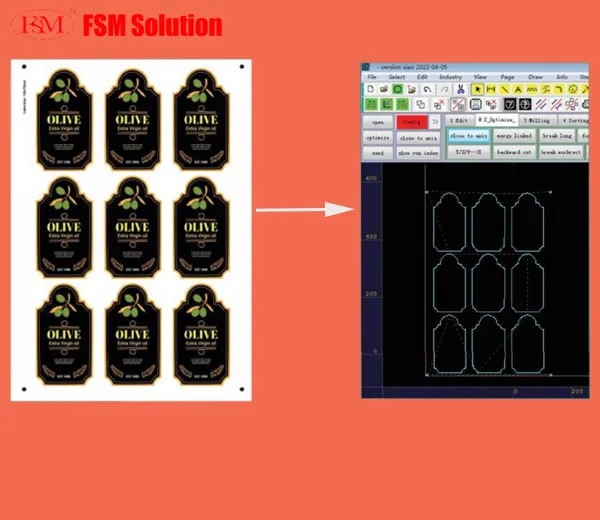

CCD Software Introduction
1. Software Function
(1) Mark point identification, positioning and cutting.
Working principle: The one-to-one vector graphics of the printed graphics on the material is sent to the machine, and the camera performs positioning and cutting by identifying the mark points printed on the material.
(2) Identify the QR code
Print the QR code on the material, move the camera to the position of the QR code, the camera will first recognize the QR code and read the vector diagram corresponding to the current material, and then identify the mark point for positioning and cutting, this function will omit sending graphic to machine steps to improve work efficiency.
2. Applicable Industries
Advertising, packaging, carton, etc.
3. Software Advantages
Recognition speed : The new sofware takes 7 second to recognize the QR code plus four mark points.
Simple operation : It is easier to calibrate the camera. There is no need to make a template for the mark points of the solid circle. Just enter the actual size of the printed mark points and the software will automatically match. You can directly control the machine to move, start cutting, and stop from the software.
There are many types of the identifiable mark point, the types of identifiable mark points include solid circle, cross line, right-angle line, and broken right-angled line, mark point to create an add template.
(1) Mark point identification, positioning and cutting.
Working principle: The one-to-one vector graphics of the printed graphics on the material is sent to the machine, and the camera performs positioning and cutting by identifying the mark points printed on the material.
(2) Identify the QR code
Print the QR code on the material, move the camera to the position of the QR code, the camera will first recognize the QR code and read the vector diagram corresponding to the current material, and then identify the mark point for positioning and cutting, this function will omit sending graphic to machine steps to improve work efficiency.
2. Applicable Industries
Advertising, packaging, carton, etc.
3. Software Advantages
Recognition speed : The new sofware takes 7 second to recognize the QR code plus four mark points.
Simple operation : It is easier to calibrate the camera. There is no need to make a template for the mark points of the solid circle. Just enter the actual size of the printed mark points and the software will automatically match. You can directly control the machine to move, start cutting, and stop from the software.
There are many types of the identifiable mark point, the types of identifiable mark points include solid circle, cross line, right-angle line, and broken right-angled line, mark point to create an add template.
Why Choose FSM Solution Software System ?
Save labor cost, solve the error of manual cutting increase yied. Solve the difficult of shape cutting, improve efficiency and solve the problem of difficult recruitment
1. Easy editing function
The FSM Solution software system integrates the layer functions of commonly used in the advertising industry, the original graphic file can be modified and edited easily.
2. Convenient opeartion
The FSM Solution system is powerful and easy to operate, which is one of the important features of FSM Solution, just have a video tutorial or manual you can quickly master the operation of FSM Solution
3. Automatic extraction of cutting paths :
No need complicated cutting path design, the cutting path can be automatically generated directly
4. Graphic design software integration :
It can be docked with ArtiOSCAD, AutoCAD, Coreldraw, and other software to simplify the work flow of structure and graphic designer
1. Easy editing function
The FSM Solution software system integrates the layer functions of commonly used in the advertising industry, the original graphic file can be modified and edited easily.
2. Convenient opeartion
The FSM Solution system is powerful and easy to operate, which is one of the important features of FSM Solution, just have a video tutorial or manual you can quickly master the operation of FSM Solution
3. Automatic extraction of cutting paths :
No need complicated cutting path design, the cutting path can be automatically generated directly
4. Graphic design software integration :
It can be docked with ArtiOSCAD, AutoCAD, Coreldraw, and other software to simplify the work flow of structure and graphic designer
