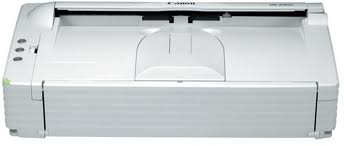

Document Scanner Canon DR 2580C
Main Features
The space-saving DR-2580C is a
versatile desktop scanner packed with a host of easy-to-use functions and the
latest software technology to deliver exceptional results. Capable of scanning
a diverse range of documents thanks to its variety of feed features and a newly
introduced sensor support mechanism for thicker items, the DR-2580C packs a lot
into a small package
Specification
Type:Desktop sheetfed scanner Document Feeding:Automatic or manual sheet feeding
Document size:
Width :53 - 216mm (2.08 - 8.5in.)
Length:70 - 355.5mm (2.75 - 17in.)
Document thickness and weight
U-Turn path Automatic feeding:0.06 - 0.15mm, 52 - 128g/m2 (14 - 32lb. bond)
Manual feeding: 0.05 - 0.2mm, 42 - 157g/m2 (11 - 40lb. bond)
Straight path Automatic feeding: 0.05 - 0.2mm, 42 - 157g/m2 (11 - 40lb. bond)
Manual feeding: 0.05 - 0.2mm, 42 - 157g/m2 (11 - 40lb. bond)
Business card size and thickness
Size : 53.9 x 85.5mm (2.12 x 3.37in.)
Thickness :0.76 ± 0.08mm (0.03 ± 0.003in.)
Feeding Capacity :5mm stack or 50 sheets of 80g/m2 (20lb. bond)
Scanning Element:Contact Image Sensor (CMOS)
Light Source : LED (red, green, and blue)
Scanning Side:Simplex / Duplex / Flatbed (Option)
Scanning Modes :Black and White, Advanced Text Enhancement, High-Speed Text Enhancement, Error Diffusion
256-level Grayscale
24-bit Colour
Scanning Resolutions :100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi,
400 x 400dpi, 600 x 600dpi
Scanning speed: (A4 / LTR, Portrait, 200dpi)
Black and White Simplex: 25ppm
Duplex: 50ipm
256-level Grayscale Simplex: 25ppm
Duplex: 50ipm
24-bit Colour Simplex: 13ppm
Duplex: 26ipm
Interfaces :Hi-Speed USB 2.0
Scanner driver :ISIS / TWAIN
Useful functions :Job Function, Folio Mode, Punch Hole Removal, Rapid Recovery System, Colour Dropout, Automatic Page Size Detection, text Orientation Recognition, Skip Blank Page, Deskew, Gamma, Prescan, User Preferences
Power requirements: AC100 - 120V (50 / 60Hz), AC220 - 240V (50 / 60Hz)
Power Consumption:1.4A or less (Standby: 6W or less)
Operating Environment :10 - 32.5°C (50 - 90.5°F)
Humidity: 20 - 80% RH
Dimensions (W x D x H) Feed trays closed: 302 x 171 x 81mm (11.9 x 6.7 x 3.2in.)
Weight :Approx. 1.8kg (4lb.)
Options / Consumables :Flatbed Scanner Unit, Barcode Module, Exchange Roller Kit
Specifications are subject to change without notice.
• When scanning documents using ADF.
• Actual scanning speed may vary depending on your system configuration and PC.
