A0 A1 Colour Printer

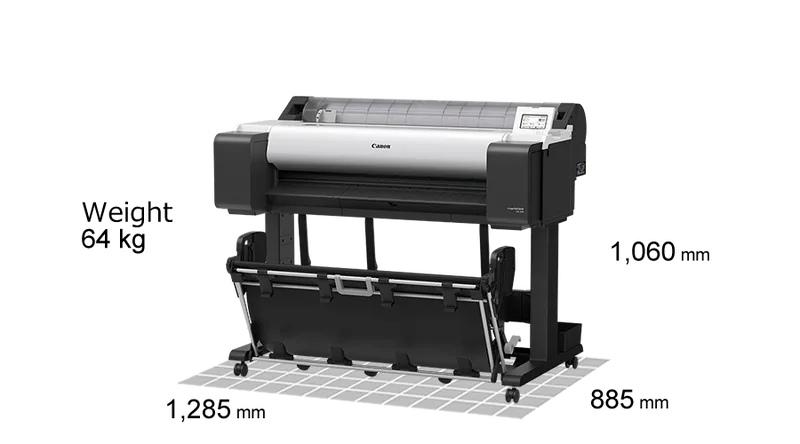

Canon TM5340

PRODUCT OVERVIEW

Boundless Versatility Made Affordable

The brand new imagePROGRAF 36” TM-5340 large format printer provides scalability alongside affordability in small home office printing for photos, CAD drawings and other multi-application prints. Discover greater versatility as well as accessibility in delivering quality prints ideal for your business requirements.

5-colour LUCIA TD pigment ink
36"/914 mm
Fast printing speed with L-COA PRO II
Silent printing
Single-function printer

PRODUCT SPECIFICATION

Printer Type	5-Colour 36" (914 mm)
Number of Nozzles	15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each)
Maximum Print Resolution	2,400 x 1,200 dpi
Nozzle Pitch	1,200 dpi (2 lines)
Line Accuracy*1	± 0.1% or less
Ink Capacity	Sales Ink: 55 ml (MBK/BK/C/M/Y)
Ink Type	Pigment Ink
Printing Solutions	Printer Driver (Win/Mac versions), Direct Print Plus, Free Layout plus, PosterArtist Windows/Web & Lite, Wi-Fi Connection Assistant, PIXMA Cloud Link, Apple AirPrint (Mobile), Canon PRINT Inkjet/SELPHY (Mobile), Canon Print System (Mobile), uniFlow server
Printer Language	SG Raster (Swift Graphic Raster) HP-GL/2, HP RTL JPEG (Ver. JFIF1.02) CALS G4*2
Management Solutions	Media Configuration Tool (includes Colour Customization Tool), Accounting Manager, Device Management Console, Quick Utility Toolbox
Standard Interfaces (Built-in)	USB B Port: (Series B, 4 pins) Hi-Speed USB Full Speed (12 Mbit/sec) High Speed (480 Mbit/sec) Bulk Transfer Network: IEEE 802.3 10base-T IEEE 802.3u 100base-TX IEEE 802.3ab 1000base-T SNMP, HTTP, TCP/IP(IPv4/IPv6), FTP Wireless LAN: IEEE802.11 b/g/n WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) WPA3-SAE (AES) WPA-EAP (AES) 3 WPA2-EAP (AES)3 WPA3-EAP (AES)*3
Standard Memory	2 GB
Hard Disk	-
Display	LCD (4.3 inch/10.9 cm TFT colour)
CAD Drawing (Fast Q5 mode) in A0	41 sec
Poster (Standard mode) in A0	3 min 10 sec
Media Feed and Output	Roll Paper One Roll, Top Load, Front Output Cut Sheet Top Load, Front Output
Media Width (Roll/Cut Sheet)	Roll Width: 203.2 ~ 917 mm; Cut Sheet Width: 203.2 ~ 917 mm
Media Thickness (Roll/Cut Sheet)	0.07 ~ 0.8 mm
Media Core Size	2 inch; 3 inch core (Optional)
Min. Printable Length	Roll Paper 203.2 mm Cut Sheet 279.4 mm
Max. Printable Length	Roll Paper 18 m5 Cut Sheet* 1,600 mm
Maximum Outer Roll Diameter	150 mm or less
Borderless Printing	Supported for roll paper
Margins (Recommended Area)	Roll Paper (Top, Bottom, Sides) 20 mm, 3 mm, 3 mm Cut Sheet (Top, Bottom, Sides) 20 mm, 20 mm, 3 mm
Margins (Printable Area)	Roll Paper (Top, Bottom, Sides) 3 mm, 3 mm, 3 mm Cut Sheet (Top, Bottom, Sides) 3 mm, 20 mm, 3 mm
Dimensions (W x D x H)	Main Unit 1,285 x 748 x 439 mm Main Unit + Printer Stand + Basket (SD-33) 1,285 x 868 x 1,060 mm (Basket Opened) 1,285 x 756 x 1,060 mm (Basket Closed)
Weight	Main Unit 47.5 kg Main Unit + Printer Stand + Basket (SD-26) 59.2 kg Packaged Dimensions (W x D x H) Printer (Main unit with stand and pallet) (SD-33) 1,462 x 913 x 801 mm Packaged Weight *6 Printer (Main unit with stand and pallet) (SD-33) 100 kg
Power Supply	AC 100 - 240 V, 50 - 60 Hz
Power Consumption	*Printing7 65 W or less Sleep Mode7* 1.6 W or less Power Off 0.1 W or less
Operating Environment	Temperature 15 ～ 30 °C Humidity 10 ～ 80 % RH (no dew condensation)
Acoustic Sound	*Acoustic Power8 Operation: Approx. 6.0 Bels Acoustic Pressure8* Operation: Approx. 39 dB (A) Standby: 35 dB (A) or less

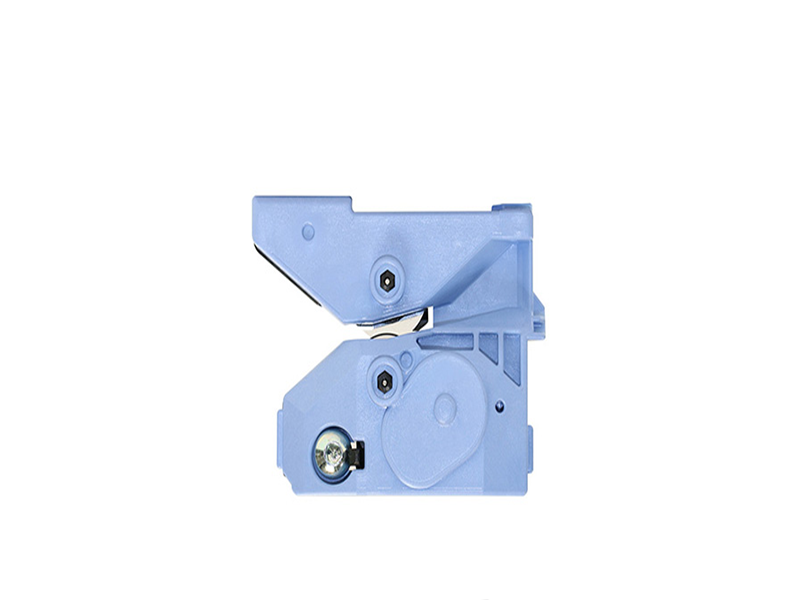

Accessories	2/3" Roll Holder RH2-35 Card Reader Interface for uniFLOW RA-02 Cutter Blade CT-08

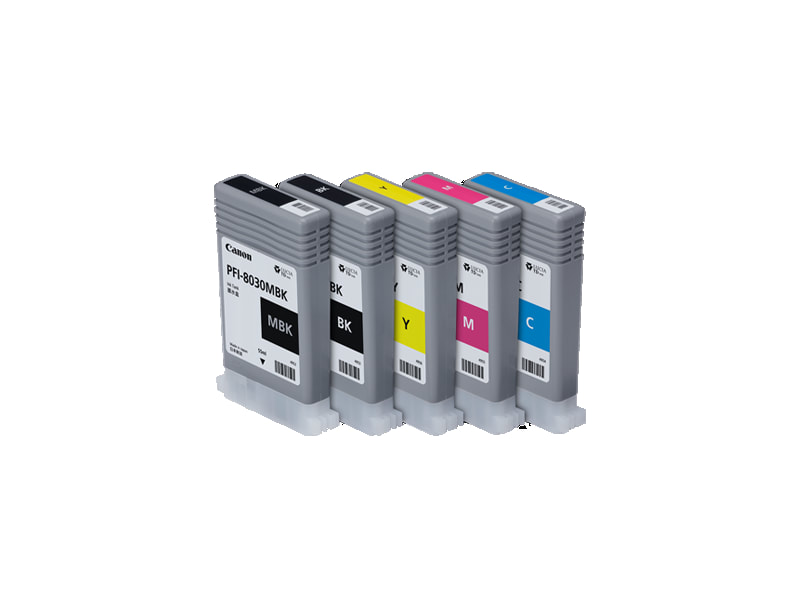

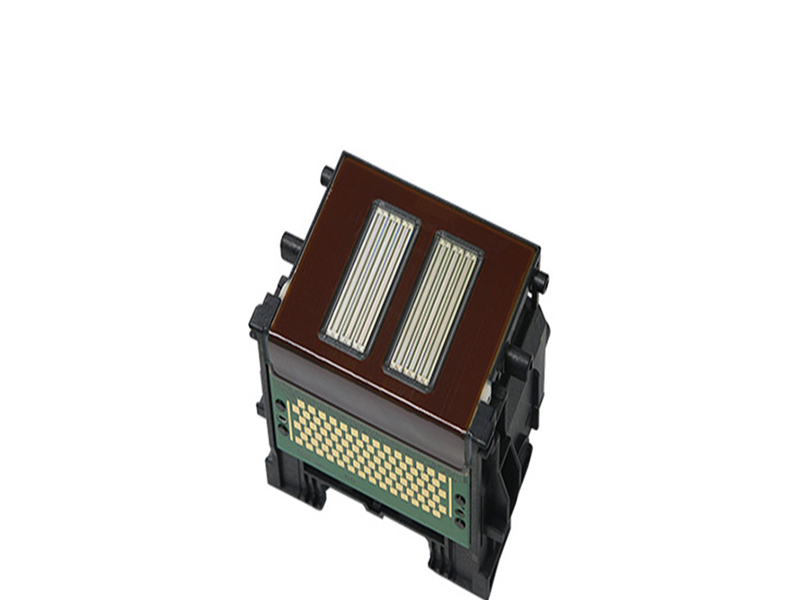

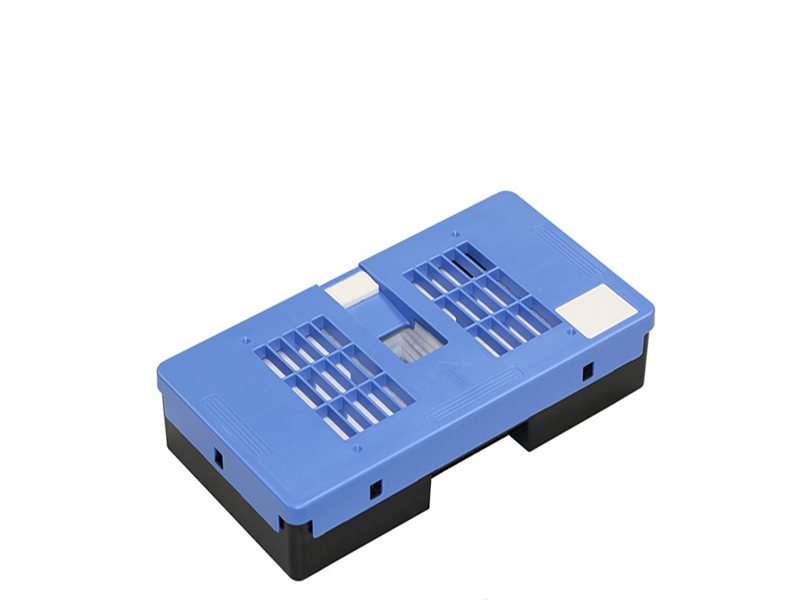

Consumables	Ink Tank Magenta: PFI-8031 (55 ml) Matt Black/Black/Cyan/Yellow: PFI-8030 (55 ml) Print Head PF-06 Maintenance Cartridge MC-31
