Low Ink Cost A1 Printer With Scanner

Canon TM5250 MFP Lm24

PRODUCT OVERVIEW

Limitless Creativity Made Possible

The new 24" imagePROGRAF TM-5250 large format printer raises the standard for print excellence through greater business printing performance for creating photo images, posters and CAD drawings. Express limitless creativity through vivid, quality prints thanks to improved ink capabilities. Comes with scanner to support copy, print & scanning functionalities.

5-colour LUCIA TD pigment ink
24"/610 mm
Fast printing speed with L-COA PRO II
Borderless printing
Multi-function printer

PRODUCT SPECIFICATION

Printer Type	5-Colour 24" (610 mm)
Number of Nozzles	15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each)
Maximum Print Resolution	2,400 x 1,200 dpi
Nozzle Pitch	1,200 dpi (2 lines)
Line Accuracy*1	± 0.1% or less
Ink Capacity	Sales Ink: 130 ml/300 ml (MBK/BK/C/M/Y)
Ink Type	Pigment Ink
Printing Solutions	Printer Driver (Win/Mac versions), Direct Print Plus, Free Layout plus, PosterArtist Windows/Web & Lite, Wi-Fi Connection Assistant, PIXMA Cloud Link, Apple AirPrint (Mobile), Canon PRINT Inkjet/SELPHY (Mobile), Canon Print System (Mobile), uniFlow server
Printer Language	SG Raster (Swift Graphic Raster) HP-GL/2, HP RTL JPEG (Ver. JFIF1.02) CALS G4*2
Management Solutions	Media Configuration Tool (includes Colour Customization Tool), Accounting Manager, Device Management Console, Quick Utility Toolbox
Standard Interfaces (Built-in)	USB B Port: (Series B, 4 pins) Hi-Speed USB Full Speed (12 Mbit/sec) High Speed (480 Mbit/sec) Bulk Transfer Network: IEEE 802.3 10base-T IEEE 802.3u 100base-TX IEEE 802.3ab 1000base-T SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP Wireless LAN: IEEE802.11 b/g/n WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) WPA3-SAE (AES) WPA-EAP (AES)3 WPA2-EAP (AES)3 WPA3-EAP (AES)*3
Standard Memory	2 GB
Hard Disk	-
Display	LCD (4.3 inch/10.9 cm TFT colour)
CAD Drawing (A1 Portrait, Fast Q5 mode)	20 sec
Poster (A1 Portrait, Standard mode)	1 min 23 sec
Media Feed and Output	Roll Paper One Roll, Top Load, Front Output Cut Sheet Top Load, Front Output
Media Width (Roll/Cut Sheet)	Roll Width: 203.2 ~ 610 mm; Cut Sheet Width: 203.2 ~ 610 mm
Media Thickness (Roll/Cut Sheet)	0.07 ~ 0.8 mm
Media Core Size	2 inch; 3 inch core (Optional)
Min. Printable Length	Roll Paper 203.2 mm Cut Sheet 279.4 mm
Max. Printable Length	Roll Paper 18 m5 Cut Sheet* 1,600 mm
Maximum Outer Roll Diameter	150mm or less
Borderless Printing	Supported for roll paper
Margins (Recommended Area)	Roll Paper (Top, Bottom, Sides) 20 mm, 3 mm, 3 mm Cut Sheet (Top, Bottom, Sides) 20 mm, 20 mm, 3 mm
Margins (Printable Area)	Roll Paper (Top, Bottom, Sides) 3 mm, 3 mm, 3 mm Cut Sheet (Top, Bottom, Sides) 3 mm, 20 mm, 3 mm
Dimensions (W x D x H)	Main Unit 978 x 748 x 439 mm Main Unit + Printer Stand + Basket (SD-24) 978 x 868 x 1,060 mm (Basket Opened） 978 x 756 x 1,060 mm (Basket Closed)
Weight	Main Unit 41.5 kg Main Unit + Printer Stand + Basket (SD-26) 54.5 kg Packaged Dimensions (W x D x H) Printer (Main unit + Pallet) 1,152 x 913 x 679 mm Stand + Basket (SD-26) 1,058 x 826 x 270 mm Printer (Main unit with stand and pallet) (SD-26) 1,152 x 913 x 946 mm Packaged Weight *6 Printer (Main unit + Pallet) 73 kg Stand + Basket (SD-26) 22 kg Printer (Main unit with stand and pallet) (SD-26) 96 kg
Power Supply	AC 100 - 240 V, 50 - 60 Hz
Power Consumption	*Printing7 62 W or less Sleep Mode7* 1.6 W or less Power Off 0.1 W or less
Operating Environment	Temperature 15 ～ 30 °C Humidity 10 ～ 80 % RH (no dew condensation)
Acoustic Sound	Acoustic Power8 Operation: Approx. 6.2 Bels Acoustic Pressure8 Operation: Approx. 41 dB (A) Standby: 35 dB (A) or less

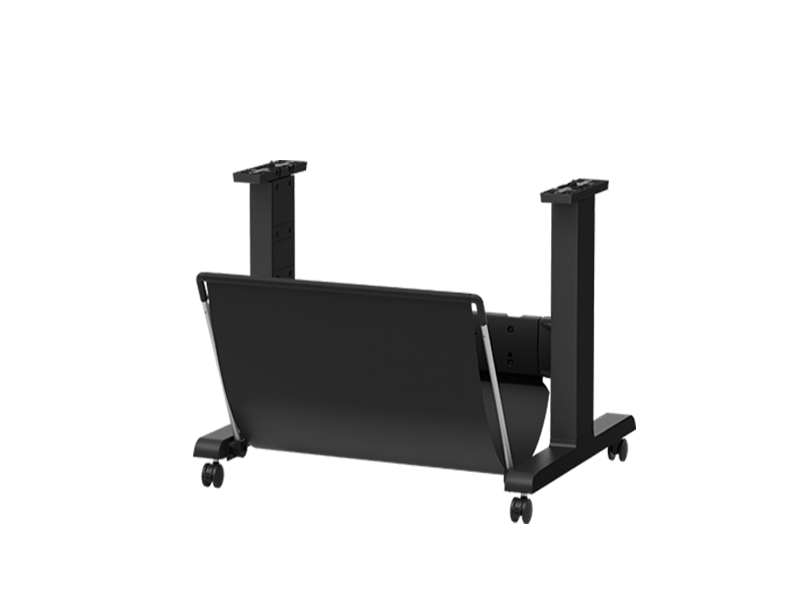

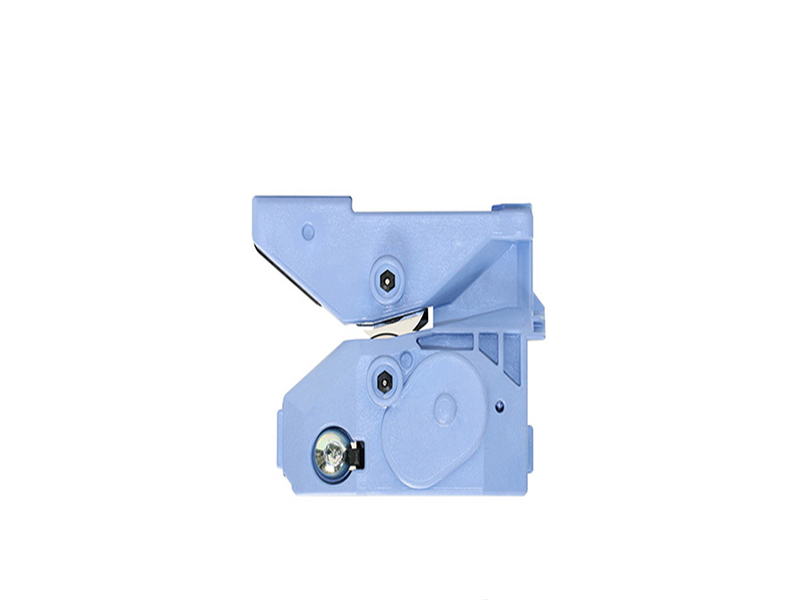

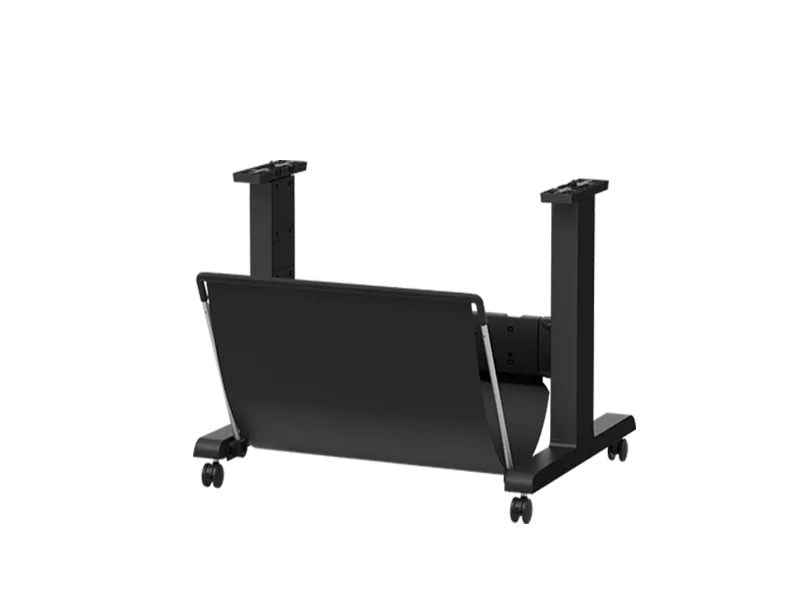

Accessories	Printer Stand (Optional) SD-26 2/3" Roll Holder RH2-28 Card Reader Interface for uniFLOW RA-02 Cutter Blade CT-08

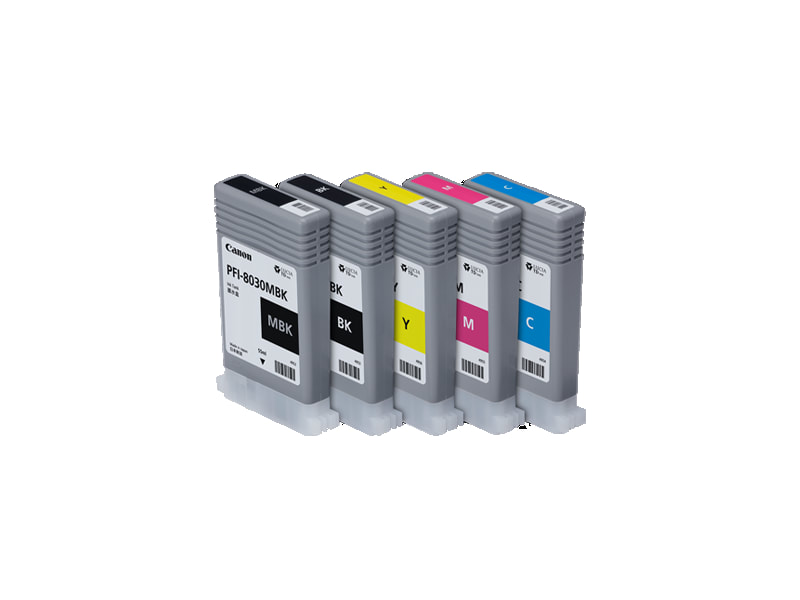

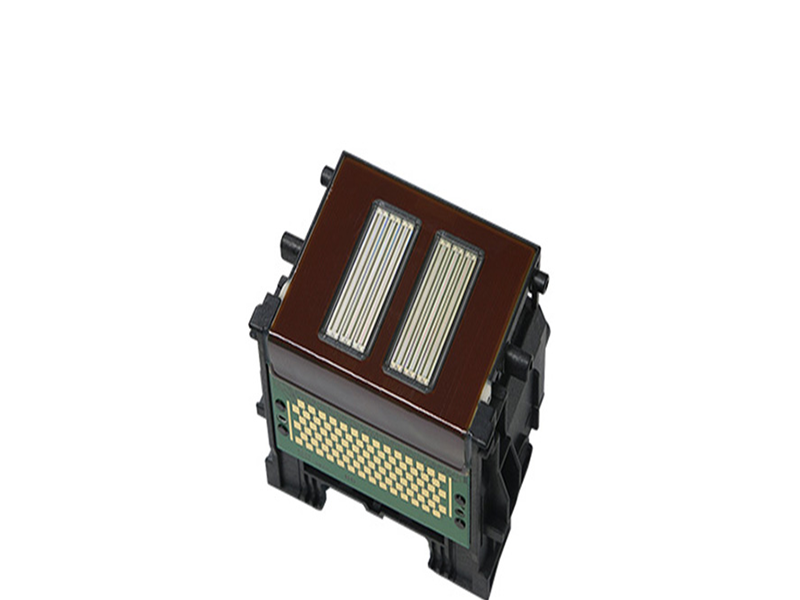

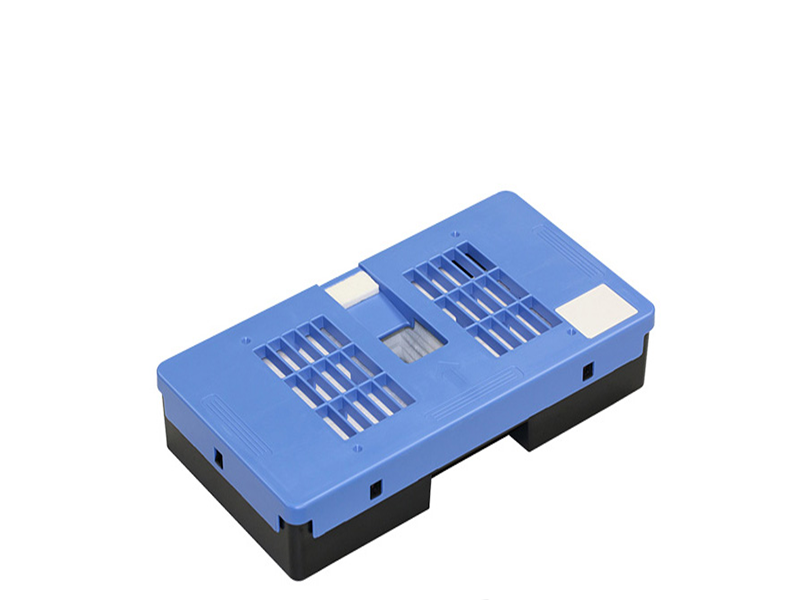

Consumables	Ink Tank Magenta: PFI-8121 (130 ml)/PFI-8321 (300 ml) Matt Black/Black/Cyan/Yellow: PFI-8120 (130 ml)/PFI-8320 (300 ml) Print Head PF-06 Maintenance Cartridge MC-31

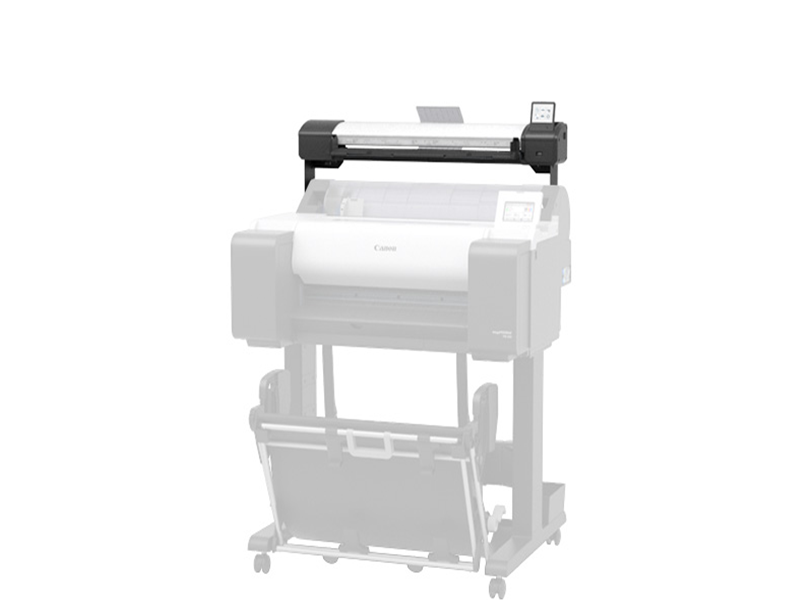

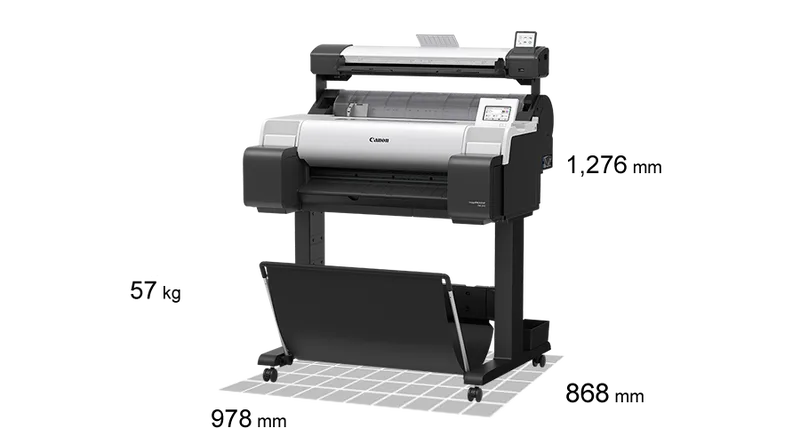

Scanner	Scan Technology SingleSensor with multiple LED illumination Optical Resolution 600 dpi Scan Width 24"/610 mm Minimum Scan Width 6"/150 mm Maximum Scan Length 109"/2,768 mm Document Thickness Min: 0.07 mm Max: 0.8 mm Max. Copy Speed Draft (300/300 dpi) Colour: 1 ips/25.4 mm per sec Monochrome: 3 ips/76.2 mm per sec Standard (300/600 dpi) Colour: 1 ips/25.4 mm per sec Monochrome: 3 ips/76.2 mm per sec Best (600/600 dpi) Colour: 0.5 ips/12.7 mm per sec Monochrome: 1.5 ips/38.1 mm per sec Max. Scan Speed Draft (200 dpi) Colour: 1 ips/25.4 mm per sec Monochrome: 3 ips/76.2 mm per sec Standard (300 dpi) Colour: 0.5 ips/12.7 mm per sec Monochrome: 1.5 ips/38.1 mm per sec Best (600 dpi) Colour: 0.33 ips/8.38 mm per sec Monochrome: 1 ips/25.4 mm per sec PC & Software Included ScanApp Software Functions Scan to USB: RGB/Greyscale/BW, TIFF (No ScanApp) Scan to USB: RGB/Greyscale/BW, JPG, PDF, PDF/A, Multiple PDF (ScanApp available) Scan to Windows PC: RGB/Greyscale/BW, Tiff, JPEG, PDF, PDF/A, TiffG4, Multiple PDF Copy: RGB/Greyscale/BW Copy & Save: Copy and scan to PC concurrently
