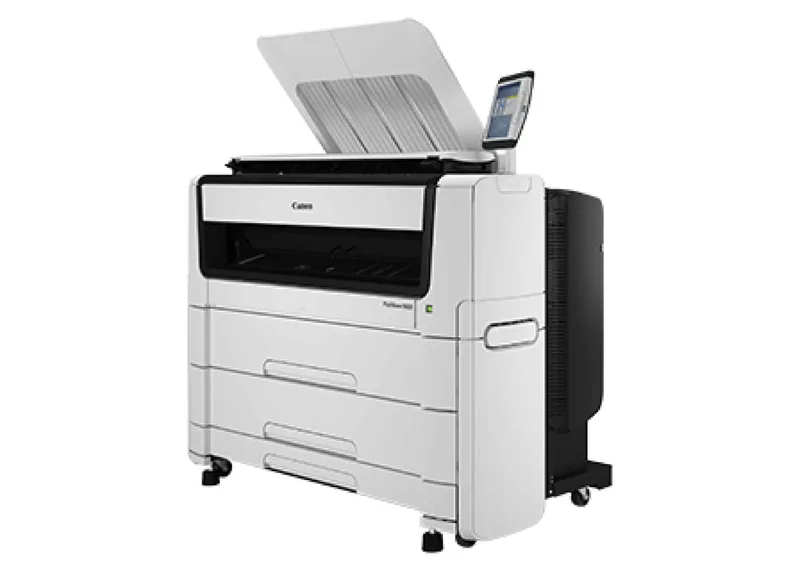

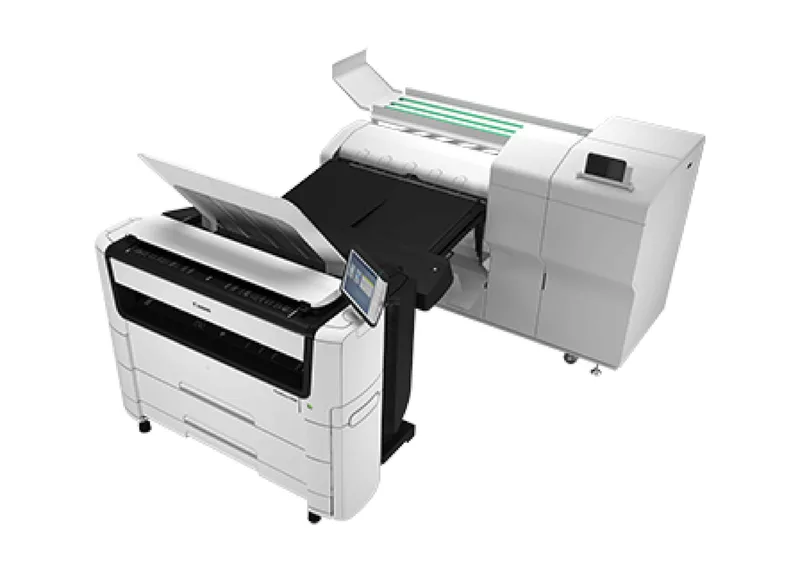

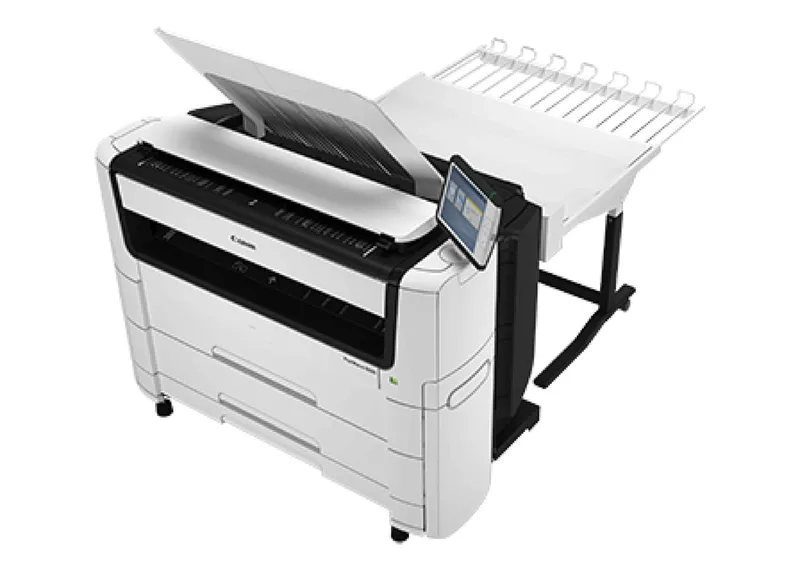

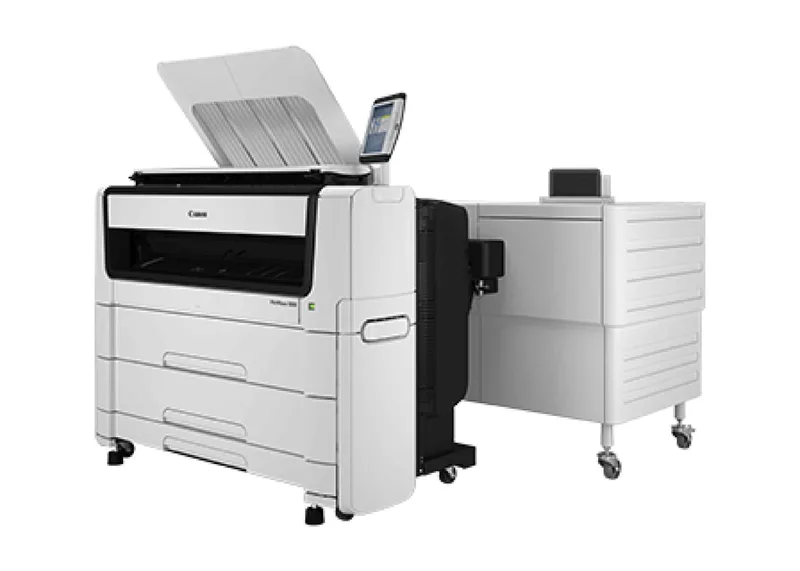

Heavy Duty A1 A0 Laser Printer

Canon PlotWave 5000 / 5500

Canon Oce PlotWave 5000 / 5500
Wide Format Printer

Heavy Duty A1 A0 Laser Printer Canon PlotWave 5000 and 5500 offer excellent quality and robust versatility, without hassle

Radiant Fusing Technology
Virtually no warm-up time
Perfect for Monochrome CAD / GIS
True Resolution of 600 x 1200 dpi with Pico Printing
Up to 36" Media Width and 4 rolls capacity
Ergonomic single footprint design

Radiant Fusing

Image Logic

ClearConnect

Instant-on machine availability | No warm-up time

Turn imperfect originals into perfect copies and scans

Print and scan to the cloud from the desktop, mobile device, user panel, USB flash drive, or network

POWERsync

SMARTshield

Open architecture that enables integration with a variety of print management applications

Protect confidential data with multiple security measures designed

Specifications
Brochure
Video

Printer	Printing Technology: Radiant Fusing Technology Productivity PlotWave 5000: 8 D/A1 per minute 4 E/A0 per minute PlotWave 5500: 10 D/A1 per minute 5 E/A0 per minute Warm-Up Time: Virtually no warm-up time First Print Out Time: <40 seconds Resolution: 600 x 1200 dpi Minimum Line Width: 0.06 mm
Scanning	Description: Integrated Contact Image Sensor (CIS) Colour scanner with Image Logic technology Resolution: 600 x 600 dpi Scan Speed 15.2 m/min Black & white scanning 10.1 m/min Copying 5.0 m/min Colour scanning Scan Formats: TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A and multi-page TIFF
Media	Media Rolls 2 or 4 roll, manual feed of cut sheet media Cutsheet tray (optional) Media Weight: 60 - 110 g/m², film: 3.5 - 4.0 mm Roll Length: Up to 200 m Roll Width: 297 - 914 mm Minimum Printed Length: 279 mm Maximum Printed Length: 200 m Media Type: Plain paper, Transparencies, Translucent, Recycled paper, Engineering Bond, Engineering Vellum, Coloured paper, Top Label Paper FSC, Red Label Paper PEFC, Black Label Paper PEFc, Green Label FSC, RecycledWhiteZero FSC, Transparent Paper, Transparent Paper FSC, Polyester film, Polyester film antistatic, Contrast Film, Clear Polyester Film, Double Matte Polyester Film, White Opaque Polyester Film, Translucent Engineering Bond, Recycled Engineering Bond, Colour Top, Recycled paper, Plain Paper recycled, Transparent, and Orika LPEX rice paper
Controller	Description: High performance POWERsync controller with Windows 10 iOT LTSC, 64 bits Processor: Dual Core, Dual Thread Celeron® G4900 @3.10Ghz Operating System: Windows 7 / Windows 7 64 bits / Windows 8.1 / Windows 8.1 64 bits / Windows 10 / Windows 10 64 bits / Windows Server 2008 R2 64 bits / Windows Server 2012 64 bits / Windows Server 2012 R2 64 bits Mac OS 10.10 / Mac OS 10.11 / Mac OS 10.12 (PostScript 3 driver support only for Mac OS )
Environmental & Safety	Ozone Emissions: <0.005 mg/m³ Certifications CE, TUV GS, CETECOM, Energy Star 3.0, FEMP, Rohs, CCC, VCCI TüV GS, c-UL-US, CB, RCM, EPEAT, EAC, FCC Class A, VCCI Class A
Optional Peripherals	Scanner Professional Stacker Select Folder Express 3011 Folder Professional 6011/6013
Consumables	Toner: Black Toner
