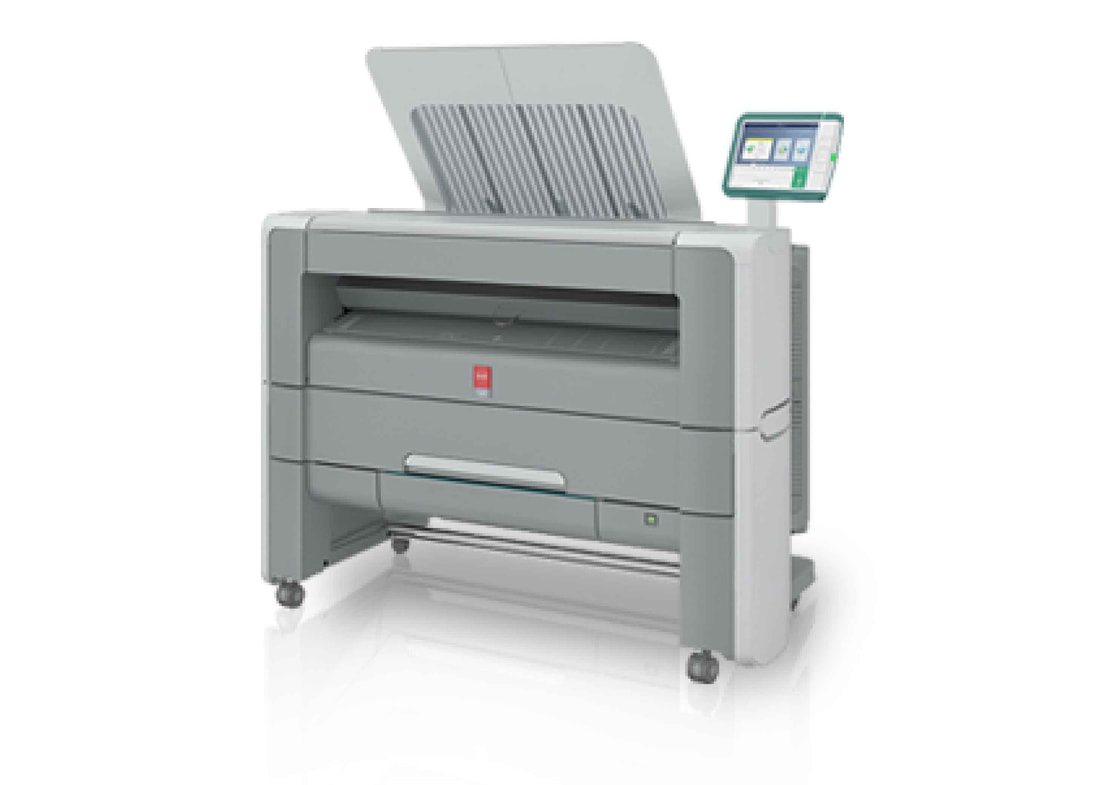

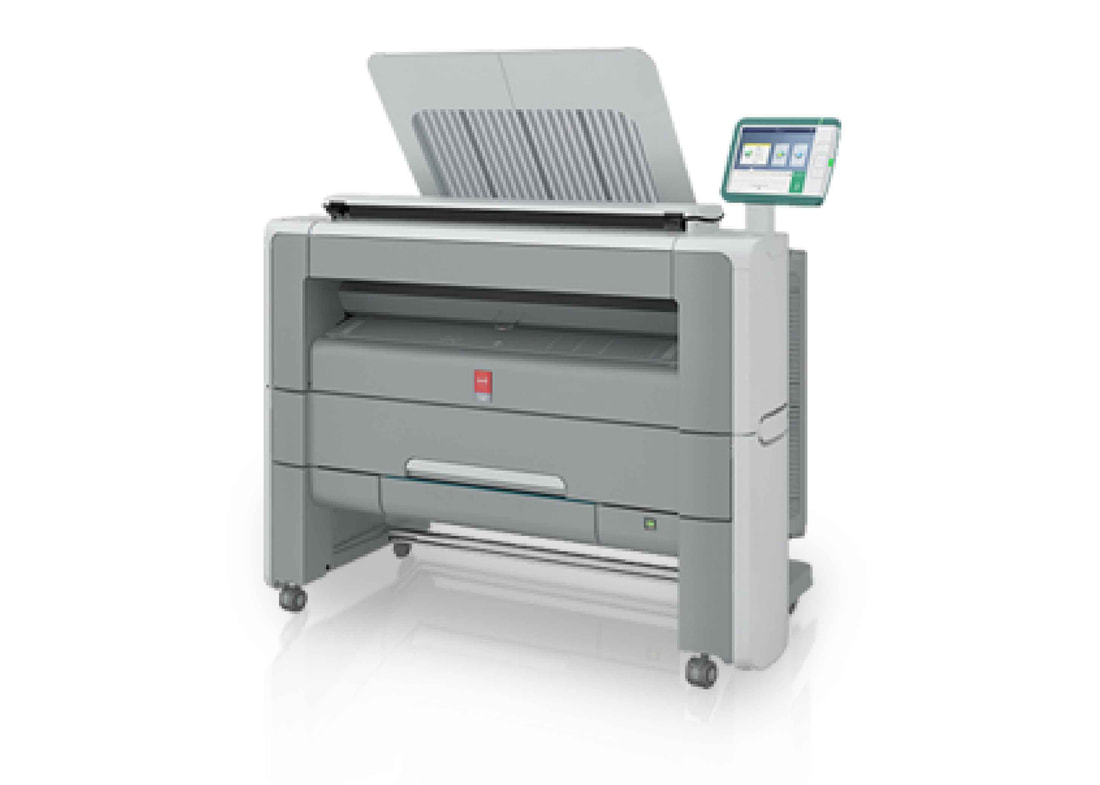

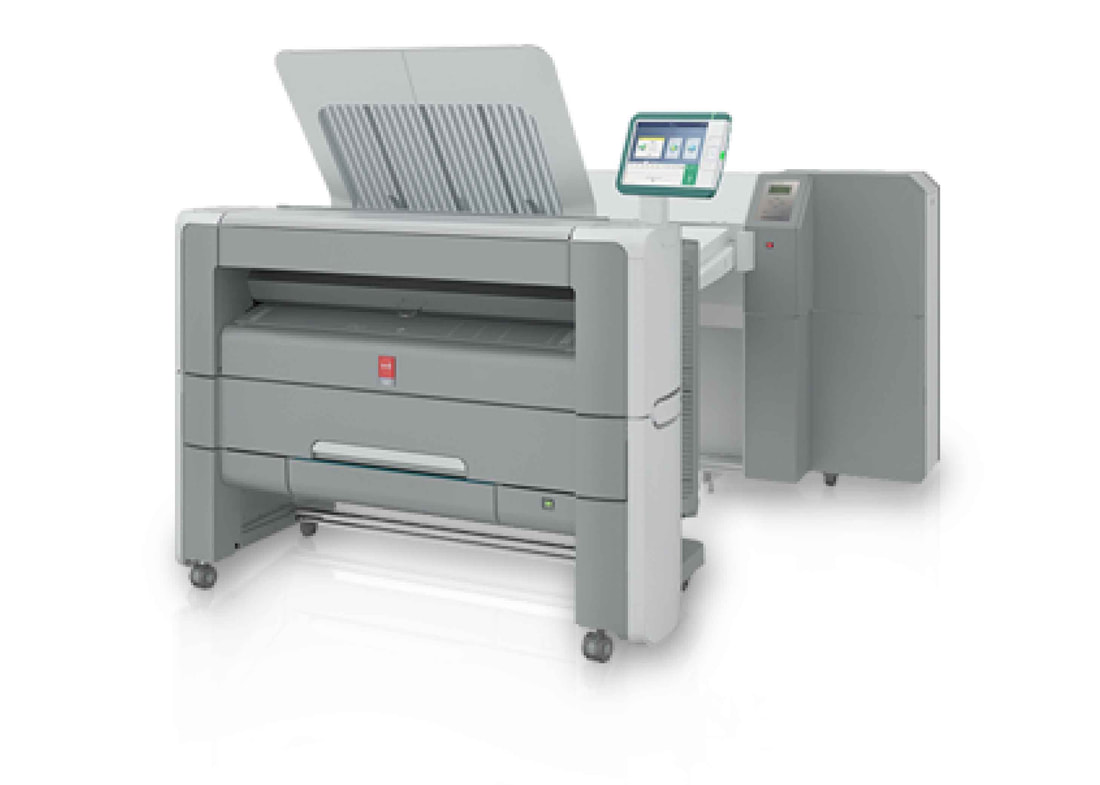

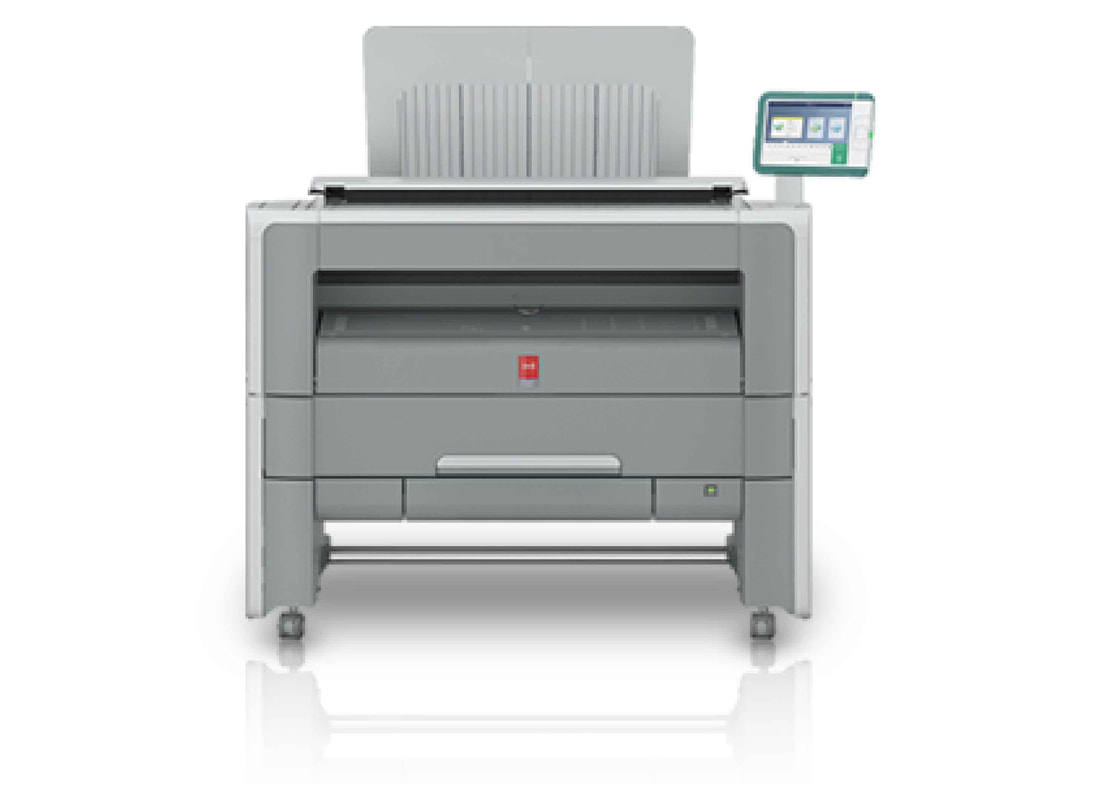

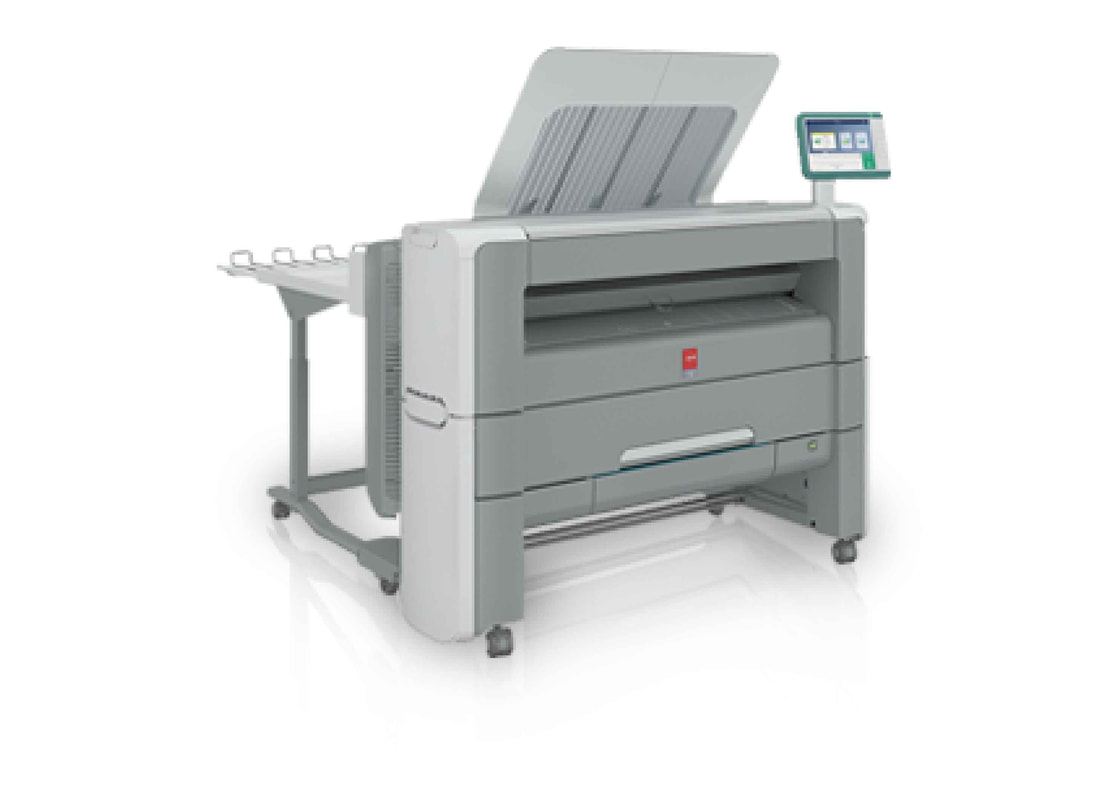

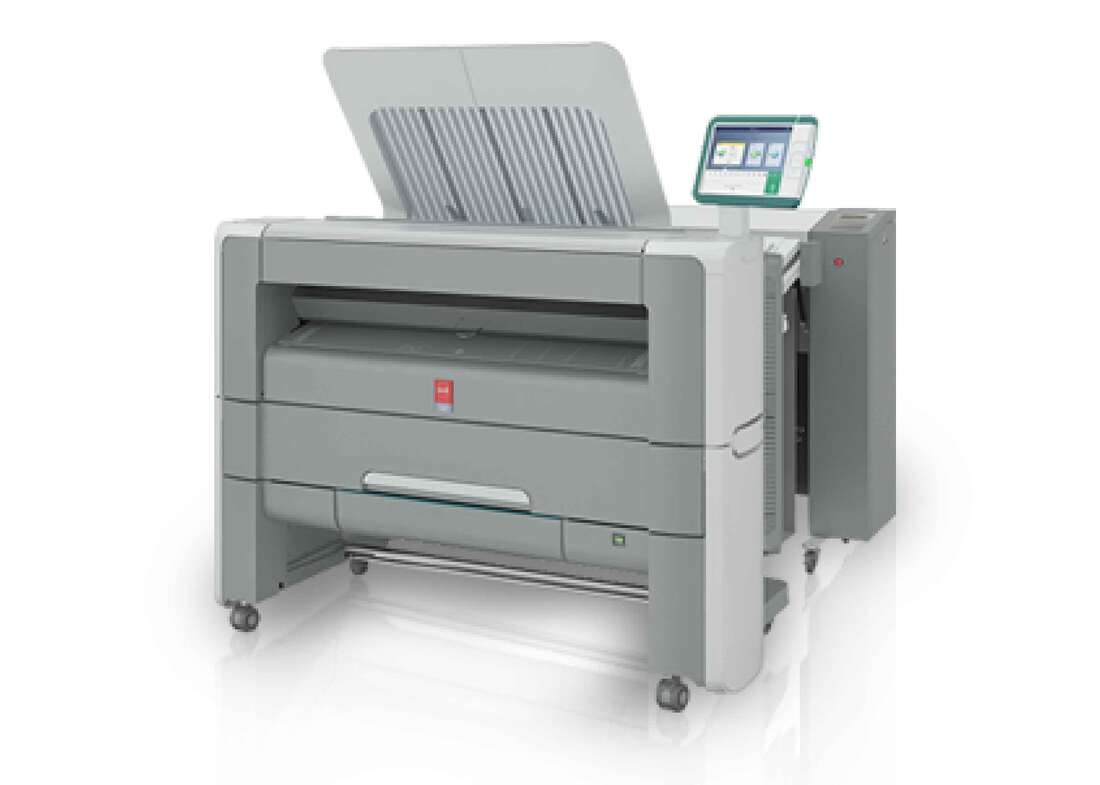

​Description: Monochrome all-in-one wide format print / copy / scan system with colour scanner
Imaging Technology:
Electrophotography (LED) with Organic photoconductor (OPC)
Océ Radiant Fusing Technology with Instant warm up
Clean toner refill system
Virtually no ozone emission
Speed

• Black & White:

           Océ PlotWave 345: 4 A1 / D-size per minute
First Print Out Time: 30 seconds (including 1 click USB printing, file processing, top delivery)
Warm-up Time: Instant with Océ Radiant Fusing technology
Roll Options: 1 or 2 rolls , manual feed of cut sheet media
Output Delivery: Compact and ergonomic top delivery tray with air separation; up to 50 A0 plots collated
Certifications: CE, TUV GS, CETECOM, C-UL-US, FEMP, Rohs, CCC, VCCC

Print Resolution: 600 x 1200dpi
Paper Capacity: 1 roll: 183m2, 2roll: 365m2
Output Sizes Width: 279 - 914mm
Output Sizes Length: 279 - 176,000mm for long plots
Paper Weight: 60 - 110g/m2
Media Type (www.mediaguide.oce.com)

• Paper: Plain paper, Transparencies, Translucent, Recycled paper, Engineering Bond, Engineering Vellum, Colored paper, Top & Green Label FSC, Red & Black Label PEFC, Recycled White Zero FSC
• Film: Polyester 3.5 and 4 mil, Antistatic, Contrast, Clear Polyester, Double Matt, White Opaque

Controller Type: Océ PowerSync controller with Windows®8 Embedded, 64 Bits Dual-Core G1620 @ 2.70GHz
Memory: 4GB DDR3
Hard Drive: 500GB, 7200rpm
Page Description Language: TIFF, JPEG, HPGL, HPGL2, DWF, C4, Calcomp 906 / 907 / 951, CALS, NIRS, NIFF, PS / PDF (optional)

Scanner Type: Contact Image Sensor (CIS) with Océ Image Logic technology
Scan Resolution: 600 x 600dpi resolution
Scan Speed:

• 9.7 m/min. (Copying)
• 14.6 m/min. (Black & white scanning)
• 4.8 m/min. (Color scanning)

Scan Format: TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A and multi-page TIFF
Scan Destination: Local USB flash drive, FTP, SMB, Smart In box on Controller, Optional Local Home folder( LDAP), mobile device via Océ Mobile WebTools, WebDav Clouds, PlanWell Collaborate
Original Size:

• Width:208 - 914mm (maximum image width 914mm)
• Length:208 - 16000mm

Original Thickness: Up to 0.8mm (non-rigid documents)
Scaling: 1:1, Scale to media size, scale to standard format, custom scale 10 - 1000%
Preset Modes: Blueprint, Coloured original, Dark original, Folded lines/text, Lines/text standard, Lines/text draft, Photo, Map, Artwork

General Workflow: Concurrent print, copy and scan of single documents or sets
Submission:

• Single files: Local USB flash drive, Océ Mobile WebTools, local USB flash drive, Microsoft® certified Océ Windows Printer Driver 2.0, Océ PostScript® 3 driver

• Sets of files:

​           local USB flash drive, web-based job submission Océ applications
           Windows based job submission Océ applications

• Océ Express WebTools: Single interface to view and control the system via an Internet browser without installing additional software
• Océ Mobile WebTools: Submit files from your Mobile device or retrieve scanned files from the inbox

Job Management: Monitor and manage the system status, print jobs, settings, network configurations, updates, remote shutdown & restart. Includes personal smart inbox.
Accounting

• Optional customizable print, copy and scan tracking with Océ Account Center
• Enables recurring tasks to be performed at the touch of a single button

Client Operating System Support

• Certified Océ Windows Printer Driver for 2.0 for Windows 8 (32 and 64 bits), Windows 7 (32 and 64 bits), Windows Vista, Windows XP, Windows Server 2003 & 2008, Windows Terminal Server, Citrix MetaFrame and Presentation Server
• Océ PostScript 3 for Windows 8, Windows 7, Windows Vista, Windows XP and Windows Server 2003 & 2008, Mac OS X
• Océ Publisher Select for Windows 8, Windows 7, Windows Vista, Windows XP and Windows Server 2003
• Océ Express WebTools for Windows Internet Explorer and Mozilla® Firefox®
• Océ Mobile WebTools for IOS (need a web browser with an embedded file system, iCab Mobile), Android, Symbian and BlackBerry

Interface

• Ethernet 100 Mbits/s, 1 Gbit/s
• TCP/IP: DHCP, IPv4, IPv6, HTTPS
• Discovery: APIPA, WS-Discovery, SNMP

Printing Protocols: LPR, FTP, WebDav, WSD print
Scanning Protocols: FTP, SMB
Security: E-shredding, IPSec, IP filtering/Access Control Lists, HTTPS, audit logging, network protocol enable/disable, LDAP integration, Active Directory Integration (optional), User authentication on local ClearConnect user panel (LDAP/Active Directory credentials, smart card) for scan/copy/print. Configure HTTPS Certificates. Removable hard disk option, Optional FIPS 140-2 Certified Trusted Platform Module (TPM) and BitLocker based hard disk encryption, hard disk wipe (Only with Disk Encryption), Configurable CA certificate, Disable Network Ports and Protocols, Security Event Logging, Optional Single Sign-on (on device).

Power Consumption Active Mode (printing): 1.5kW
Power Consumption Ready Mode (standby): 88W
Power Consumption Sleep Mode: 1W
Power Requirements (V / Hz / A): 90 - 240V, 50 / 60Hz
Sound Pressure Active Mode (printing): Less than 55dB
Sound Pressure Ready Mode (standby and sleep): Less than 25dB
Ozone Concentrations: 0.001mg/m3, 0.000473 PPM (0.05% of permitted limit value)
Recyclability Hardware: Made of steel or highly recyclable plastics:Up to 95% of the engine can either be upcycled or recycled. Remaining 5% are non toxic waste.
Recyclability Toner: Bottles made of highly recyclable HDPE (High Density Polyethyle)
Size Print Engine (W x D x H): 1527 x 803 x 1495mm including Top Delivery Tray
Weight Print Engine: 240kg
Size Scanner (W x D x H): 1097 x 308 x 140mm fits on top of print engine
Weight Scanner: 25kg

Consumable Type: Océ black toner
Size: 400gm per bottle
