A0 Colour Wide Format Plotter

​Canon ColorWave 3700

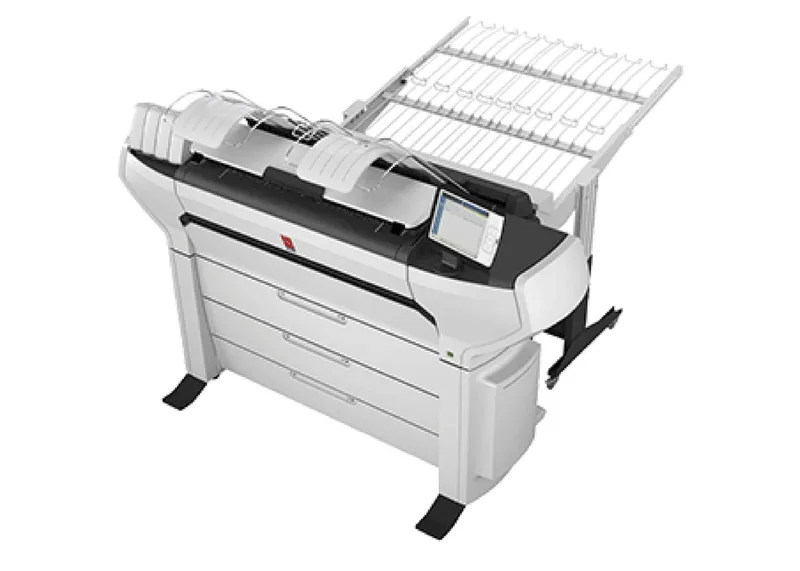

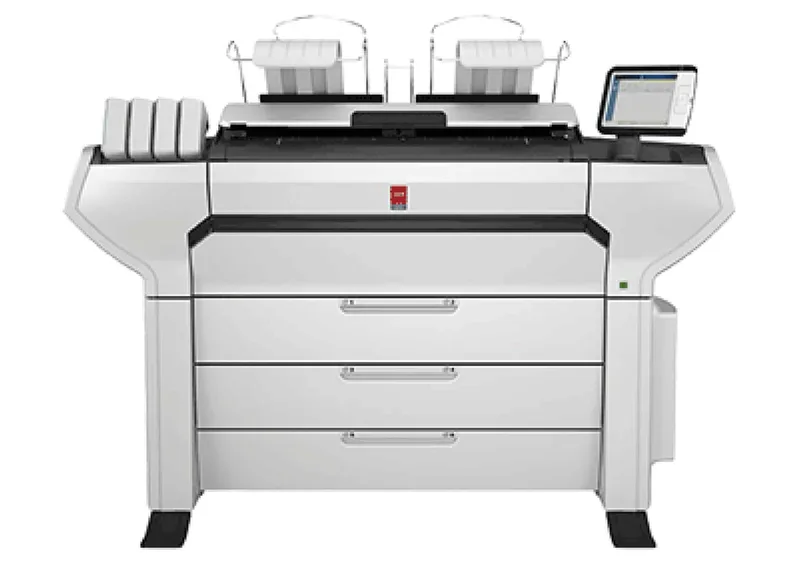

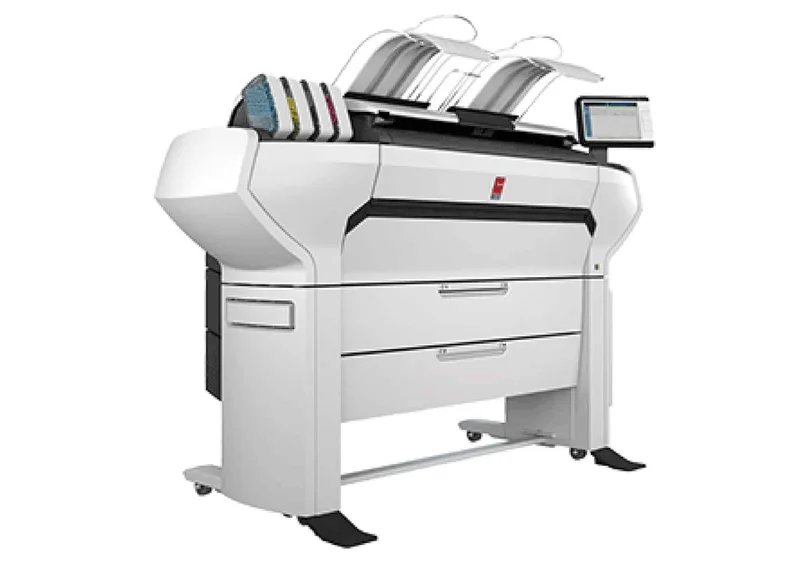

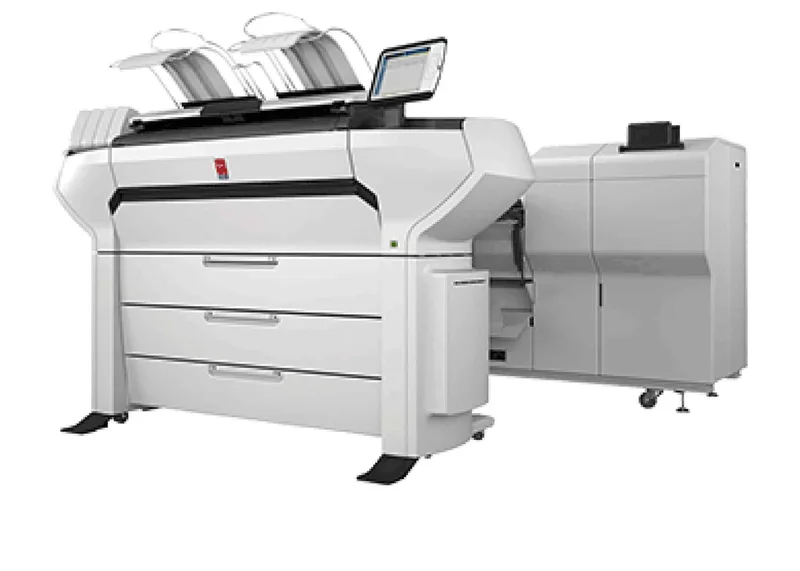

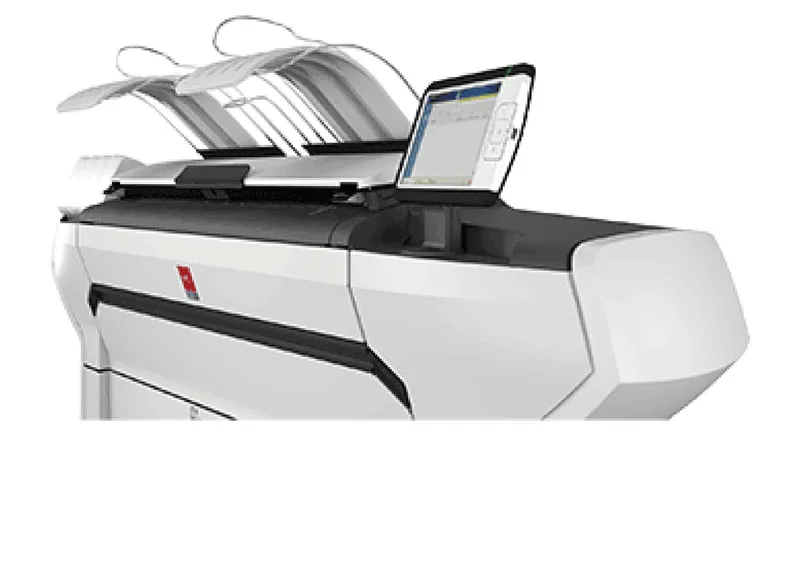

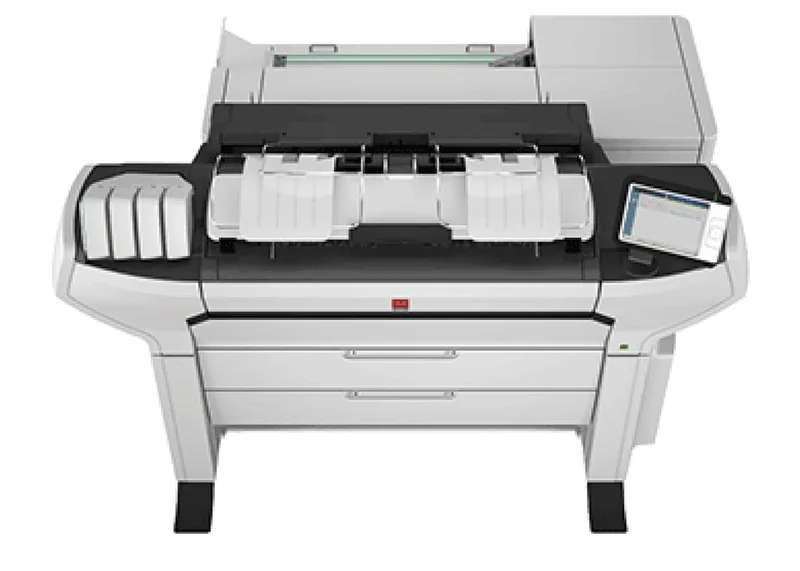

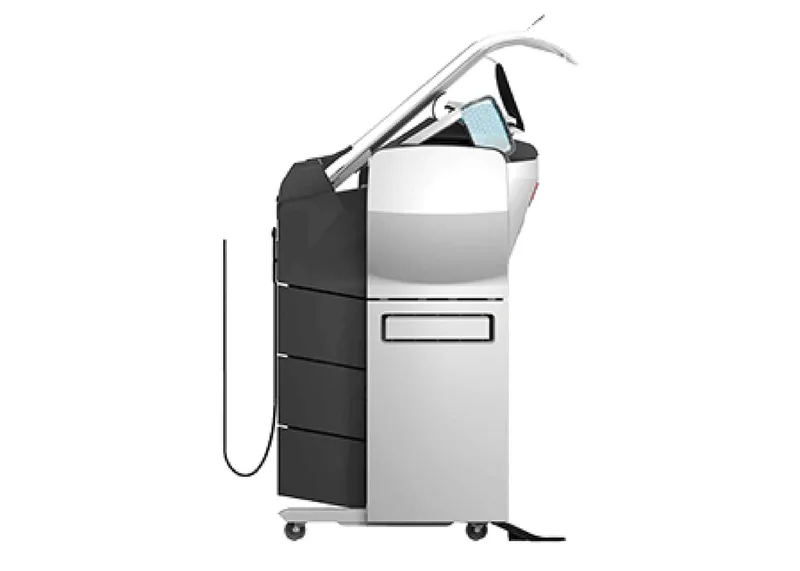

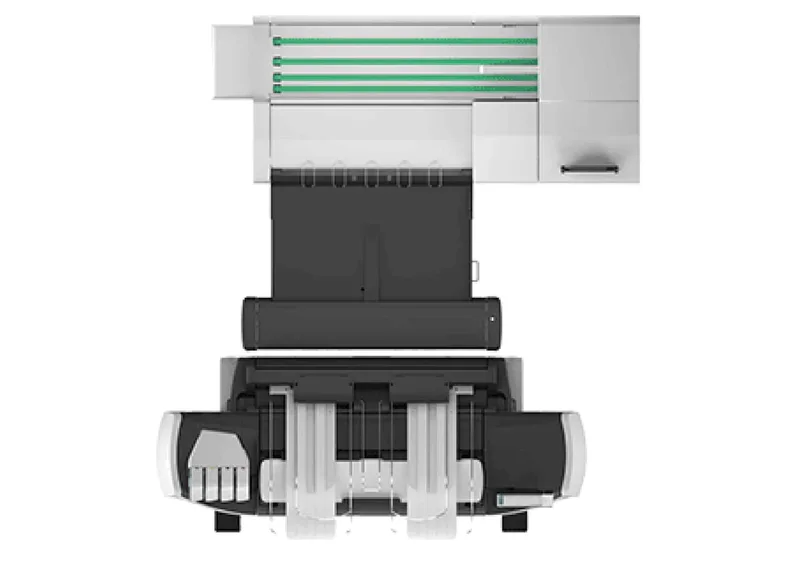

Canon ColorWave 3700 | A0 Colour Wide Format Plotter
Canon ColorWave 3700 | A0 Colour Wide Format Plotter
Canon ColorWave 3700 | A0 Colour Wide Format Plotter
Canon ColorWave 3700 | A0 Colour Wide Format Plotter
Canon ColorWave 3700 | A0 Colour Wide Format Plotter
Canon ColorWave 3700 | A0 Colour Wide Format Plotter
Canon ColorWave 3700 | A0 Colour Wide Format Plotter
Canon ColorWave 3700 | A0 Colour Wide Format Plotter
A0 Colour Wide Format Plotter Canon ColorWave 3700 is the combination of the best technologies.​
​
  • Océ CrystalPoint (4 colour TonerPearl) Technology
  • Up to 42" Media Width and 6 rolls capacity
  • Perfect for CAD/GIS and Posters
  • Océ TonerPearls (C, M, Y, K)
  • 'Green Button' Approach
  • True Resolution of 600 x 600dpi
  • Océ Print Assistant (OPA)
Océ CrystalPoint
Océ PAINT
Océ MediaSense
A clean system | No risk of air pollution
Predicts nozzle failure before printing | Ensures drop size correction
Automatically adjusts the optimum print gap between the media and the Imaging Device
Océ POWERsync
Océ Image Logic
Océ ClearConnect
Convenient, fast and reliable multitasking
Turn imperfect originals into perfect copies and scans
Consists of a variety of applications that all have the same user interface
  • Specifications
  • Brochure
  • Video
Printing
Printing Technology: Océ CrystalPoint® Technology brings instant-dry, water resistant prints on uncoated media.
Productivity
  • Page Size:
           A0/E (ANSI)
           A1/D (ANSI)
  • Productivity (pages/hour)
           129 (greyscale) 120 (color)
           225 (greyscale) 212 (color)
  • Productivity (m²/hour)
           129 (greyscale) 120 (color)
           113 (greyscale) 106 (color)
Print Modes: 9 print modes and OPA (Océ Print Assistant®, automatically determines the best print mode based on the content, without intervention required)
Resolution Imaging Devices: True resolution: 600 x 600 dpi
Resolution Droplet Aligning Accuracy: 1200 dpi (corresponds to 20 microns)
Media
Media Specifications
  • Media rolls: 4 or 6 rolls (2 drawers = 4 rolls, 3 drawers = 6 rolls)
  • Media Capacity: Up to 1200m, 200m on a roll;
  • Media Weight: Paper: 60-200 g/m2; Film: 2.5-8 mil
  • Media Thickness: Paper: 800μm; 30 mil; Film: 2.5-8 mil
Roll Specifications
  • Roll Length: Up to 200 m;
  • Roll Width: 297 mm - 1067mm;
  • Roll Diameter: Up to 180mm;
  • Roll Core Diameter: 3 inch and 2 inch cores;
  • Roll Weight: Up to 20 kg
Print Specifications
  • Max Printable Width: 1067 mm;
  • Minimum Print Length: 210mm;
  • Maximum Print Length: Up to 200 m
Media Types: Uncoated papers, uncoated Tyvek, self-adhesive papers, self-adhesive coated vinyls, blue back papers, textile types, polypropylene films, polyester films, light blocks films, canvas, soft banner, instant dry photo paper, coated & uncoated non-woven wall paper (fleece), backlit paper, self-adhesive wall paper, several natural and synthetic textiles
Controller
Processor: Océ POWERsync® controller, Intel® Core™ i5 Processor
Environmental and Safety
Ozone Emissions: Zero
Certifications: iF Product Design Award predecessor ColorWave 700
Recyclables
  • Printer: made of steel and highly recyclable plastics, min 86% of the engine can either be upcycled or recycled. Toner: cartridge packaging reused as maintenance casette and made of recycable plastic.
  • Prints: Océ CrystalPoint prints are suitable for deinkability when recyclable plastic.
  • Deinkability: Océ CrystalPoint prints are suitable for recycling efforts thanks to high deinkability - the Océ TonerPearl toner lies on top of the paper for easier separation.
Accessories
Optional Finishing Devices: Océ Folder Express 3011, Océ Stacker Select, Océ Folder Professional 6011, integrated full fold; Océ Folder Professional 6013, integrated full fold + reinforcement module.
Consumables
Toner: Océ ColorWave 3700 TonerPearls, Cyan, Magenta, Yellow and Black TonerPearls, 500 grams/colour.
​Find Out More About Canon Océ ColorWave 3700
