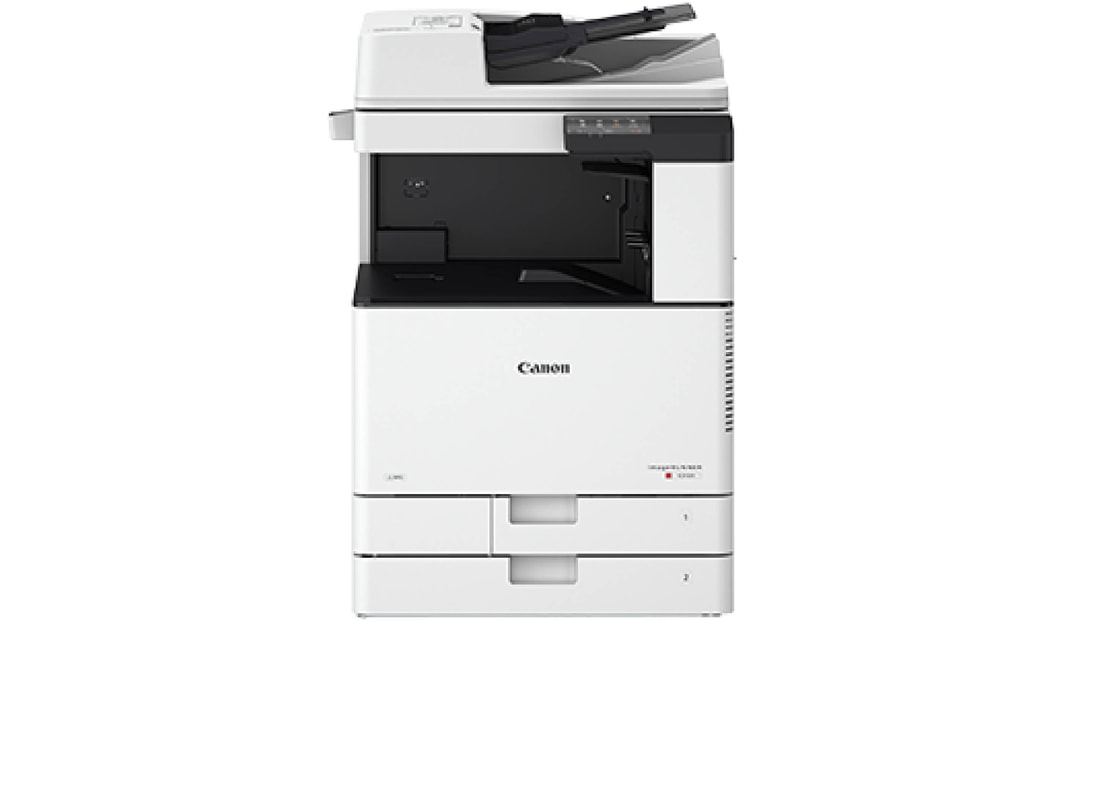

Main Unit





​




​

Type: A3 Color Laser Multifunctional
Core Functions: Print, Copy, Scan, Send and Optional Fax

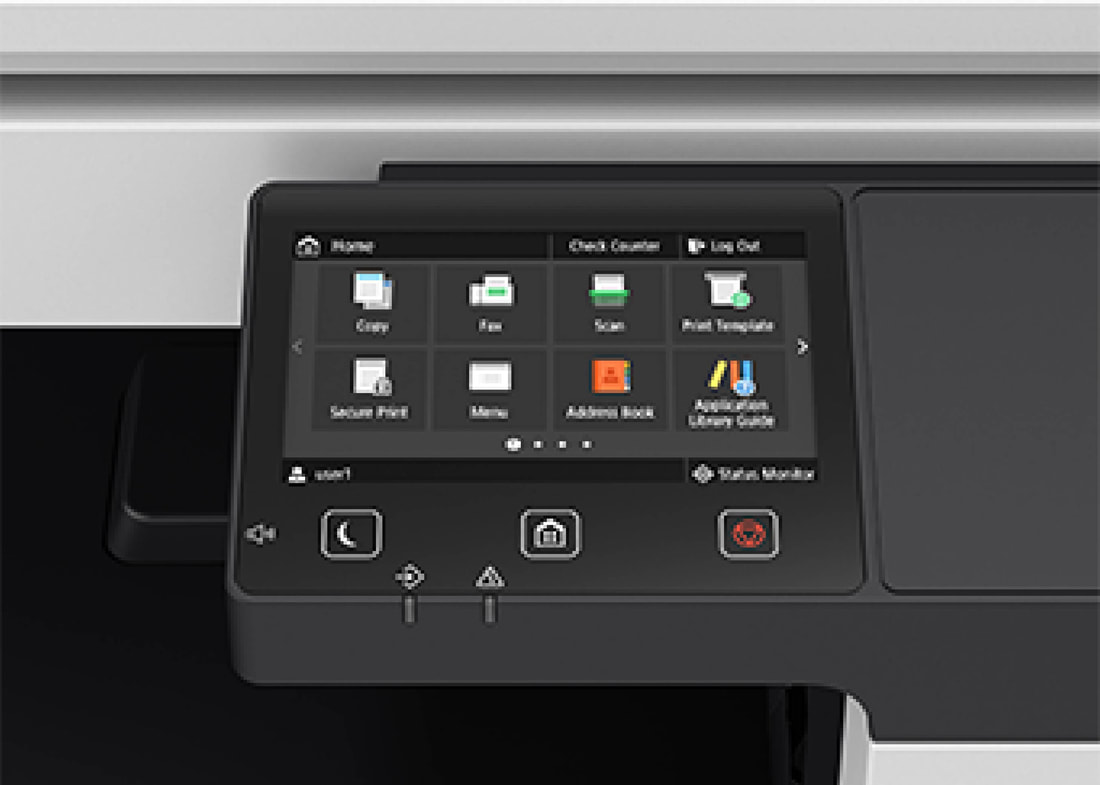

Control Panel: 5 inch TFT LCD WVGA Colour Touch panel
Memory: Standard: 2.0GB RAM
Storage: eMMC Standard: 2.0GB
Interface Connection
Network

• Standard: 1000BaseT/100Base-TX/10Base-T, Wireless LAN (IEEE802.11b/g/n)
• Optional: NFC

Others

• Standard: USB 2.0 (Host) x 2,
• USB 2.0 (Device) x 1
• Optional: Copy Control Interface

Paper Supply Capacity (A4, 80 gsm)

• Standard: 1,200 Sheets
• 100-sheets Multi-purpose tray x 1, 550-sheets Paper cassette x 2

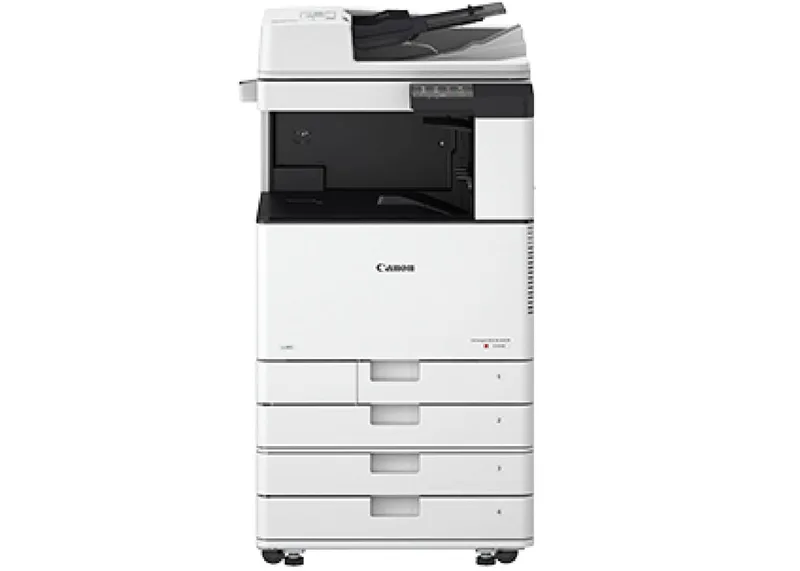

• Maximum: 2,300 Sheets (with Cassette Feeding Unit-AP1)

Paper Output Capacity (A4, 80 gsm)

• Standard: 250 Sheets
• Maximum: 700 Sheets (with Inner Finisher-K1 and Copy Tray J2)

Supported Media Types

• Multi-purpose Tray: Thin, Plain, Heavy (SRA3 is unsupported for Coated (257-300gsm) and Heavy (257-300gsm) paper), Recycled, Coated (257-300gsm) paper), Color, Tracing, Bond, Transparency, Label, Pre-punched, Envelope
• Paper Cassette (Upper/Lower Cassette): Thin, Plain, Heavy, Recycled, Color, Bond, Transparency, Pre-punched, Envelope (Lower Cassette: Envelope Feeder Attachment A is required)

Supported Media Sizes
Multi-purpose tray:

• Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Envelope [COM10 No.10, Monarch, ISO-C5, DL]
• Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm

Paper Cassette (Upper Cassette):

• Standard size: A4, A5, A5R, A6R, B5
• Custom size: 105.0 x 148.0 mm up to 297.0 x 215.9 mm
• Envelope: ISO-C5

Paper Cassette (Lower Cassette):

• Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
• Custom size: 105.0 x 148.0 mm up to 304.8 x 457.2 mm
• Envelope: [COM10 No.10, Monarch, DL] (Envelope Feeder Attachment A is required)

Supported Media Weights

• Multi-purpose tray: 52 to 300 gsm (SRA3 is unsupported for Coated (257-300gsm) and Heavy (257-300gsm) paper)
• Paper Cassette (Upper/Lower Cassette): 52 to 220 gsm
• Duplex: 52 to 220 gsm

Warm-up Time

• From Sleep Mode: 10 Seconds or Less
• From Power On : 19s or Less (Time from device power on, until copy ready (not print reservation))

Dimensions (W x D x H): 565 x 664 x 880 mm
Installation Space (W x D): 1,141 x 1,117 mm (With Cassette open)
Weight: Approx. 60.1kg without toner

Print


​












​



​

Print Speed (BW/CL): Up to 20/20 ppm (A4, A5, A5R, A6R), Up to 15/15 ppm (A3), Up to 20/20 ppm (A4R)
Print Resolution (dpi): 600 x 600, 1200 x 1200 (half-speed)
Page Description Languages

• Standard: UFR II
• Option: PCL6, Adobe®PostScript®3™

Direct Print: Supported file types: PDF, EPS, TIFF/JPEG, XPS (XPS is supported from LPR command print only)
Fonts

• PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Barcode fonts (Barcode Printing Kit-D1 is required)
• PS fonts: 136 Roman

Operating System

• UFRII: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X(10.10 or later)
• PCL: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019
• PS: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later)
• PPD: Windows® 7 / 8.1 /10, MAC OS X (10.9 or later)
• As of November, 2019.

Copy





​

​

Copy Speed (BW/CL): Up to 20/20 ppm (A4, A5, A5R, A6R), Up to 15/15 ppm (A3), Up to 20/20 ppm (A4R)
First-Copy-Out Time (A4, BW/CL): Approx. 5.9 / 8.2 seconds or less
Copy resolution (dpi): 600 x 600
Multiple Copies: Up to 999 copies
Copy Density: Automatic or Manual (9 Levels)
Magnification

• Variable zoom: 25% - 400% (1% Increments)
• Preset reduction/enlargement: 25%, 50%, 70%, 100% (1:1), 141%, 200%, 400%

Scan​














​

Type

• Optional: Color Platen (Platen Cover-Y2) or DADF-BA1 [2-sided to 2-sided (Automatic with DADF)]
• DADF: Duplexing Automatic Document Feeder

Document Feeder Paper Capacity (80 gsm): 100 Sheets
Acceptable Originals and Weights
Platen:

• Sheet, Book, and 3-Dimensional objects

Document Feeder media weight:

• 1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)
• 2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)

Supported Media Sizes

• Platen: Max. scanning size: 297.0 x 431.8 mm
• Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R, B6
• Custom size: 128.0 x 139.7mm to 297.0 x 431.8mm

Scan Speed (A4, BW/CL)
1-sided Scanning:

• 55/55 (300 x 300 dpi, send),
• 30/30 (600 x 600 dpi, copy)

2-sided Scanning:

• 27.5/27.5 (300 x 300 dpi, send),
• 15/15 (600 x 600 dpi, copy)

Scan Resolution (dpi)

• Scan for Copy: up to 600 x 600
• Scan for Fax: up to 600 x 600

Pull Scan Specifications

• ScanGear MF. For both TWAIN and WIA
• Supported OS: Windows® 7/8.1/10

Scan Method: PushScan, PullScan, Scan to Network, Scan to memory media (USB Memory Key), Scan to cloud-based services (uniFLOW)

Send






​
​
​
​

Destination

• Standard: E-mail/Internet FAX (SMTP), SMB, FTP
• Optional: Super G3 FAX

Address Book: LDAP (50) / Local (300) / Speed dial (281)
Send Resolution (dpi)

• Push: 300 x 300 (Email/SMB/FTP), 192 x 204 (IFAX)
• Pull: 50 x 50, 75 x 75, 150 x 150, 200 x 200, 300 x 300, 400 x 400, 600 x 600

Communication Protocol: FTP (TCP/IP), SMB (TCP/IP), SMTP
File Format​: Standard: TIFF, JPEG (Single Page Only), PDF(Compact, Searchable, Encrypted, Digital Signature)

​Fax








​





​

Maximum Number of Connection Lines: 1
Modem Speed

• Super G3: 33.6 kbps
• G3: 14.4 kbps

Compression Method: MH, MR, MMR, JBIG
Resolution (dpi): 400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine/Photo), 200 x 100 (Normal)
Sending / Receiving Size

• Sending: A3, A4, A4R, A5 (Sent as A4), A5R (Sent as A4), B4, B5 (Sent as B4), B5R (Sent as A4)
• Receiving: A3, A4, A4R, A5R, B4, B5, B5R

FAX / Memory: Up to 512 pages
Speed Dials: Max. 281
Group Dials / Destinations: Max. 299 dials
Sequential Broadcast: Max. 310 addresses
Memory Backup​: Yes

Security







​
​

Authentication and Access Control: Standard: Department ID Authentication ( Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Card Login, Card and PIN Login)
Document Security: Print Security (Secure Print, uniFLOW Secure Print (Requires uniFLOW Online / uniFLOW)), Scan Security (Encrypted PDF, Device Signature PDF), Send Data Security (Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History)
Network Security: IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Enabling/Disabling Remote UI, G3 FAX separation from LAN, USB Port separation from LAN
Device Security​: Standard: Storage Initialize, Job Log Conceal Function, Protecting MFD Software Integrity
Device Management and Auditing: Standard: Administrator Password, Digital Certificate and Key Management, Security Policy Setting

​Environmental








​

Operating Environment

• Temperature: 10 to 30 ºC
• Humidity: 20 to 80% RH (Relative Humidity)

Power Source: 220-240V 50/60Hz 10A
Power Consumption

• Maximum: Approx. 1500W or less
• Standby: Approx. 34.3W (Reference value: measured one unit)
• Sleep mode: Approx. 2W (Wireless LAN power serve mode OFF. Sleep mode is not available in all circumstances due to certain settings.), Approx. 1W (Wireless LAN power serve mode ON. Sleep mode is not available in all circumstances due to certain settings.)

Consumables​

Toner Cartridges: NPG-67 TONER BK/C/M/Y
Toner Yield (Estimated @ 5% Coverage)

• NPG-67 TONER BK: 36,000 pages
• NPG-67 TONER C/M/Y: 19,000 pages

Paper Supply Options






​

Output Options













​

Inner Finisher-K1
Tray Capacity (with 80gsm paper):
Number of Trays: 2
Lower Tray1:

• A4, A5, A5R, B5: up to 500 sheets
• SRA3, A3, A4R, B4, B5R: up to 250 sheets
• A6R: up to 30 sheets
• Upper Tray2: A4, A5, A5R, B5: up to 100 sheets, SRA3, A3, A4R, A6R, B4, B5R: up to 50 sheets.

Paper Weight:

• Lower Tray1: 52 to 256 gsm
• Upper Tray2: 52 to 300 gsm

Staple Position: Corner, Double
Staple Capacity:
A4/B5: 50 sheets (52 to 90 gsm)
A3/B4/A4R: 30 sheets (52 to 90 gsm)

Eco Staple:

• A3/A4/B4/B5: 4 sheets (65 to 81.4 gsm)

Staple On Demand: Approx. 40 sheets (80 gsm)
Power Supply: From the main unit
Dimensions (W x D x H): 634 mm × 525 mm × 188 mm (when the extension tray and rotary tray are extended)
Weight: Approx. 8 kg

Inner 2way Tray-J1
Paper Capacity (with 80 gsm paper)

• Upper tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Custom size (98.4 x 139.7 mm to 320.0 x 457.2 mm): 100 sheets
• Lower tray: A4, A5, A5R, A6R, B5, B5R: up to 250 sheets
• SRA3, A3, A4R, B4, Custom Size (98.4×139.7 to 320.0×457.2 mm ): up to 100 sheets

Paper Weight: 52 to 300 gsm
Dimensions (W x D x H): 426 x 407 x 76 mm
Weight: 0.7 kg

Copy Tray-J2

• Capacity: 100 sheets (80 gsm) (Requires 3 Way Unit-D1) A4, B5, B5R, A5R
• Dimensions (W x D x H): 444 × 373 × 176 mm (attached to the main unit, when the extension tray is extended)
• Weight: Approx. 0.5 kg

Hardware Accessories





​

System and Controller Options


​



​

Print Accessories

• PS Printer Kit-CA1
• PCL Printer Kit-CA1

Barcode Printing: Barcode Printing Kit-D1
System Accessories

• COPY CONTROL INTERFACE KIT-D1
• NFC KIT-D1

Fax Accessories: SUPER G3 FAX BOARD-AV3

Other Options



​

Accessibility

• ADF ACCESS HANDLE-A1
• Platen Cover-Y2

Staple Cartridge: STAPLE-P1
