A4 Colour Photocopy Machine Canon

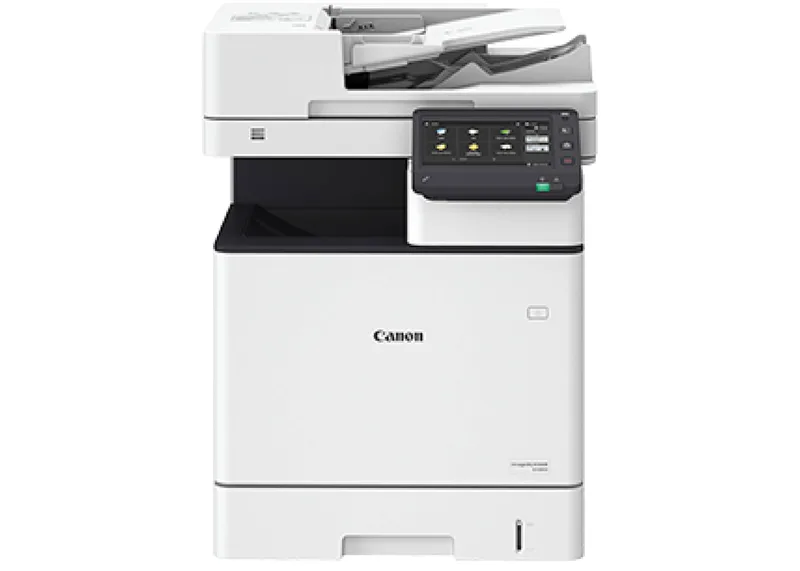

Canon imageRUNNER C1533i

Multi-function Photocopier, Canon Multi-function imageRUNNER C1533i
​Features:
  • Perfect for small and medium-sized enterprises (SMEs).
  • Impressive colour print quality, intuitive design, and swift scanning capabilities.
  • A4 Colour.
  • Print speed of up to 33/33 pages per minute (CL/BW).
  • Features
  • Specifications
  • Brochure
  • Video
Excellent Usability & Colour Quality
  • ​Employing state-of-the-art V² (Vivid & Vibrant) colour imaging technology.
  • Produces impressive colour printouts with print speed of up to 33 pages per minute (ppm).
  • 7-inch colour touch panel provides excellent visibility and features an intuitive user interface.
Efficient Digitisation
  • Offers fast duplex scan speed of up to 150 images per minute (ipm).
  • Connects to wireless networks and integrates with public cloud platforms seamlessly.
  • High-speed scanning allows users to digitise documents quickly, share information and collaborate regardless of location.
Fortified Security
  • Verifies system at start-up, allows the encryption of scanned documents with passwords, and holds print jobs till users securely release the jobs for printing.
  • Comes equipped with uniFLOW Online Express, a cloud-based print management solution that provides user authentication for preventing unauthorised device access.
Model
imageRUNNER C1533i
Main Unit
​
​
Machine Type: A4 Colour Laser Multifunctional
Core Function: Print, Copy, Scan, Send, Store and Optional Fax
Control Panel: 7 inch TFT LCD WVGA colour Touch panel
Memory: Standard: 2.0 GB RAM
Storage: eMMC: 30 GB
​Interface Connection
  • NETWORK: Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
  • OTHERS: Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1
Paper Supply Capacity (A4, 80gsm)
  • Standard: 650 sheets (550 sheets x 1 cassette and 100 sheets multi-purpose tray)

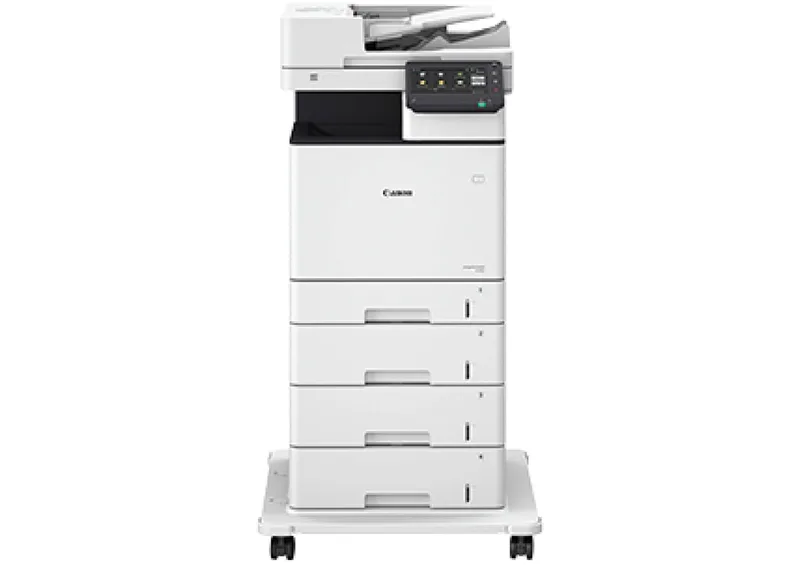

  • Maximum: 2300 sheets (with Cassette Feeding Unit-AV1)
Paper Output Capacity (A4, 80 gsm)
  • Standard: 200 sheets
  • Maximum: 200 sheets
Supported Media Types
  • Multi-purpose Tray: Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Envelope, PostCard
  • Paper Cassette: Thin, Plain, Recycled, Colour, Heavy, Pre-punched, Bond, Labels
Supported Media Sizes
Multi-purpose Tray:
  • Standard size: A4R, A5, A5R, A6R, B5R, Envelopes [No. 10 (COM 10), Monarch, ISO-C5, DL]
  • Custom Size/Free Size: Min. 76.2 x127.0 mm, up to 216.0 x355.6 mm
Paper Cassette:
  • Standard size: A4R, A5, A5R, A6R, B5R
Supported Media Weights
  • Multi-purpose Tray: 60 to 216 gsm
  • Paper Cassettes: 60 to 163 gsm
  • Duplex: 60 to 163 gsm
Warm-up Time
  • 4 seconds or less (Time from device power-on to when key operations can be performed on the touch panel display)
  • From Sleep Mode: 10 seconds or less
  • 12 Seconds or Less (Time from device power-on, until copy ready (not print reservation))
Dimensions (W x D x H): 500 x 556 x 640 mm
Installation Space (W x D): 717 x 785 mm
Weight: Standard: Approx. 41.0 kg including toner
Print
​




















​



​
Print Speed (BW and CL)
  • Up to 33/33 ppm (A4)
  • Up to 40/40 ppm (A5R)
  • Up to 55/55 ppm (A5)
Print Resolution (dpi): 600 × 600
Page Description Languages
  • Standard: UFR II, PCL6
  • Optional: Adobe® PostScript® 3™
Direct Print
Supported file types:
  • RUI: PDF, EPS, TIFF/JPEG, XPS
  • USB Memory: PDF, TIFF/JPEG, XPS
  • Network Place: PDF, TIFF/JPEG, XPS
Fonts
  • PS fonts: 136 Roman
  • PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Requires optional PCL INTERNATIONAL FONT SET-A1) (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts (Require optional BARCODE PRT KIT-D1)
Operating System
  • UFRII: Windows® 8.1/10/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.11 or later)
  • PCL: Windows® 8.1/10/Server 2012/Server 2012 R2/Server 2016/Server 2019
  • PS: Windows® 8.1/10/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.11 or later)
  • PPD: Windows® 8.1/10, MAC OS X (10.10 or later)
Copy

​





​
Copy Speed (BW/CL): Up to 33/33 ppm (A4) Up to 40/40 ppm (A5R), Up to 55/55 ppm (A5)
First-Copy-Out Time (A4, BW/CL): Approx. 5.9 / 6.9 seconds or less
Copy Resolution (dpi): 600 x 600
Multiple Copies: Up to 999 copies
Copy Density: Automatic or Manual (9 Levels)
Magnification
  • 25% - 400% (1% Increments)
  • Preset reduction/enlargement: 25%, 50%, 70%, 81%, 86%, 100%, 115%, 122%, 141%, 200%, 400%
Scan​
















​
Type: Standard: Single-pass Duplexing Automatic Document Feeder
Document Feeder Paper Capacity (80 gsm): Up to 100 sheets
Acceptable Originals and Weights
Platen:
  • Sheet, Book
Document Feeder media weight:
  • 1-sided scanning: 42 to 128 gsm (BW), 64 to 128 gsm (CL)
  • 2-sided scanning: 50 to 128 gsm (BW), 64 to 128gsm (CL)
Supported Media Sizes
Platen:
  • Max. scanning size: 216.0 x 355.6 mm
Document Feeder media size:
  • A4R, A5R, A6R, B5R
  • Custom size: 48.0 x 128.0 mm to 216.0 x 355.6 mm
Scan Speed (ipm: BW/CL, A4)
DADF:
  • 1-sided Scanning: 95/95 (300 dpi, send), 50/50 (600 dpi, copy)
  • 2-sided Scanning: 150/145 (300 dpi, send), 50/50 (600 dpi, copy)
Scan Resolution (dpi)
Scan for Copy/Fax:
  • Up to 600 x 600
Scan for Send:
  • (Push, BW) Up to 600 x 600
  • (Pull, BW) Up to 600 x 600
  • (Push, CL) Up to 300 x 300
  • (Pull, CL) Up to 300 x 300
Pull Scan Specifications
  • Colour Network ScanGear2.
  • For both TWAIN and WIA
  • Supported OS: Windows® 7 /  8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server 2016 / Server 2019
Send
​













​

​
​
​
Destination
  • Standard: E-mail/Internet FAX (SMTP), Super G3 FAX, SMB3.0, FTP WebDAV
  • Optional: Super G3 FAX
Address Book: LDAP (2,000) / Local (1,600) / Speed dial (200)
Send Resolution (dpi)
  • Push: 100 x 100, 150 x 150, 200 x 100 (Normal), 200 x 200 (Fine), 200 x 400 (Colour mode is black and white only)(SuperFine), 300 x 300, 400 x 400 (Colour mode is black and white only)(UltraFine), 600 x 600 (Colour mode is black and white only)
  • Pull: 75 x 75, 100 x 100, 150 x 150, 200 x 200, 300 x 300, 400 ｘ 400 (Colour mode is black and white only), 600 x 600 (Colour mode is black and white only)
Communication Protocol
  • File: FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV
  • Email/iFax: SMTP (send), POP3 (receive)
File Format
  • Standard: TIFF (MMR), JPEG (Single page only), PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature), Office Open XML (PowerPoint, Word)
  • Optional: PDF (Trace & Smooth), PDF/XPS (User Signature)
​Fax








​







​
Maximum Number of Connection Lines: 1
Modem Speed
  • Super G3: 33.6 kbps
  • G3: 14.4 kbps
Compression Method​: MH, MR, MMR, JBIG
Resolution (dpi): 400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)
Sending / Receiving Size
  • Sending: A4, A5 (1 Sent as A4), A6 (1 Sent as A4), B5 (1 Sent as A4)
  • Receiving: A4, A5, B5
Fax Memory: Up to 30,000 pages
Speed Dials: Max. 200
Group Dials / Destinations: Max. 199 dials
Sequential Broadcast: Max. 256 addresses
Memory Backup: Yes
Fax Features: Sender's Name (TTI), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox
Store
Memory Media​: Standard: USB Memory
Environmental



​



​
​
Operating Environment
  • Temperature: 10 to 30 ºC
  • Humidity: 20 to 80 % RH (Relative Humidity)
Power Source: 220-240 V 50/60 Hz 3. 9A
Power Consumption
  • Maximum: Approx. 1,500 W
  • Standby: Approx. 33.3 W (Reference value: measured one unit)
  • Sleep mode: Approx. 1.1 W (Sleep mode is not available in all circumstances due to certain settings)
Consumables​


​
Toner (Estimated Yield @ 5% Coverage)
  • T10 TONER BK: 13,000 pages
  • T10 TONER C/M/Y: 10,000 pages
​Paper Supply Options






​

​
Cassette Feeding Unit-AV1
  • Paper Capacity: 550 sheets x 1 (80 gsm)
  • Paper Type: Thin, Plain, Heavy, Recycled, colour, Pre-punched, Bond, Labels
  • Paper Size: A4R, A5, A5R, A6R, B5R
  • Custom Size: 101.6 × 148.0 mm - 216.0 × 355.6 mm
  • Paper Weight: 60 to 163 gsm
  • Dimensions (W x D x H): 597 x 635 x 225 mm
  • Weight: Approx. 15.5 kg
Paper Feeder PF-D1
  • Paper Capacity: 550 sheets x 1 (80 gsm)
  • Paper Type: Thin, Plain, Heavy, Recycled, colour, Pre-punched, Bond, Labels
  • Paper Size: A4R, A5, A5R, A6R, B5R
  • Custom Size: 101.6 × 148.0 mm - 216.0 × 355.6 mm
  • Paper Weight: 60 to 163 gsm
  • Dimensions (W x D x H): 458 x 464 x 130 mm
  • Weight: Approx. 6.1 kg
Accessories
Others​: Copy Card Reader Attachment-J1, Copy Card Reader-F1, PCL International Font Set-A1, PCL Asian Font Set-A1, PS Printer KIT-CT1, Universal Send Trace & Smooth PDF Kit-A1, Universal Send Digital User Signature Kit-C1, Barcode Printing Kit-D1, Copy Control Interface Kit-C1, Remote Fax Kit-A1, Super G3 FAX Board-BK1, ADF Access Handle-A1
Find Out More About Canon ​imageRUNNER C1533i
