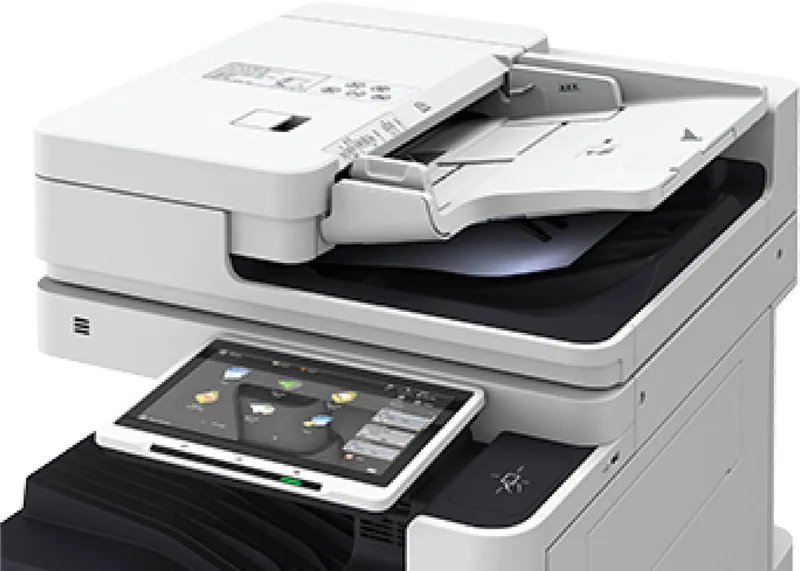

Canon ir-adv dx c5870i, 5860i, 5850i, 5840i is a a3 wifi colour multi function photocopier print speed of up to 70 pages per minute & 1,200 dpi print resolution

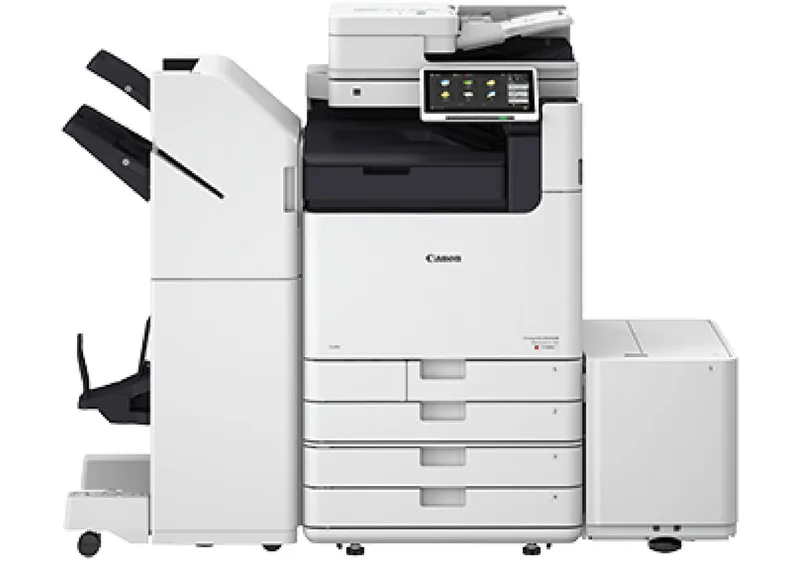

Canon ir-adv dx c5870i, 5860i, 5850i, 5840i is a a3 wifi colour multi function photocopier print speed of up to 70 pages per minute & 1,200 dpi print resolution

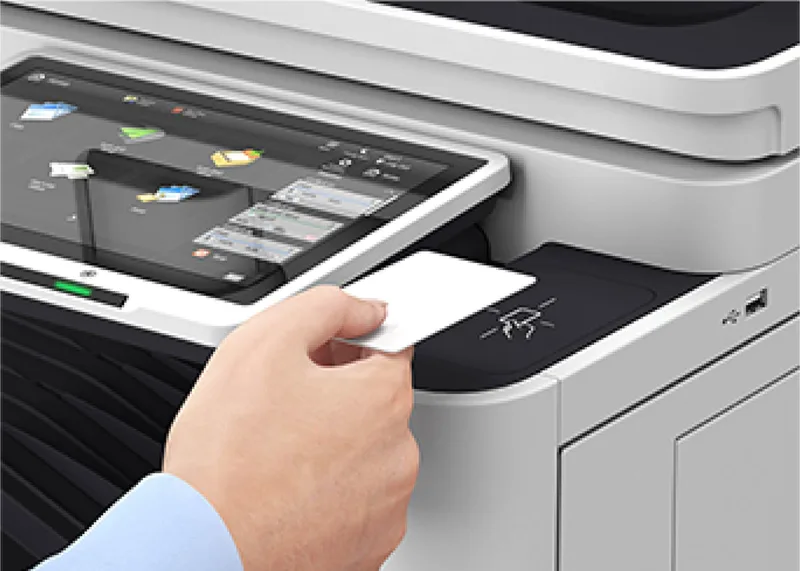

Canon ir-adv dx c5870i, 5860i, 5850i, 5840i is a a3 wifi colour multi function photocopier print speed of up to 70 pages per minute & 1,200 dpi print resolution

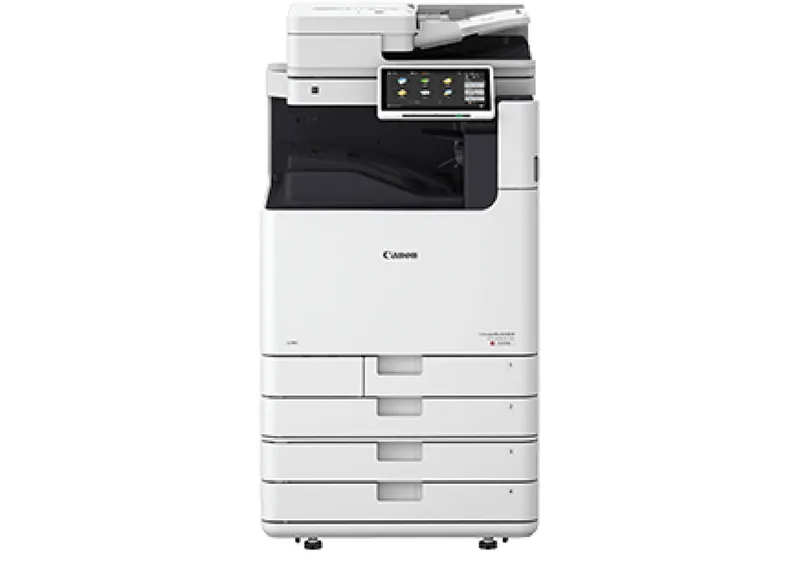

Canon ir-adv dx c5870i, 5860i, 5850i, 5840i is a a3 wifi colour multi function photocopier print speed of up to 70 pages per minute & 1,200 dpi print resolution
Canon iR-ADV DX C5870i / 5860i / 5850i / 5840i
​Features:
  • Provides businesses with strong security, great usability, and high productivity
  • ​Serves as an ideal interface for businesses to connect to various solutions
  • A3 Colour Laser Multi Function Printer Wi-Fi
  • Print speed of up to 70/70 pages per minute (Colour / Black and White)
  • Features
  • Specifications
  • Brochure
  • Video
High Print Quality & Workflow Efficiency
  • State-of-the-art V² (Vivid & Vibrant) imaging technology and toner ensure high quality printouts with 1,200 dpi print resolution for consistently striking images.
  • Single-Pass document feeder offers efficient scanning of up to 270 ipm.
  • ​Canon PRINT Business App enables contactless operation for easy and safe device usage.
Robust Security
  • User authentication, picture login and department ID provide secure access control.
  • Encrypted secure print, secure watermark, encrypted PDF and device signature PDF enhance document confidentiality.
  • ​McAfee® Embedded Control and system verification at startup ensure device security, protecting against malware and tampering of firmware.
Environmentally Friendly
  • ​Fusing technologies and innovative sleep mode.
  • Lower overall energy consumption efficiently.
  • ​Force Hold Print minimises paper wastage by holding jobs at the device, allowing change of print settings, preview and edit of print jobs at the device to achieve desired results at the first time of printing.
Model
imageRUNNER ADVANCE DX C5800i Series
Main Unit















​
​
Machine Type: A3 Color Laser Multifunctional
Core Function: Print, Copy, Scan, Send, Store and Optional Fax
Processor: Canon Dual Custom Processor (Shared)
Control Panel: 10.1" TFT LCD WSVGA Color Touch panel
Memory
  • RAM: Main CPU: 2GB
  • Image Processing CPU: 2GB + 1GB (Reserved for image processing)
Storage
  • Standard: (SSD) 256GB
  • Optional: (SSD) 1TB
Interface Connection
NETWORK
  • Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n);
  • Optional: NFC, Bluetooth Low Energy
OTHERS
  • Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1;
  • Optional: Serial Interface, Copy Control Interface
Paper Supply Capacity (A4, 80gsm)
  • Standard: 1,200 sheets
  • 100-sheet Multi-purpose tray x 1
  • 550-sheet Paper cassette x 2,
  • Maximum: 6,350 sheets (with High Capacity Cassette Feeding Unit-C1 + Paper Deck Unit-F1)
Paper Output Capacity (A4, 80 gsm)
  • Standard: 250 sheets
  • Maximum: 3,450 Sheets (with Staple Finisher-AB1 or Booklet Finisher-AB1 and 3rd Copy Tray Kit-A1)
Finishing Capabilities (Finishing capabilities vary depending on the options connected)
  • Standard: Collate, Group
  • With Options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand
Supported Media Types
  • Multi-purpose tray:Thin, Plain, Recycled, Colour, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope
  • Paper Cassette (Upper/Lower): Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope (Envelope Feeder Attachment (standard) is required)
Supported Media Sizes
Multi-purpose tray:
  • Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
  • Custom size: 98.0 x 139.7 mm to 320.0 x 457.2 mm
  • Free Size: 98.0 x 139.7 mm to 320.0 x 457.2 mm
  • Envelopes: COM 10 No.10, Monarch, DL, ISO-C5
  • Envelope custom size: 98.0 x 90.0 mm to 320.0 x 457.2 mm
Upper Cassette:
  • Standard size: A4, A5, A5R, A6R, B5
  • Custom Size: 98.0 x 148.0 mm to 297.0 x 215.9 mm
  • Envelopes: COM10 No.10, Monarch, DL, ISO-C5
Lower Cassette:
  • Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
  • Custom size: 98.0 x 148.0 mm to 304.8 x 457.2 mm
  • Envelopes: COM10 No.10, Monarch, DL, ISO-C5
Supported Media Weights
  • Multi-purpose tray: 52 to 300 gsm
  • Paper Cassette (Upper/Lower): 52 to 256 gsm
  • Duplex: 52 to 256 gsm
Warm-up Time
Quick Startup Mode:
  • 4 Seconds or less (Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display)
From Sleep Mode:
  • 7 Seconds or Less (iR-ADV DX C5870i)
  • 6 Seconds or Less (iR-ADV DX C5860i/C5850i/C5840i)
From Power On:
  • 6 Seconds or less (Time from device power-on, until copy ready (not print reservation))
Dimensions (W x D x H): iR-ADV DX C5870i/C5860i/C5850i/C5840i: 620 x 722 x 937 mm
Installation Space (W x D)
iR-ADV DX C5870i/C5860i/C5850i/C5840i:
  • Basic: 1,138 x 1,162 mm (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open)
  • Fully Configured: 1,866 x 1,162 mm (Staple Finisher-AB1/Booklet Finisher-AB1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open)
Weight (Including regular toner)
  • iR-ADV DX C5870i: Approx. 110 kg
  • iR-ADV DX C5860i/C5850i: Approx. 107 kg
  • iR-ADV DX C5840i: Approx. 106 kg
Print














​










​

​
Print Speed (BW and CL)
  • iR-ADV DX C5870i: Up to 70 ppm (A4, A5 (1-sided only), A5R, A6R (1-sided only)), up to 36 ppm (A3), up to 42 ppm (A4R)
  • iR-ADV DX C5860i: Up to 60 ppm (A4, A5 (1-sided only), A5R, A6R (1-sided only)), up to 32 ppm (A3), up to 36 ppm (A4R)
  • iR-ADV DX C5850i: Up to 50 ppm (A4, A5 (1-sided only), A5R, A6R (1-sided only)), up to 27 ppm (A3), up to 30 ppm (A4R)
  • iR-ADV DX C5840i: Up to 40 ppm (A4, A5 (1-sided only), A5R, A6R (1-sided only)), up to 21 ppm (A3), up to 24 ppm (A4R)
Print Resolution (dpi): 1,200 x 1,200
Page Description Languages
  • Standard: UFR II, PCL6
  • Optional: Adobe® PostScript® 3™
Direct Print: Supported file types: PDF, EPS, TIFF/JPEG and XPS
Printing from Mobile and Cloud: AirPrint, Mopria, Canon Business PRINT, and uniFLOW Online
Fonts
  • PS fonts: 136 Roman
  • PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Optional PCL International Font Set-A1 is required) (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts (Optional Barcode Printing Kit-D1 is required)
Operating System
  • UFRII: Windows® 8.1/10/Server2012/Server2012 R2/Server2016/Server2019, Mac OS X(10.11 or later)
  • PCL: Windows® 8.1/10/Server2012/Server2012 R2/Server2016/Server2019
  • PS: Windows® 8.1/10/Server2012/Server2012 R2/Server2016/Server2019, Mac OS X(10.11 or later)
  • PPD: Windows® 8.1/10, Mac OS X(10.10 or later)
Copy











​





​



​
Copy Speed (BW and CL)
  • iR-ADV DX C5870i: Up to 70 ppm (A4, A5 (1-sided only), A5R, A6R (1-sided only)), up to 36 ppm (A3), up to 42 ppm (A4R)
  • iR-ADV DX C5860i: Up to 60 ppm (A4, A5 (1-sided only), A5R, A6R (1-sided only)), up to 32 ppm (A3), up to 36 ppm (A4R)
  • iR-ADV DX C5850i: Up to 50 ppm (A4, A5 (1-sided only), A5R, A6R (1-sided only)), up to 27 ppm (A3), up to 30 ppm (A4R)
  • iR-ADV DX C5840i: Up to 40 ppm (A4, A5 (1-sided only), A5R, A6R (1-sided only)), up to 21 ppm (A3), up to 24 ppm (A4R)
First-Copy-Out Time (A4, BW/CL)
  • iR-ADV DX C5870i: Approx. 2.7 / 3.7 seconds or less
  • iR-ADV DX C5860i: Approx. 2.9 / 4.2 seconds or less
  • iR-ADV DX C5850i: Approx. 3.4 / 4.9 seconds or less
  • iR-ADV DX C5840i: Approx. 4.1 / 6.1 seconds or less
Copy Resolution (dpi): 600 x 600
Multiple Copies: Up to 9,999 copies
Copy Density: Automatic or Manual (9 Levels)
Magnification
  • Variable zoom: 25% to 400% (1% Increments)
  • Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%
Scan​








​
Type: Single-pass Duplexing Automatic Document Feeder (Detect Feeder Multi Sheet Feed is supported) [2-sided to 2-sided (Automatic)]
Document Feeder Paper Capacity (80 gsm): Up to 200 Sheets
Acceptable Originals and Weights
Platen:
  • Sheet, Book, and 3-Dimensional Objects
Document Feeder media weight:
  • 1-sided scanning: 38 to 220 gsm (BW, CL)
  • 2-sided scanning: 38 to 220 gsm (BW, CL)
An acceptable weight of A6R or smaller is 50 to 220gsmSupported Media Sizes
  • Platen scanning size: up to 297.0 x 431.8 mm
  • Document Feeder media size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm.
Scan Speed (BW/CL, A4)
  • 1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy),
  • 2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)
Scan Resolution (dpi)
  • Scan for Copy: 600 x 600
  • Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
  • Scan for Fax: 600 x 600
Pull Scan Specifications
  • Colour Network ScanGear2. For both TWAIN and WIA
  • Supported OS: Windows® 8.1/10/Server2012/Server2012 R2/Server 2016
  • As of Mar. 2020
Send


​









​
​
​
Destination
  • Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box
  • Optional: Super G3 FAX, IP Fax
Address Book: LDAP (2,000) / Local (1,600) / Speed dial (200)
Send Resolution (dpi)
  • Push: up to 600 x 600
  • Pull: up to 600 x 600
Communication Protocol
  • File: FTP(TCP/IP), SMB3.0 (TCP/IP), WebDAV
  • E-mail/I-Fax: SMTP, POP3
File Format​: TIFF, JPEG, PDF (Limited Colour, Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)
​Fax









​




​
Maximum Number of Connection Lines: 4
Modem Speed
  • Super G3: 33.6 kbps
  • G3: 14.4 kbps
Compression Method: MH, MR, MMR, JBIG
Resolution (dpi): 400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)
Sending / Receiving Size
  • Sending: A3, A4, A4R, A5 (Sent as A4), A5R (Sent as A4), B4, B5 (Sent as B4 short), B5R (Sent as A4)
  • Receiving: A3, B4, A4, A4R, A5R, B5, B5R
Fax Memory: Up to 30,000 pages (2,000 jobs)
Speed Dials​: Max. 200
Group Dials / Destinations: Max. 199 dials
Sequential Broadcast: Max. 256 addresses
Memory Backup: Yes
Store
​












​
Mail Box (Number supported)
  • 100 User Inboxes
  • 1 Memory RX Inbox
  • 50 Confidential Fax Inboxes
  • Maximum 30,000 Pages (2,000 jobs) Stored
Advanced Box
  • Communication Protocol: SMB or WebDAV
  • Supported Client PC: Windows® 8.1/10
  • Concurrent Connections (Max.): SMB:64, WebDAV:3
Advanced Box Available Disc Space
  • Standard: 16 GB
  • (With option: max. 480GB)
Security









​

















​


​
Authentication and Access Control
  • User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login)
  • Department ID Authentication (Department ID and PIN Login, Function Level Login)
  • uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login)
  • Access Management System (Access Control)
Document Security
  • Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print (Requires uniFLOW Online / uniFLOW))
  • Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically)
  • Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration)
  • BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support)
  • Document Tracking (Secure Watermark)
Network Security: TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception
Device Security: Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection), HCD-PP
Device Management and Auditing
  • Administrator Password, Digital Certificate and Key Management, Audit Log,
  • Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting
Environmental​











​
Operating Environment
  • Temperature: 10 to 30ºC
  • Humidity: 20 to 80 % RH (Relative Humidity)
Power Source: 220-240V, 50/60Hz, 6A
Power Consumption
Maximum:
  • Approx. 2,000 W (iR-ADV DX C5870i)
  • Approx. 1,800 W (iR-ADV DX C5860i/C5850i/C5840i)
Copying (with DADF continuous scan): Approx. 943 W (Reference value: measured one unit)
Standby: Approx. 53.4 W (Reference value: measured one unit)
Sleep mode: Approx. 0.8 W (0.8 W is not available in all circumstances due to certain settings)
Consumables
Toner Cartridge/s
  • NPG-83 Toner BK/C/M/Y
  • NPG-83L Toner C/M/Y
Toner (Estimated Yield @ 5% Coverage)
  • NPG-83 Toner BK: 71,000 pages
  • NPG-83 Toner C/M/Y: 60,000 pages
  • NPG-83L Toner C/M/Y: 26,000 pages
Software and Printer Management
Tracking and Reporting
  • Universal Login Manager (ULM)
  • uniFLOW Online Express
Remote Management Tools
  • iW Management Console
  • eMaintenance
  • Content Delivery System
Scanning Software: Network ScanGear
Optimisation Tools: Canon Driver Configuration Tool
Platform: MEAP (Multifunctional Embedded Application Platform)
Document Publishing​: iW DESKTOP
Power Supply Options
Cassette Feeding Unit-AQ1
  • Paper Capacity: 2 x 550 sheets (80 gsm)
  • Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead
  • Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
  • Custom size: 98.0 x 148.0 mm to 304.8 x 457.2 mm
  • Paper Weight: 52 to 256 gsm
  • Dimensions (W x D x H): 620 x 660 x 251 mm (attached to the main unit)
  • Weight: Approx. 22 kg
High Capacity Cassette Feeding Unit-C1
  • Paper Capacity: 2,450 sheets (80 gsm)
  • Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead
  • Paper Size: A4
  • Paper Weight: 52 to 256 gsm
  • Dimensions (W x D x H): 620 x 660 x 251 mm (attached to the main unit)
  • Weight: Approx. 29 kg
Paper Deck Unit-F1
  • Paper Capacity: 2,700 sheets (80 gsm)
  • Paper Type: Thin, Plain, Colour, Recycled, Heavy, Pre-punched
  • Paper Size: A4, B5
  • Paper Weight: 52 to 256 gsm
  • Dimensions (W x D x H): 344 x 630 x 440 mm (attached to the main unit)
  • Weight: Approx. 31 kg
Hardware Accessories








​
Card Readers
  • Copy Card Reader Attachment-B7
  • IC Card Reader Box for Numeric Keypad-A1
  • Copy Card Reader-F1
Others
  • Tab Feeding Attachment-F1
  • Buffer Pass Unit-P1
  • Utility Tray-B1
  • Numeric Keypad-A2
Security



​
Data Security
  • 250GB SSD-A1
  • 1TB SSD-A1
  • Memory Mirroring Kit-A1
System and Controller Options






















​
Print Accessories
  • PCL International Font Set-A1
  • PCL Asian Font Set-A1
  • PS Printer Kit-BE1
Barcode Printing: Barcode Printing Kit-D1
EFI-Fiery Based Controller: imagePASS-R1
EFI-Fiery Based Controller Options
  • Fiery Compose
  • Fiery Impose
  • Fiery Impose and Compose
  • Hot Folders License
System Accessories
  • NFC Kit-E2
  • Serial Interface Kit-K3
  • Copy Control Interface Kit-A1
  • Connection Kit-A3 for Bluetooth LE
Fax Accessories
  • Super G3 FAX Board-AX1
  • Super G3 2nd Line Fax Board-AX1
  • Super G3 3rd/4th Line Fax Board-AX1
  • Remote Fax Kit-A1
  • IP FAX Expansion Kit-B1
Other Options







​
Accessibility Accessories
  • ADF Access Handle-A1
  • Voice Guidance Kit-G1
  • Voice Operation Kit-D1
Consumables
  • Staple Cartridge-Y1
  • Staple-P1
Find Out More About ​Canon imageRUNNER ADVANCE DX C5800i Series
