A0 Large Format Printer

Canon imagePROGRAF TX-5300

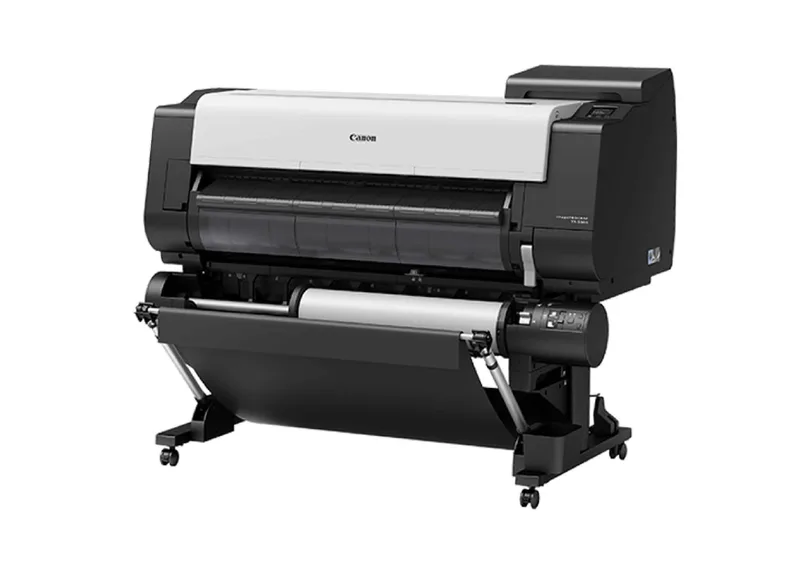

A0 Large Format Printer Canon imagePROGRAF TX-5300 large format printer, which is a 36" printer and print resolution of 2400 x 1200 dpi

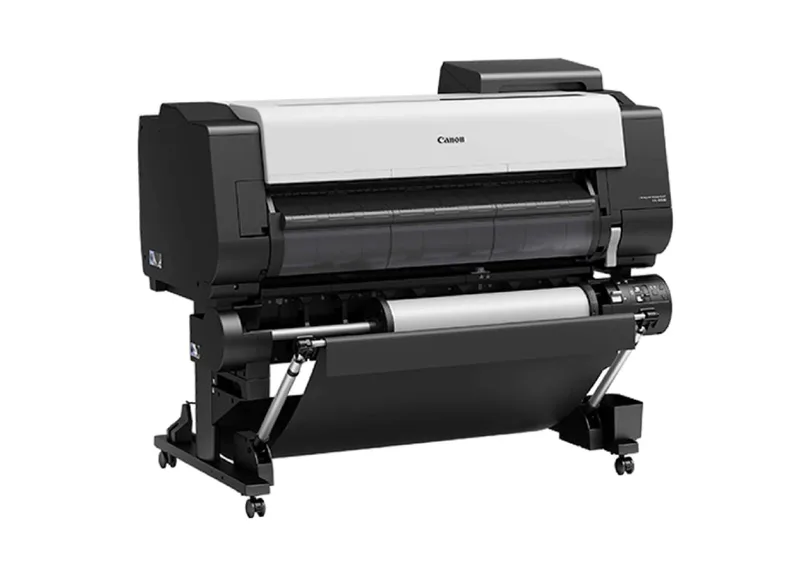

A0 Large Format Printer Canon imagePROGRAF TX-5300 large format printer, which is a 36" printer and print resolution of 2400 x 1200 dpi

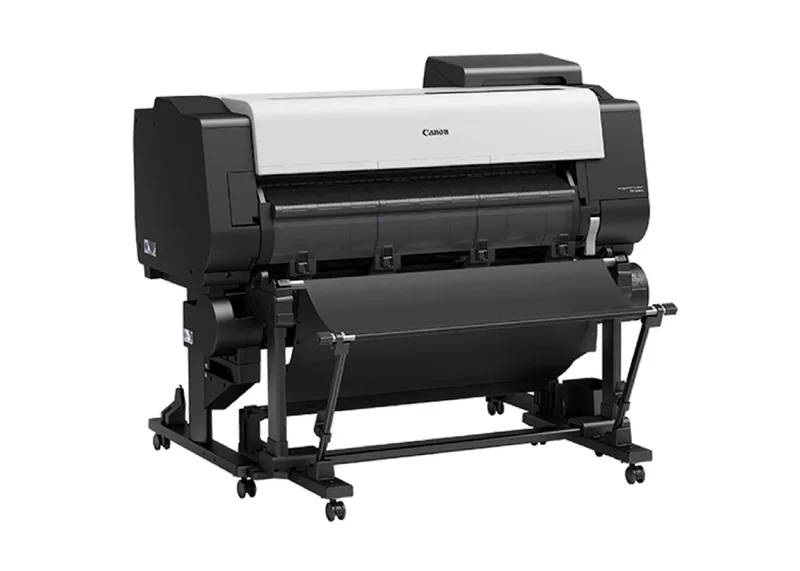

A0 Large Format Printer Canon imagePROGRAF TX-5300 large format printer, which is a 36" printer and print resolution of 2400 x 1200 dpi

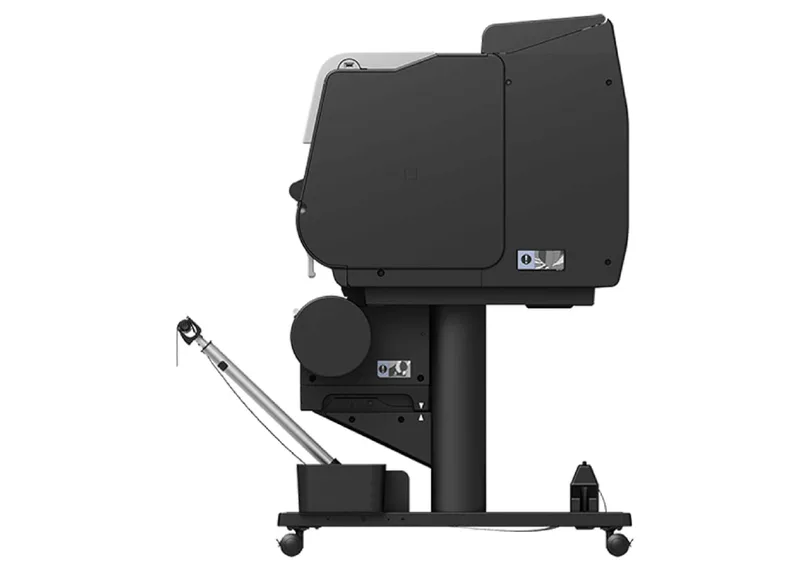

A0 Large Format Printer Canon imagePROGRAF TX-5300 large format printer, which is a 36" printer and print resolution of 2400 x 1200 dpi

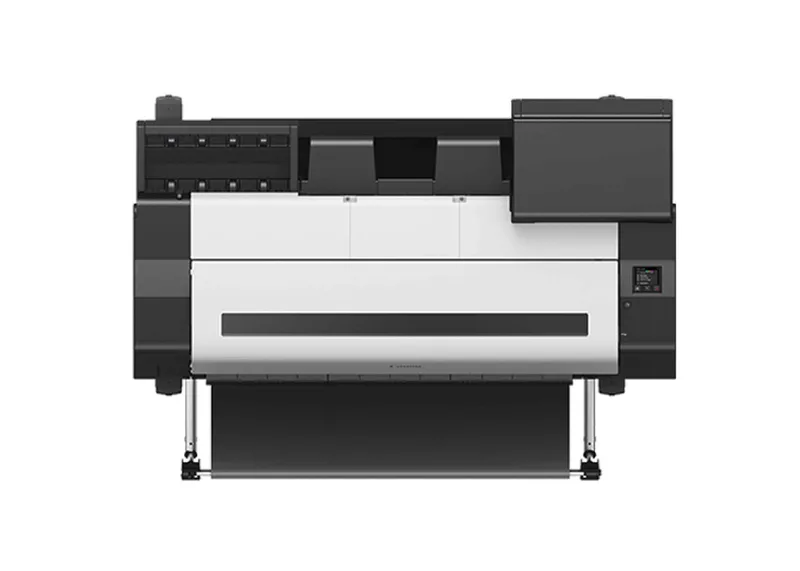

A0 Large Format Printer Canon imagePROGRAF TX-5300 large format printer, which is a 36" printer and print resolution of 2400 x 1200 dpi

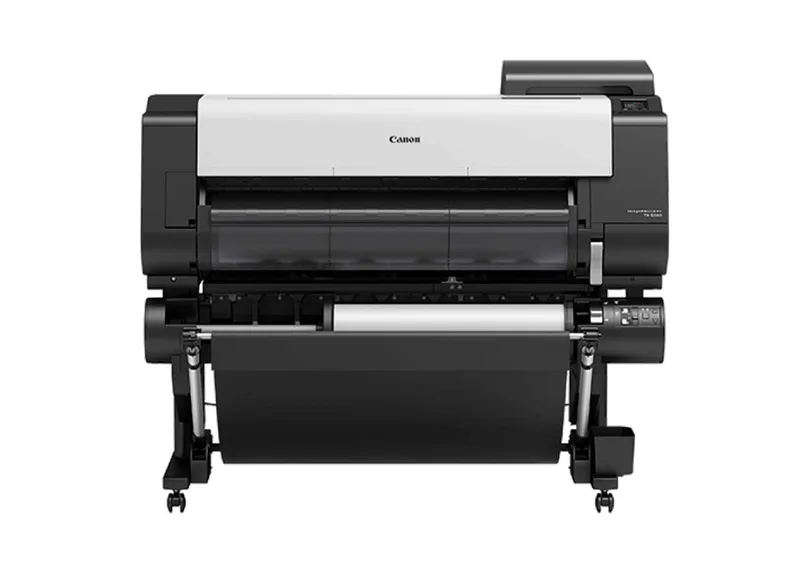

A0 Large Format Printer Canon imagePROGRAF TX-5300 large format printer, which is a 36" printer and print resolution of 2400 x 1200 dpi
A0 Large Format Printer Canon TX5300 is a A0 Plotter.
  • Dual roll paper feed system
  • Multi-functional roll system
  • Wi-Fi connectivity
  • Direct USB Printing
  • High Capacity Stacker - up to 100 A0 prints
PosterArtist Lite
Accounting Manager
    Media Configuration Tool
  • Specifications
  • Brochure
  • Video
Printer
Printer Type: 5-Colour, 36"
Number of Nozzles: 15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each)
Print Resolution: 2400 x 1200 dpi
Nozzle Pitch: 1200 dpi (2 lines)
Line Accuracy: ±0.1% or less
Ink Droplet Size: 5 pl
Ink Capacity:
  • Sales Ink: 160 ml / 330 ml / 700 ml
  • Bundled Starter Ink: 330 ml (MBK) / 160 ml (BK, C, M, Y)
Ink Type: Pigment Ink
Printer Language: SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, PDF, JPEG
Standard Interfaces (Built-in)
  • USB B Port: Hi-Speed USB, Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk Transfer, Series B (4 pins)
  • USB A Port: USB Memory (Direct Print)
  • Gigabit Ethernet: IEEE 802.3 10base-T, IEEE 802.3u 100base-TX / Auto-Negotiation, IEEE 802.3ab 1000base-T/ Auto-Negotiation, IEEE 802.3x Full Duplex
  • Wireless LAN: IEEE802.11n/g/b
Memory: Standard: 128 GB, Physical: 2 GB
Hard Disk: 500 GB (Encrypted)
Printing Speed
​A0 size, Plain Paper (CAD Drawing)
  • Fast (Custom Q5) Mode:37 sec
  • Fast Mode:40 sec
  • Standard Mode:1 min 10 sec
A0 size, Heavyweight Coated Paper HG (CAD Drawing)
  • Fast (Custom Q5) Mode:45 sec
  • Fast Mode:1 min 11 sec
  • Standard Mode:2 min 16 sec
A0 size, Plain Paper (Poster)
  • Fast (Custom Q5) Mode:42 sec
  • Fast Mode:42 sec
  • Standard Mode:1 min 26 sec
A0 size, Heavyweight Coated Paper HG (Poster)
  • Fast Mode:1 min 43 sec
  • Standard Mode:2 min 37 sec
Media Handling
Media Width
  • Roll Paper: 203.2 - 917 mm
  • Cut Sheet: 203.2 - 917 mm
Media Thickness
  • Roll Paper: 0.07 - 0.8 mm
  • Cut Sheet: 0.07 - 0.8 mm
Minimum Printable Length: 203.2 mm
Maximum Printable Length
  • Roll Paper: 18 m
  • Cut Sheet: 1.6 m
Maximum Media Roll Outer Diameter: 170 mm
Paper Feed Method
  • Roll Paper: One Roll, Front-loading, Front Output
  • Added Roll Paper: One Roll, Front-loading, Front Output
  • Front Output: Cut Sheet: Front-loading, Front Output (Manual feed using media locking lever)
Media Take-up Unit: Dual directions rolling take-up
Borderless Printing Width (Roll Only): 594 mm (ISO A1), 841 mm (ISO A0), 10", 14", 17", 24", 36", 42", 44"
Media Output (Multi-position Basket):
  • Standard Position:1 sheet
  • Flat Position: A2 Landscape [<10 sheets Glossy Paper; <20 sheets Coated or Plain Paper]
Media Output (High Capacity Stacker):
  • Standard Basket:10 sheets
  • Flat Position:100 sheets (A1 Landscape)
  • Draped Position:100 sheets (A0 Portrait)
Dimensions & Weight
Physical Dimensions (W x D x H) & Weight (Including Roll Holder Set, excluding ink and print head)
  • Main Unit + Stand + Basket
           1390 x 984 x 1168 mm (Basket Open)
           1390 x 766 x 1168 mm (Basket Closed)
           Approx. 105 kg
  • Main Unit + Roll Unit + Stand + High Capacity Stacker
           1390 x 1188 x 1168 mm       (Stacker Open)
           1390 x 1122 x 1168 mm       (Stacker Closed)
           Approx. 136 kg
Packaged Dimensions W x D x H) / Weight
  • Main Unit + Stand + Pallet
           1606 x 903 x 1061 mm
           Approx. 153 kg
  • High Capacity Stacker1249 x 906 x 291 mm
           Approx. 24 kg
  • Roll Unit1524 x 562 x 461 mm
           ​Approx. 26 kg
Power & Operating Requirements
Power Supply: AC 100 - 240 V,  50 - 60 Hz
Power Consumption
  • Operation:105 W or less
  • Sleep Mode:3.6 W or less
  • Power Off (Standby):0.3 W or less
Operating Environment
  • Temperature:15 - 30°C
  • Humidity:10 - 80 % (no dew condensation)
Acoustic Noise Level (Approx.)
  • Power:Operation: 6.9 dB or less
  • Pressure:
           Operation: 51 dB (A) or less
           ​Standby: 35 dB (A) or less
