Low Price A1 Plotter Printer With A4 Scanner

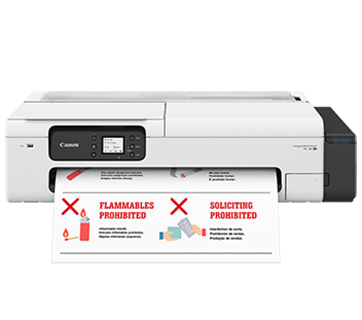

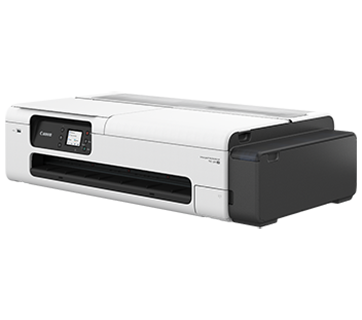

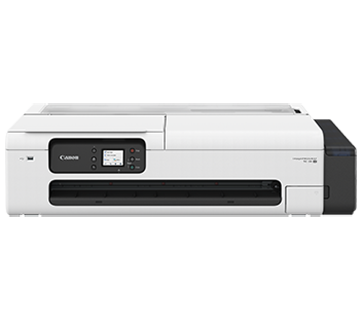

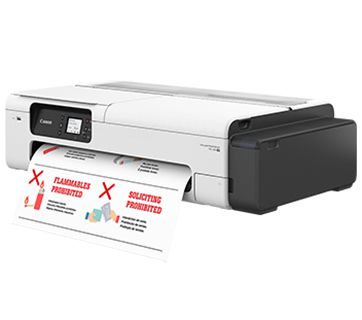

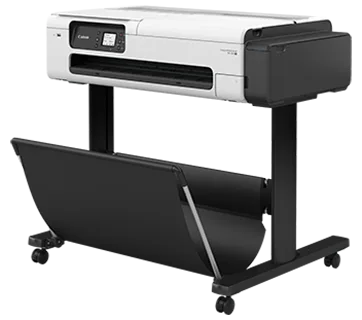

Canon imagePROGRAF TC-20M



TC-20M, 24 inch desktop large format printer with A4 flatbed scanner supports copy/scan/print capabilities.The TC-20M, a 24 inch desktop large format printer with an A4 flatbed scanner, allows for duplicate, scan, and print functions. the ability to print and scan without a computer. creates high-quality drawings and poster prints for hybrid workplaces; includes roll support and a standard built-in auto sheet feeder.
​
  • All-in-One desktop printer for Copy/Scan/Print
  • Suitable for CAD & poster printing
  • 4-colour pigment ink
  • Supports free poster & print submission applications.
  • Specification
  • Brochure
  • Video
Printer
Printer Type: 4-Colour 24" (610 mm)

Number of Nozzles: 4,352 nozzles (BK 1,280 nozzles, C,M,Y: 1,024 nozzles each)

Max. Print Resolution: 2,400 × 1,200 dpi

Nozzle Pitch: 1,200 dpi (2 lines)

Line Accuracy ± 0.1% or less

Minimum Ink Droplet Size: 5 pl

Ink Capacity
  • Sales Ink: 70 ml (BK, C, M, Y)
  • Bundled Starter Ink: 70 ml (BK, C, M, Y)

Ink Type: Pigment Ink

Printer Language
  • SG Raster (Swift Graphic Raster)
  • PDF
  • USB Memory [Direct Print]
  • PDF files created using the ScanToPDF function of the application
  • PDF files created with MPNavigator, My Image Garden, or IJ Scan Utility
  • JPEG*2 | Supported Exif ver2.2/2.21/2.3

Printing Solutions: Canon PRINT Inkjet/SELPHY (iOS/Android), Canon Print Service (Android), Free Layout plus, PosterArtist, Direct Print Plus, PIXUS/PIXMA Cloud Link, Apple AirPrint, Mopria, ChromeOS

Management Solutions
Media Configuration Tool, Quick Utility Toolbox, Wi-Fi Connection Assistant, Printer Update Utility

Standard Interfaces (Built-in)
  • USB A Port
             USB Memory (Direct Print) | PDF*3 / JPEG (Exif ver2.2/2.21/2.3)
  • USB B Port (Series B, 4 pins)
             Hi-Speed USB
             Full Speed (12 Mbit/sec)
             High Speed (480 Mbit/sec)
​             Bulk Transfer
  • IEEE 802.3 10base-T
             IEEE 802.3u 100base-TX
             SNMP, HTTP, TCP/IP (IPv4/IPv6)
  • Wireless LAN :
​              IEEE802.11b/g/n
              WPA-PSK (TKIP/AES）
              WPA2-PSK (TKIP/AES）
              WPA3-SAE (AES)
              WPA-EAP (AES)*4
              WPA2-EAP (AES)*4
              WPA3-EAP (AES)*4

Memory (Standard): 1 GB
Print Speed
Plain Paper (CAD Drawing)
  • 32 sec (Draft) (Monochrome)​
Scanner
Scanner Type
  • Flatbed (CIS Scanner)

Optical Resolution (dpi)*6
  • 1,200 x 2,400 dpi

Greyscale: 16 bit / 8 bit

Colour
  • RGB 16 bit / 8 bit

Greyscale / Monochrome
  • 1.5 ms/line (300 dpi)

Colour: 3.5 ms/line (300 dpi)

Maximum Document Size: A4/LTR (216 x 297 mm)
Media Handling
Roll Paper
  • One Roll, Top Load, Front Output

Cut Sheet
  • Top Load, Front Output*7

Media Width (Roll / Cut Sheet)
  • Roll Width: 297 ~ 610 mm (A3 width to 24")
  • Cut Sheet Width: 210 ~ 297 mm (A3, A4, Letter)

Media Thickness (Roll / Cut Sheet)
  • 0.08 ～ 0.28 mm

Media Core Size
  • 2 inch core

Min. Printable Length
  • Roll Paper : 203.2 mm
  • Cut Sheet : 203.2 mm

Max. Printable Length
  • Roll Paper : 4 m*8
  • Cut Sheet : 432 mm
  • Maximum Outer Roll Diameter : 110 mm or less
  • Borderless Printing Width : NA
  • Margins (Recommended Area) :
         Roll Paper : Top/Bottom: 5 mm, Left/Right: 5 mm*9
         Media Feed and Output

Roll Paper
One Roll, Top Load, Front Output

Cut Sheet
Top Load, Front Output*7

Media Width (Roll / Cut Sheet)
Roll Width: 297 ~ 610 mm (A3 width to 24");
Cut Sheet Width: 210 ~ 297 mm (A3, A4, Letter)

Media Thickness (Roll / Cut Sheet)
0.08 ～ 0.28 mm

Media Core Size
2 inch core

Min. Printable Length

Roll Paper
203.2 mm

Cut Sheet
203.2 mm

Max. Printable Length

Roll Paper
4 m*8

Cut Sheet
432 mm

Maximum Outer Roll Diameter
110 mm or less

Borderless Printing Width
NA

Margins (Recommended Area)

Roll Paper
Top/Bottom: 5 mm, Left/Right: 5 mm*9

Cut Sheet
Top/Bottom: 5 mm, Left/Right: 5 mm*9

Margins (Printable Area)

i) Roll Paper :
Top/Bottom: 5 mm, Left/Right: 5 mm*9
​
ii)Cut Sheet :
Top/Bottom: 5 mm, Left/Right: 5 mm*9
Dimensions & Weight
  • Dimensions (W x D x H)

Main Unit :
  • 968 × 545 × 395 mm (Auto Sheet Feeder Opened)
  • 968 × 525 × 245 mm (Auto Sheet Feeder Closed)

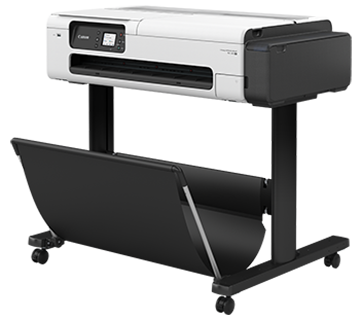

Main Unit + Printer Stand + Basket (SD-24)
  • 968 × 870 × 874 mm (Basket Opened)
  • 968 × 707 × 874 mm (Basket Closed)

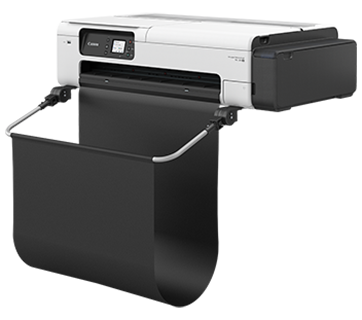

Main Unit + Desktop Basket (BU-06)
  • 968 × 825 × 965*10 mm (Basket Opened)
  • 968 × 525 × 965*10 mm (Basket Closed)

Weight*11

Main Unit
  • 33 kg

Main Unit + Printer Stand + Basket (SD-24)
  • 42 kg

Main Unit + Desktop Basket (BU-06)
  • 34 kg

Packaged Dimensions (W x D x H)

Main Unit
  • 1120 x 726 x 406 mm

Stand + Basket (SD-24)
  • 1055 x 824 x 268 mm

Desktop Basket
  • 798 x 301 x 111 mm

Packaged Weight

Main Unit
  • 45 kg

Stand + Basket (SD-24)
  • 16 kg

Desktop Basket
  • 1.8 kg
Power &Operating Requirements
Power Supply

AC 100 - 240 V, 50 - 60 Hz

Power Consumption

Copy Operation*12

26 W or less

Sleep Mode*12

1.9 W or less

Power Off

0.3 W or less

Operating Environment

Temperature

15 ～ 30°C

Humidity

10 ～ 80% RH (no dew condensation)

Acoustic Sound

Acoustic Power*13

Operation: Approx. 6.0 Bels

Acoustic Pressure*13

Operation: Approx. 41.5 dB (A)
Standby: 35 dB (A) or less​
Accessories
​Printer Stand (Optional)

SD-24

Desktop Basket

BU-06
Consumables
​Ink Bottle
  • PFI-050 (70 ml) Black / Cyan / Magenta / Yellow

Print Head
  • PF-08

Cutter Blade
  • NA

Maintenance Cartridge
  • MC-32
