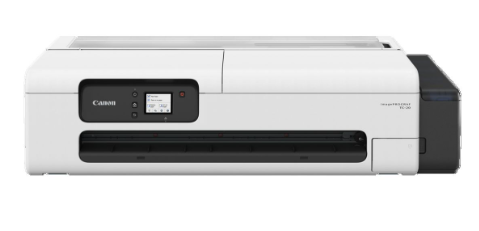

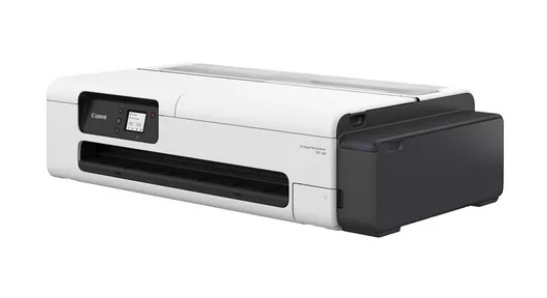

Canon imageprograf TC-20

Discover how the imagePROGRAF TC-20 can fulfil all of your printing requirements. Operate smoothly with simple paper setup and hybrid support for simple software compatibility switching between the office and home. Use a portable, EPEAT Gold1-rated device to quickly and conveniently print colourful, high-quality materials from small businesses, retail establishments, schools, or even your home office.

  • Easily recyclable bottles with low TCO
  • Compact size: 968 x 525 x 245mm
  • 4-colour: New black, cyan, magenta and yellow pigment ink
  • Easily recyclable bottles with low TCO
  • Easy to set up roll paper, with less space needed
  • Continuous printing between roll paper and cut sheets
  • Specification
  • Brochure
  • Video
Printer Technology
  • Printer Type
    4 Colour 24"
  • Print Technology
    Canon Pigment ink 4 colours integrated type (4 chips per print head x 1 print head)
  • Print Resolution
    2,400 x 1,200 dpi
  • Number of Nozzles
    Total : 4352 nozzles  BK : 1280 nozzles  C, M, Y : 1024 nozzles each
  • Line Accuracy
    ±0.1% or less
    User adjustments necessary. Printing environment and media must match those used for the adjustments.
  • Nozzle Pitch
    1,200 dpi x 2 lines
  • Ink Capacity
    Bundled Starter Ink: 280ml (70mlx4 for BK, C, M, Y)
    Sales Ink: 70ml (BK, C, M, Y)
  • Ink Type
    Pigment inks : 4 colour  BK/C/M/Y
  • OS Compatibility
    32 Bit: Windows7, Windows 8.1, Windows 10
    64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
    Apple Macintosh: macOS 10.14.6～macOS 12,x
  • Printer Languages
    SGRaster
  • Standard Interfaces
    USB A Port: N/A
    USB B Port: Hi-Speed USB
    Ethernet: IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T)
    Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b

    *Please refer to user manual how to activate/deactivate the wireless LAN
Memory
  • Standard Memory
    1GB
    Expansion slot : No
  • Hard Drive
    N/A
Print Speed
  • CAD Drawing
    Plain paper (A1, B&W):
    0:33 (Standard)

    Plain Paper (A1, Colour):
    1:03 (Standard)
  • Poster
    Plain Paper (A1):
    1:10 (Fast)
    2:08 (Standard)

    Coated Paper (A1):
    3:10 (Fast)
    6:05 (Standard)
Media Handling
  • Media Feed and Output
    Roll Paper : One Roll, Front-loading, Front Output
    Cut Sheet : Auto sheet feeder
  • Media Width
    Roll paper : 297mm - 610mm
    Cut sheet: 210mm - 297mm
  • Media Thickness
    Roll/Cut : 0.08mm - 0.28mm
  • Minimum Printable Length
    Roll/Cut : 203.2mm
  • Maximum Printable Length
    Roll paper : 4m
    Cut sheet : 432mm
  • Maximum Media Roll Diameter
    110mm
  • Media Core Size
    Internal diameter of roll core: 2"
  • Margins Recommended Area
    Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm
    (some photo mode: Top: 30mm, Bottom: 30mm)
    Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm
  • Margins Printable Area
    Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm
    (some photo mode: Top: 30mm, Bottom: 30mm)
    Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm
  • Media Feed Capacity
    Roll Paper: One roll
    Cut Sheet: 100 sheets(A4), 50 sheets (A3)
  • Media Take-Up Roll Unit
    N/A
  • Borderless Printing Width (Roll Only)
    N/A
  • Maximum Number of Delivered Prints
    Desktop Basket (BU-06): Standard position - 1 sheet
Power & Operating Requirements
  • Power Supply
    AC 100-240V (50-60Hz)
  • Power Consumption
    Operation: 28W or less
    Sleep mode: 2.4W or less (using all ports)
    Default setting for the time to enter the Sleep mode: Approx. 5 minutes
    Power off: 0.3W or less
  • Operating Environment
    Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)
  • Acoustic Noise (Power/Pressure)
    Operation: Approx. 42.5 dB(A) (Plain paper, Standard mode, Line Drawing/Text mode)
    Standby: 35 dB(A) or less
    (Measured on ISO 7779 standard)
  • Regulations
    CE mark, UKCA mark
  • Environment Certificates
    CB certfication, EPEAT GOLD1
Dimensions and Weight
  • Physical Dimensions and Weight
    W x D x H
    Main Unit
    968 x 545 x 395 mm (ASF Opened)
    968 x 525 x 245 mm (ASF Closed)
    32 kg (exclude ink bottle, include print head)

    Main Unit + Desktop Basket (BU-06)
    968 x 825 x 965 mm (Basket Opened)
    968 x 525 x 965 mm (Basket Closed)
    33 kg (exclude ink bottle, include print head)

    Main Unit + Stand + Basket (SD-24)
    968 × 870 × 874 mm (Basket Opened)
    968 × 707 × 874 mm (Basket Closed)
    40 kg (exclude ink bottle, include print head)
  • Packaged Dimensions and Weight
    Printer (Main unit): 1120 x 726 x 406 mm, 43kg
    Desktop Basket (BU-06): 798 x 301 x 111 mm, 1.8kg
    Stand + Basket (SD-24): 1055 x 824 x 268 mm, 16kg
What's Included
  • What's in the Box?
    Printer, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, EU Biocide Sheet, LFP Eur Address Sheet, Flange protective materials sheet
  • Software Included
    Software available as Download from Web
​Options
  • Optional Items
Desktop Basket: BU-06
Printer Stand + Basket: SD-24
​Consumables
  • User Replaceable Items
Ink Tank: PFl-050 (70ml)
Print Head: PF-08
Maintenance Cartridge: MC-32
