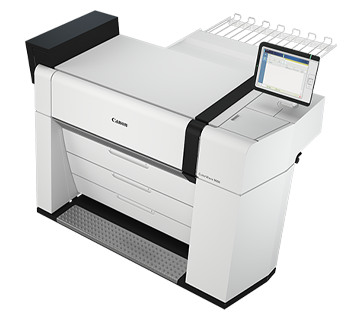

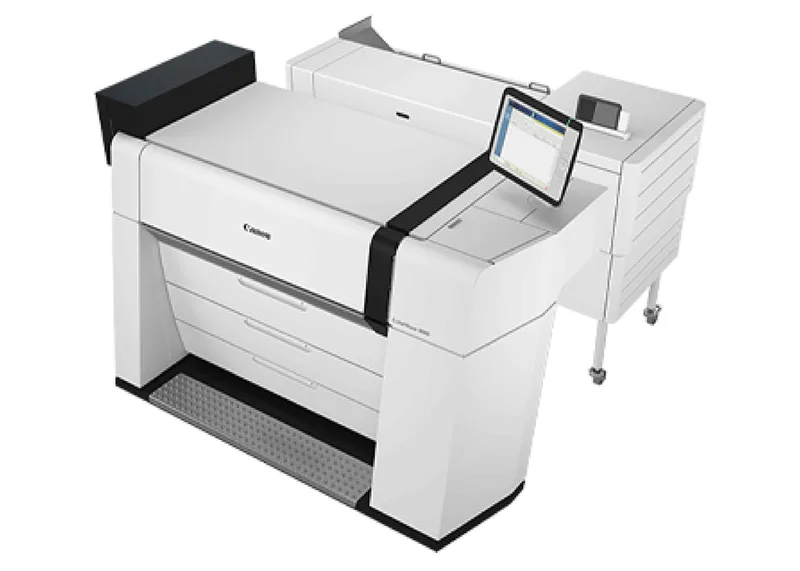

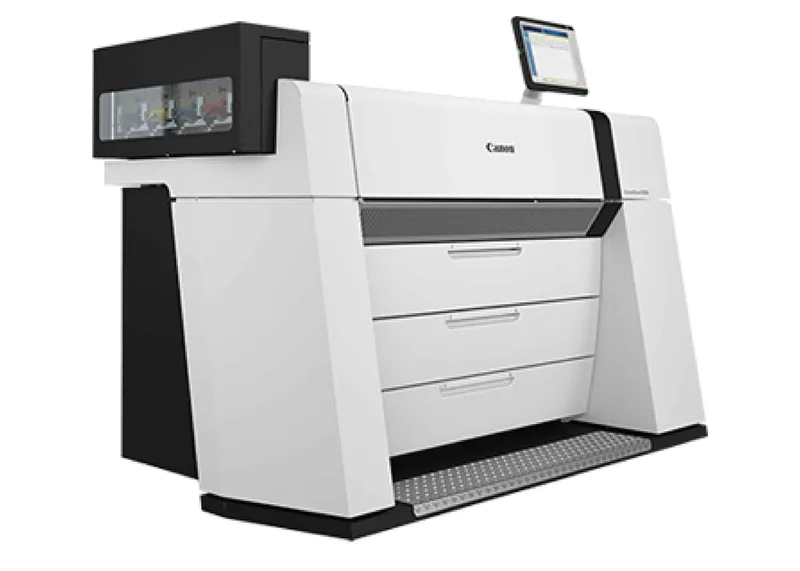

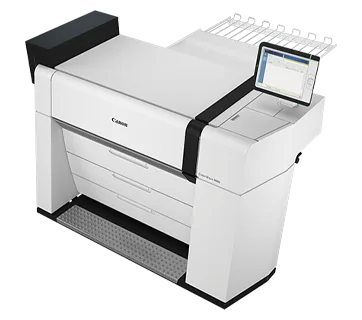

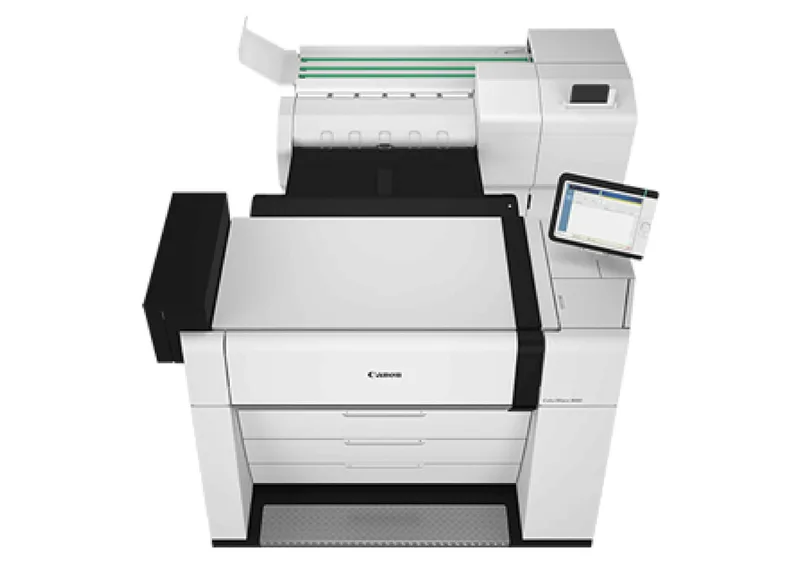

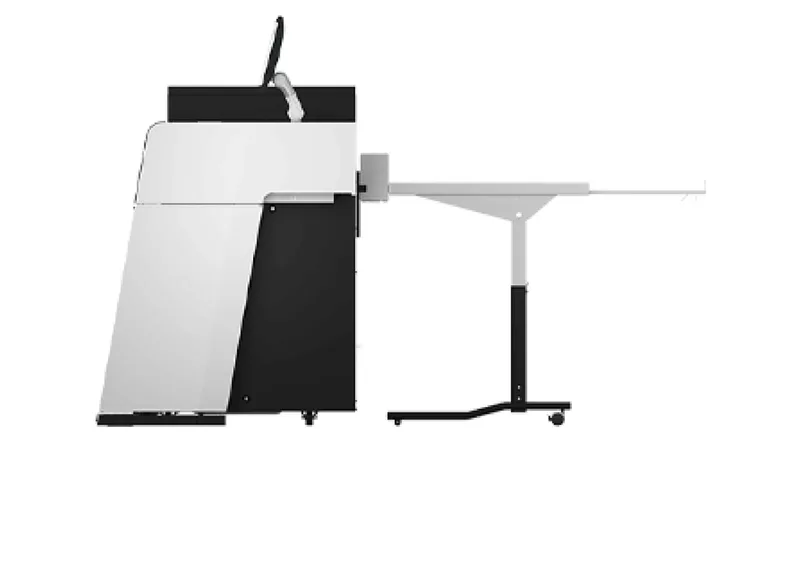

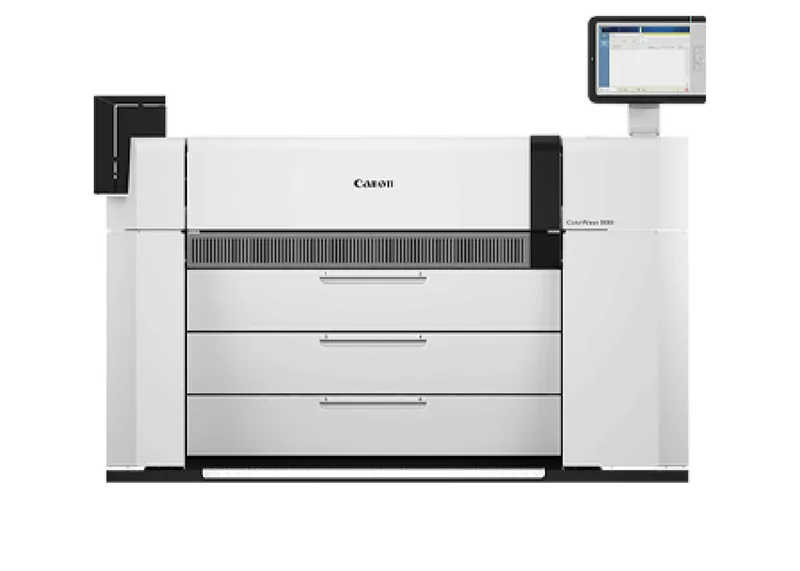

Heavy Duty A0 Colour Wide Format Printer

Canon ColorWave 9000

Canon ColorWave 9000 | Heavy Duty A0 Colour Wide Format Printer
Canon ColorWave 9000 | Heavy Duty A0 Colour Wide Format Printer
Canon ColorWave 9000 | Heavy Duty A0 Colour Wide Format Printer
Canon ColorWave 9000 | Heavy Duty A0 Colour Wide Format Printer
Canon ColorWave 9000 | Heavy Duty A0 Colour Wide Format Printer
Canon ColorWave 9000 | Heavy Duty A0 Colour Wide Format Printer
Canon ColorWave 9000 ideal for technical printing in high-pressure environments.
​
  • Single Pass Inkjet Technology
  • Four colour dye ink (C,M,Y,K)
  • Up to 700m² per hour
  • Up to 42" Media Width and 6 rolls capacity
  • True Resolution of 1,600 x 1,600 dpi
  • Excellent ink efficiency with 1.2 picoliters drop size
  • High-speed printing perfected for CAD/GIS
Single Pass
POWERsync
ClearConnect
Full-width printhead array | Print sizes up to 1067 mm / 42 inch in a single pass
Print and scan to the cloud from the desktop, mobile device, user panel, USB flash drive, or network
Open architecture enables integration with a variety of print management applications
  • Specifications
  • Brochure
  • Video
Printing
Printing Technology
  • Single Pass Technology
  • Single Pass thermal inkjet technology with one print array of 5 fixed print heads that fire millions of tiny ink droplets per second from more than 350,000 nozzles (70,400 nozzles per print head). Highly efficient 1.2 picoliter drop size.
Applications: Technical drawings, maps, short term POP/POS posters
Ink
  • ColorWave 9000 ink
  • Large gamut CMYKK aqueous dye ink. 5 ink tanks containing 2 liters per ink cartridge
Print Speed
  • Normal print mode
  • 18.3 m/min
  • 12 A0 per minute; 16 A1 per minute
Warm-Up Time: No warm up required
Print Modes
  • Normal - fine details
  • Normal - uniform areas
  • Enhanced - fine details
  • Enhanced - uniform areas
Resolution
  • Normal print mode: 1600 x 800 dpi
  • Enhanced print mode: 1600 x 1600 dpi
Minimum Line Width: 0.0635 mm; 0.0025 in
Media
Technology
  • AutoSwitching Technology: The correct roll for a print job is selected automatically based on the media type and roll width.
  • Automatic roll switching when end of roll is reached.
Media Rolls: 6 rolls standard
Media Weight: 75 - 190 g/m²
Roll Length: Up to 200 m
Roll Width: 297 - 1067 mm
Roll Diameter: Up to 180 mm
Roll Core Diameter: 3 inch cores
Max Printable Width: 1061 mm
Media Types: Uncoated paper, Surface-treated paper, Colored paper, Coated paper, Photo paper, Polypropylene, Self-adhesive Vinyl, Self-adhesive Paper, Blue Print paper
Controller
Processor: POWERsync controller, Intel® Core™ i7-4770S
Operating System: Microsoft Windows® 10 IoT Enterprise (64-bit)
Environmental and Safety
Ozone Emissions: Zero
Certifications: TüV GS, CETECOM, CE, UL, cUL, CB, FCC Class A, VCCI Class A
Optional Peripherals
Scanner Professional
Stacker Select
Folder Express 3011
Folder Professional 6011, Integrated Full Fold
Folder Professional 6013, Integrated Full Fold + Reinforcement Module
Consumables
Ink: CMYKK aqueous dye ink. 5 ink tanks containing 2 liters per ink cartridge
Find Out More About Canon ColorWave 9000
